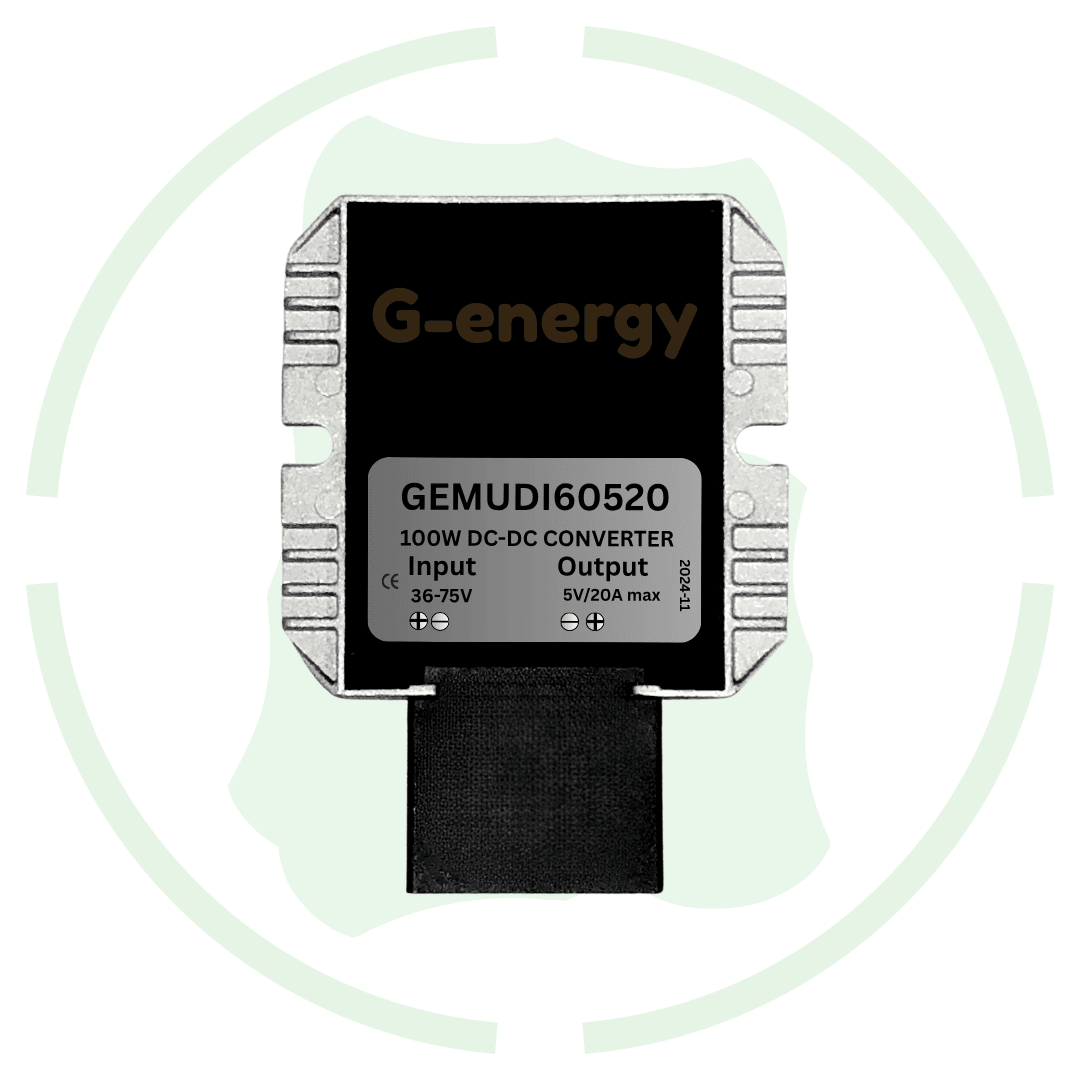

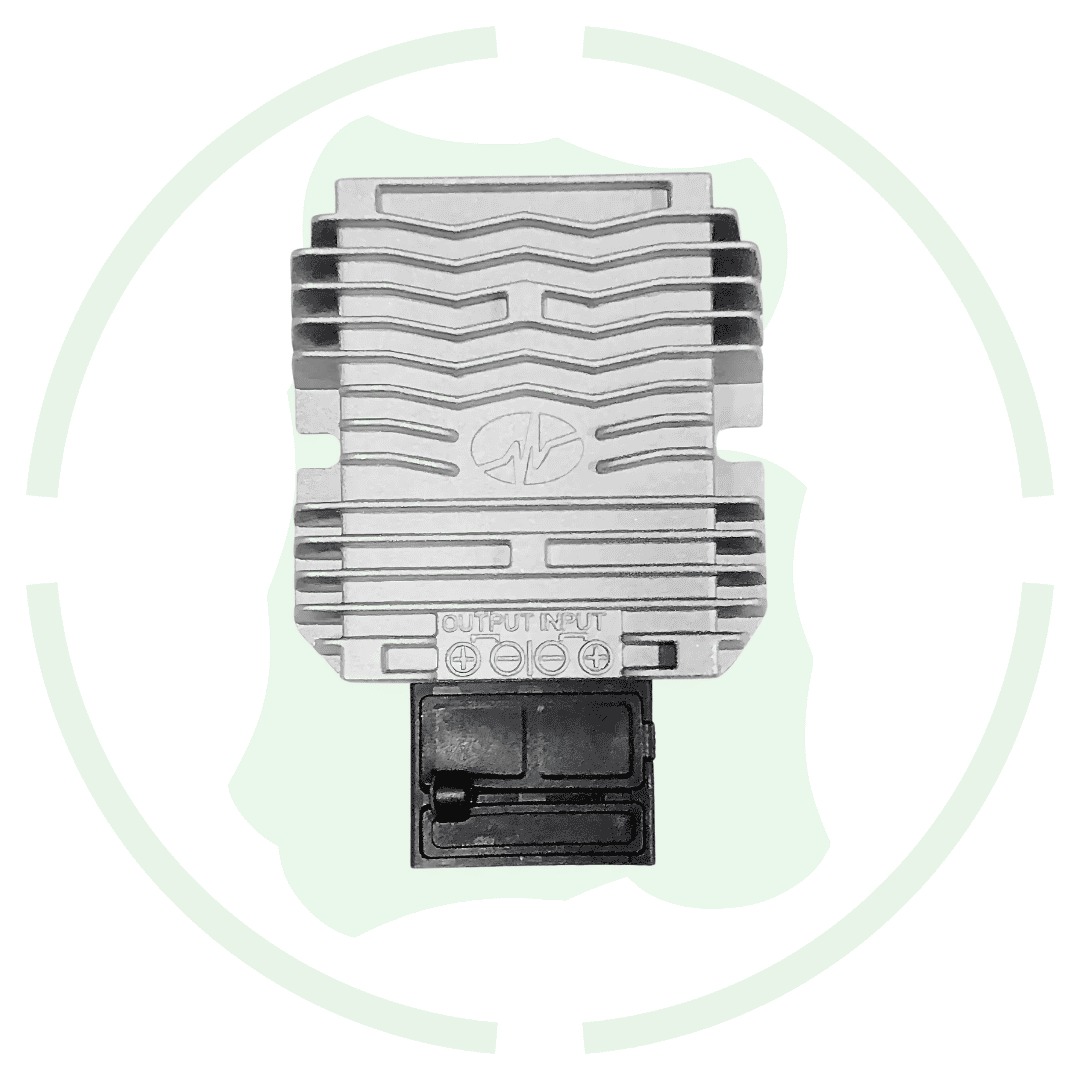

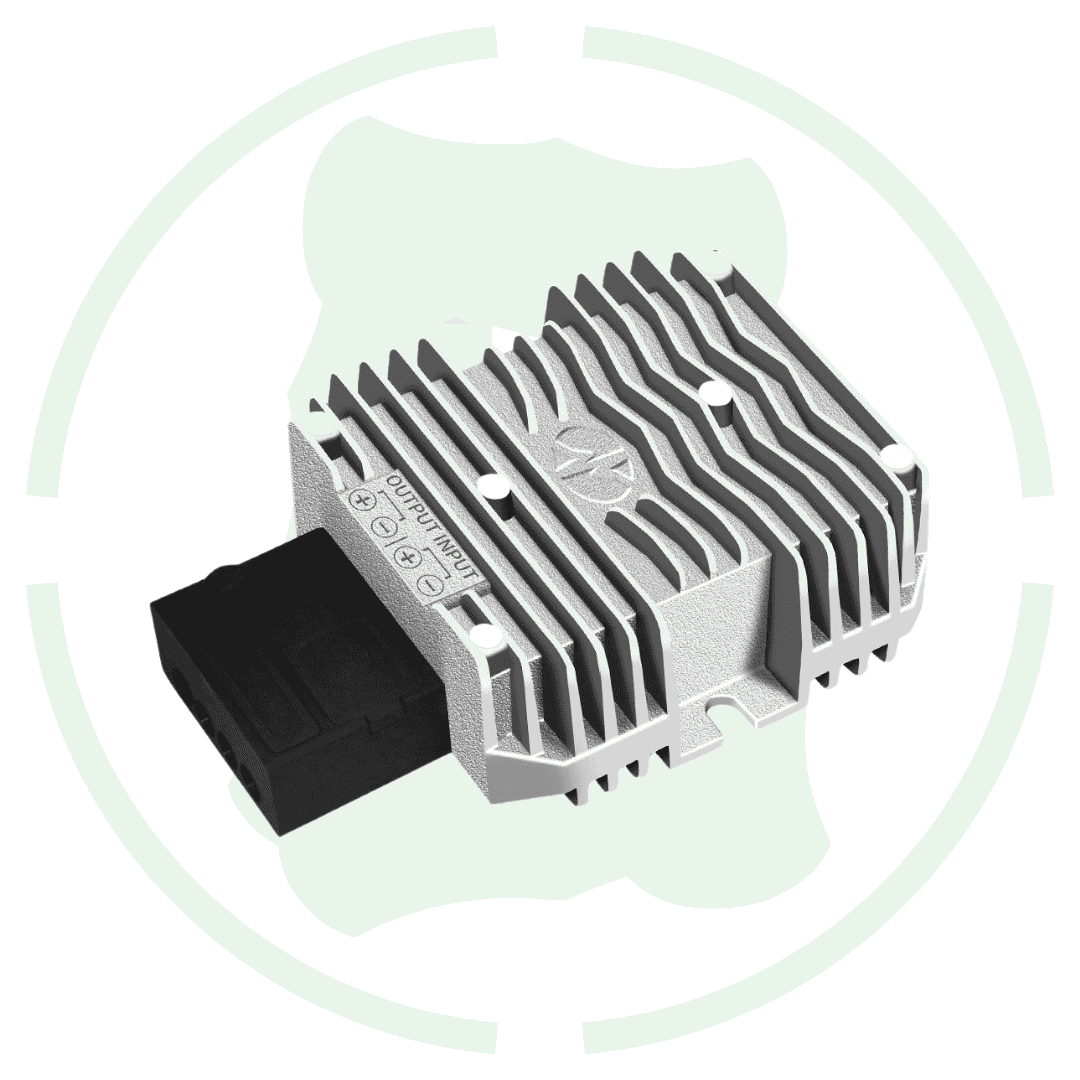

G-energy GEMSDI60520 36V-75V To 5V 20A 100W Dc To Dc Converter Isolated Buck Converter

Overview of this 36v-75v to 5v 20a 100w dc to dc converter

Introducing g-energy 36v-75v to 5v 20a 100w dc to dc converter isolated buck converter at best price in India with G-energy. This isolated buck converter is design with synchronous rectification technology that help it to enhance it conversion efficiency up to 90%. It also provide a high dc power up to 100w and maximum current up to 20a dc current.

Features

Screw terminal wire connection: This 36-75v to 5v buck converter come with screw terminal wire connection method for easy and secure wire connection.

Safety features: This dc dc converter also come with multiple safety features like over temperature protection, reverse polarity protection, over load protection and short circuit protection.

Isolated design: It also provide electric isolation between input and output terminal for converter enhance safety.

Specification

• Product Type: DC-DC Step-Down Converter

• Input Voltage Range: 36V – 75V DC

• Output Voltage: 5V DC

• Output Current: 20A

• Output Power: 100W

• Conversion Efficiency: ≥ 90%

• Isolation: Yes (Fully Isolated)

• Waterproof Rating: IP67 (Dustproof & Waterproof)

• Cooling Method: Passive Cooling (Aluminum Case)

• Operating Temperature: -40°C to +80°C

• Protection Features:

  • Overload Protection

  • Overvoltage Protection

  • Overcurrent Protection

  • Short Circuit Protection

  • Overheat Protection

• Wire Type:

  • Input: Screw terminal(+), Screw terminal (−)

  • Output: Screw terminal (+), Screw terminal (−)

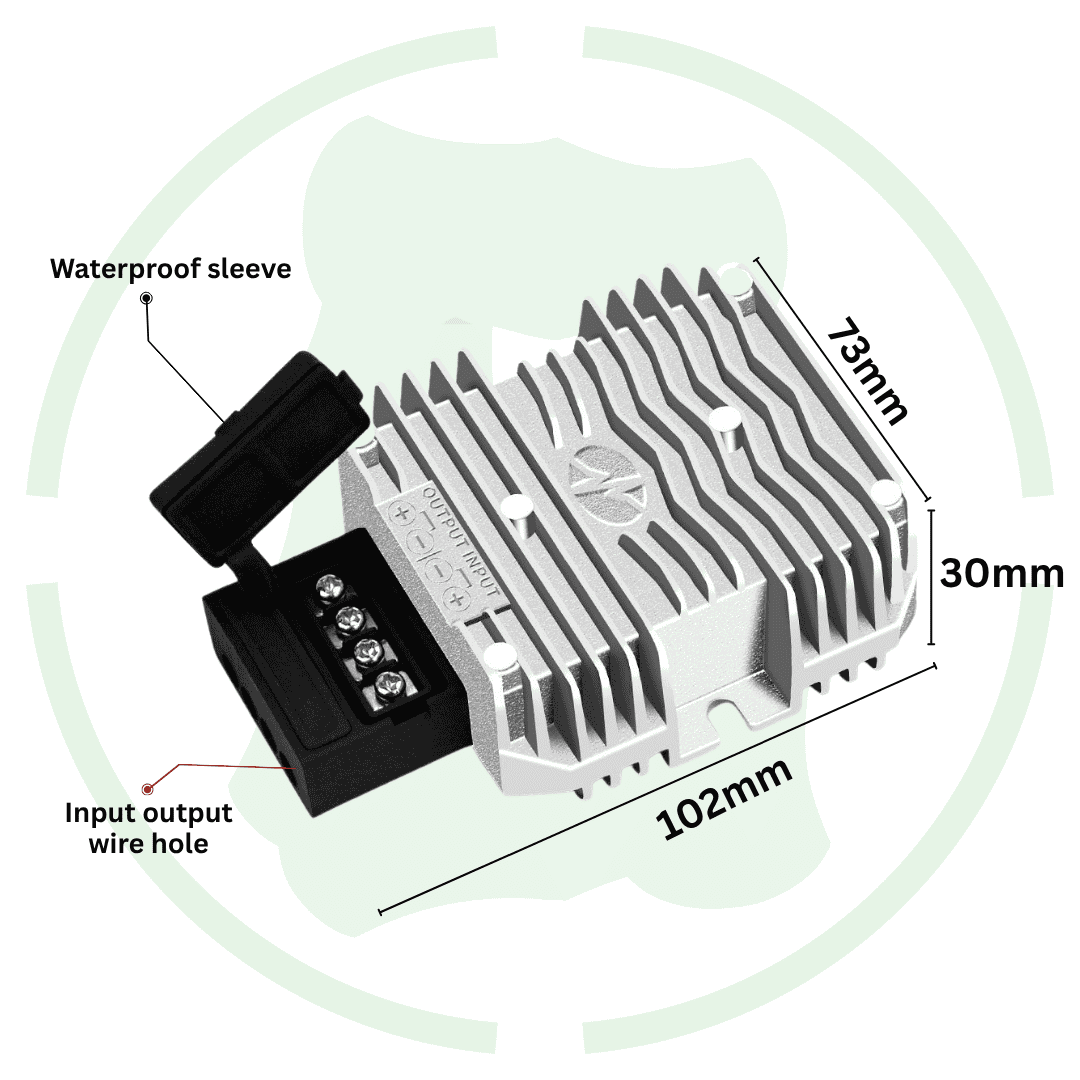

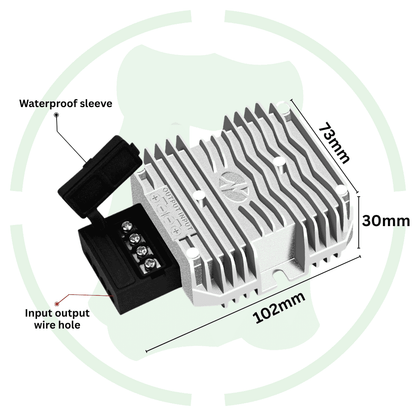

• Dimensions: Approx. 74mm × 74mm × 29.5mm

• Weight: Approx. 350g

• Mounting Method: Panel Mount (Screw Holes for Secure Installation)

Datasheet of GEMSDI60520 60v to 5v 20a dc voltage converter
