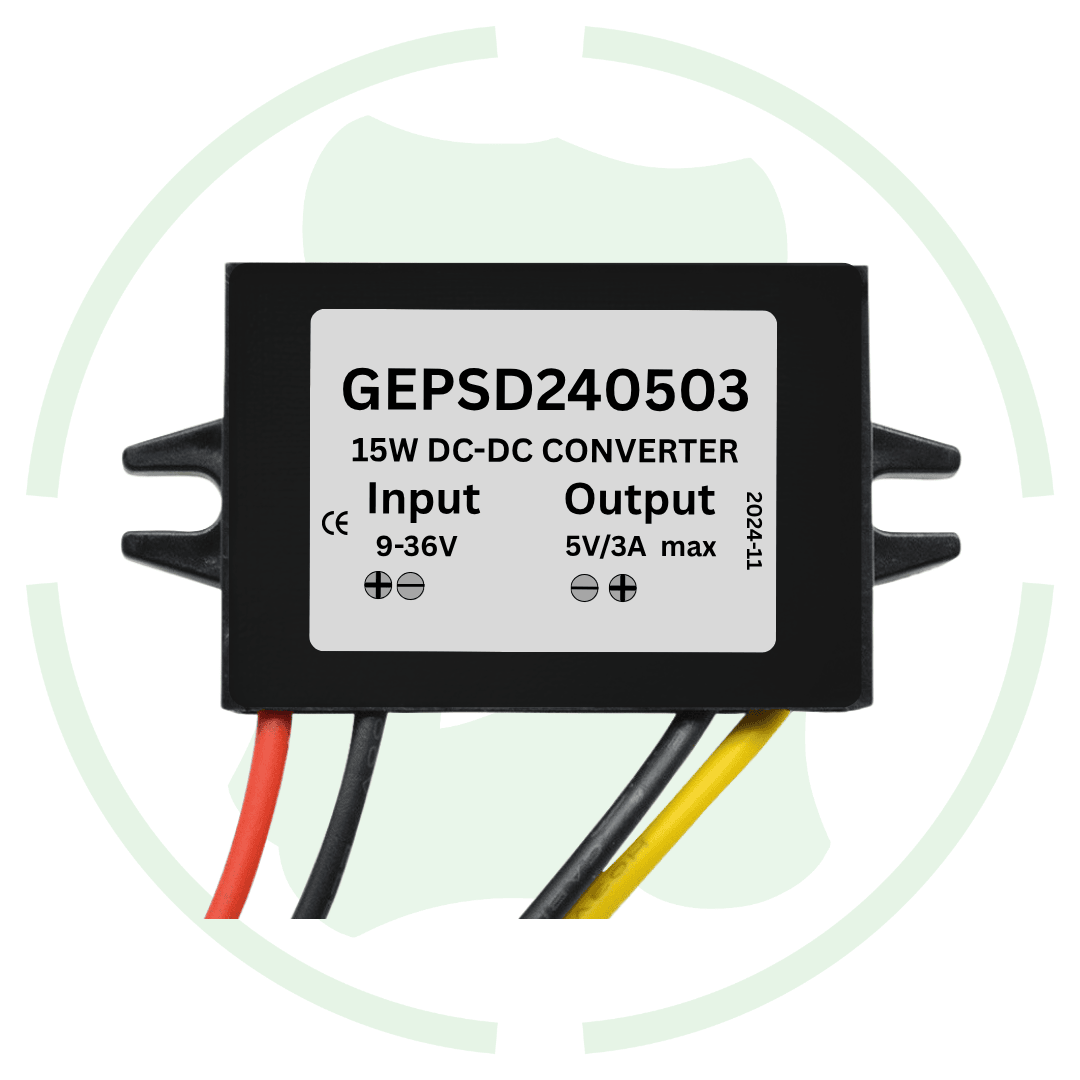

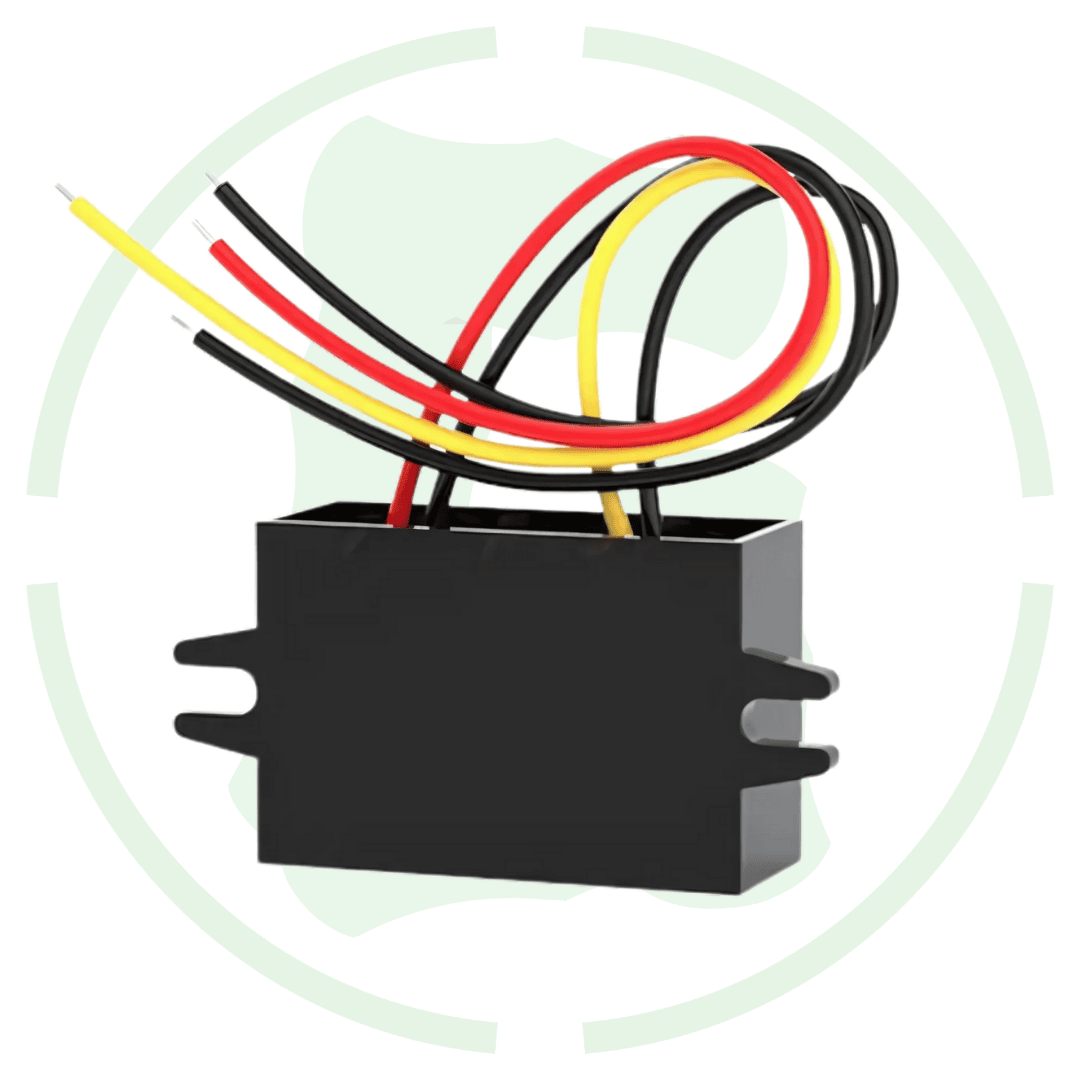

G-energy GEPSD240503 12V 24V To 5V 3A 15W Dc To Dc Converter Ip68 Buck Converter

Overview of this 12v 24v to 5v 3a 15w dc to dc converter

Introducing G-energy dc 12v-24v to 5v 3a 15w dc to dc converter ip68 plastic body buck converter at best price in India with G-energy. This voltage converter is designed with high quality abs plastic body with epoxy for its water proofing and use in rough industrial condition. And this dc voltage converter provide a fix 5v dc output voltage with max dc current up to 3a and maximum power up to 15w.

Features

Small and light weight design: It is designed with small and light weight design for its easy use at any small space industrial set ups.

Ip68 rated water proofing: This 12v 24v to 5v buck converter is designed with ip68 rated water proofing for it use in harsh wet industrial condition.

Wide input voltage range: This dc dc converter is designed to smoothly work on a wide dc input voltage range from dc 8v to dc 36v input voltage range.

Specification

• Input Voltage Range: 9V – 36V DC

• Output Voltage: 5V DC

• Output Current: 3A

• Output Power: 15W

• Conversion Efficiency: 85.4%

• Ripple: ≤50mV

• No-load Current: ≤10mA

• IP Rating: IP68 (Water proof & Dust proof)

• Protection Features:

  • Short Circuit Protection: Yes

  • Under-voltage Protection: Yes

  • Over-Load Protection: Yes

• Operating Temperature: -40°C to +80°C

• Cooling Method: Natural air cooling

• Material: Abs plastic housing

• Dimensions: 63 × 27 × 14 mm

• Weight: 40g
