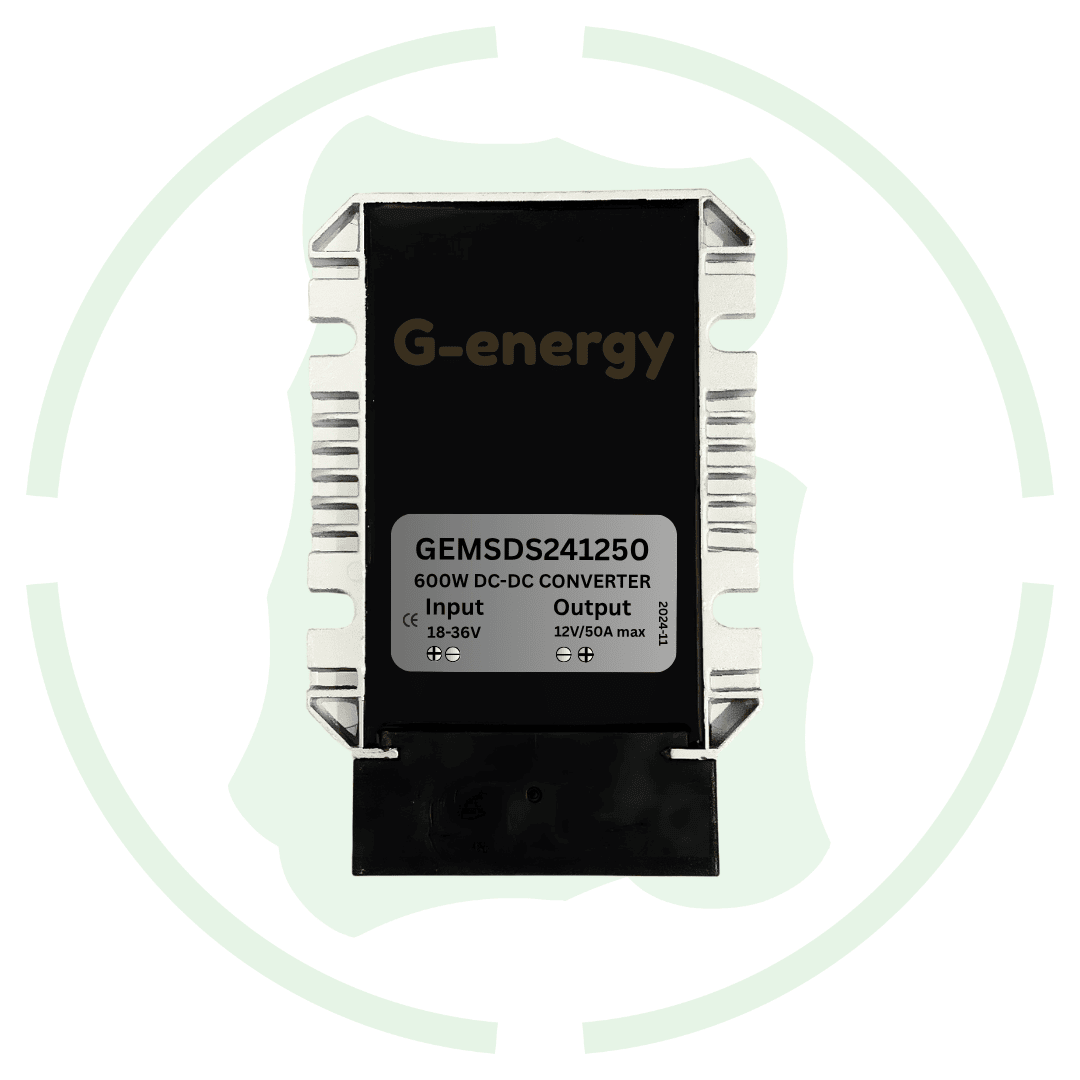

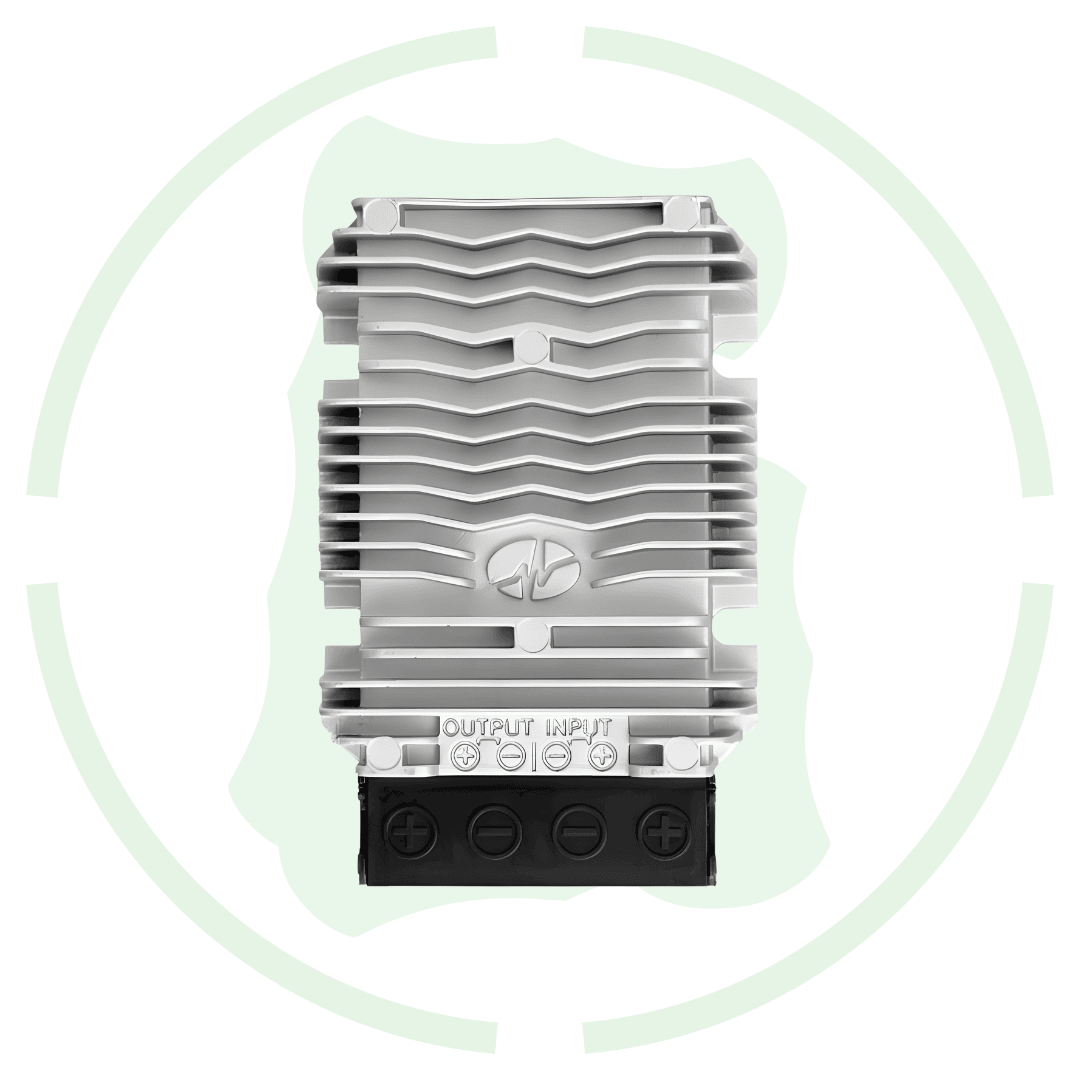

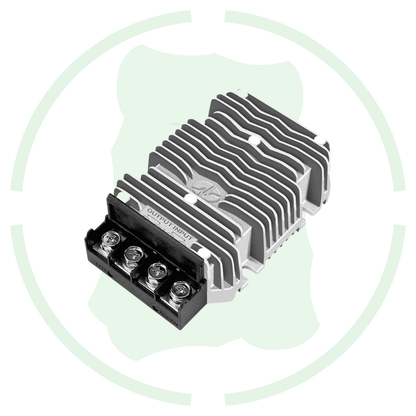

G-energy GEMSDS241250 Dc 24V To 12V 50A 600W Dc To Dc Converter

Overview of this 24v to 12v 50a 600w dc to dc converter

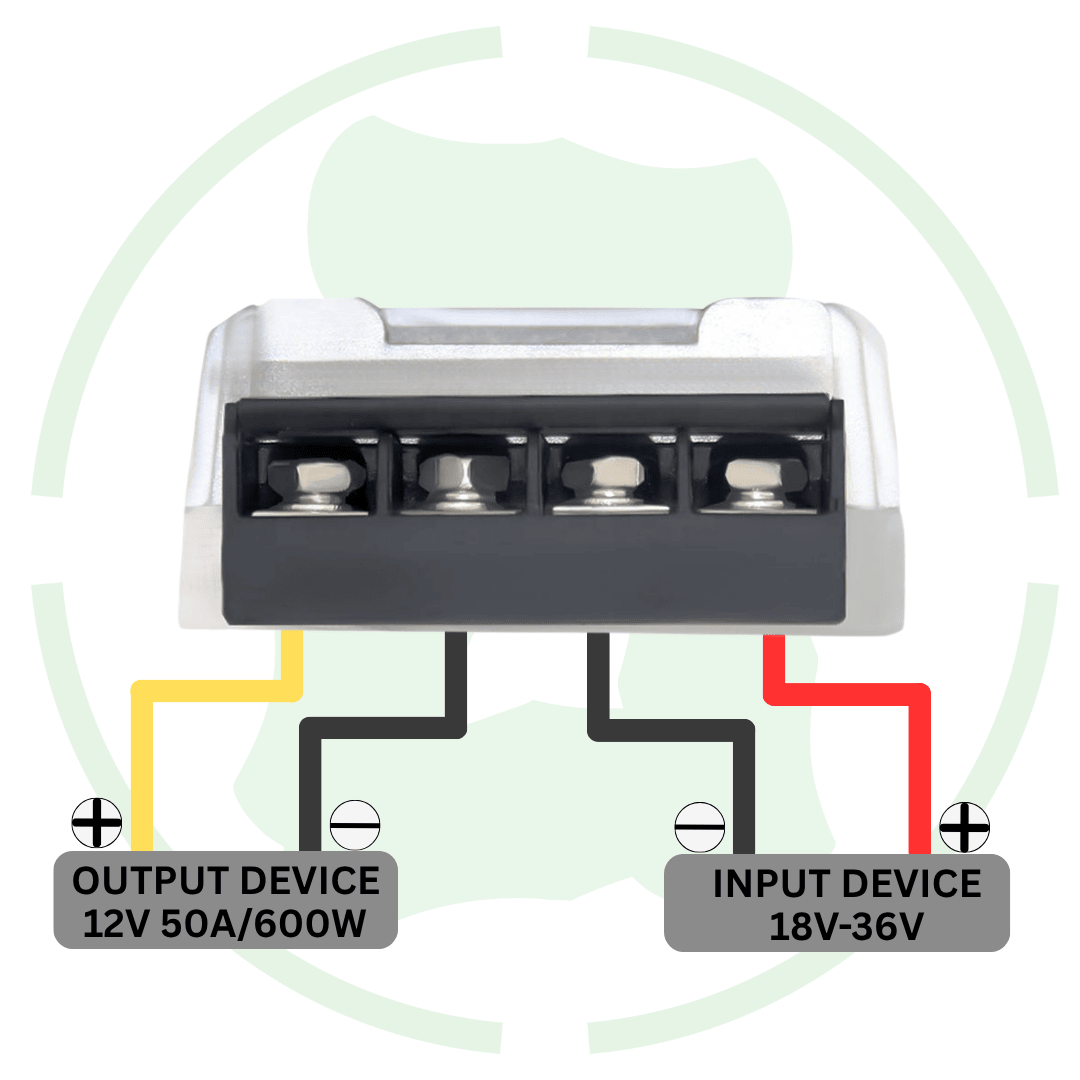

Introducing g-energy dc 24v to 12v 50a 600w dc to dc converter screw terminal industrial buck converter at best price in India with G-energy. This voltage converter work on a wide input voltage range from 18v to 36v dc input voltage range. This voltage converter also come with screw terminal wire connection method for easy and secure input and output wire connection.

Features

High quality built: This converter is designed with high quality metal built for its long life and make it usable on a harsh temperature range from -40 to 55 degree celsius.

High efficiency: This 24v to 12v buck converter is designed with synchronous rectification technology for its high conversion efficiency up to 95% energy conversion.

600W high dc power output: This dc dc buck converter is designed to provide high dc power up to 600w and maximum power up to 50a dc current.

Specification

• Input Voltage Range: 18V – 36V DC

• Output Voltage: 12V DC

• Output Current: 50A

• Power Output: 600W

• Efficiency: Up to 95%

• Operating Temperature Range: -40°C to +85°C

• Protection Features: Overcurrent, Over-temperature, Short Circuit

• Dimensions (L × W × H): 100 × 80 × 36 mm

• Weight: 595g

Datasheet of GEMSDS241250 24v to 12v 50a dc voltage converter
