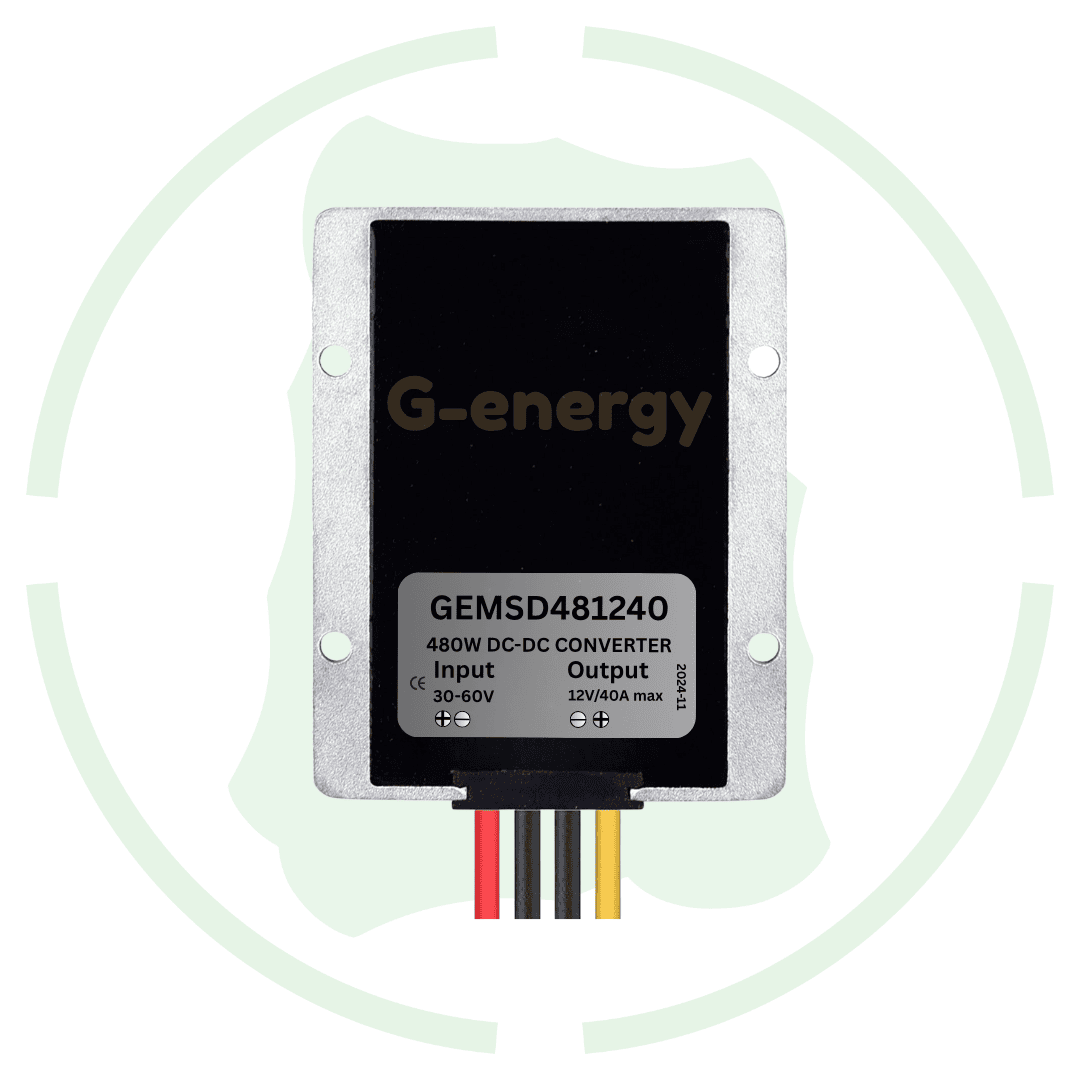

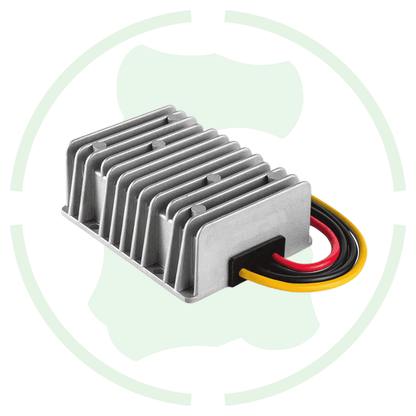

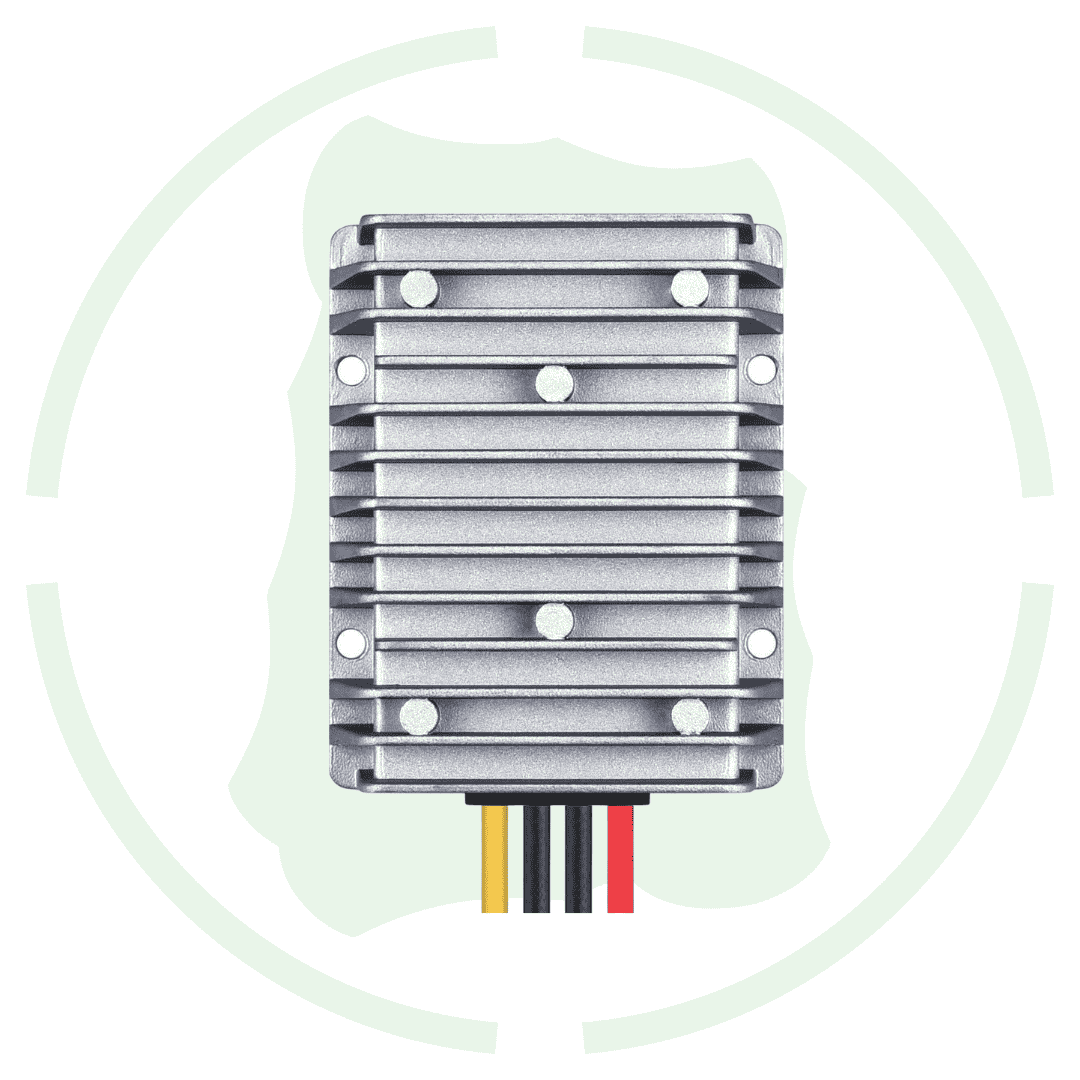

G-energy GEMSD481240 36V 48V To 12V 40A 480W Dc Dc Converter Ip68 Buck Converter

Overview of this g-energy 36v 48v to 12v 40a 480w dc dc converter

Introducing g-energy 36v 48v to 12v 40a 480w dc dc converter ip68 buck converter with metal body at best price in India with G-energy. This 48v to 12v converter is built with metal body to use it in multiple industrial setup where built quality is important. It also provide high power up to 480w to operate high power dc industrial devices.

Features

480W Power: This 48v to 12v dc dc converter provide a stable 12v dc voltage with upto 480w power and upto 40a maximum current.

Safety features: This dc dc converter is also built with multiple safety features like short circuit, under voltage and over load protection of converter and circuit long life.

Multiple use: Due to its fix 12v dc output voltage it is used at multiple device who need dc 12v input voltage.

Specification

Output Voltage: 12V DC

Input Voltage: 30V – 60V DC

Output Current: 40A

Output Power: 480W

Efficiency: ≥95% (at full load)

Conversion Type: Buck Converter (Step-down)

Output Ripple: ≤100mV

IP Rating: IP68 (Water proof and Dust proof)

Short-Circuit Protection: Yes

Over current Protection: Yes, with automatic shut-off

Under voltage Protection: Yes

Cooling Method: Passive cooling with heatsink (optional fan for higher loads)

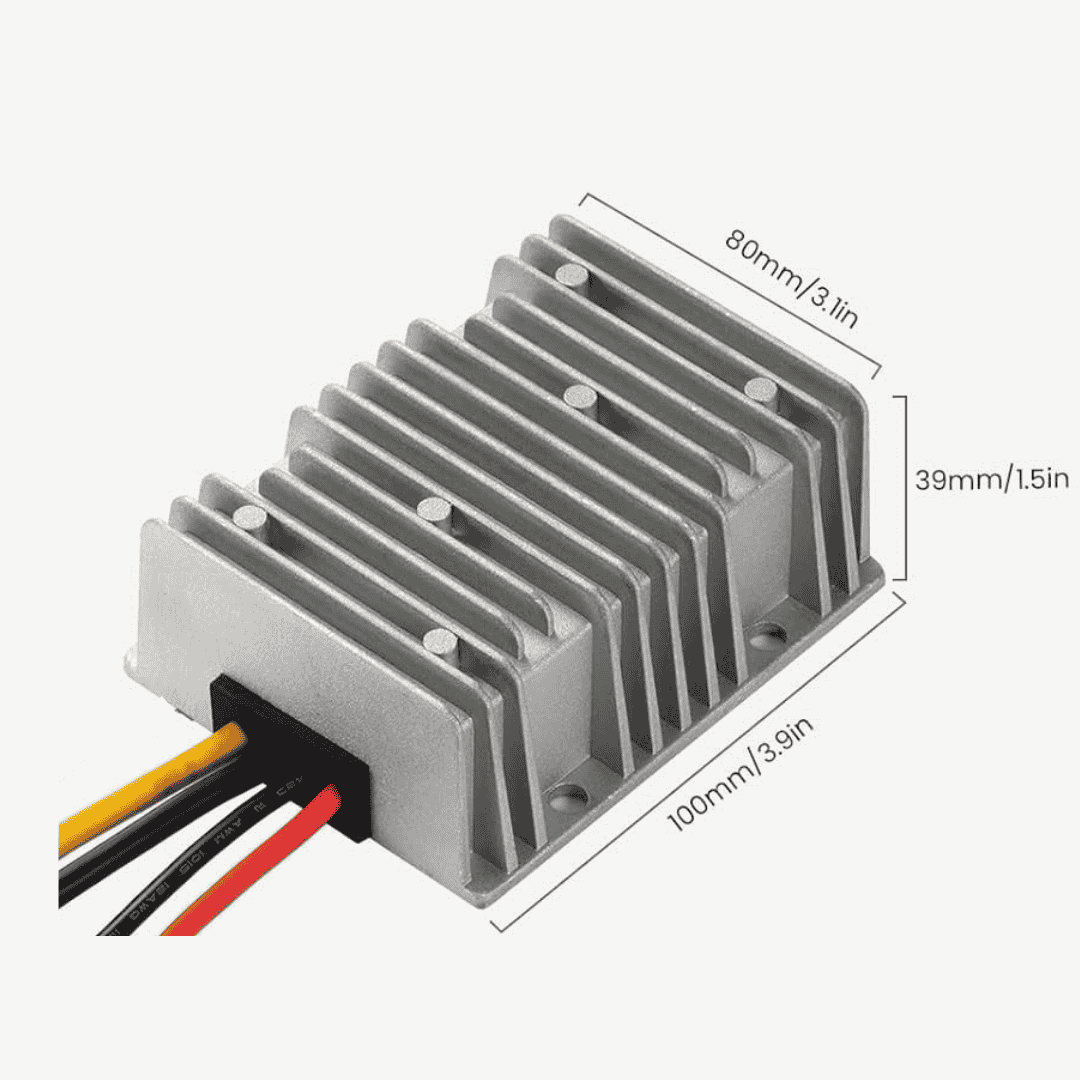

Dimensions: 100mm × 80mm × 39mm

Datasheet of this GEMSD481240 36v 48v to 12v 40a dc voltage converter
