G-energy GEPSD721201 15V-80V To 12V 1A 12W Dc To Dc Converter Ip68 Buck Converter

Overview of this 15v-80v to 12v 1a 12w dc to dc converter

Introducing g-energy 15v-80v to 12v 1a 12w dc to dc converter ip68 buck converter at best price in India with G-energy. This dc dc converter is built with high quality abs plastic with epoxy base for its water proofing and make it usable for rough and wet industrial condition. And it come with panel mount with screw terminal for easy and safe mounting.

Features

Ip68 rating: This converter is designed with ip68 rated water proof safety for converter use in wet industrial condition.

Fix 12V Output: This dc dc converter come also provide a fix 12v dc output voltage to operate any 12v industrial device.

High quality built: This dc dc converter is designed to survive harsh condition temperature range from -40 to 55 degree celsius.

Specification

• Input Voltage Range: 15V – 80V DC

• Output Voltage: 12V DC

• Max. Output Current: 2A

• Max. Output Power: 24W

• Efficiency: 90% (at Vin = 48V, Iout = 2A)

• Voltage Regulation: ±1%

• Load Regulation: ±1%

• Ripple & Noise: 22mVp-p (@ full load)

• No-load Loss: ≤1mA (at Vin = 48V)

• Working Temperature: -40°C to +55°C

• Working Humidity: 10% to 90% RH

• Storage Temperature: -40°C to +100°C

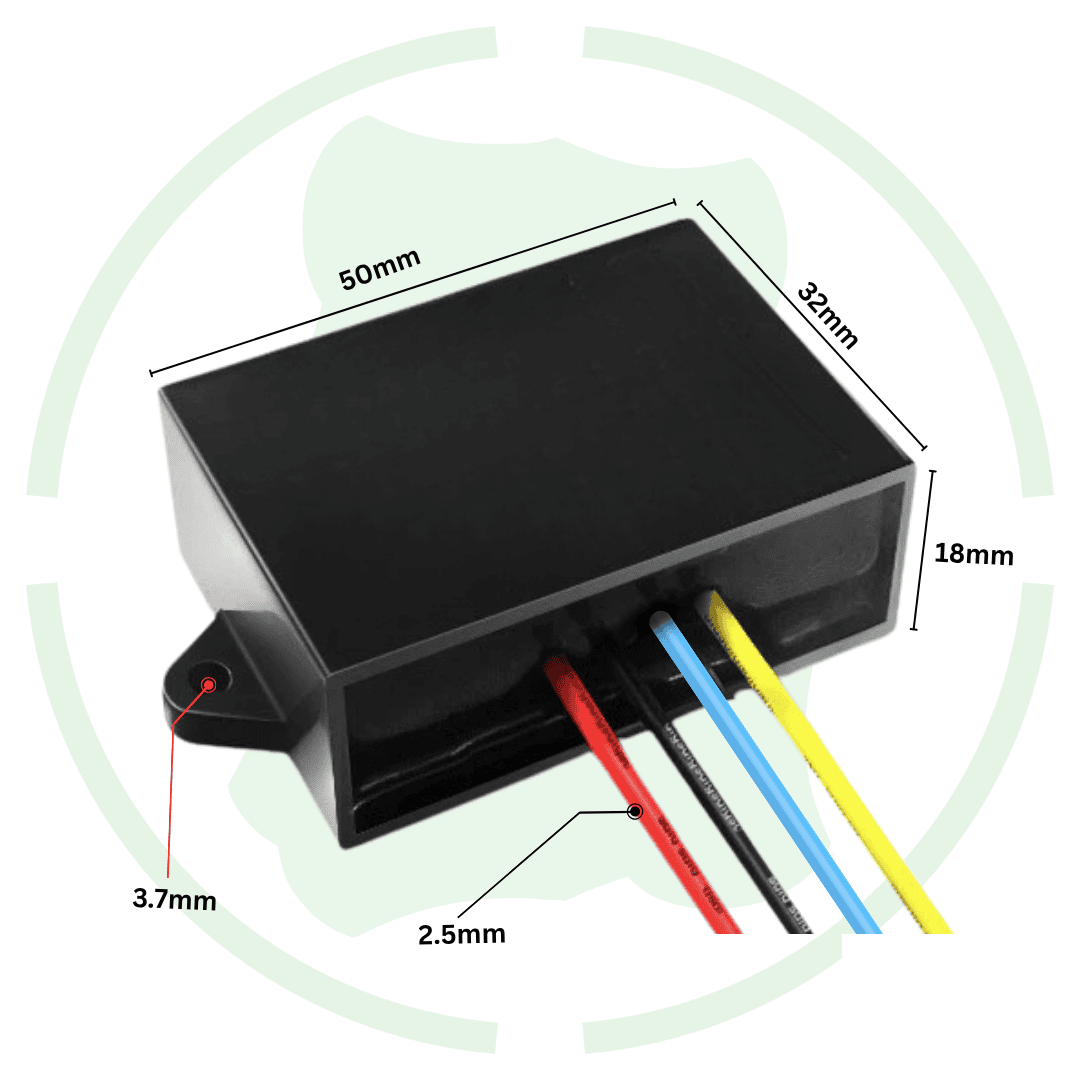

• Dimensions: 50 × 32 × 17 mm

• Weight: ≤ 48g

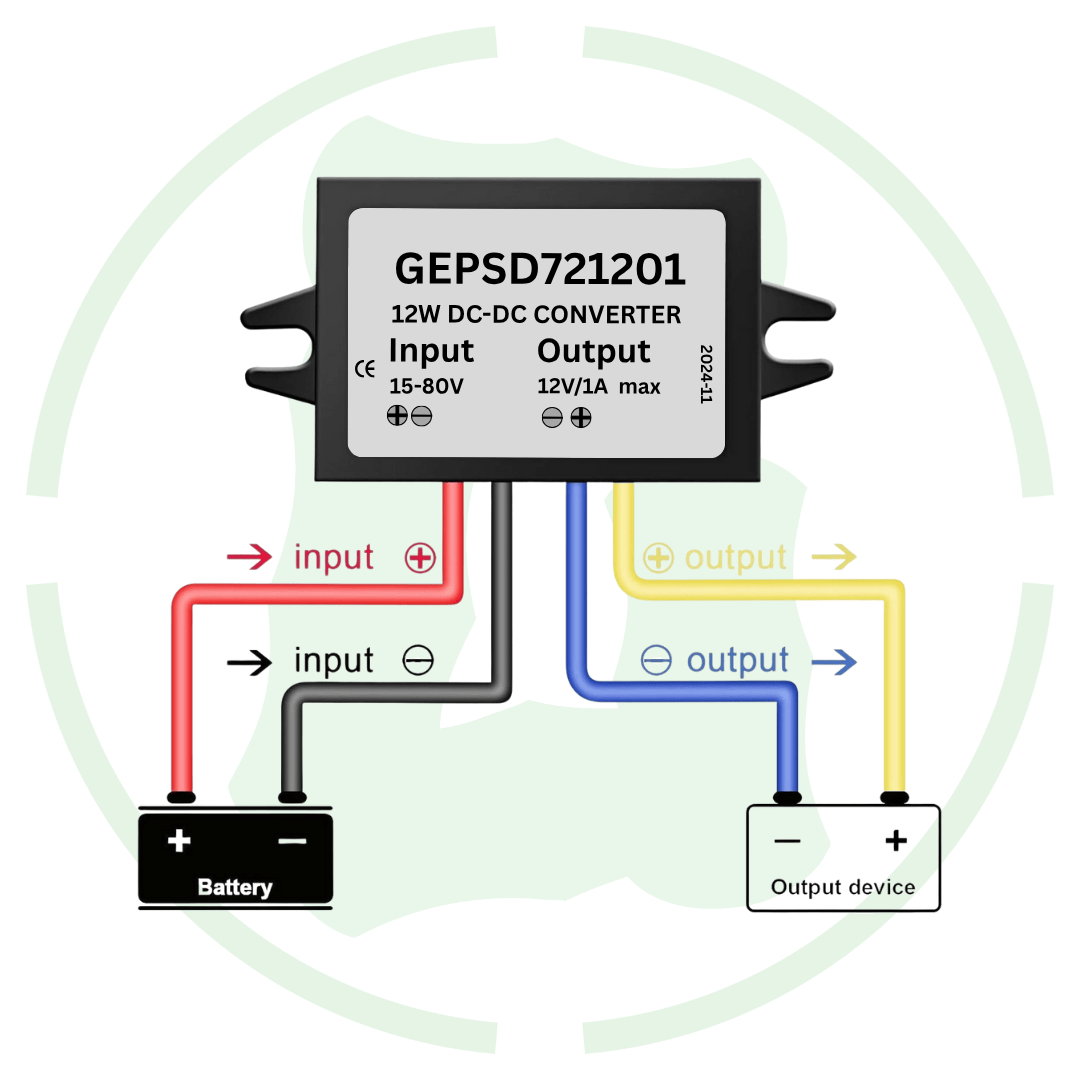

• Input Wires: 20AWG (Red +, Black -), ~16–17cm length

• Output Wires: 20AWG (Yellow +, Black -), ~16–17cm length

• Cooling Method: Passive (natural air)

• Packaging: Anti-static bag
