G-energy GEPSD721202 24V 48V 72V To 12V 2A 24W Dc To Dc Converter Ip68 Buck Converter

Overview of this 24V 48V 72V To 12V 2A 24W Dc To Dc Converter

Introducing G-energy dc 24v 48v 72v to 12v 2a 24w dc to dc converter with high quality abs plastic and ip68 water proofing at best price in India with G-energy. This 24v-72v to 12v buck converter is based on synchronous rectification technology that provide it high efficiency up to 95% conversion efficiency. It also provide multiple safety features like short circuit protection, under voltage protection and over load protection for converter and connected device safety.

Features

Safety features: It also come with multiple safety features like under voltage protection, short circuit protection, and over load protection, for converter and connected device safety.

Wide input voltage range: This dc converter work on a wide input voltage range from Dc15v to 80v for easy use at multiple input voltage source.

Fix 12v output: This dc converter smoothly work on a stable dc12v with upto 48w power output from multiple input source.

Specification

Input Voltage Range: 15V to 80V DC

Output Voltage: Fixed 12V ±2%

Output Current: 2A Maximum

Output Power: 24W Maximum

Efficiency: Up to 95%

Ripple and Noise: < 50mV (peak-to-peak)

Load Regulation: < 1%

Line Regulation: < 0.5%

Output Adjustment: Fixed 12V

Protection Features: Overload, Over-temperature, Short Circuit, Under voltage range

Output Over voltage Protection: Yes

IP Rating: IP68 (Waterproof and Dust proof)

Cooling Method: Natural convection (passive cooling)

Operating Temperature Range: -40°C to +85°C

Storage Temperature Range: -40°C to +125°C

Housing Material: Aluminum Alloy

Mounting Type: Surface Mount

Certifications: CE, RoHS

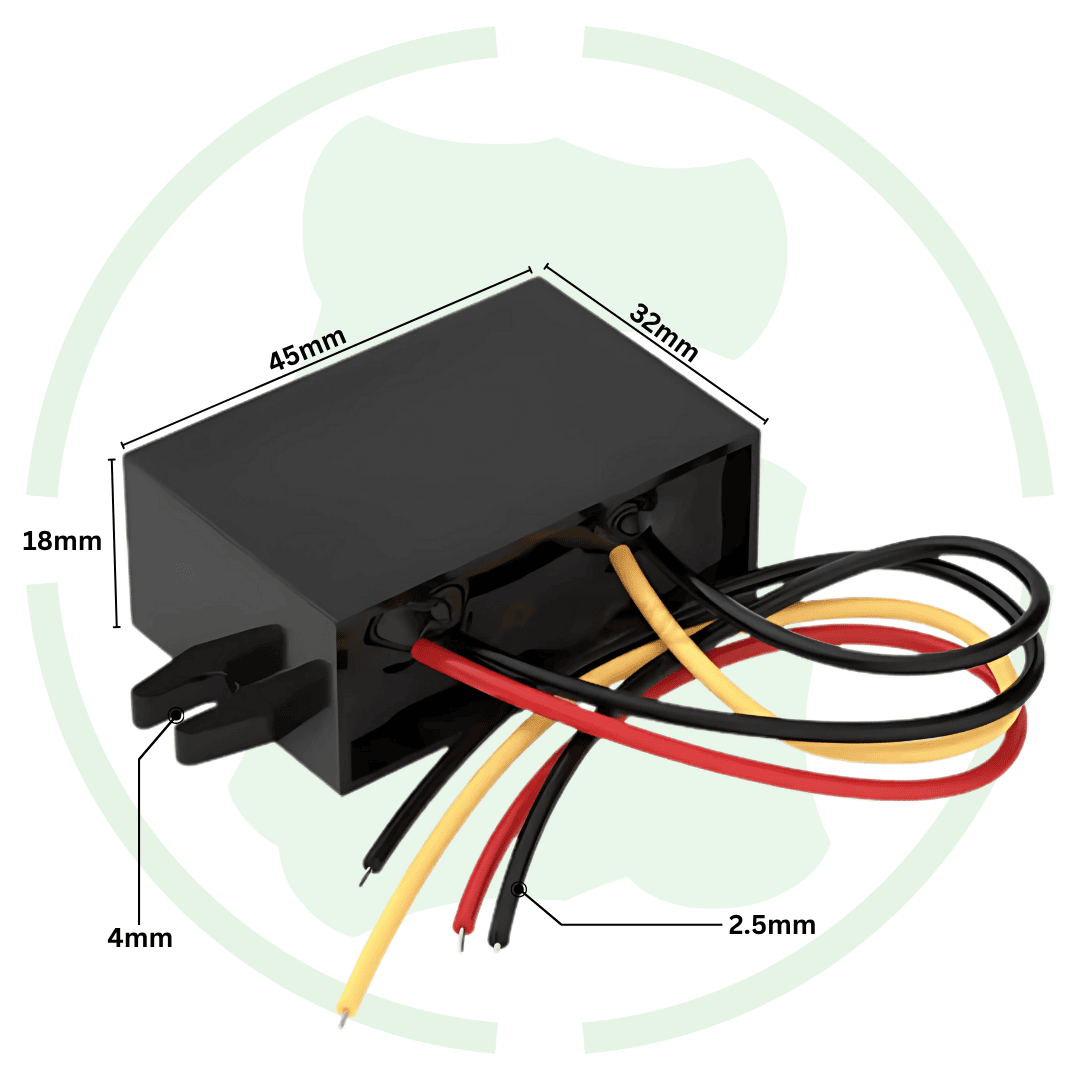

Dimensions: 45 × 32 × 18 mm

Weight: 44g
