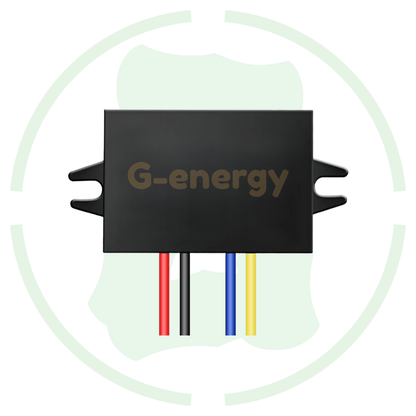

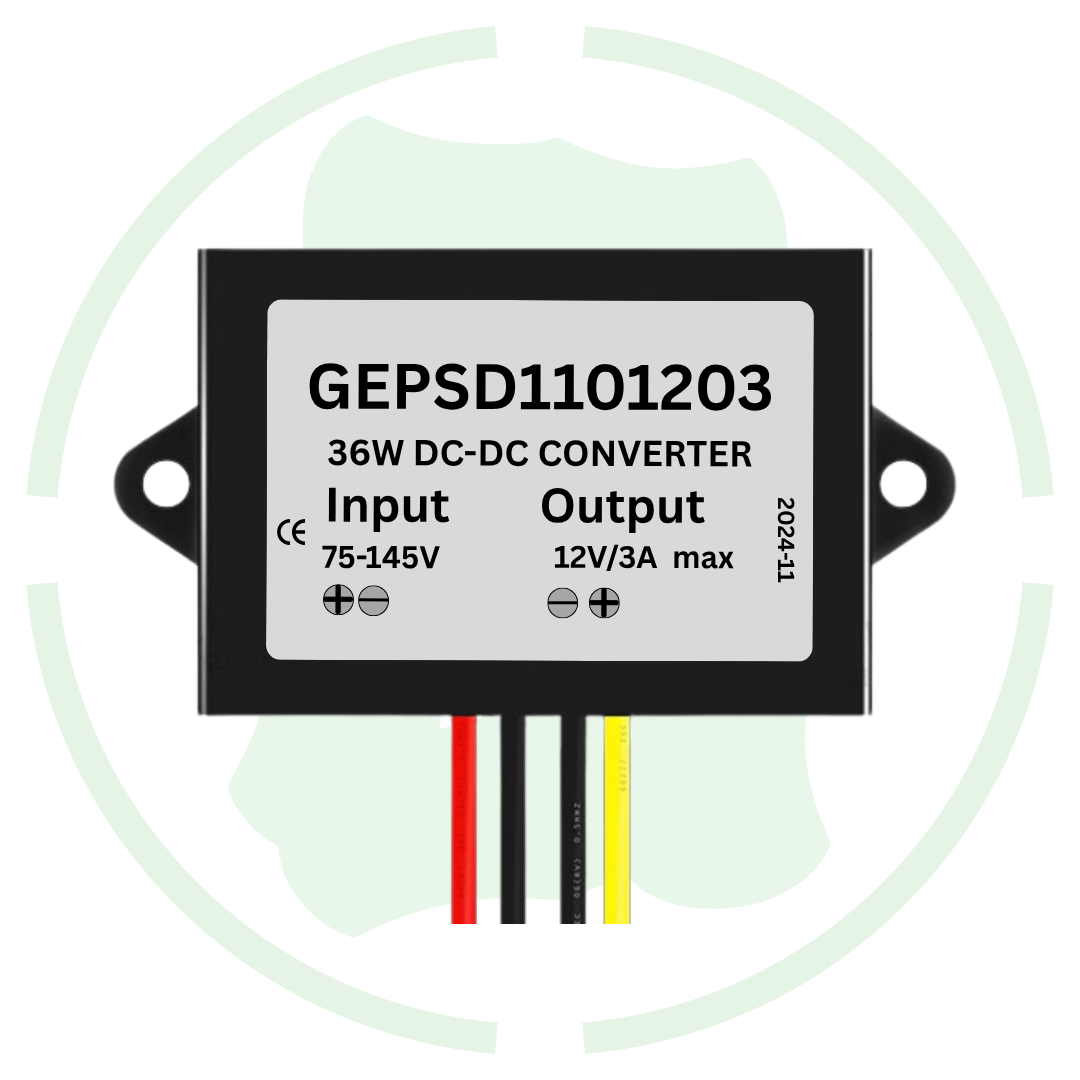

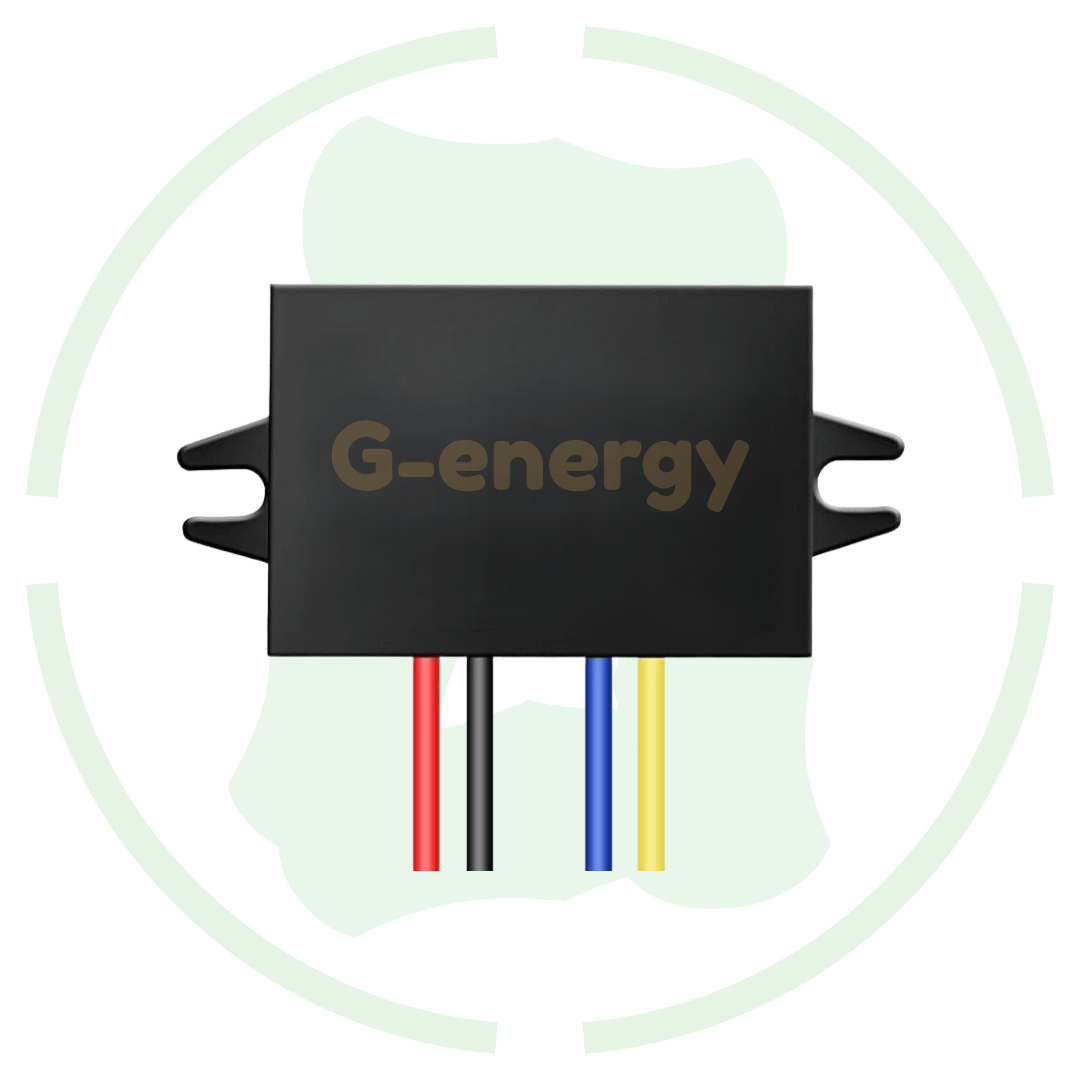

G-energy GEPSD1101203 90V 110V To 12V 3A 36W Dc To Dc Converter Ip68 Buck Converter

Overview of this 90v 110v to 12v 3a 36w dc to dc converter

Introducing g-energy dc 90v 110v to 12v 3a 36w dc to dc converter ip68 rated abs plastic body buck converter at best price in India with G-energy. This buck converter come with wide input voltage range from dc 75v to 145v input voltage range and convert it to a fix 12v output voltage. It also provide dc current up to 3a and maximum dc power up to 36w. It is also built with ip68 rated abs plastic body design for its safety from water.

Features

• Rated Input Voltage: 100V / 120V

• Input Voltage Range: 75V – 145V DC

• Output Voltage: 12V DC

• Maximum Output Current: 3A

• Maximum Output Power: 36W

• Efficiency: >88%

• Voltage Regulation: ±1%

• Load Regulation: 2%

• No-Load Loss: 16mA

• Ripple Noise: 300mV (Full Load)

🌡️ Environmental Ratings

• Operating Temperature: -40°C to +80°C

• Storage Temperature: -40°C to +100°C

• Operating Humidity: 10% – 90% RH

🛡️ Protection & Physical Details

• Short Circuit Protection: ✅

• Over current Protection: ✅

• Waterproof Rating: IP68

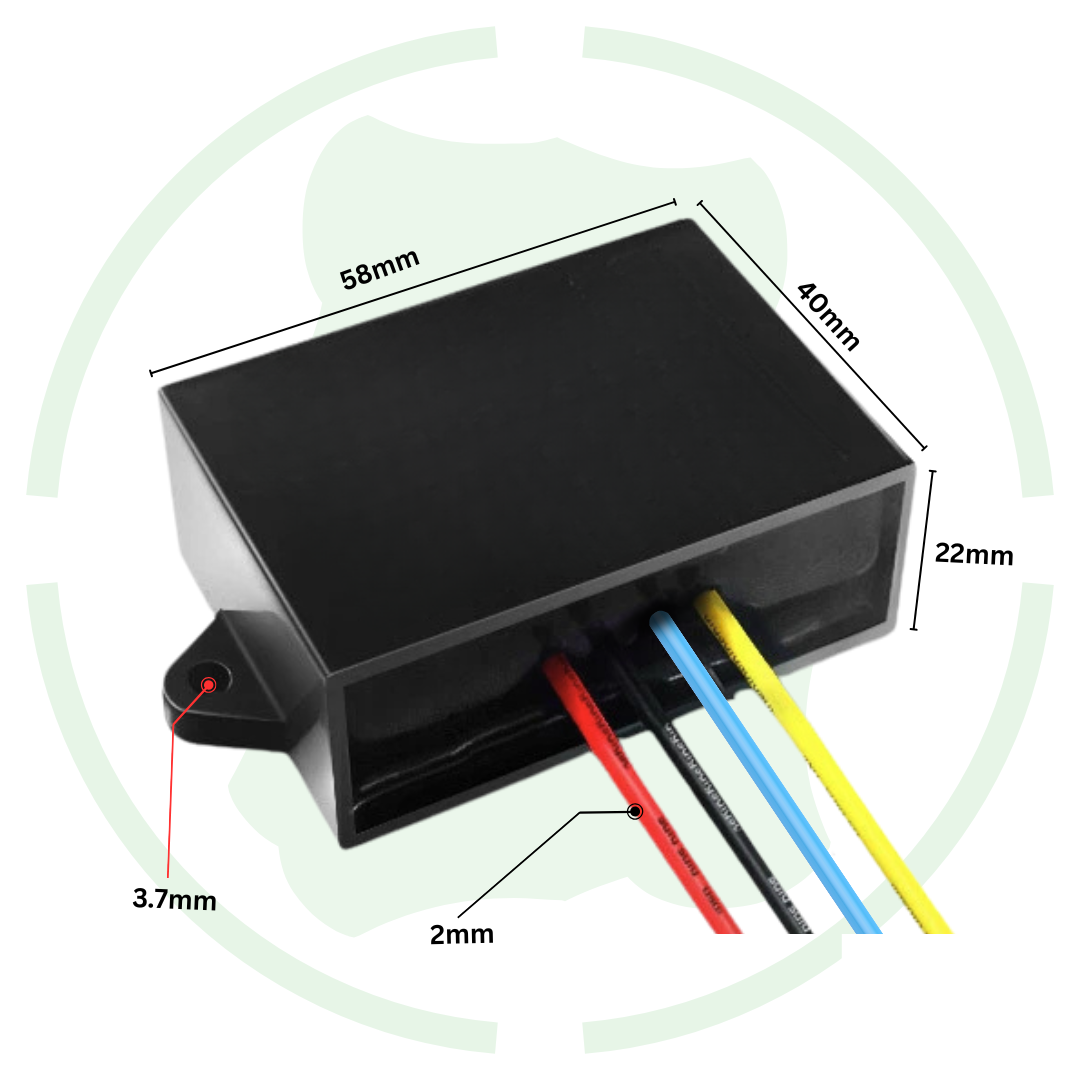

• Dimensions: 57 × 39 × 21 mm

• Weight: 80g
