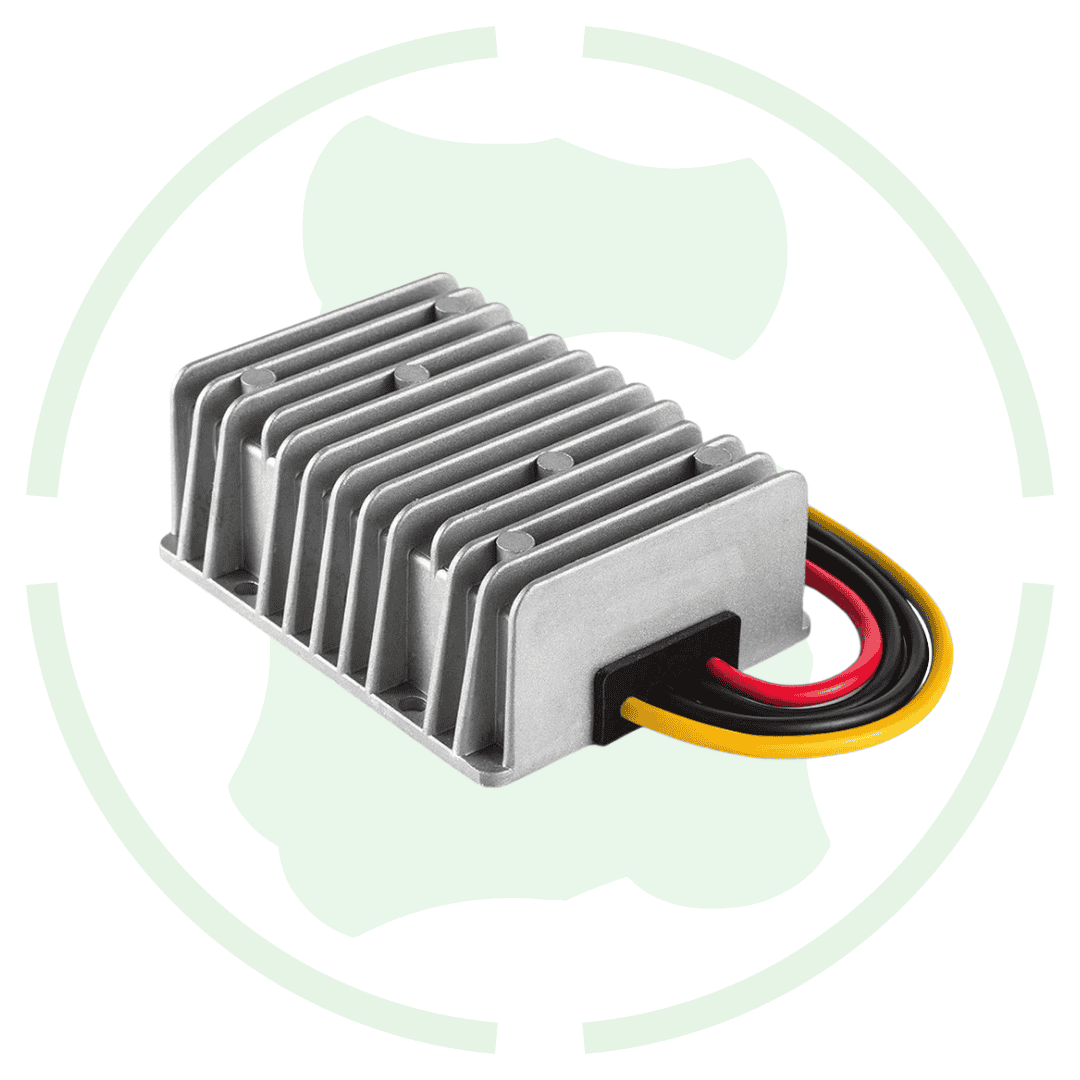

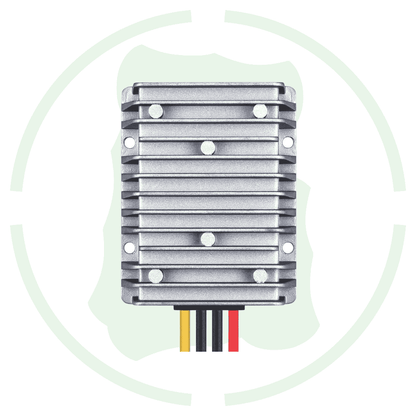

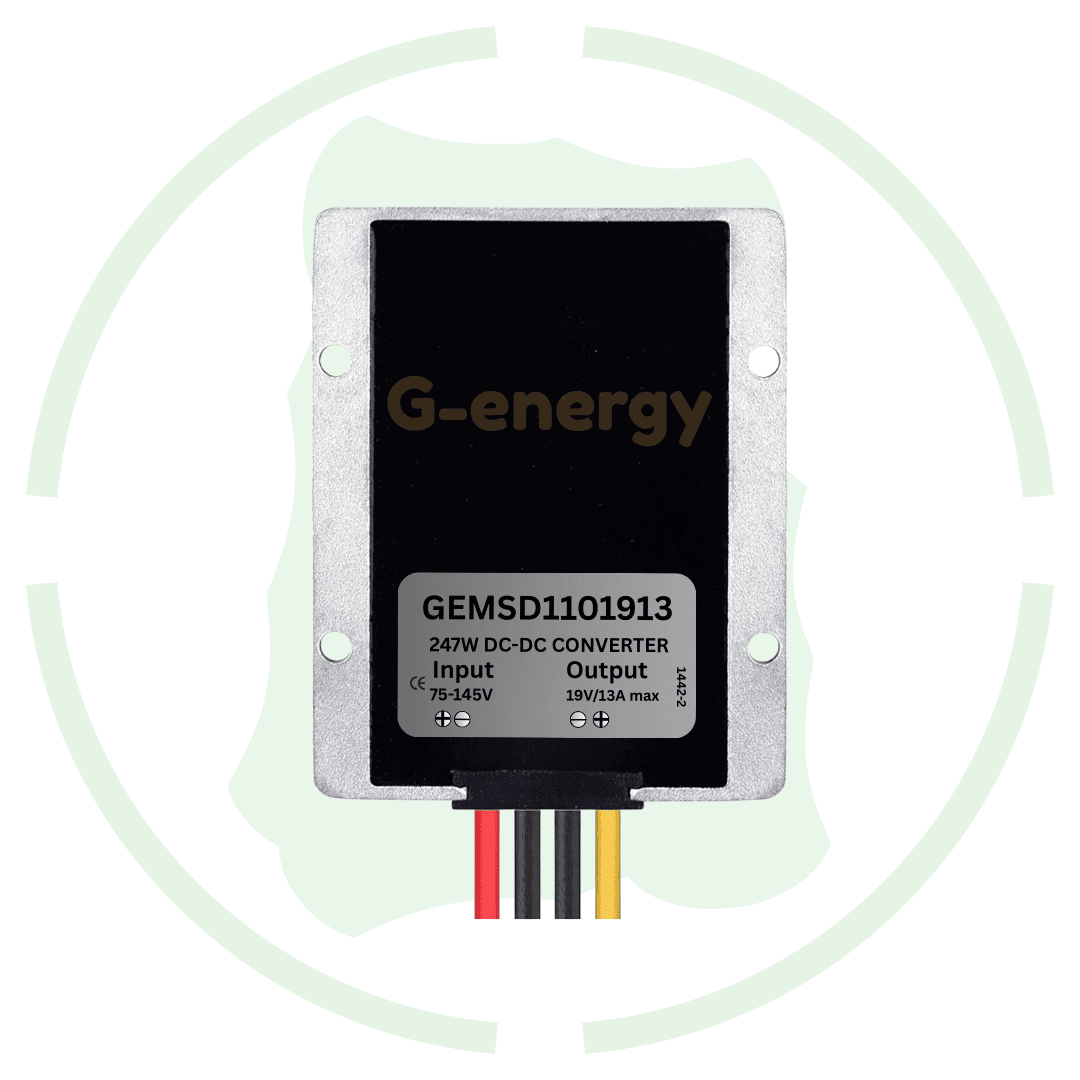

G-energy GEMSD1101913 90V 110V To 19V 13A 247W Dc To Dc Converter Ip68 Step-down Converter

Overview 90v 110v to 19v 13a 247w dc to dc converter

Introducing g-energy 90v 110v to 19v 13a 247w dc to dc converter ip68 water proof step down converter at best price in India with G-energy. This buck voltage converter is designed to operate on a wide input voltage range from dc 75v to 14v and convert it to a fix 19v output voltage. It is also built with ip68 rated water proof aluminium body for its use in rough industrial conditions.

Features

High quality input output wire: This dc dc converter is built with high input and output wire for easy input and output connection which can handle up to 600v dc voltage.

Advance safety features: This dc dc converter also built with multiple advance safety features including short circuit protection, under voltage protection over load protection.

Wide input voltage: It can smoothly work on a wide input voltage range from dc 75v to 145v input voltage range for its use at multiple input source.

Specification

• Rated Input Voltage: 120V

• Input Voltage Range: 75V – 145V DC

• Output Voltage: 19V DC

• Maximum Output Current: 13A

• Maximum Output Power: 247W

• Efficiency: Up to 89%

• Voltage Regulation: ±1%

• Load Regulation: 2%

• No-Load Loss: 50mA

• Ripple Noise: 200mV (Full Load)

🌡️ Environmental Conditions

• Operating Temperature: -40°C to +55°C

• Storage Temperature: -40°C to +80°C

• Operating Humidity: 10% – 90% RH

🛡️ Protection & Build Features

• Short Circuit Protection: ✅

• Overcurrent Protection: ✅

• Waterproof Rating: IP68

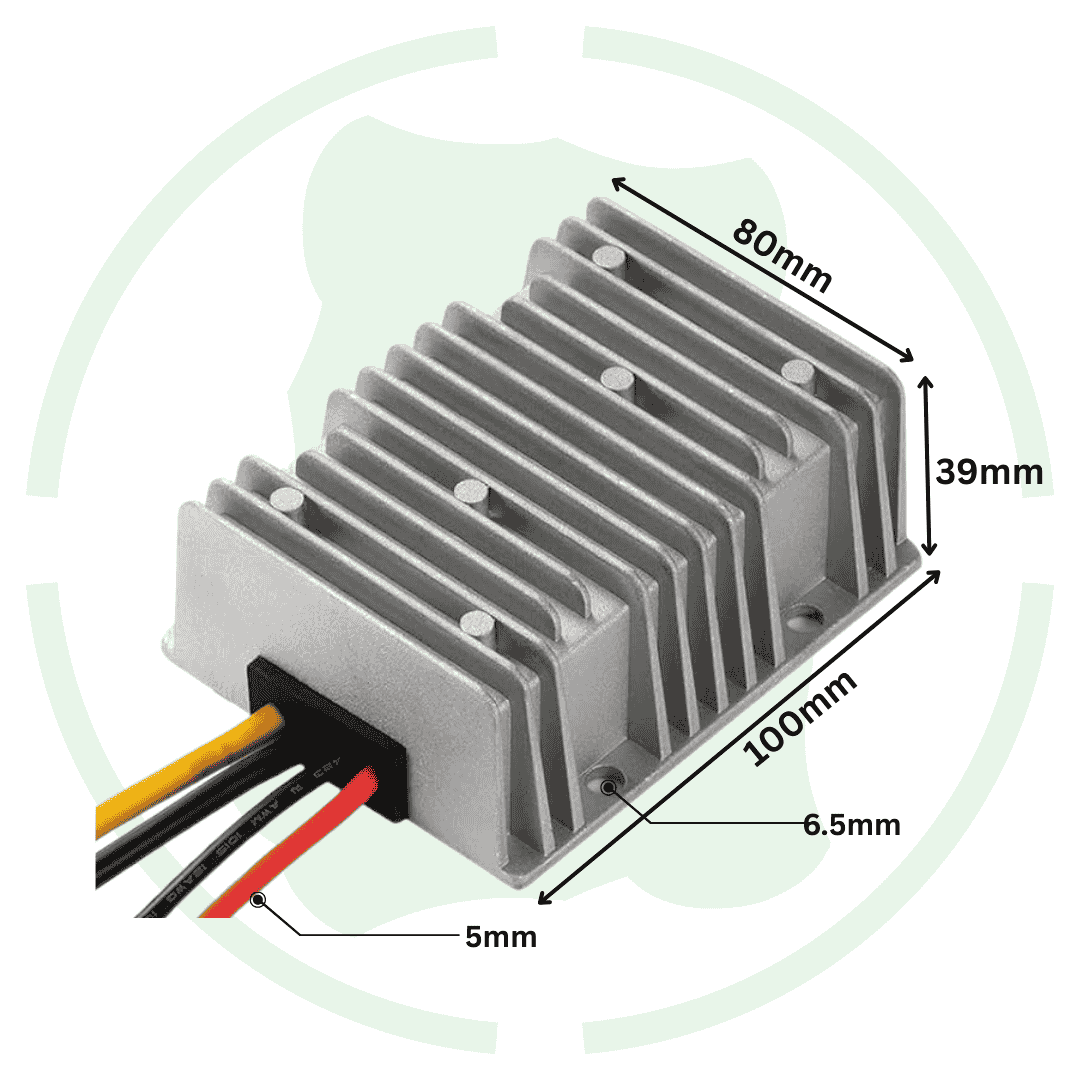

• Dimensions: 100 × 78 × 38 mm

• Weight: 455g
