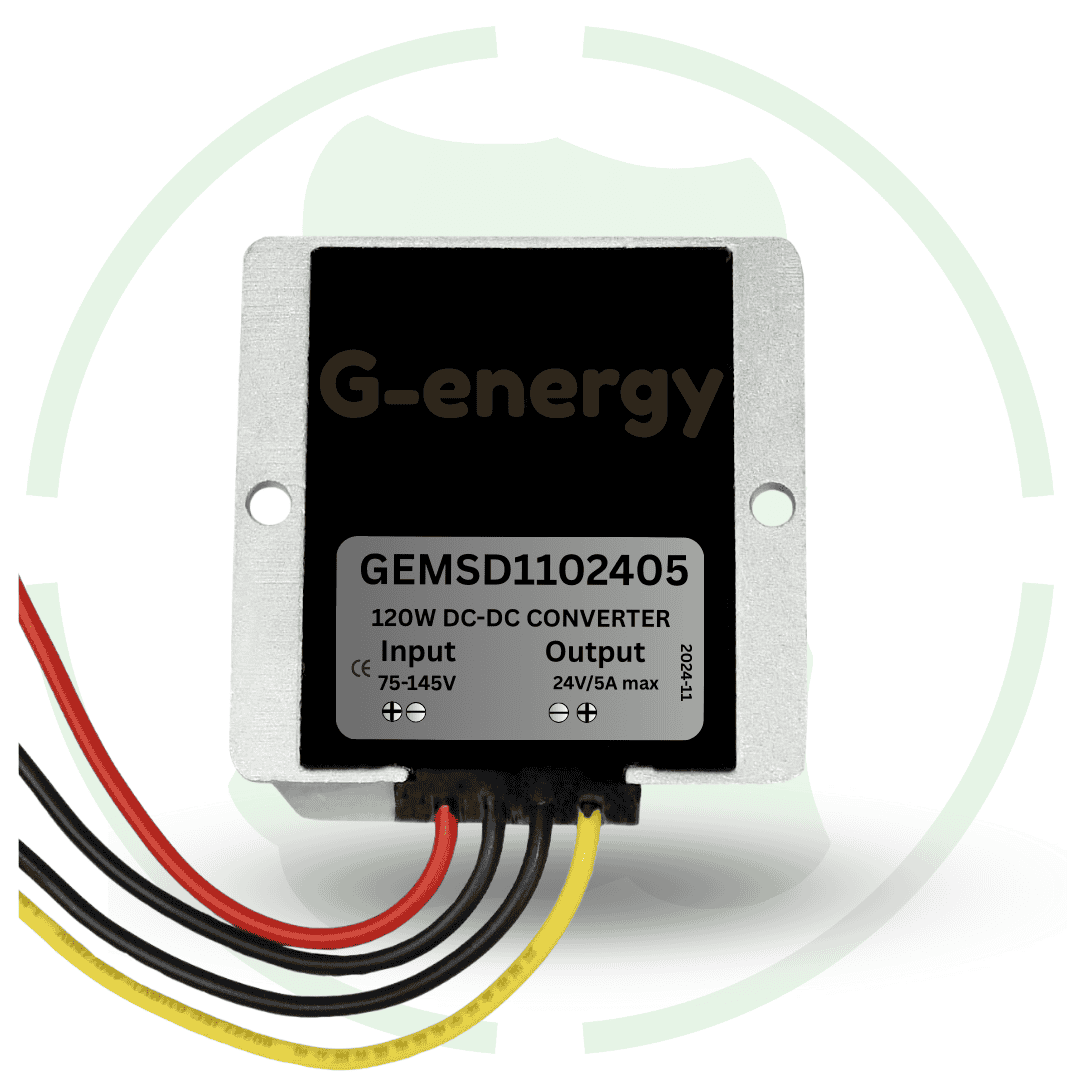

G-energy GEMSD1102405 90V 110V To 24V 5A 120W Dc To Dc Converter Ip68 Buck Converter

Overview of this 90v 110v to 24v 5a 120w dc to dc converter

Introducing g-energy 90v 110v to 24v 5a 120w dc to dc converter at best price in India with G-energy. This dc converter operate on a wide input voltage range from dc 75v to 145v input voltage range and convert it to a fix 24v output voltage. It also come with aluminium metal body that make it perfect choice for use in rough industrial conditions.

Features

Input voltage range: This buck converter easily work on 75v-145v input voltage range and convert it to a fix 24v output voltage.

120W Power: This voltage converter provide up to dc power 120w and maximum dc current up to 5a.

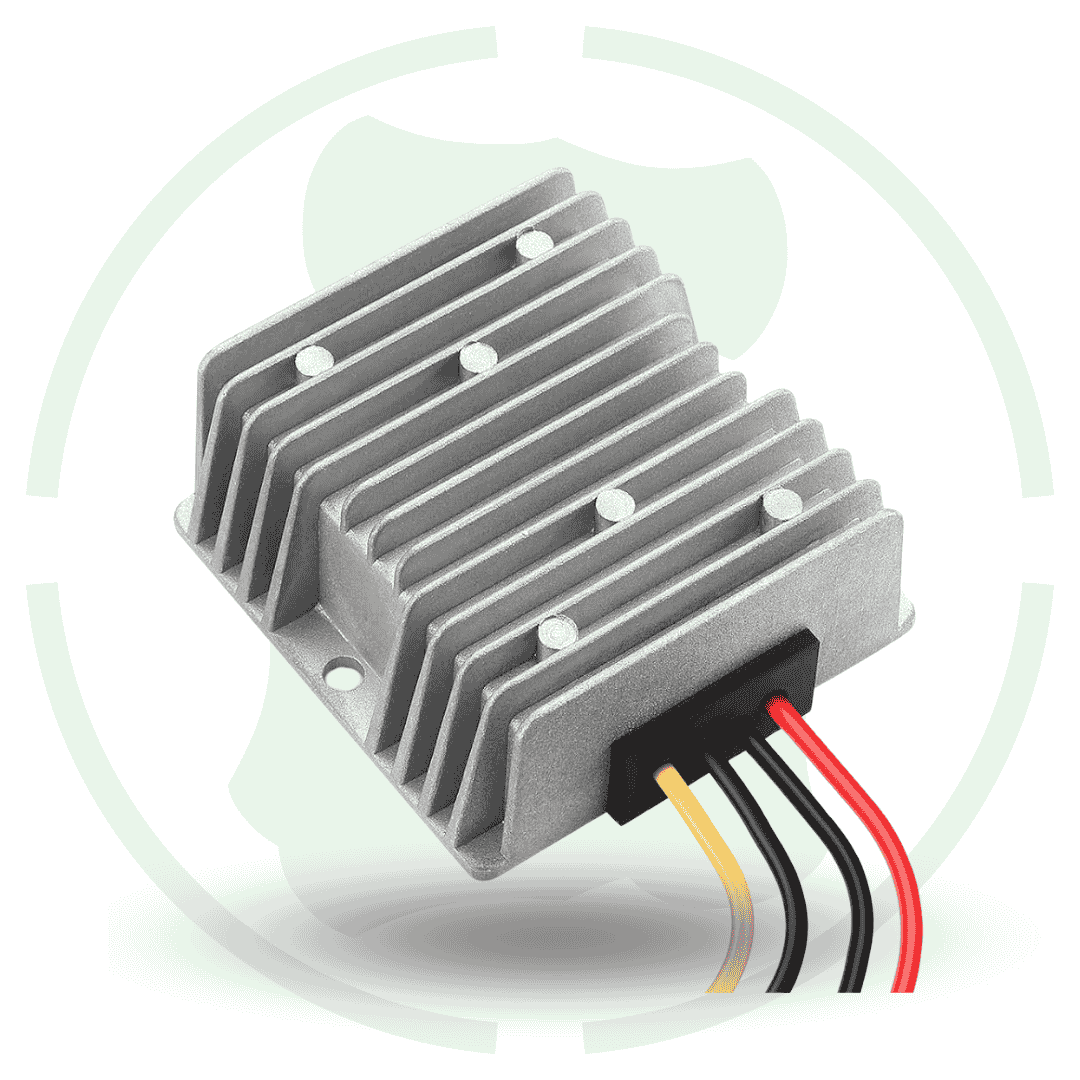

Ip68 metal built: This step down converter is built with aluminium metal frame and ip68 rated water proofing for converter safety and use in under wet industrial conditions.

Specification

• Rated Input Voltage: 120V

• Input Voltage Range: 75V – 145V DC

• Output Voltage: 24V DC

• Maximum Output Current: 5A

• Maximum Output Power: 120W

• Efficiency: Up to 87%

• Voltage Regulation: ±1%

• Load Regulation: 2%

• No-Load Loss: 40mA

• Ripple Noise: 250mV (Full load)

🌡️ Environmental Conditions

• Operating Temperature: -40°C to +55°C

• Storage Temperature: -40°C to +85°C

• Operating Humidity: 10% – 90% RH

🛡️ Protection & Physical Features

• Short Circuit Protection: ✅

• Over current Protection: ✅

• Waterproof Rating: IP68

• Dimensions: 73 × 73 × 30 mm

• Weight: 244g
