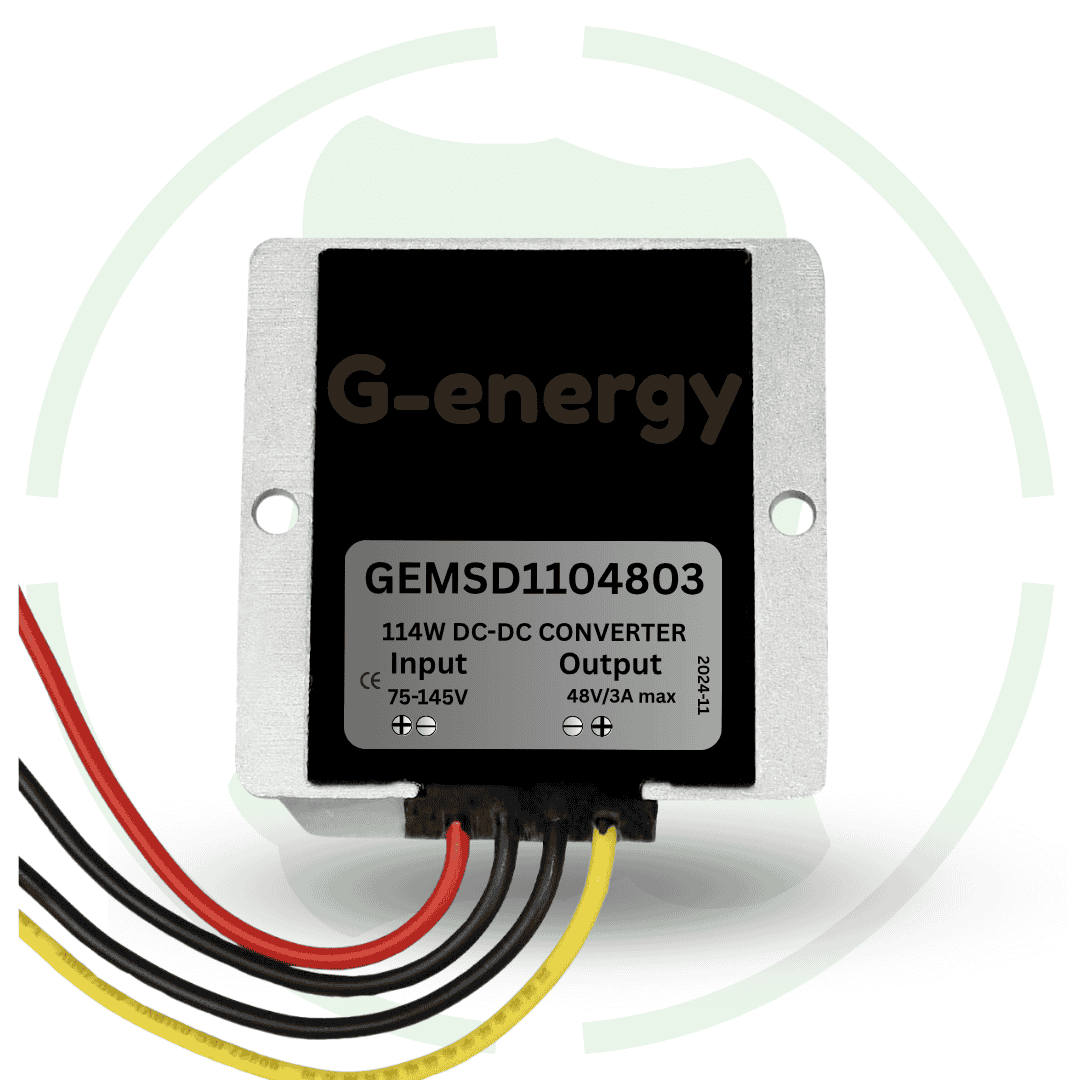

G-energy GEMSD1104803 90V 110V To 48V 3A 144W Dc To Dc Converter Ip68 Buck Converter

Overview of this 90v 110v to 48v 3a 144w dc to dc converter

Introducing g-energy 90v 110v to 48v 3a 144w dc to dc converter ip68 rated metal body step down converter at best price in India with G-energy. It is designed to operate on input range from dc 75v to 145v and convert it to 48v fix output voltage with dc current up to 3a and maximum 144w dc power. It is also built with synchrnous rectification technology that help it achieve high conversion efficiency up to 94% energy conversion.

Features

Wide input voltage range: This dc dc converter is designed to operate on input range from dc 75v to 145v input voltage range and convert it to a fix 48v output voltage.

144W Power: It also provide dc power up to 144w with 3a maximum dc current to operate any low power industrial devices..

Advance safety features: This converter also come with multiple safety features including under voltage protection, short circuit protection, and over load protection for converter safety for multiple changing industrial conditions.

Specification

• Input Voltage Range: 75V – 145V DC

• Output Voltage: 48V DC

• Output Current: 3A

• Output Power: 144W

• Efficiency: Up to 95%

🛡️ Protection & Safety Features

• Over current Protection: ✅

• Under voltage Protection: ✅

• Over temperature Protection: ✅

• Short Circuit Protection: ✅

🌡️ Environmental & Mechanical

• Protection Level: IP68 (Waterproof & Dustproof)

• Cooling Method: Natural Convection (Fanless)

• Operating Temperature: -40°C to +80°C

• Material: Aluminum Alloy Housing

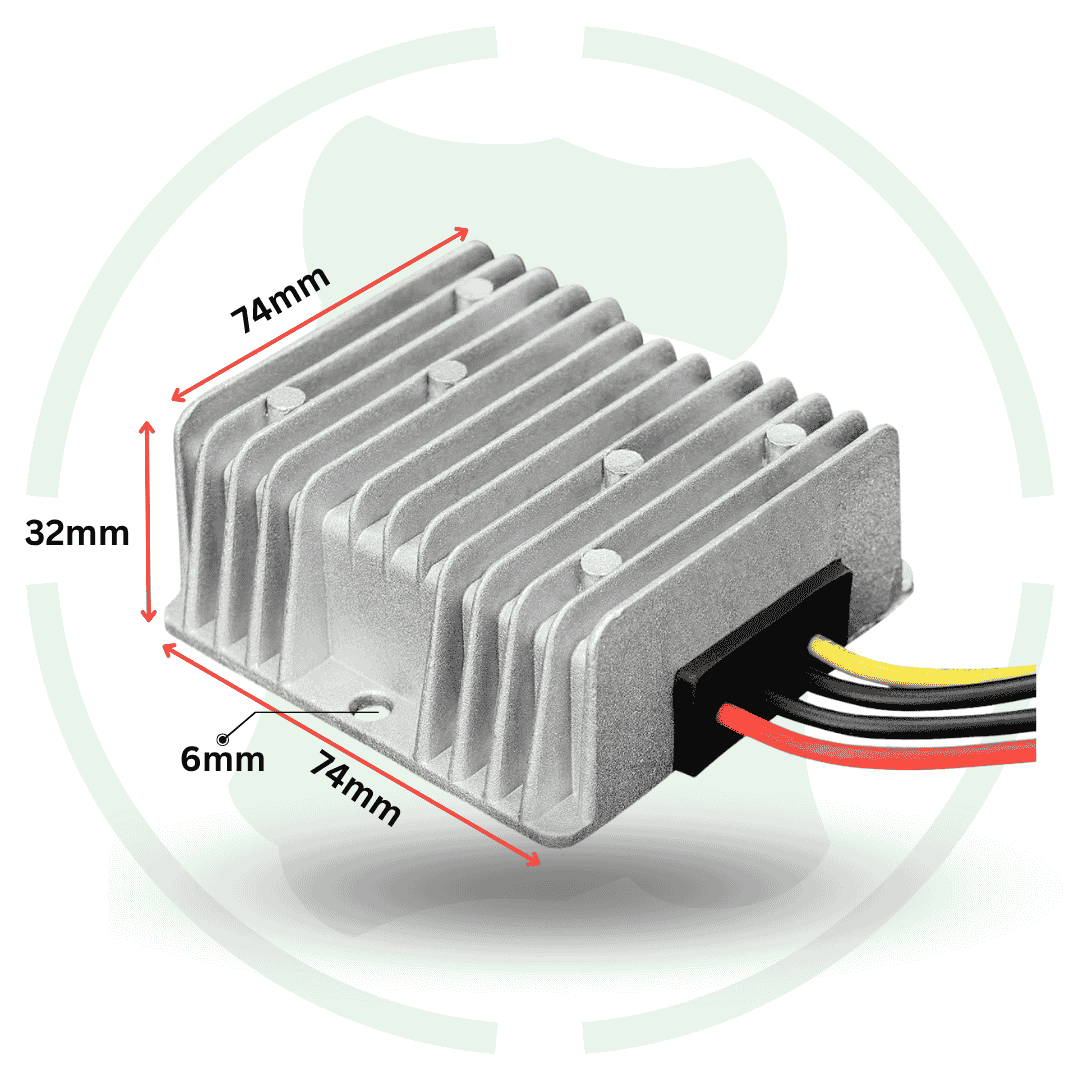

• Dimensions: 74x74x32 mm

• Weight: 259g
