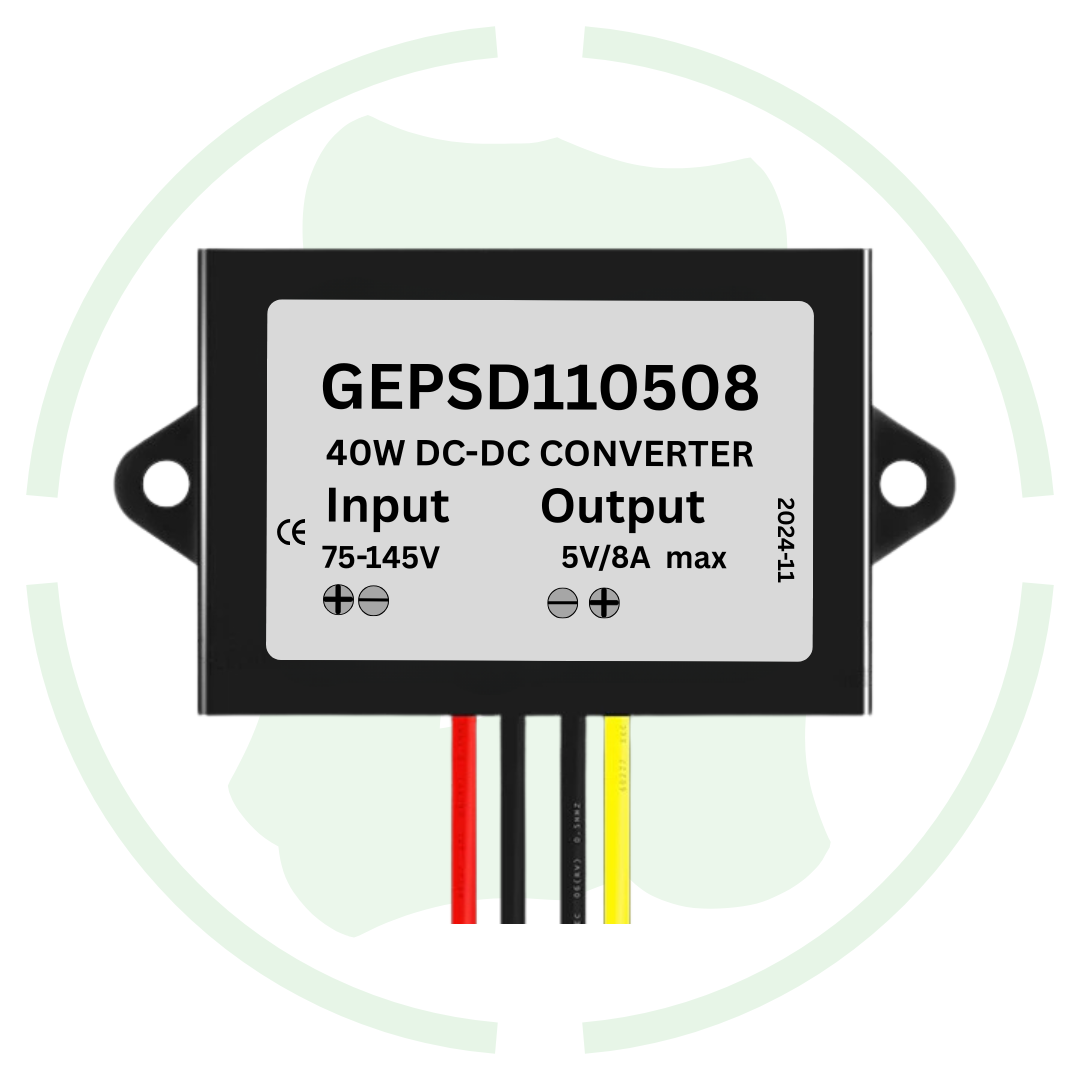

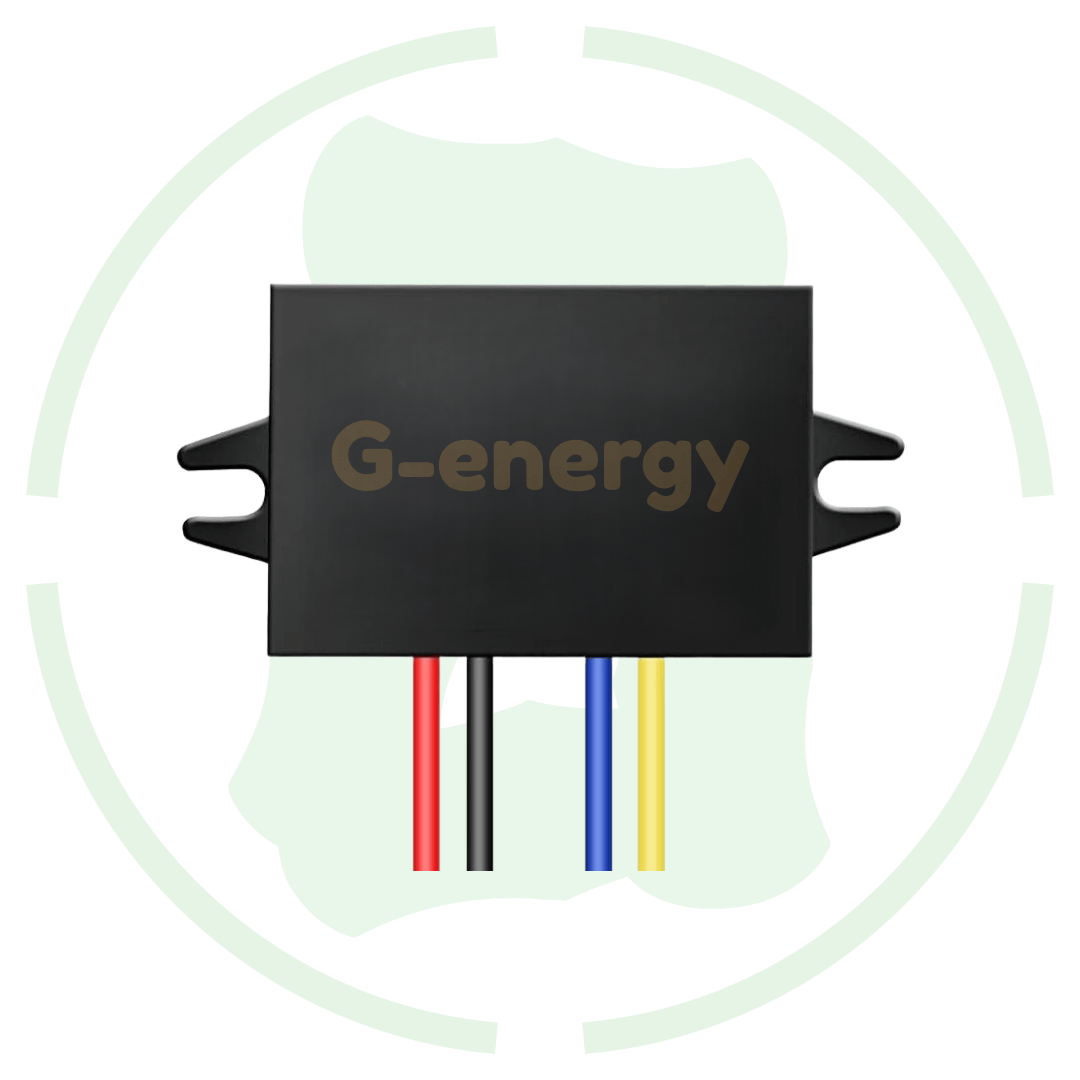

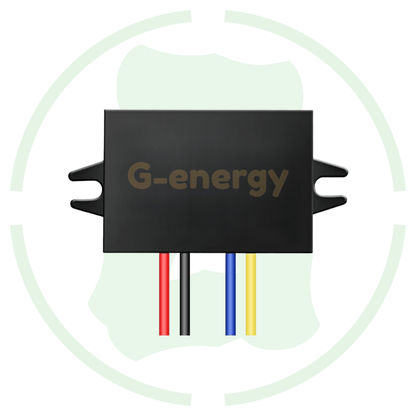

G-energy GEPSD110508 90V 110V To 5V 8A 40W Dc To Dc Converter Ip68 Rated Buck Converter

Overview of this 90v 110v to 5v 8a 40w dc to dc converter

Introducing g-energy 90v 110v to 5v 8a 40w dc to dc converter ip68 rated abs plastic body buck converter. This dc dc converter work on input range from 75v to 145 and convert it to a fix 5v output voltage to operate any 5v dc device. It is also built with high quality abs plastic for its use in any industrial conditions.

Features

Abs plastic body: This dc converter is designed with high quality abs plastic body to ensure its high quality body and use in rough industrial conditions.

40W power: This 90v 110v to 5v buck converter provide up to 40w dc power with max current up to 8a.

Big input voltage: This voltage converter also come with wide operating voltage from dc 75v to 145v input voltage range to make it usable multiple dc input source.

Specification

• Input Voltage Range: 75 – 145V DC

• Rated Input Voltage: 90V / 100V / 120V

• Output Voltage: 5V DC

• Max Output Current: 8A

• Max Output Power: 40W

• Efficiency: >88%

• Voltage Regulation: ±1%

• Load Regulation: 2%

• No-Load Loss: 5mA

• Ripple Noise: 300mV (Full load)

🌡️ Environmental Ratings

• Operating Temperature: -40°C to +80°C

• Storage Temperature: -40°C to +100°C

• Operating Humidity: 10% – 90% RH

🛡️ Protection & Design Features

• Protection: Short circuit, Over current, Over temperature, Under voltage

• Waterproof Rating: IP68

• Cooling Method: Free air convection

• Dimensions: 59 × 37 × 20 mm

• Weight: 103g
