G-energy GEMSDI240520 18V-36V To 5V 20A 100W Dc To Dc Converter Isolated Buck Converter

Overview of this 18v-36v to 5v 20a 100w dc to dc converter

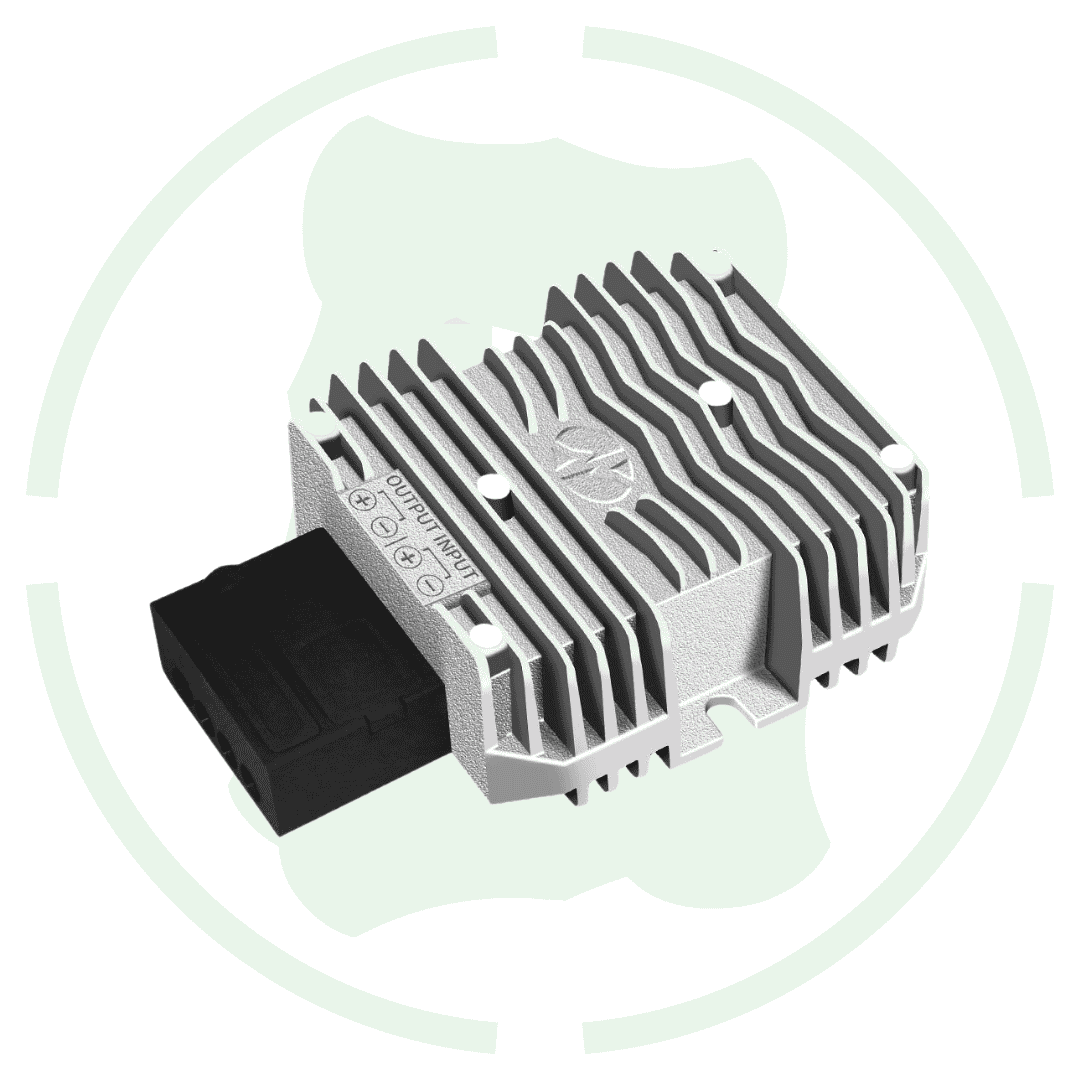

Introducing g-energy 18v-36v to 5v 20a 100w dc to dc converter isolated buck converter at best price in India with G-energy. This isolated dc dc converter is designed to smoothly operate on a wide dc input voltage from dc 18v to 36v and provide a fix 5v dc out put with max power up to 100w dc power. Its input and output circuit is also isolated by a transfer for converter additional safety.

Features

Ip67 water proof: This dc dc converter is designed with metal case and epoxy base that provide it ip67 rated water proof protection for converter safety.

Safety feature: It also come with short circuit, over load, over heat, and reverse polarity protection for converter and connected device safety.

3 Month exchange warranty: This buck boost converter also come with 3 month exchange warranty and in that time if face any fault in in converter you can get easy free exchange.

Specification

• Brand: G-Energy

• Model: Dc-Dc Step-Down Converter

• Input Voltage Range: 18V – 36V DC

• Output Voltage: 5V DC

• Maximum Output Current: 20A

• Maximum Output Power: 100W

• Conversion Efficiency: ≥ 95% (Typical)

• Isolation: Yes (Fully Isolated)

• Waterproof Rating: IP68 (Dust proof & Water proof)

• Operating Temperature: -40°C to +80°C

• Cooling Method: Natural Air Cooling (Passive)

• Protection Features:

  • Over voltage Protection

  • Over current Protection

  • Over heat Protection

  • Short Circuit Protection

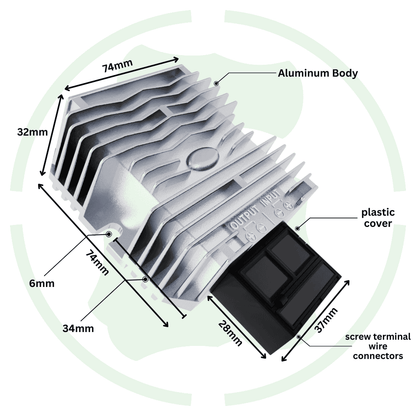

• Dimensions: 74mm × 74mm × 32mm

• Weight: Approx. 280g

Datasheet of GEMSDI240520 24v to 5v 20a dc voltage converter
