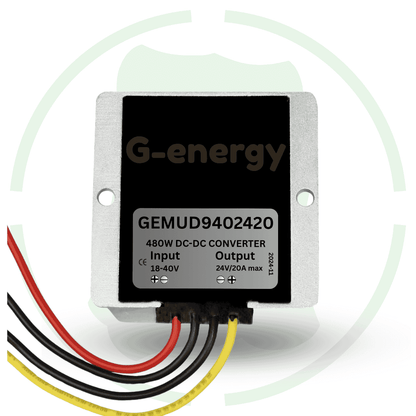

G-energy GEMUD9402420 18V 24V 36V To 24V 20A 480W Dc To Dc Converter Ip68 Buck Boost Converter

Overview of this 24v 36v to 24v 20a 480w dc to dc converter buck boost converter

Introducing G-energy dc 18v 24v 36v to 24v 20a 480w dc to dc converter ip68 buck boost converter at best price in India with G-energy. This buck boost converter can smoothly work on a wide input voltage from 18v to 40v dc input source. It also provide maximum current up to 20a and max power up to 480w dc power.

Features

Safety features: This dc dc buck boost converter come with multiple safety features like short circuit protection, under voltage protection, ip68 water proof protection for converter and connected device long life.

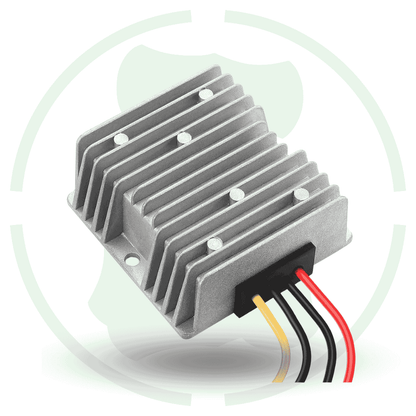

High quality built: It is built with high quality aluminum case and with that case it smoothly work under temperature range from -40 degree celsius to 80 degree celsius.

Fix 24v output: This dc dc converter smoothly operate on 18v to 40v and provide a fix 24v dc output.

Specification

• Input Voltage Range: 18V to 40V DC

• Output Voltage: 24V DC

• Output Current: 20A

• Output Power: 240W

• Conversion Efficiency: Up to 95%

• Ripple and Noise: ≤ 150mV

• Input/Output Isolation: Non-isolated

• Protection Rating: IP68 (Waterproof, Dustproof)

• Cooling Method: Natural air cooling

• Operating Temperature Range: -40°C to +80°C

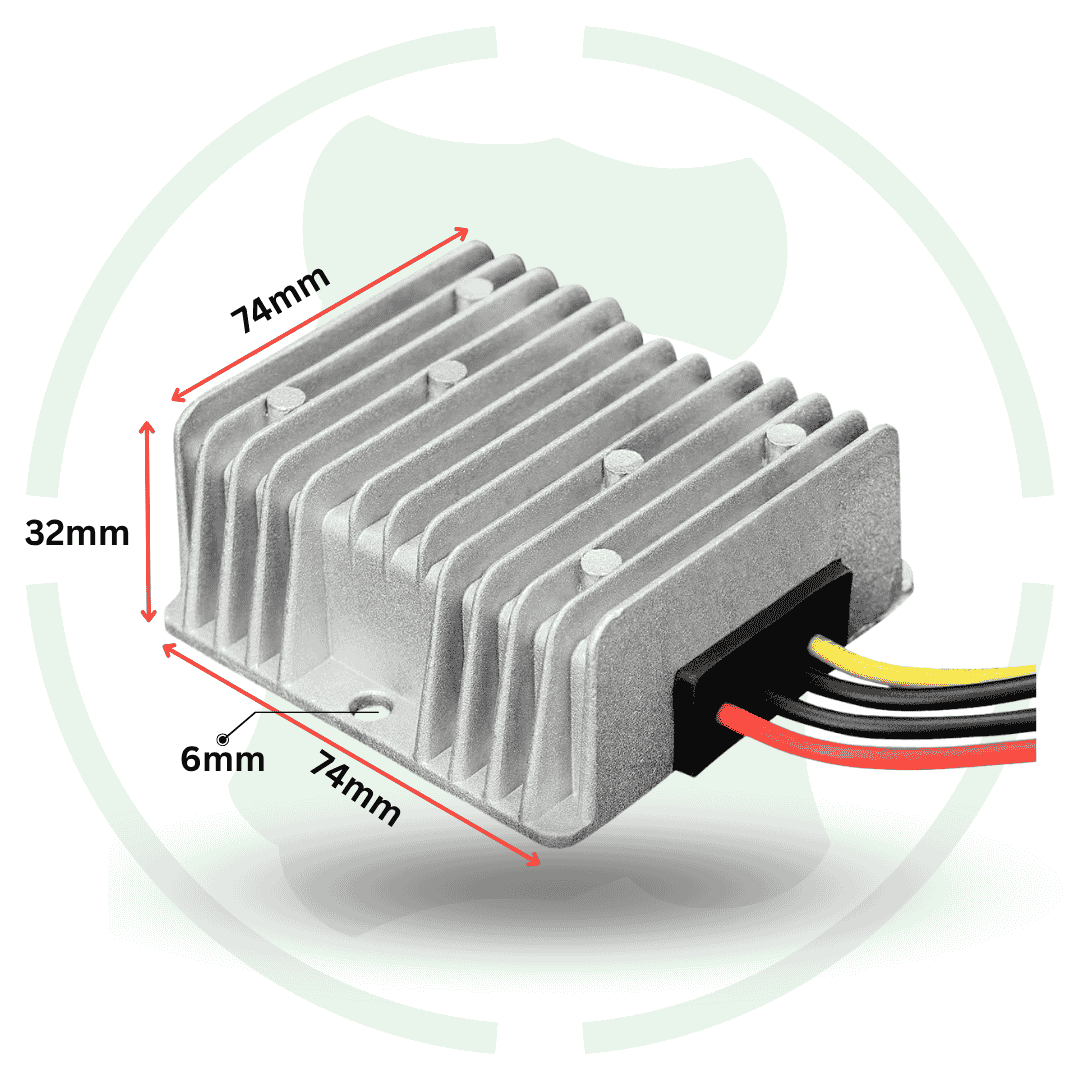

• Dimensions: 74 × 74 × 32 mm

• Weight: 302 g
