G-energy GEAPSD481201 15V-50V To 12V 1A 12W Dc to Dc Converter

Overview of this 15v-50v to 12V 1a 12w dc to dc converter

Introducing G-energy 15v-50v to 12v dc to dc converter metal body buck converter at best price in India with G-energy. This dc dc converter work on a wide input voltage range from dc 15v to 50v and provide a stable 12v dc output voltage. And its metal body also make it perfect for use at multiple rough industrial set ups.

Features

Big input voltage: This dc converter come with multiple big input voltage from dc 15v to dc 50v and provide a fix 12v out put.

High quality input output wire: This dc dc converter is also built with high quality input and output wires that can smoothly operate in high voltage up to 600v dc voltage.

90% high conversion efficiency: This dc dc converter is designed to provide up 90% energy conversion efficiency.

Specification

• Input Voltage Range: 15V – 50V DC

• Output Voltage: 12V DC

• Output Current: 1A

• Output Power: 12W

• Conversion Efficiency: Up to 90%

• Ripple: ≤50mV

• No-load Current: ≤10mA

• Protection Features:

  • Short Circuit Protection: Yes

  • Under-voltage Protection: Yes

  • Over-temperature Protection: Yes


• Operating Temperature: -40°C to +85°C

• Cooling Method: Natural air cooling

• Material: Aluminum alloy + Plastic

• Wiring Type: Screw terminals

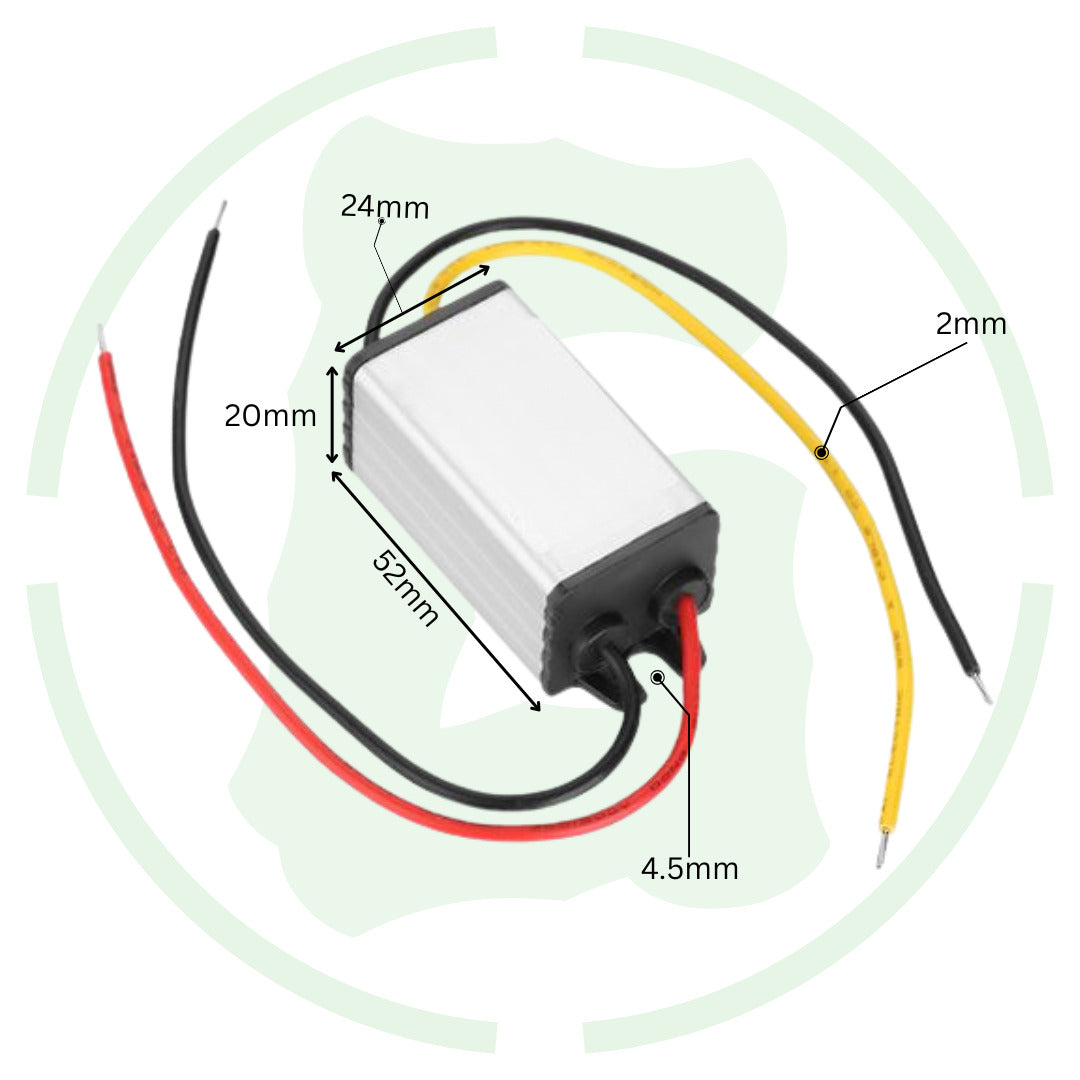

• Dimensions: 52 × 24 × 20 mm

• Weight: 47g
