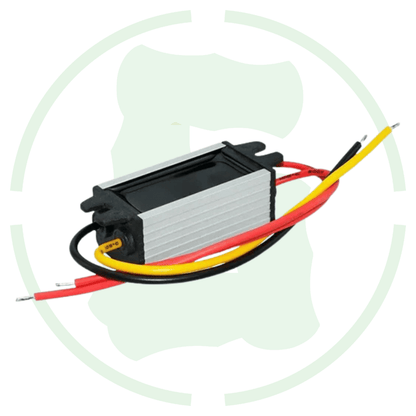

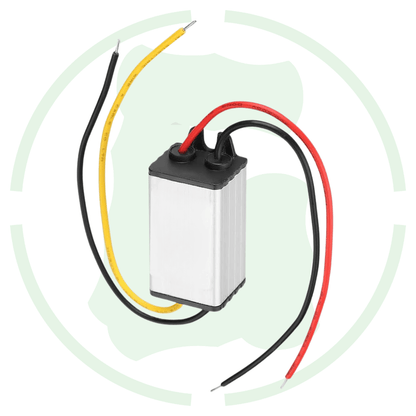

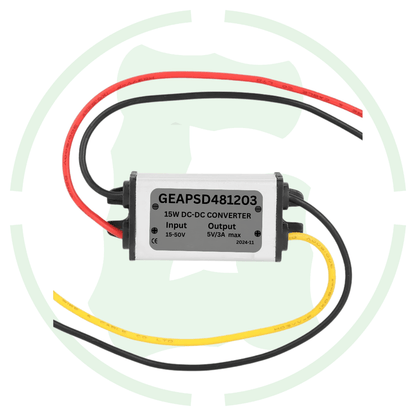

G-energy GEAPSD481203 15V-50V To 5V 3A 15W Dc To Dc Converter

Overview of this 15v-50v to 5v 3a 15w dc to dc converter

Introducing g-energy 15v-50v to 5v 3a 15w dc to dc converter with aluminium body at best price in India with G-energy. This dc dc converter can smoothly operate on a wide input voltage range dc dc15v to 50 and convert it to a fix 5v dc output. It also provide maximum dc current up to 3a and maximum power up to 15w output. This 12v 24v 48v to 5v buck converter is built with high quality input output wire that can handle maximum voltage up to 600v.

Features

Aluminium metal body: This dc dc buck converter is built with aluminium metal body that can used at any rough industrial condition.

Wide input voltage range: This 12v 24v 48v to 5v step down converter can smoothly work on a wide input voltage range from dc 15v-50v and convert it to a fix 5v output.

15W Dc Power: It also provide 15w output power with maximum dc current up to 3a to operate any low power devices.

Specification

🔧 Electrical Specifications:

• Input Voltage Range: 15V to 50V DC

• Output Voltage: 5V DC

• Output Current: 3A

• Output Power: 15W

• Conversion Efficiency: Up to 95%

• Ripple & Noise: < 50mV

🛡️ Protection Features:

• Short Circuit Protection: Yes

• Over-Current Protection: Yes

• Under-Voltage Protection: No

🌡️ Environmental Specifications:

• Operating Temperature: -40°C to +55°C

• Cooling Method: Natural Air Cooling

📏 Mechanical Specifications:

• Material: Aluminum Alloy Shell

• Dimensions: 52 × 24 × 20 mm

• Weight: 47g
