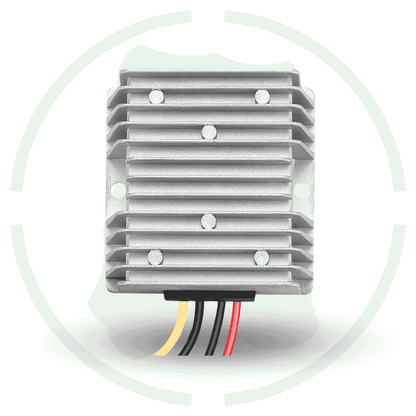

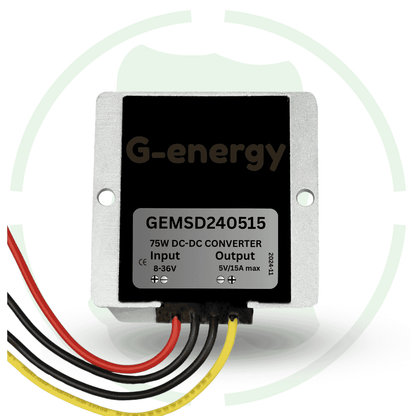

G-energy GEMSD240515 12V 24V To 5V 15A 75W Dc To Dc Converter Ip68 Buck Converter

Overview of this 12v 24v to 5v 15a 75w dc to dc converter

Introducing g-energy 12v 24v to 5v 15a 75w dc to dc converter ip68 water proof buck converter at best price in India with g-energy. This converter work on a wide input voltage range from dc input voltage between 8v to 36v and convert it to a fix 5v output voltage. It also provide high conversion efficiency up to 94% energy conversion.

Features

Safety features: This 12v 24v to 5v buck converter also come with multiple safety features like under voltage protection, over load protection, and short circuit protection for converter safety.

Big input voltage range: This dc dc converter can work on a wide input voltage range from dc 8v to 36v input voltage range and convert it to a fix 5v output voltage.

3 Month exchange warranty: It also come with 3 month exchange warranty for converter quality assurance and you can claim any defect of this converter in this time period.

Specification

• Input Voltage Range: 8V – 36V DC

• Output Voltage: 5V DC

• Output Current: 15A

• Output Power: 75W

• Conversion Efficiency: Up to 95%

• Ripple & Noise: < 50mV

• Material: Aluminum Alloy Shell

• Cooling Method: Natural Air Cooling

• Operating Temperature Range: -40°C to +80°C

• Dimensions: 74 × 74 × 32 mm

• Weight: 256g

✅ Protection Features:

• Short Circuit Protection

• Over-current Protection

• IP68 Rated: Waterproof & Dust proof

Datasheet of GEMSD240515 12v 24v to 5v 15a dc voltage converter
