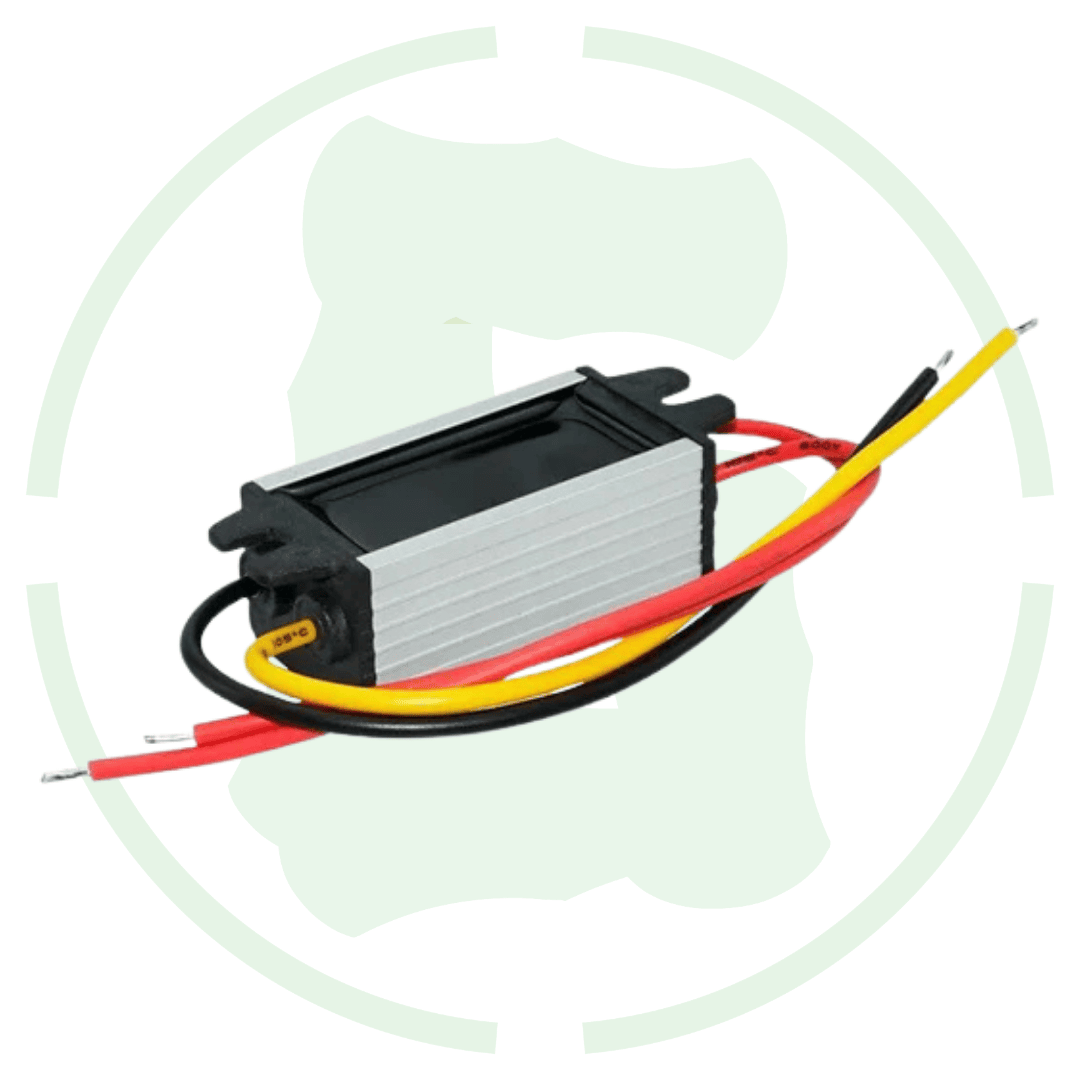

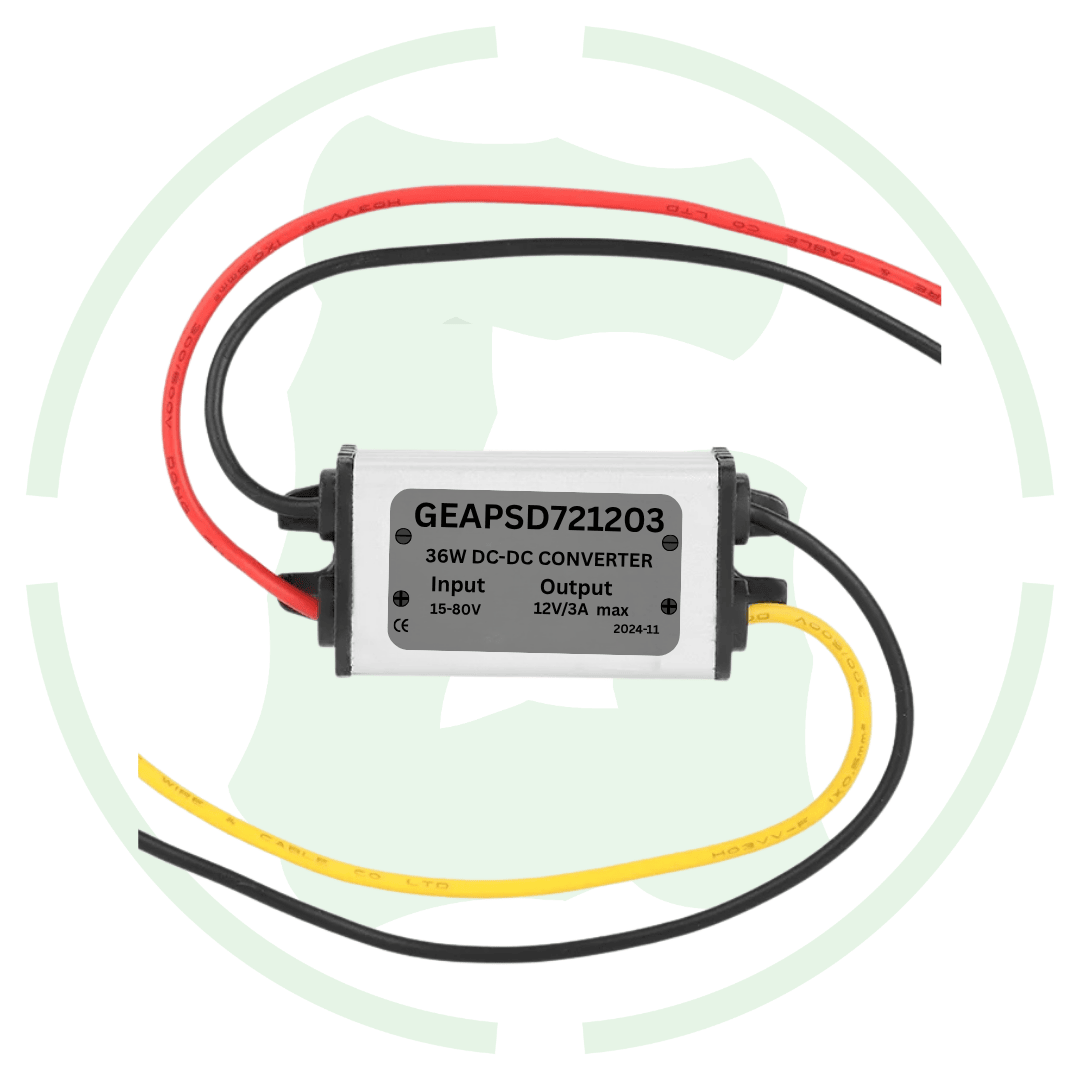

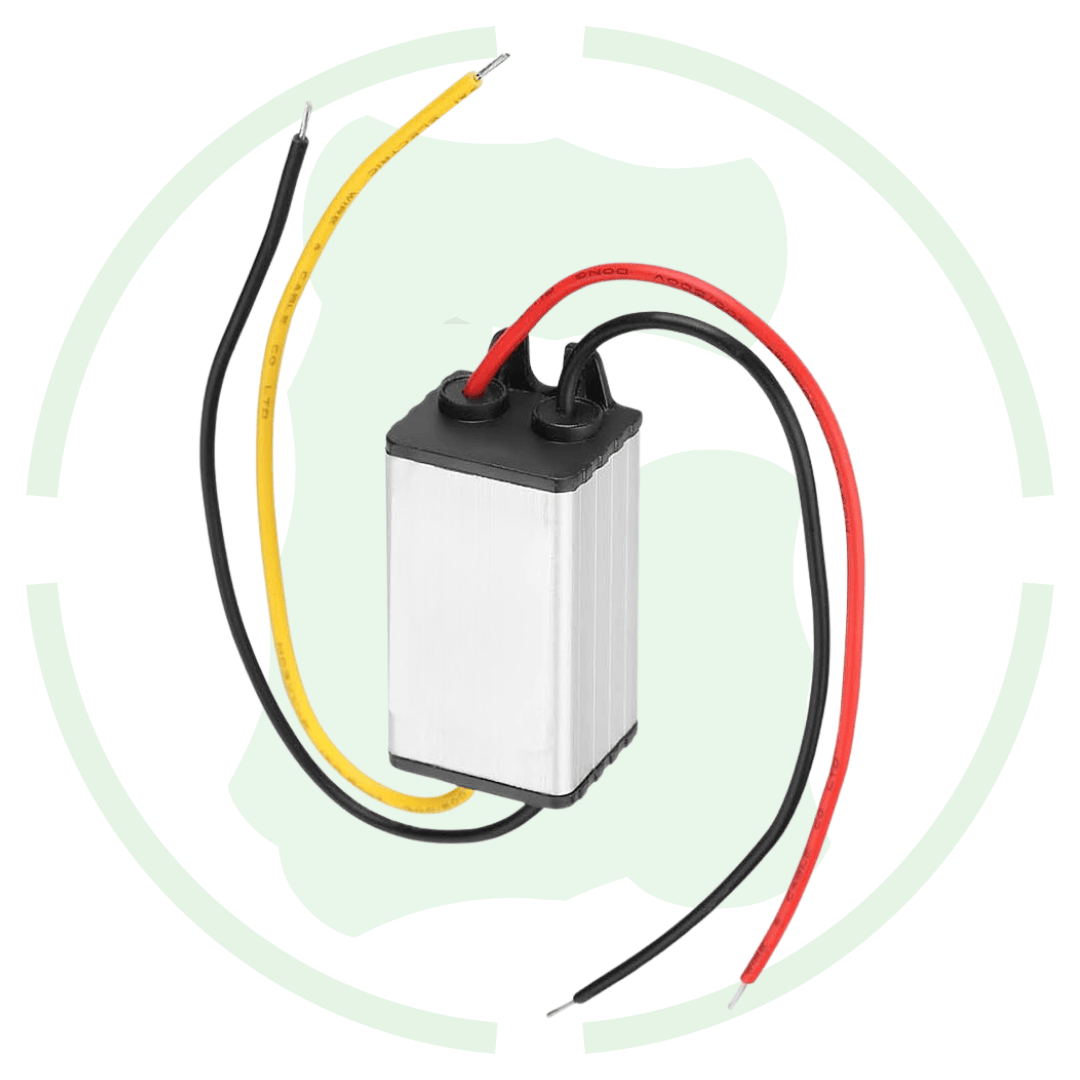

G-energy GEAPSD721203 15V-80V To 12V 3A 36W Dc To Dc Converter

Overview of this 15v-18v To 12v 3a 36w dc to dc converter

Introducing G-energy 15v-80v to 12v 3a 36w dc to dc converter at best price in India with G-energy. This dc dc converter provide a fix 12v dc output voltage from a big dc input voltage range from 15v to 80v dc voltage. This dc converter is designed with advance technology that help it gain high voltage conversion efficiency up to 94% voltage conversion efficiency.

Features

Aluminium metal body: This dc dc converter is built with aluminium metal body for use in rough industrial condition.

Fix 12v output: This dc dc converter is designed to provide a fix 12v dc output from a wide range of dc input from dc 15v to 80v voltage.

High Efficiency: This dc converter is designed to provide high conversion efficiency up to 94% energy conversion.

Specification

• Input Voltage Range: 15V – 80V DC

• Output Voltage: 12V DC

• Output Current: 3A

• Output Power: 36W

• Conversion Type: Buck-Boost (Step-Up/Step-Down)

• Efficiency: Up to 94%

• Input Voltage Fluctuation Tolerance: ±5%

• Protection Features:

  • Over current Protection

  • Short Circuit Protection

  • Over heat protection

• Operating Temperature Range: -40°C to +85°C

• Dimensions (L × W × H): 65 × 25 × 20 mm

• Weight: 85g
