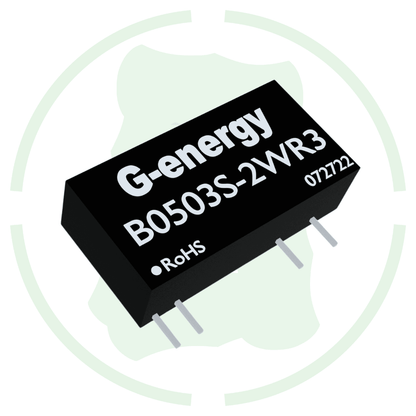

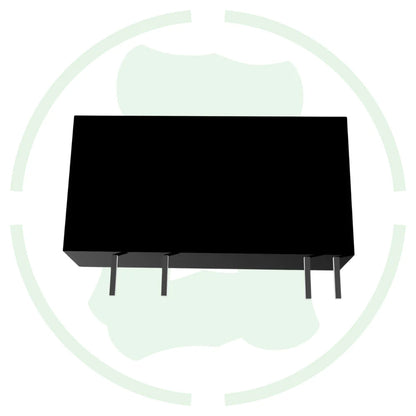

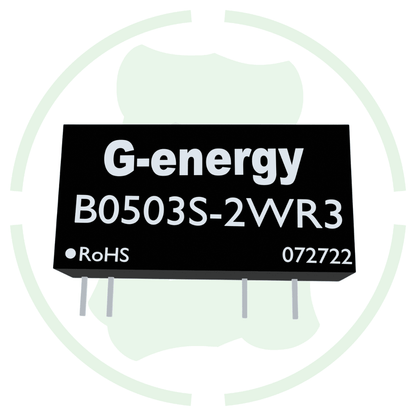

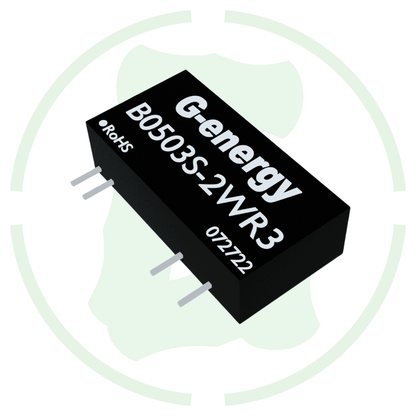

G-energy B0503S-2WR3 5V to 3V 666mA 2W Dc Dc Converter IP68 Step Down Converter

Overview of this G-energy B0503S-2WR3 5V to 3V 666mA 2W Dc Dc Converter IP68 Step Down Converter

Introducing G-energy B0503S-2WR3 5V to 3V 666mA 2W Dc Dc Converter IP68 Step Down Converter at the best price in India with g-energy. This 5V to 3V step down converter give up to 2 watts of output power and also it can provide up to 666mA of current. Converter can work smoothly even in harsh outdoor or industrial environments, protected against dust and water immersion.

Features

High Efficiency: This buck converter is built with advance conversion technology that give up to 88% efficiency and converts power with minimal loss.

Comes in SIP package: It come with single inline package design for compact size and easy mounting on circuit board.

Fix 3V output: This B0503S-2WR3 converter is built to provide a fix 3v dc output voltage for smooth operation in any dc set up.

Specification

1. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 3V DC

3. Output Current: 666mA

4. Output Power: 2W

5. Efficiency: 88%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 75/200mVp-p

10. Nominal Input Voltage: 5V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 19mm × 10mm × 6mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)
