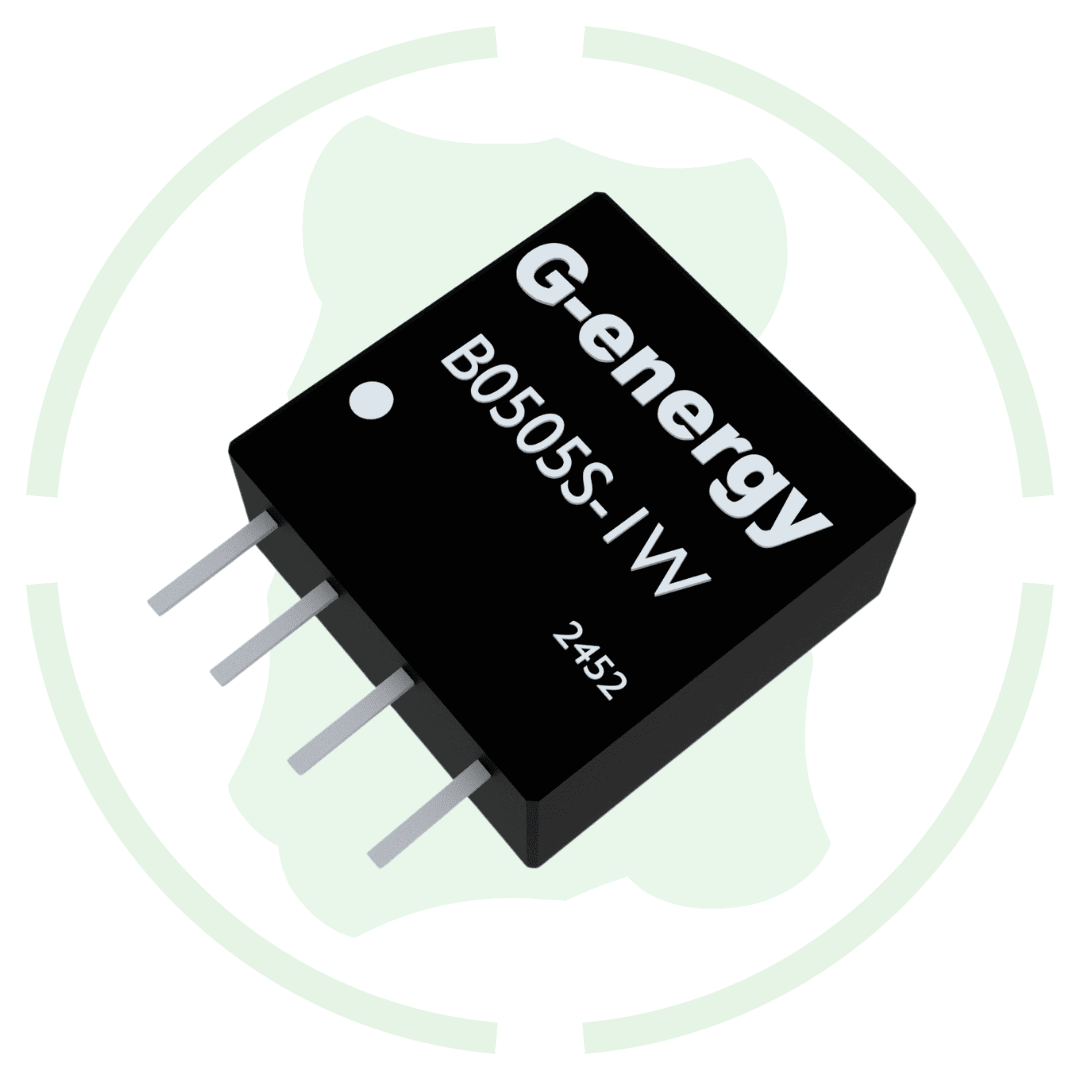

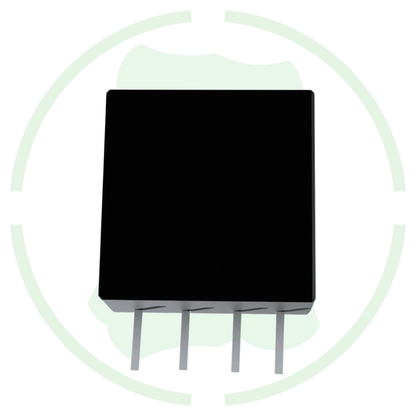

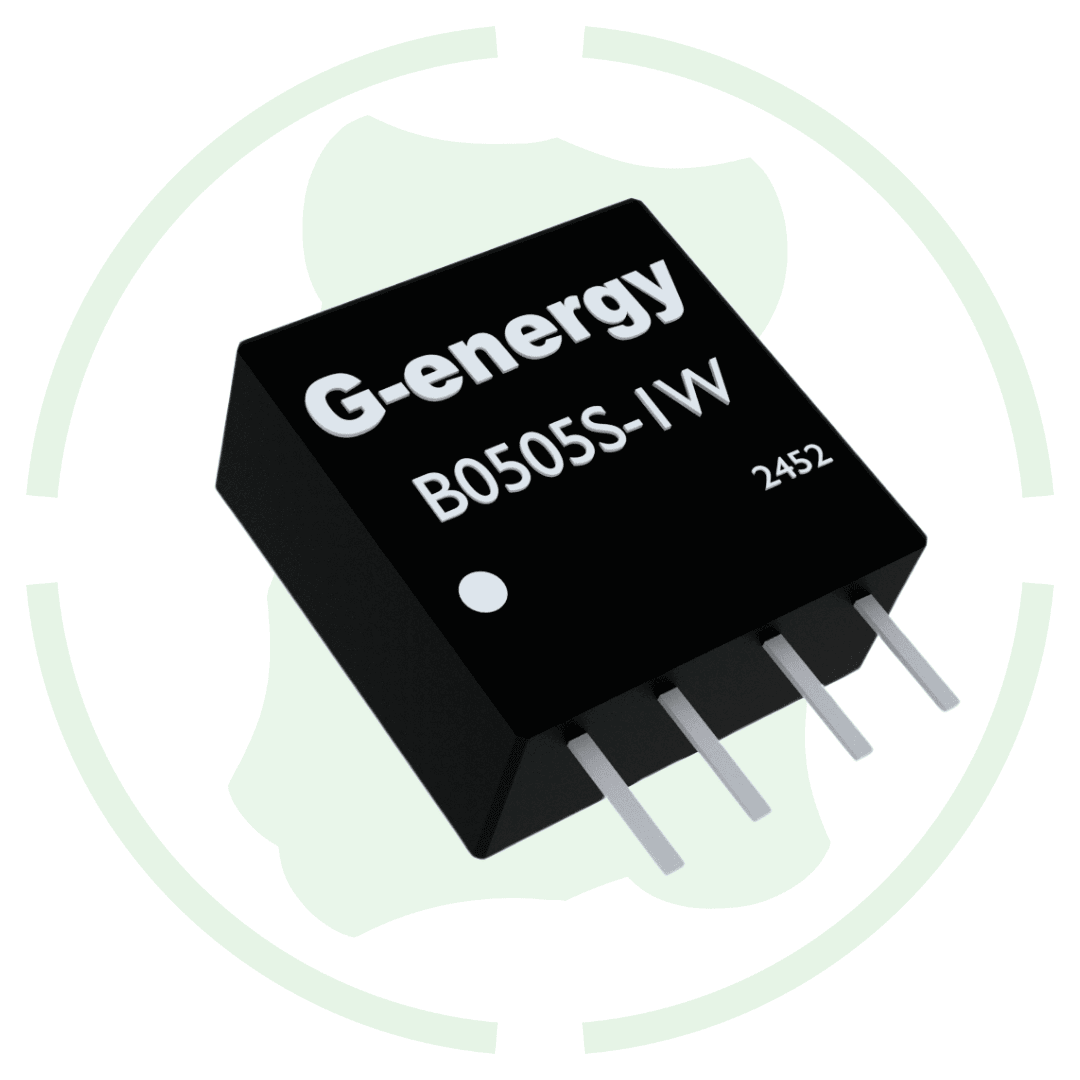

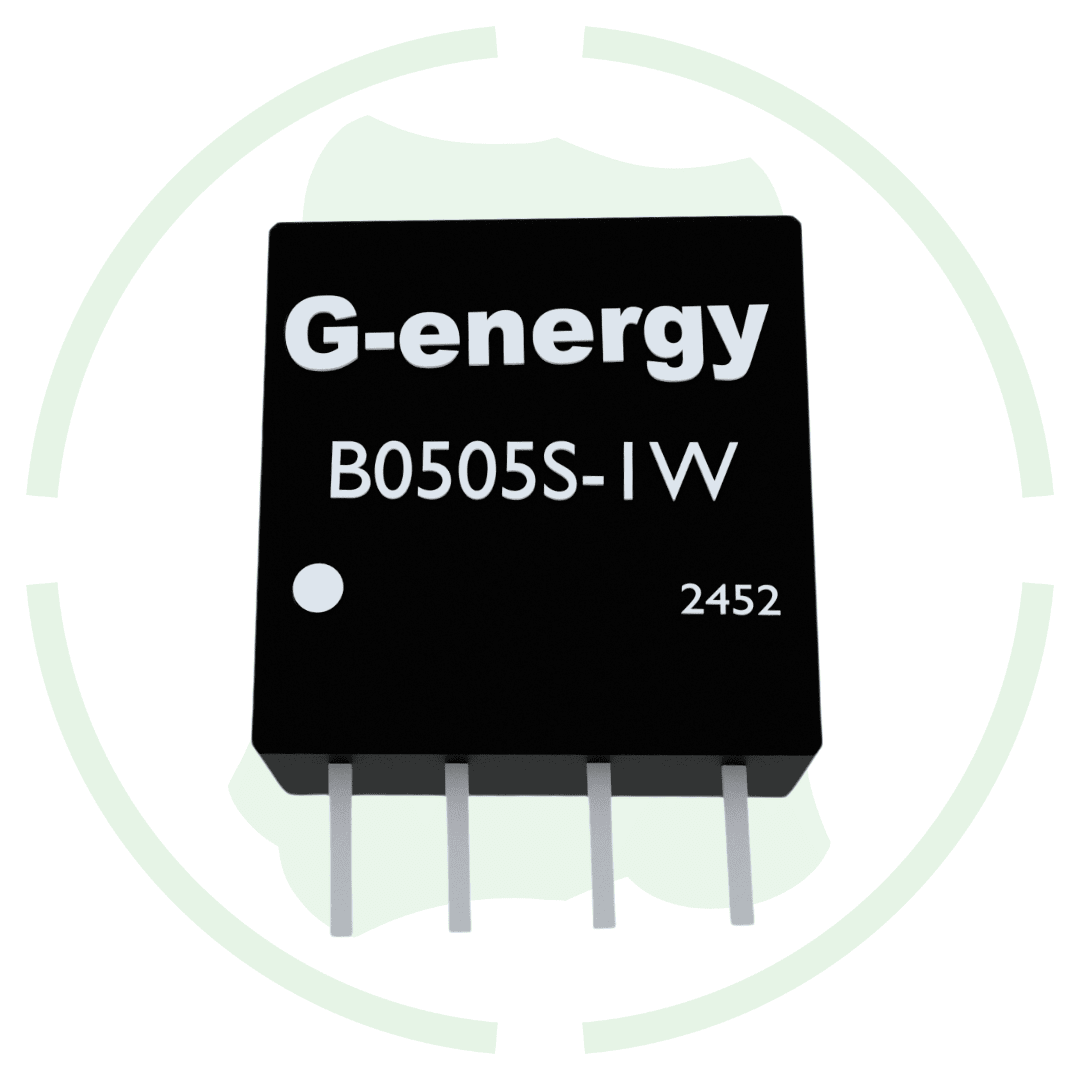

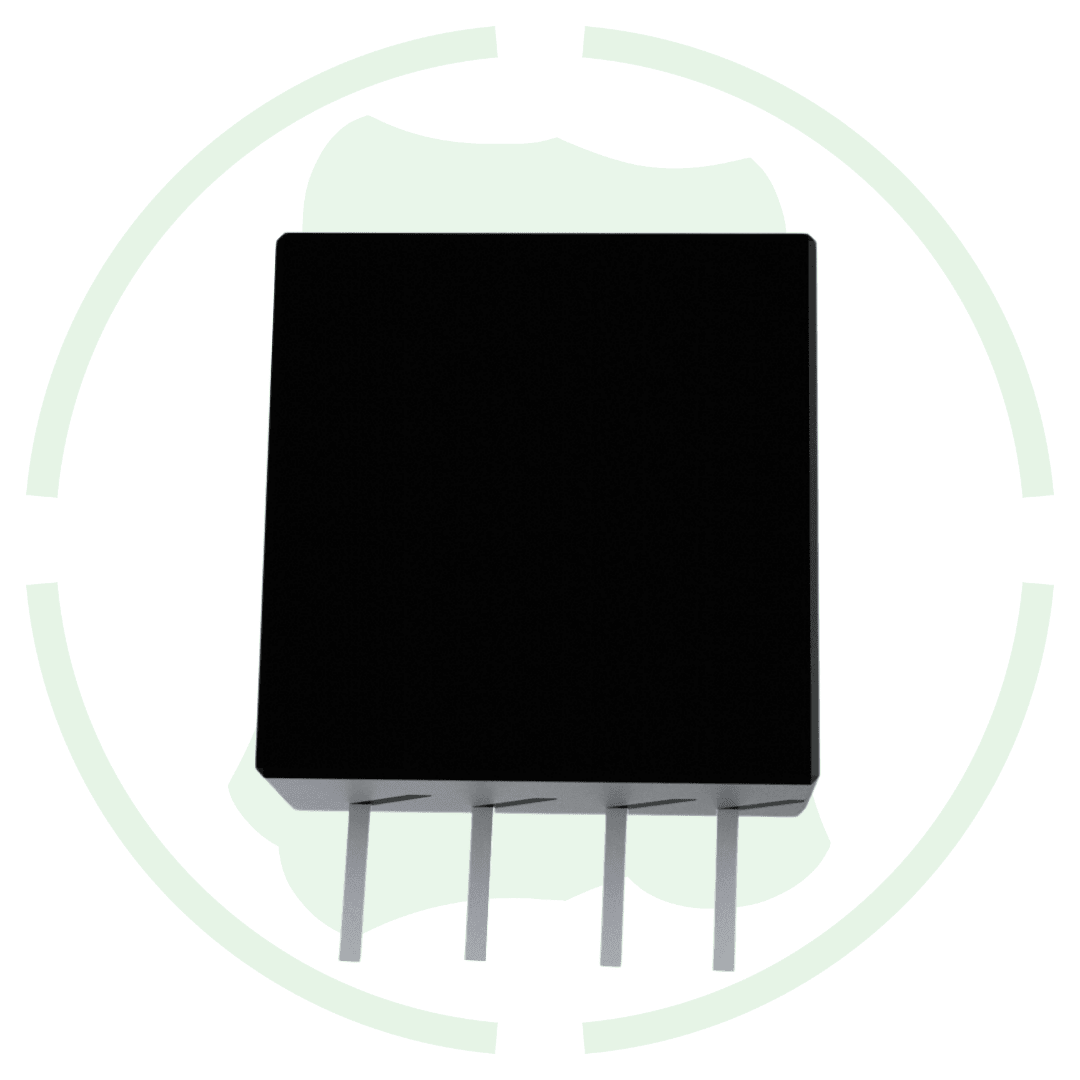

G-energy B0505S-1W 5v to 5V 200mA 1W Dc Dc Converter IP68 Buck Boost Converter

Overview of this G-energy B0505S-1W 5v to 5V 200mA 1W dc dc converter IP68 buck boost converter

Introducing G-energy B0505S-1W 5v to 5V 200mA 1W dc dc converter IP68 buck boost converter at best price in India with g-energy. This 5v to 5v buck boost converter gives up to 1 watt power with 200ma dc current and 5v fix dc output voltage. It smoothly work on input voltage from 4.5v to 5.5v. It is also built with advance voltage conversion technology that help to provide high conversion efficiency up to 81% energy conversion.

Features

High Efficiency: This buck boost converter gives up to 81% efficiency and converts power with minimal loss, reducing heat and saving energy.

Input voltage: This converter is built to work on 4.5v to 5.5v dc input voltage and can be used to control small voltage fluctuation on any dc set up which work on 5v dc set up.

Over current & short circuit protection: This buck boost converter automatically cuts off power during overload or short circuit to prevent damage to the converter and connected devices.

Specification

1.Input Voltage Range: 4.5-5.5V

2. Output Voltage: 5V DC

3. Output Current: 200mA

4. Output Power: 1W

5. Efficiency: 81%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50

10. Nominal Input Voltage: 5V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 11mm × 10mm × 5mm

17. Weight: 1 gm

18. Cooling Method: Free air convection (no fan required)
