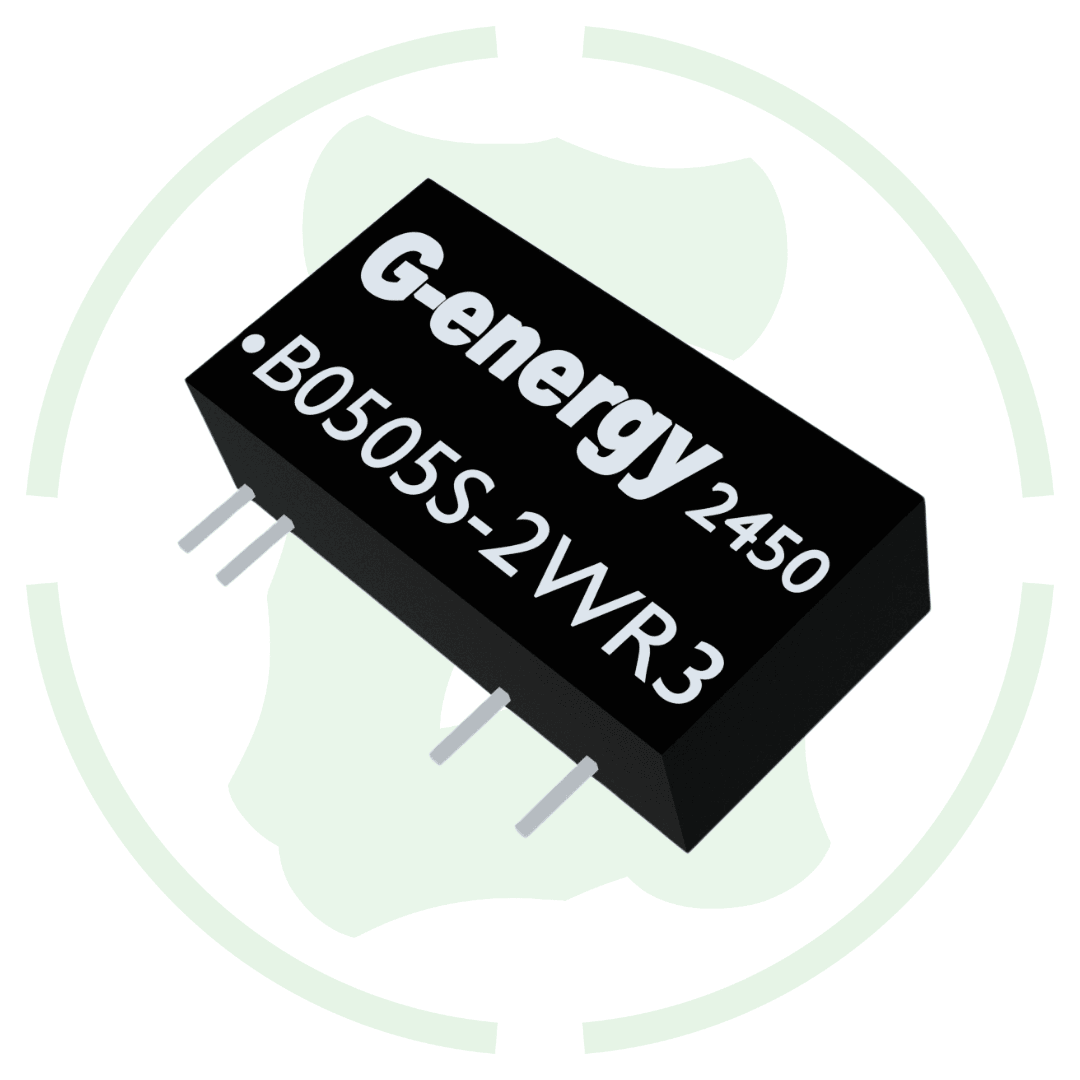

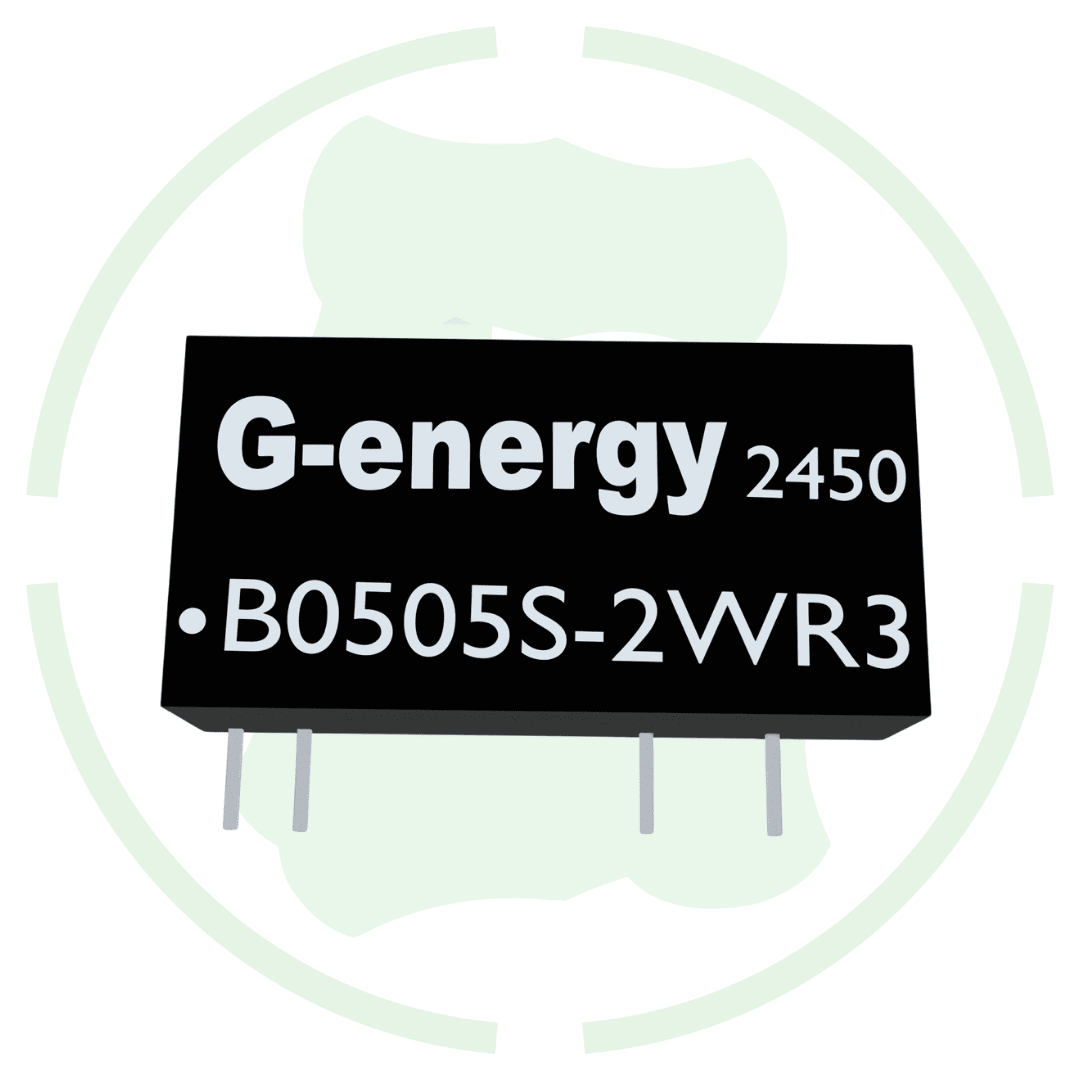

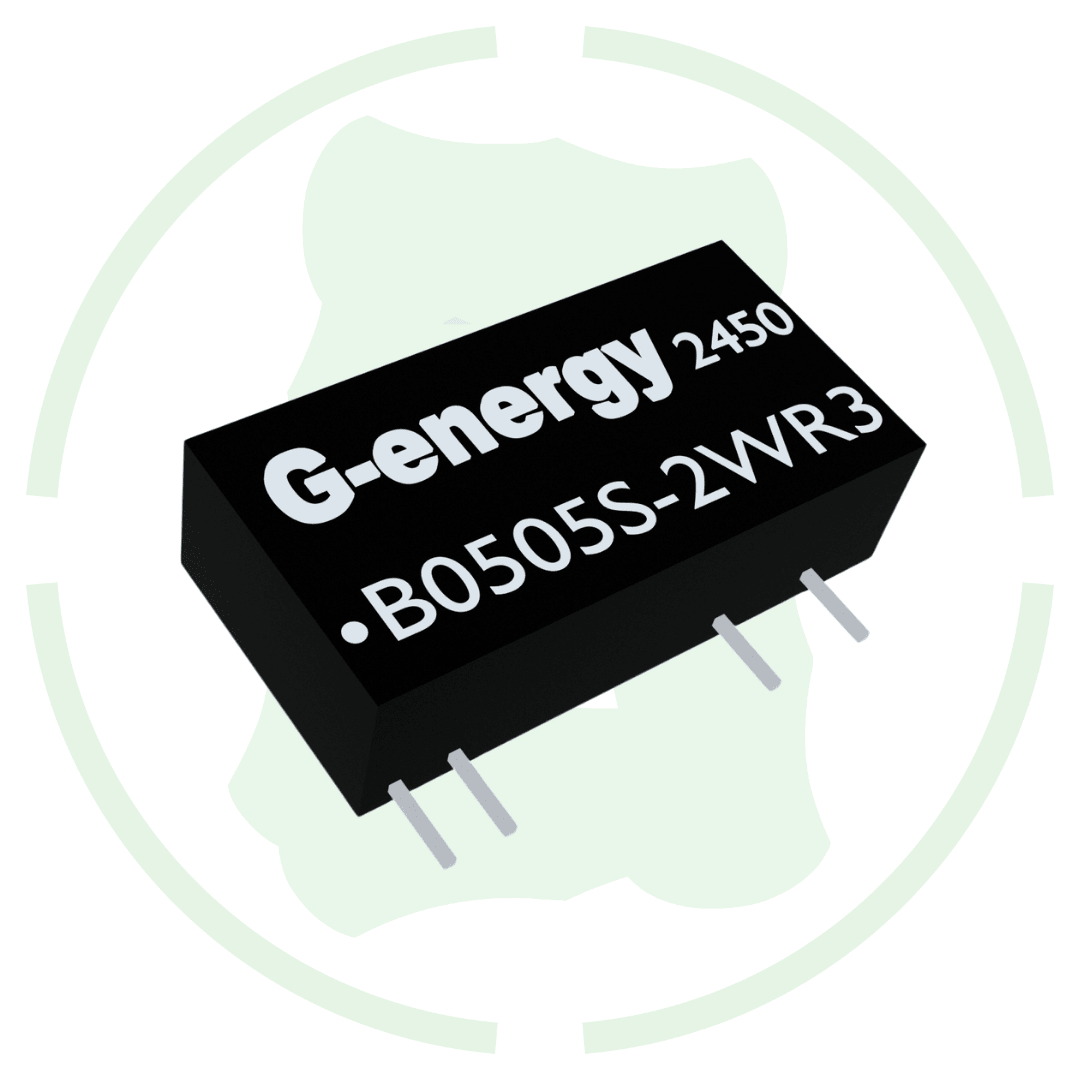

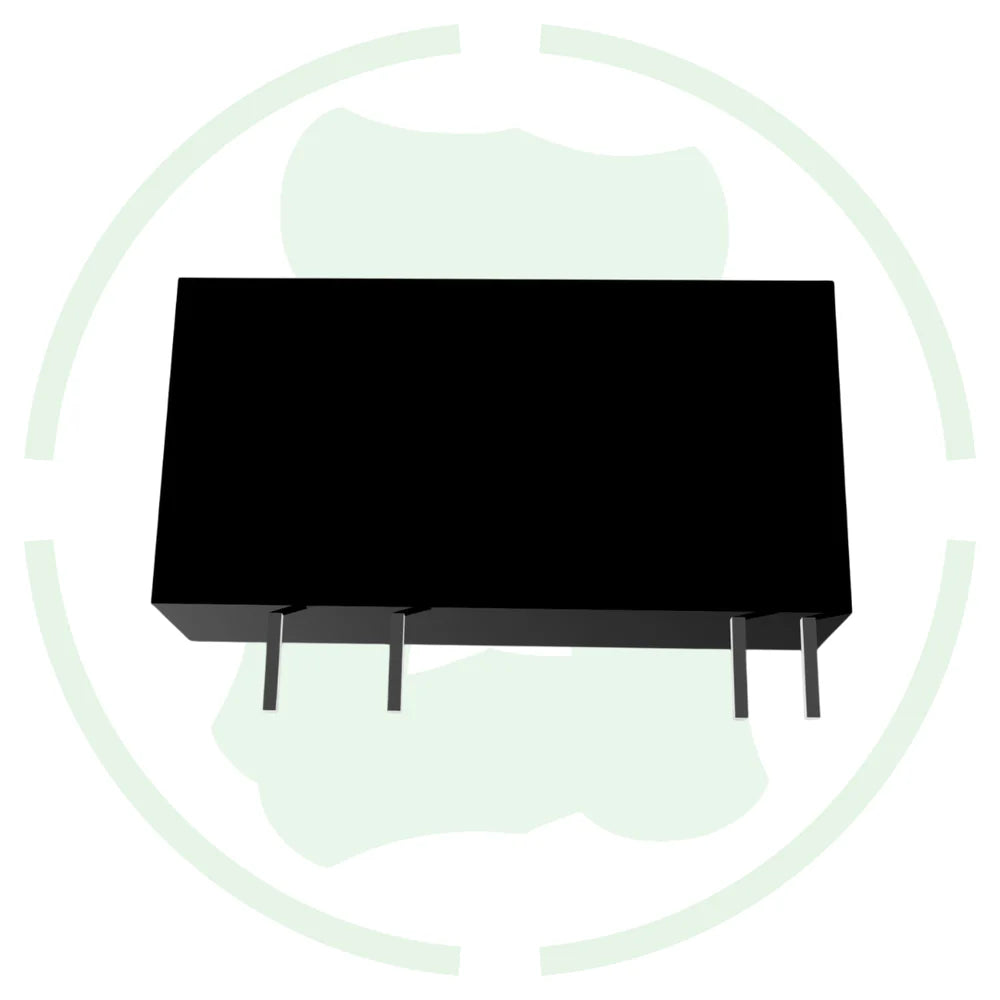

G-energy B0505S-2WR3 5V to 5V 400mA 2W Dc Dc Converter IP68 Buck Boost Converter

Overview of this G-energy B0505S-2WR3 5V to 5V 400mA 2W Dc Dc Converter IP68 Buck Boost Converter

Introducing B0505S-2WR3 5V to 5V 400mA 2W dc dc converter with 4.5-5.5V voltage input range at the best price in India with g-energy. This voltage converter provide up to 400mA dc current and 2w max dc power to operate small electronics, sensors, or communication modules. It is also built with advance energy conversion technology and help it to achieve high conversion efficiency up to 88% for more efficient energy conversion set up.

Features

Isolation Protection (1500VDC): Converter has high electrical isolation between input and output, which improves safety and reduces interference between circuits.

Short circuit & over current Protection: This buck boost converter automatically shut down or limit current if there is a fault & prevent damage to the converter or connected device.

High Efficiency: This buck boost converter gives up to 88% efficiency and converts power with minimal loss & reduce heat and saving energy.

Specification

. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 5V DC

3. Output Current: 400mA

4. Output Power: 2W

5. Efficiency: 88%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 30/80mVp-p

10. Nominal Input Voltage: 5V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 19mm × 6mm × 10mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)
