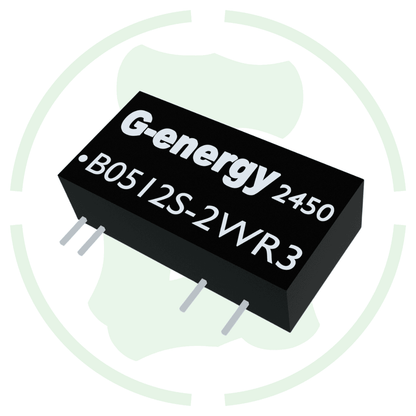

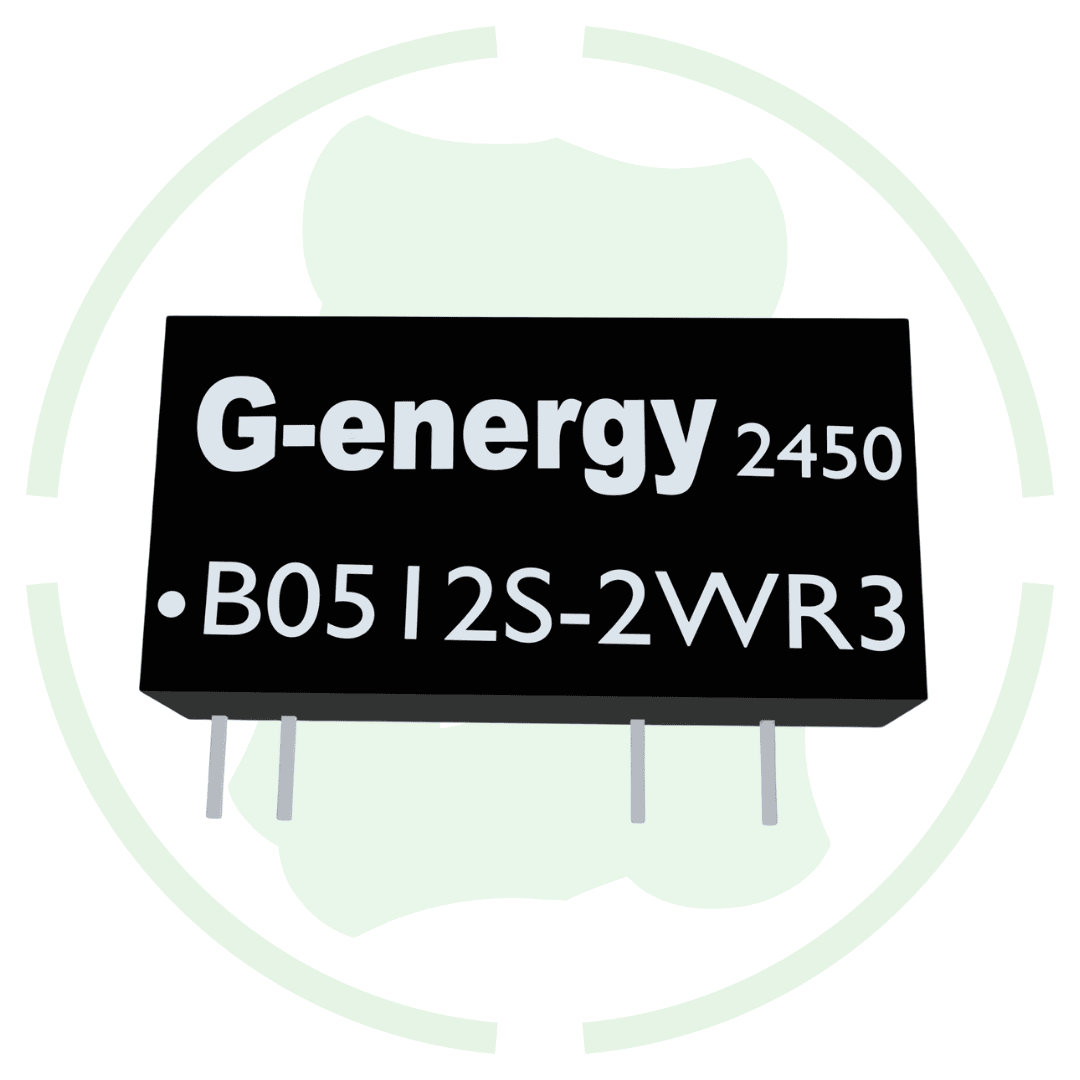

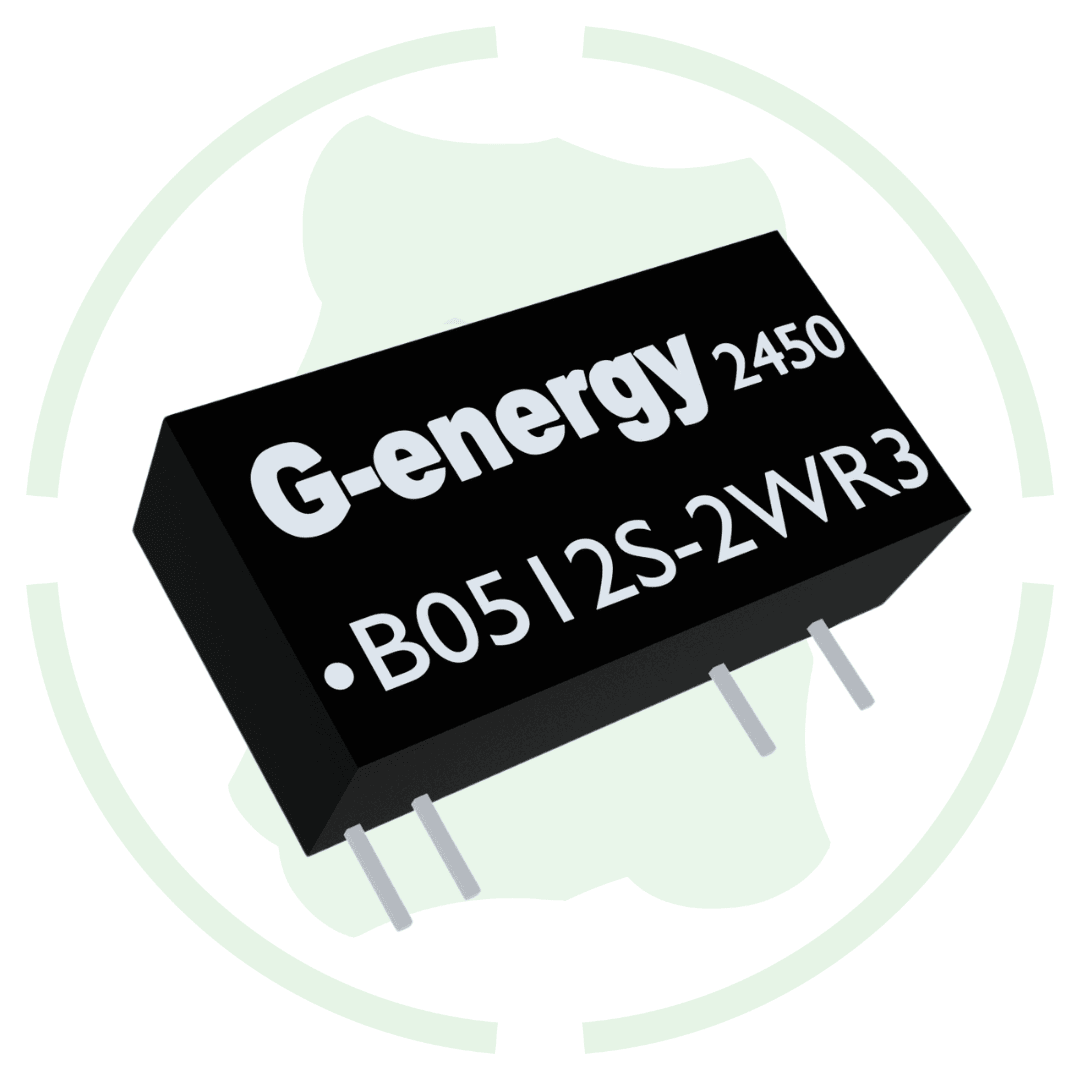

G-energy B0512S-2WR3 5V to 12V 166mA 2W Dc Dc Converter IP68 Boost Converter

Overview of this G-energy B0512S-2WR3 5V to 12V 166mA 2W Dc Dc Converter IP68 Boost Converter

Introducing  B0512S-2WR3 5V to 12V 166mA 2W Dc Dc Converter at best price in India with g-energy. This converter takes a lower 4.5-5.5V input and increases it to a stable 12V output and make it perfect to power device that need fix 12v dc input. This converter come in SIP package and single Inline Package design for compact size and easy mounting on circuit board. Also converter comes with short-circuit protection and overcurrent protection, and high isolation voltage for safe and reliable operation.

Features

2W Power Output: This 5v to 12v boost converter give up to 2 watts power with 166mA dc current to operate small electronics, sensors, or control circuits.

Input voltage: This B0512S-2WR3 converter work on 4.5v to 5.5v dc input voltage range to control fluctuation 5v dc input to a fix 12v dc output voltage.

High quality built: It is built with high quality component to ensure dependable, long-term operation. And fulfill industry standard for performance and reliability in demanding application.

Specification

. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 5V DC

3. Output Current: 166mA

4. Output Power: 1W

5. Efficiency: 89%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/75mVp-p

10. Standard Input Voltage: 5V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 19mm × 10mm × 6mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)
