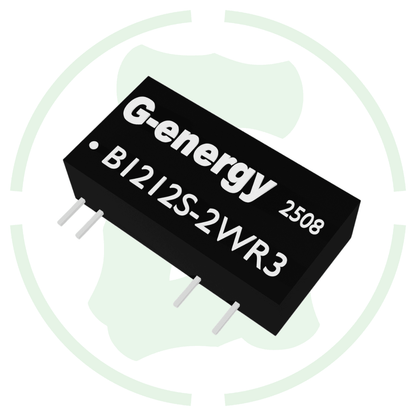

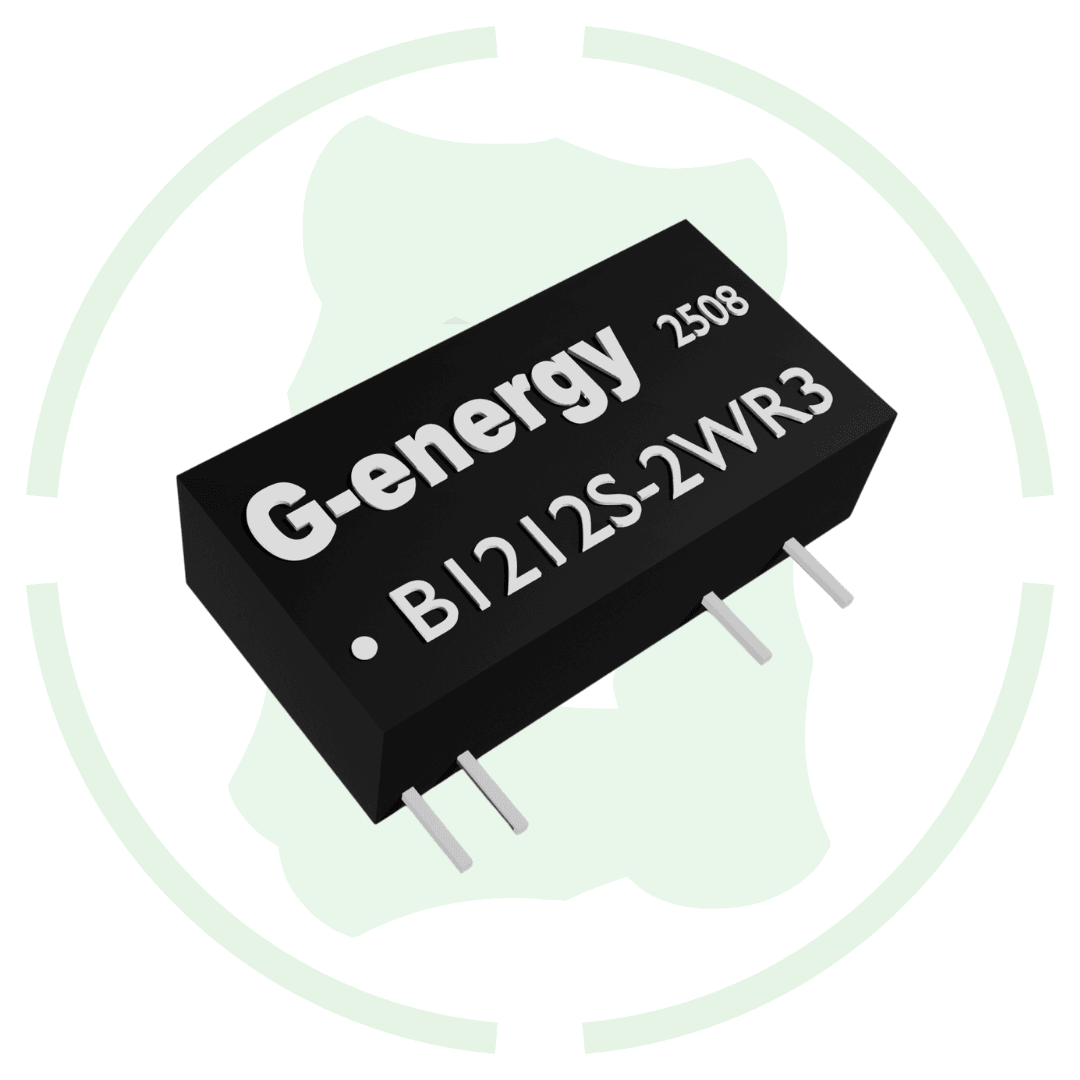

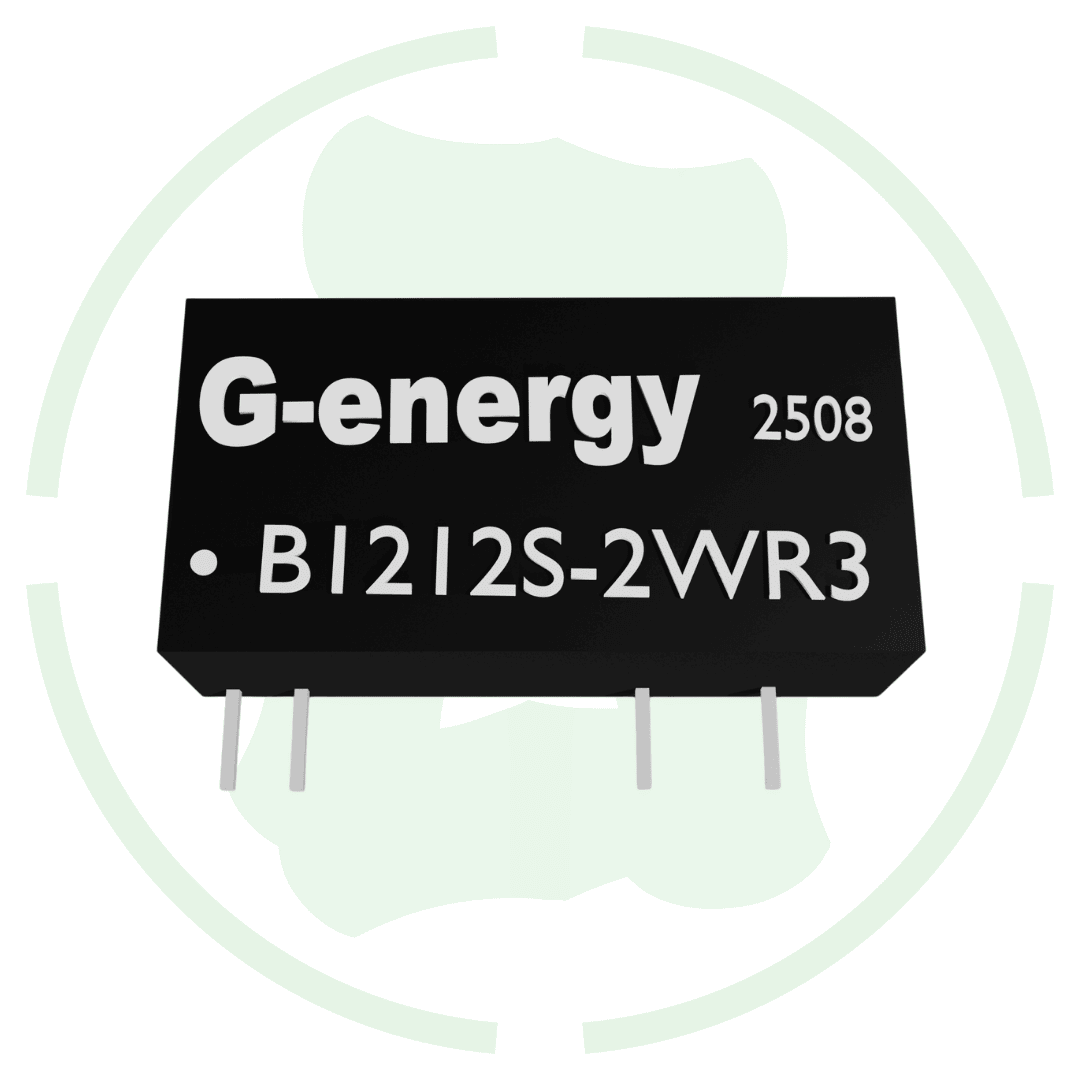

G-energy B1212S-2WR3 12V to 12V 167mA 2W Dc Dc Converter IP68 Buck Boost Converter

Overview of this G-energy B1212S-2WR3 12V to 12V 167mA 2W dc dc converter

Introducing G-energy B1212S-2WR3 12v to 12v 167mA 2w dc dc converter ip68 waterproof buck boost converter. This converter gives a 10.8-13.2V input voltage range to a fix 12V output and make sure your devices run smoothly without voltage drops or surges. Converter can handle both situations where input voltage is slightly higher or lower than 12V and ensure stable performance. It has built-in protection features like short-circuit protection and stable isolation for device safety.

Features

Stable 12V to 12V Output – This converter takes 10.8-13.2V input and delivers a fix 12V output.

Buck-Boost Function – It can increase (boost) or decrease (buck) the voltage to maintain 12V output, which is useful when your power supply is not always stable.

Compact Size – Converter comes in small and lightweight to make it easy to fit into use inside small project or equipment.

Specification

1. Input Voltage Range: 10.8-13.2V

2. Output Voltage: 12V

3. Output Power: 2W

4. Output Current: 167mA

5. Isolation Voltage: 1500VDC

6. Conversion Type: Buck Boost Converter

7. Efficiency: Up to 84%

8. Operating Temperature Range: -20°C to 80°C

9. Over voltage Protection: Yes

10. Short Circuit Protection: Yes

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 19mm × 10mm × 6mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)
