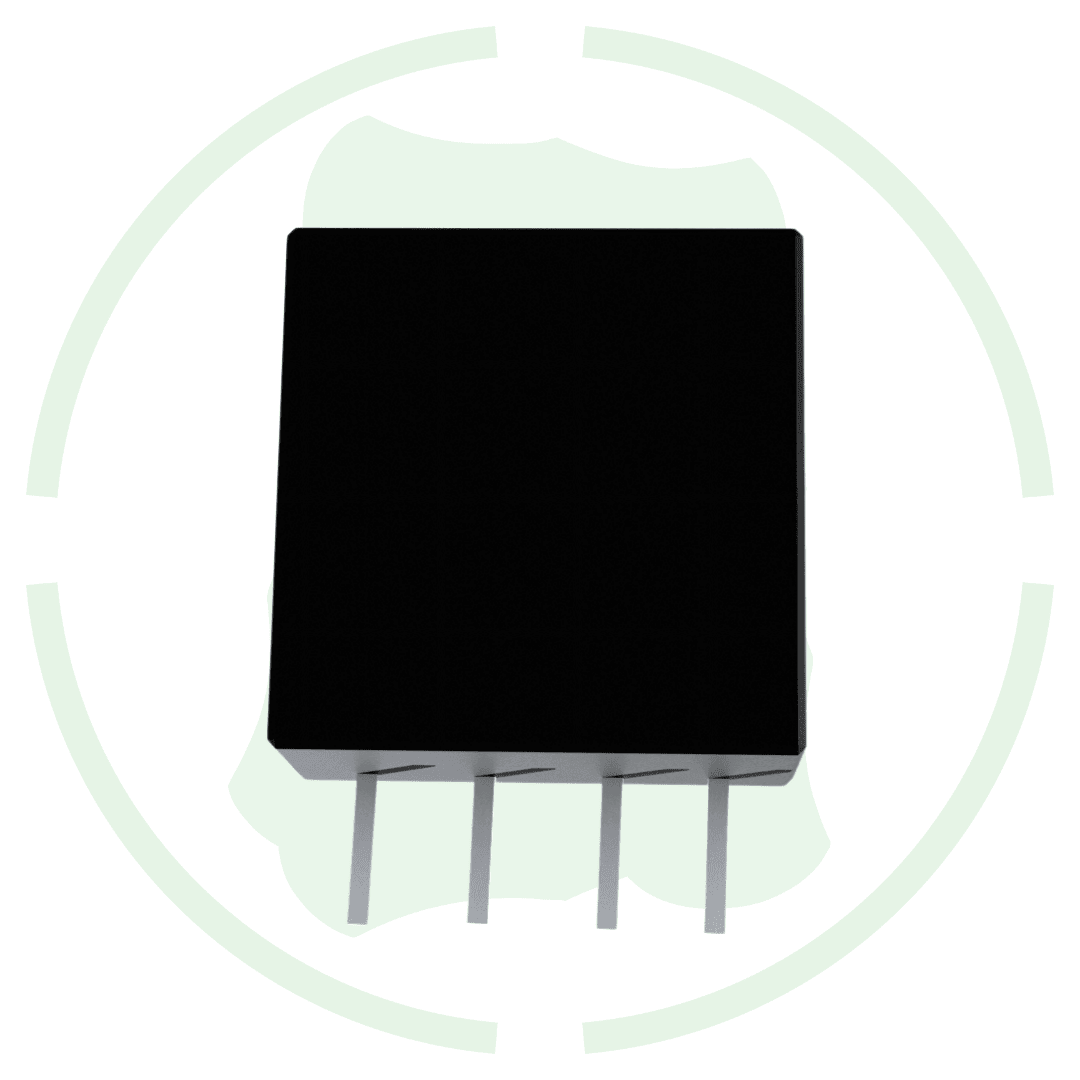

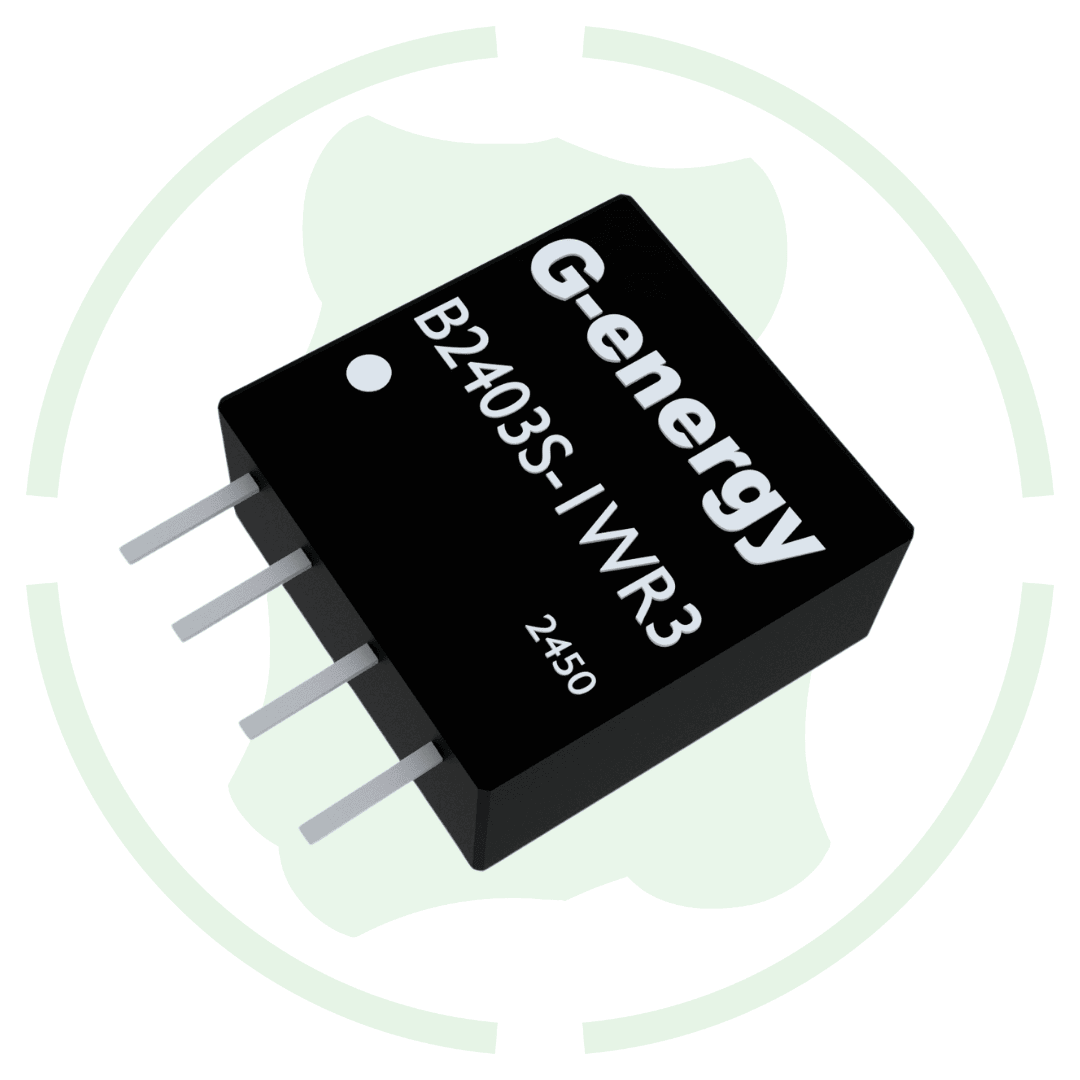

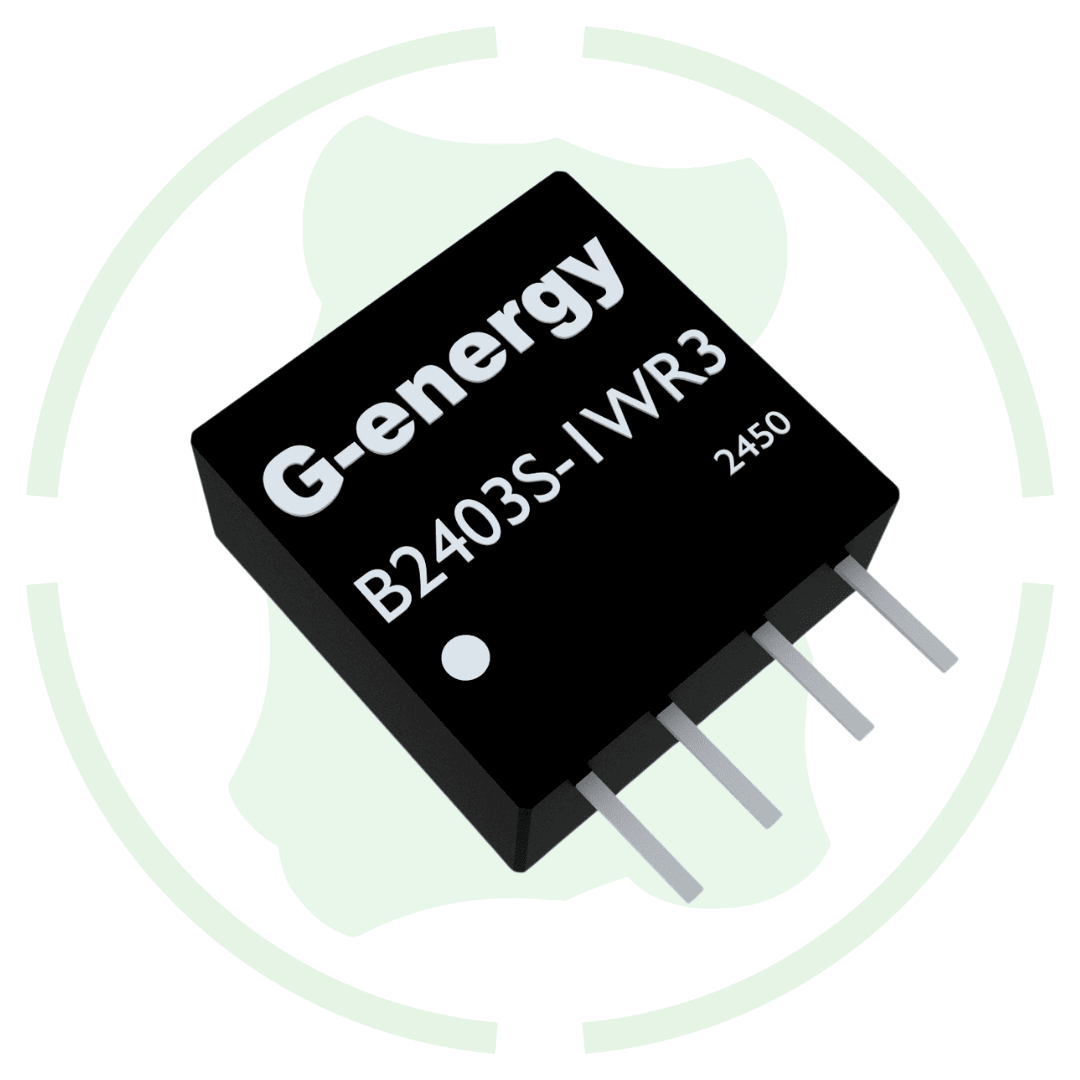

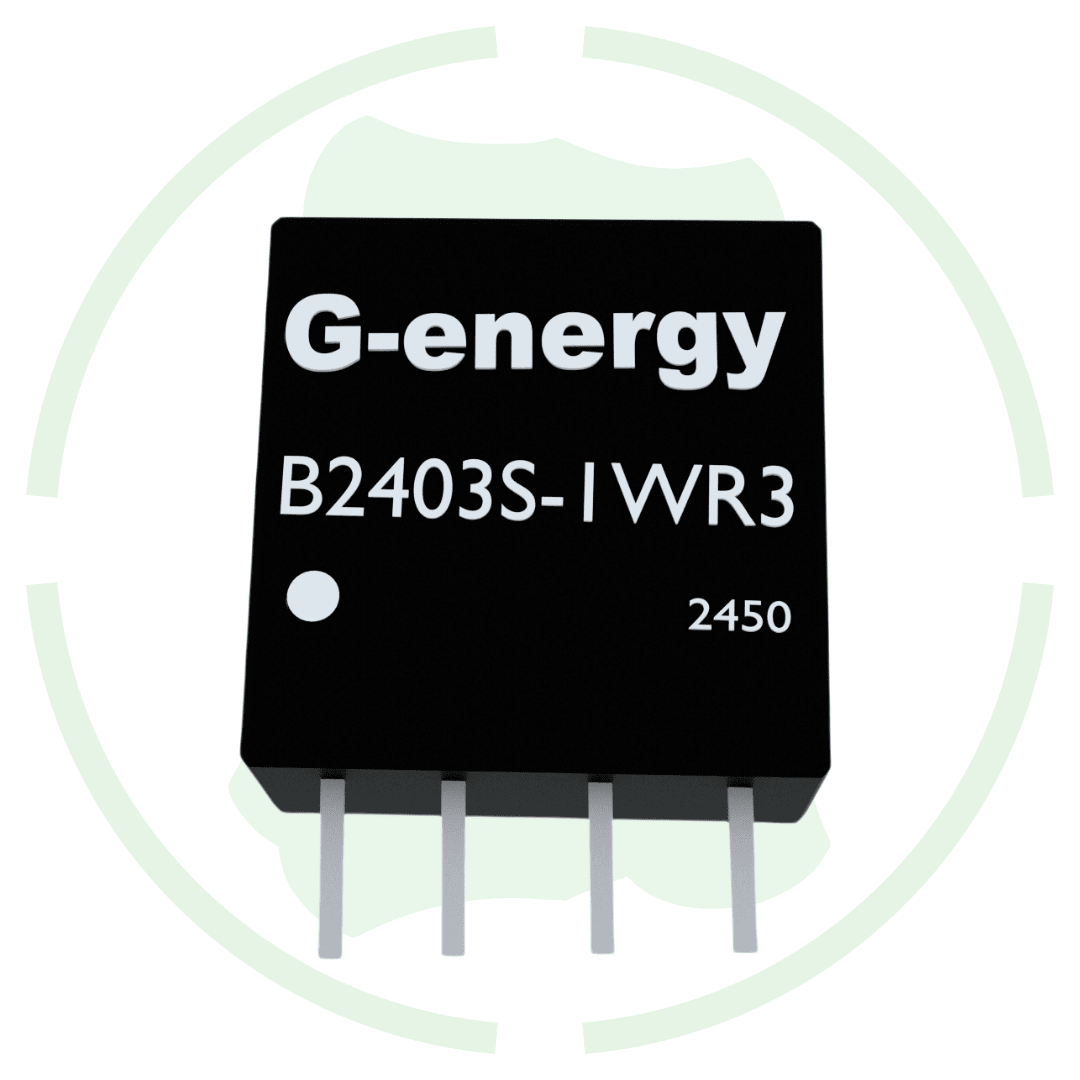

G-energy B2403S-1WR3 24V to 3V 333mA 1W Dc Dc Converter IP68 Step Down Converter

Overview of this G-energy B2403S-1WR3 24V to 3V 333mA 1W Dc Dc Converter IP68 Step Down Converter

Introducing G-energy B2403S-1WR3 24V to 3V 333mA 1W Dc Dc Converter IP68 Step Down Converter at the best price in India with g-energy. This step down converter takes a 24V dc input and change it into a stable 3 voltage dc output and it is perfect to power low-voltage device. This converter comes with built-in protection like short circuit and over current protection to prevent damage to the device and the load.

Features

Input Voltage: This 1w converter work smoothly with a 24V power source and make it perfect for industrial, automotive, and electronic project.

Reliable and Long-Lasting Performance: It is built with high quality component to ensure dependable, long-term operation. And fulfill industry standard for performance and reliability in demanding application.

High Efficiency This buck converter gives up to 80% efficiency and converts power with minimal loss, reducing heat and saving energy.

Specification

1. Input Voltage Range: 21.6-26.4V

2. Output Voltage: 3V DC

3. Output Current: 333mA

4. Output Power: 1W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 75

10. Nominal Input Voltage: 24V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Over voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 11mm × 10mm × 5mm

17. Weight: 2 gm

18. Cooling Method: Free air convection (no fan required)
