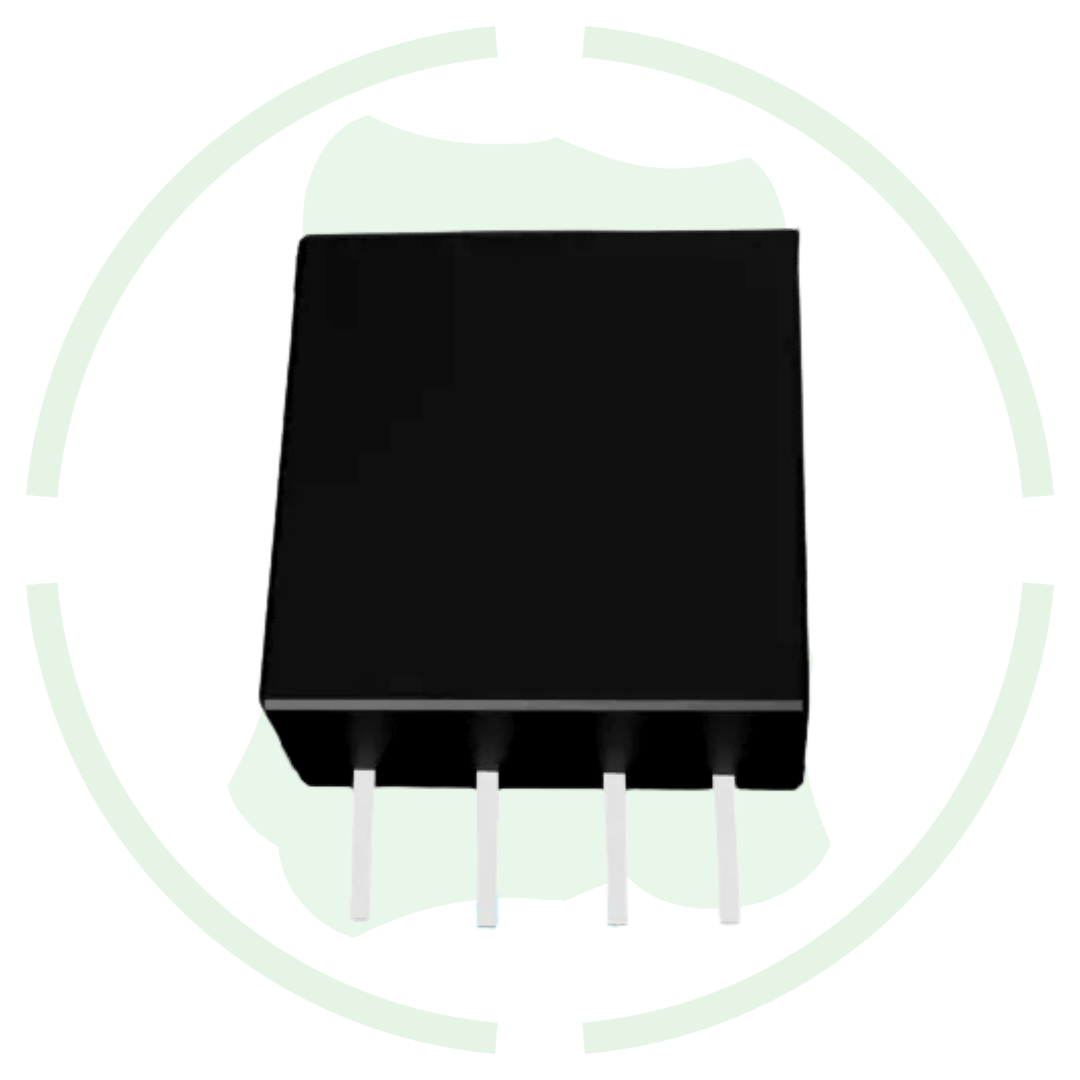

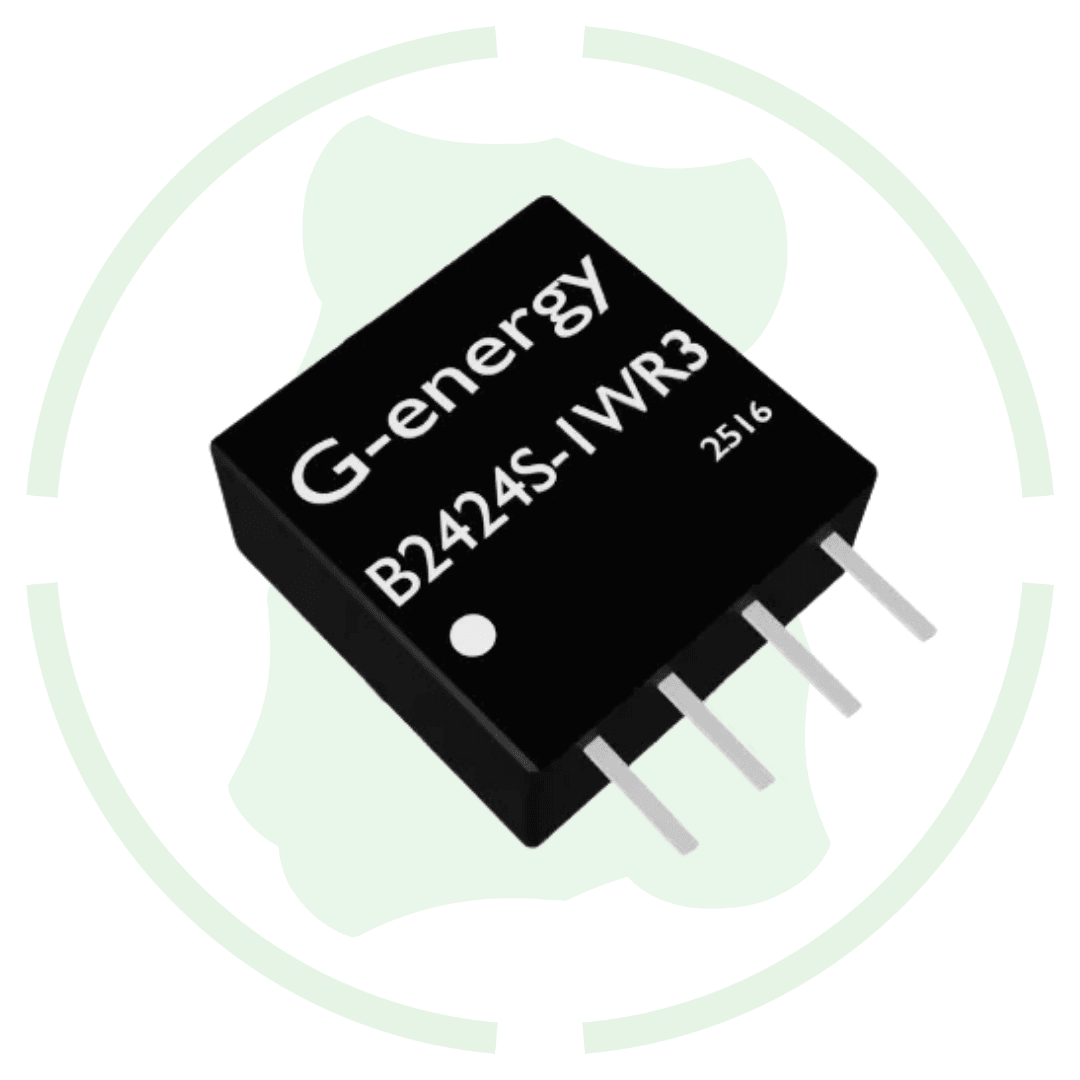

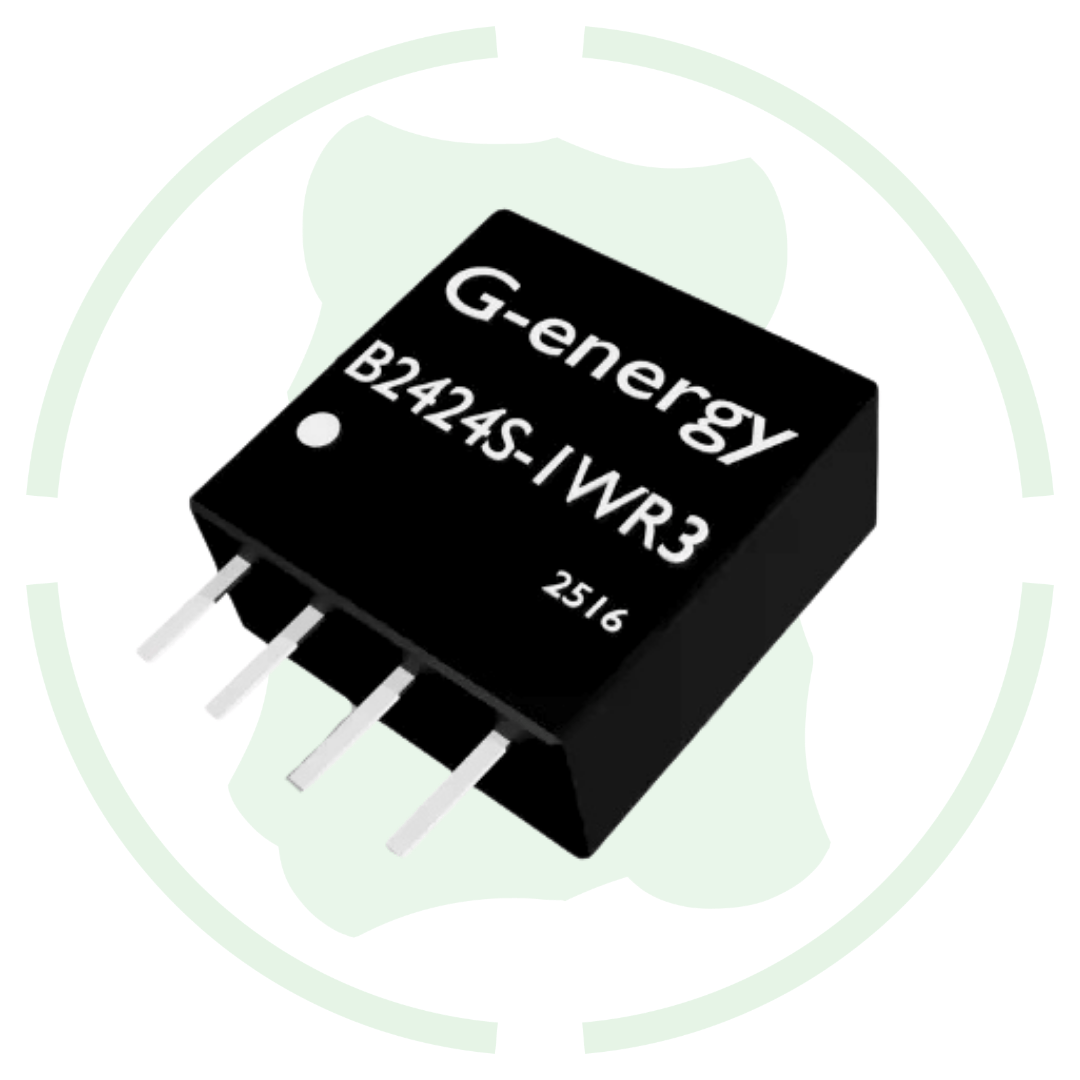

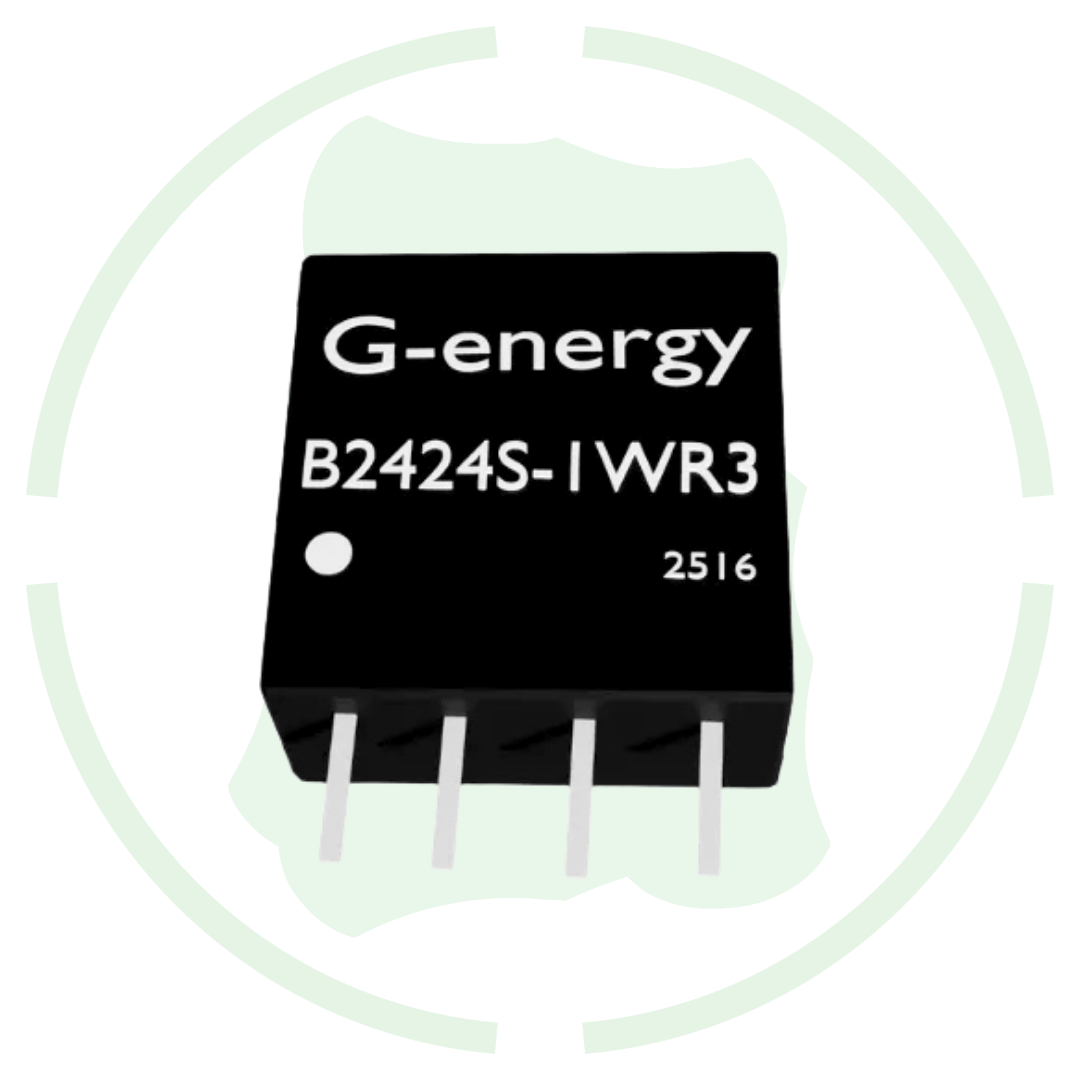

G-energy B2424S-1WR3 24V to 24V 42mA 1W Dc Dc Converter IP68 Step Up-Down Converter

Overview of this G-energy B2424S-1WR3 24V to 24V 42mA 1W dc dc Converter

Introducing G-energy B2424S-1WR3 24v to 24v 42ma 1w dc dc converter at best price in India. It take 21.6v to 26.4v dc input voltage and provide a fix 24v dc output with up to 42mA dc current. This G-energy 24V to 24V 42mA isolated dc-dc converter stand out for its compact design and efficiency in power delivery with 1W power output. This B2424S-1WR3 ensure stable performance and safety & also make it best device for various power conversion need.

Features

Input voltage: This B2424S-1WR3 converter work on 21.6V-26.4V input voltage range for its use at multiple use.

Protection features: It also come with multiple safety features including short circuit protection, under voltage protection and over load protection.

SIP Design: It is designed with space efficiency in mind, the B2424S-1WR3 SIP(single in line package) compact form is perfect  for less space device.

Specification

1. Output Power: 1W

2. Input Voltage : 24V

3. Input Voltage Range : 21.6-26.4V

4. Output Voltage: 24V

5. Output Current: 42mA

6. Isolation Voltage: 1500VDC/min

7. No-load Input Current: 5mA

8. Operating Temperature Range: -40℃ to +85℃

9. Efficiency: Up to 88%

10. Low Ripple/Noise (20MHz bandwidth): 30mVp-p

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 11mm × 10mm × 6mm

17. Weight: 2 gm

18. Cooling Method: Free air convection (no fan required)
