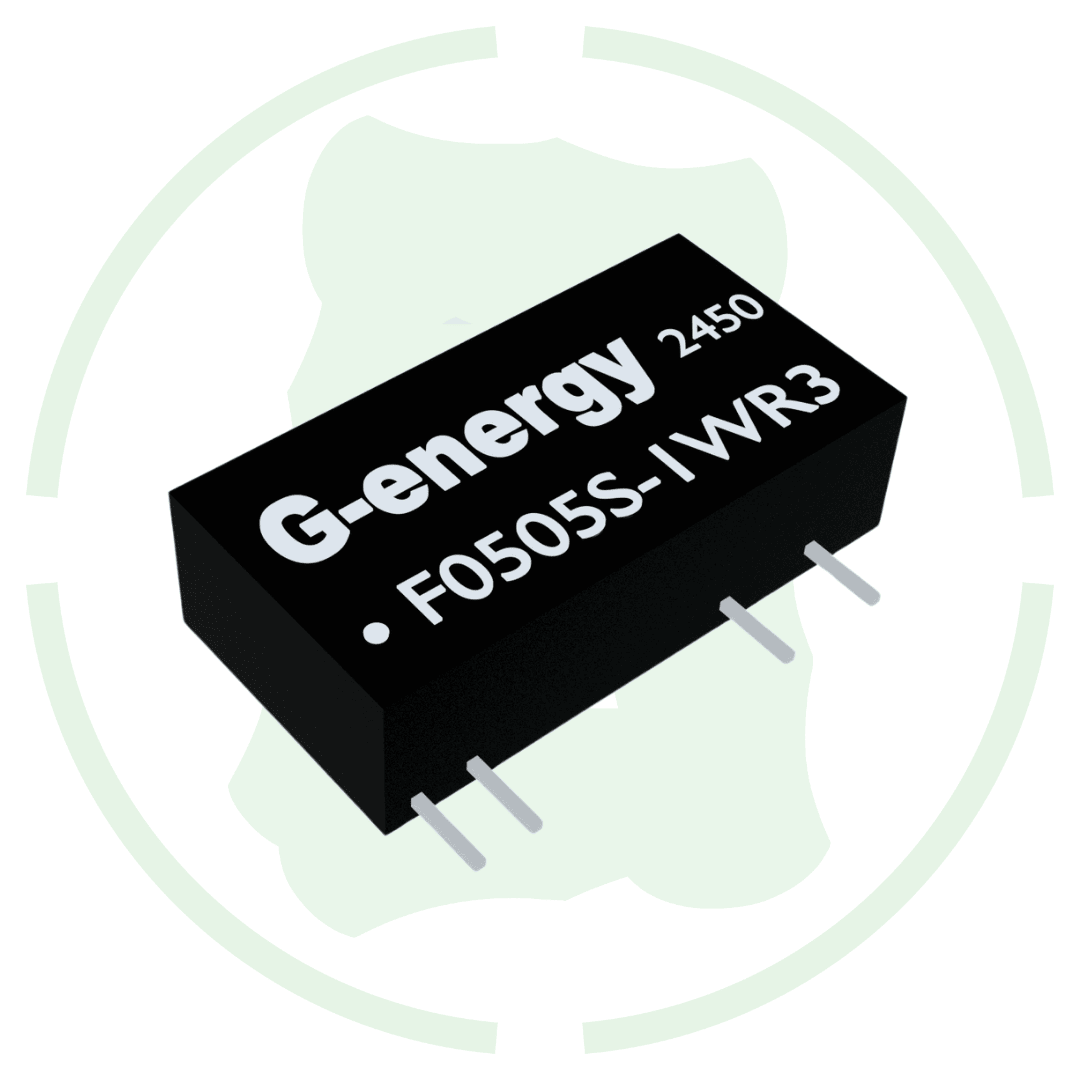

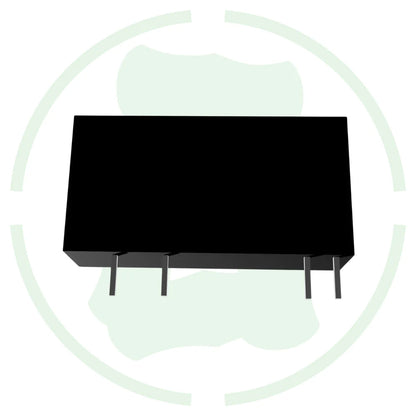

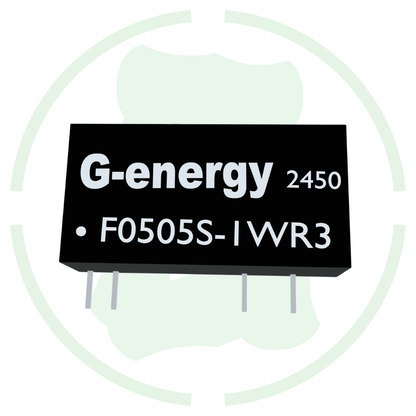

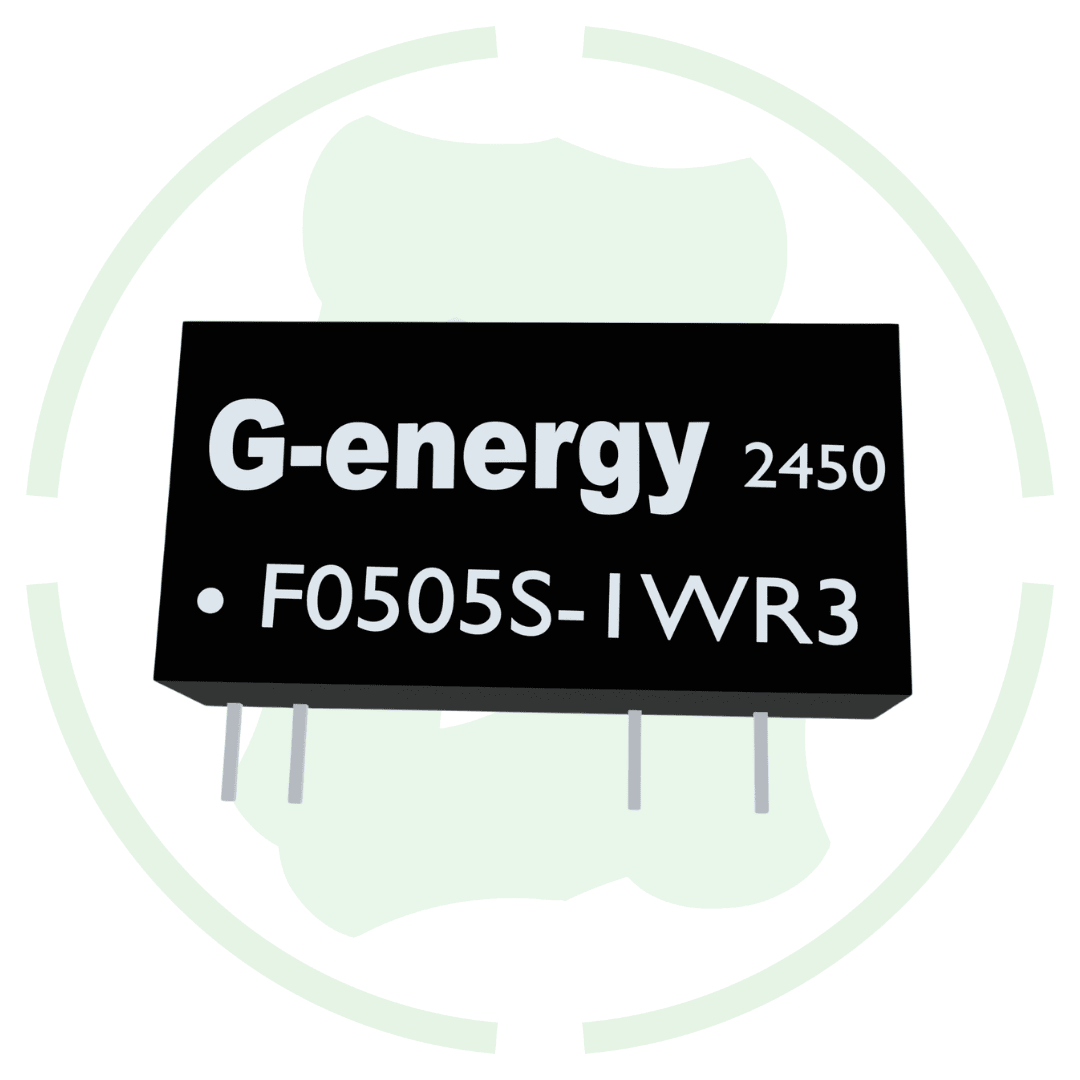

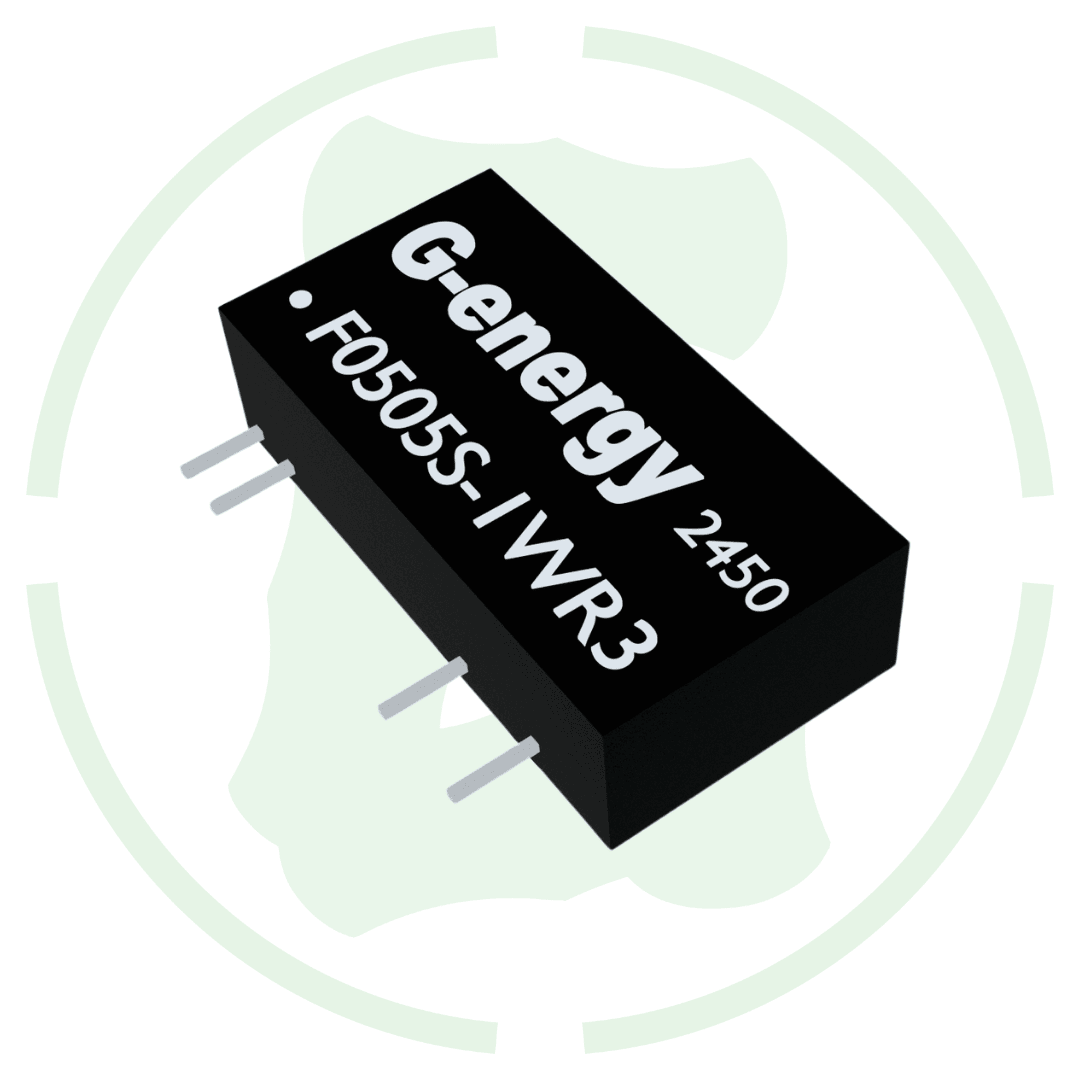

G-energy F0505S-1WR3 5V to 5V 200mA 1W Dc Dc Converter IP68 Buck Boost Converter

Overview of this G-energy F0505S-1WR3 5V to 5V 200mA 1W Dc Dc Converter

Introducing G-energy F0505S-1WR3 5V to 5V 200mA 1W Dc Dc Converter IP68 Buck Boost Converter  at best price in India with g-energy. This buck boost converter comes in single Inline Package design for easy mounting on any circuit board. Converter give reliable and long lasting performance and it is built with high quality component to ensure dependable, long-term operation.

Features

Input voltage: This F0505S-1WR3 converter work on 4.5 to 5.5v dc input voltage and convert it to a fix 5v dc output voltage.

1W Power Capacity: This buck boost converter gives up to 1 watt of power with 200mA dc current to power small electronic device, sensor, and control circuit.

Comes in sip package: Converter come in single inline package design for compact size and easy mounting on circuit board.

Specification

1. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 5V DC

3. Output Current: 200mA

4. Output Power: 1W

5. Efficiency: 82%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 30/75 mVp-p

10. Nominal Input Voltage: 5V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 19mm × 10mm × 5mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)
