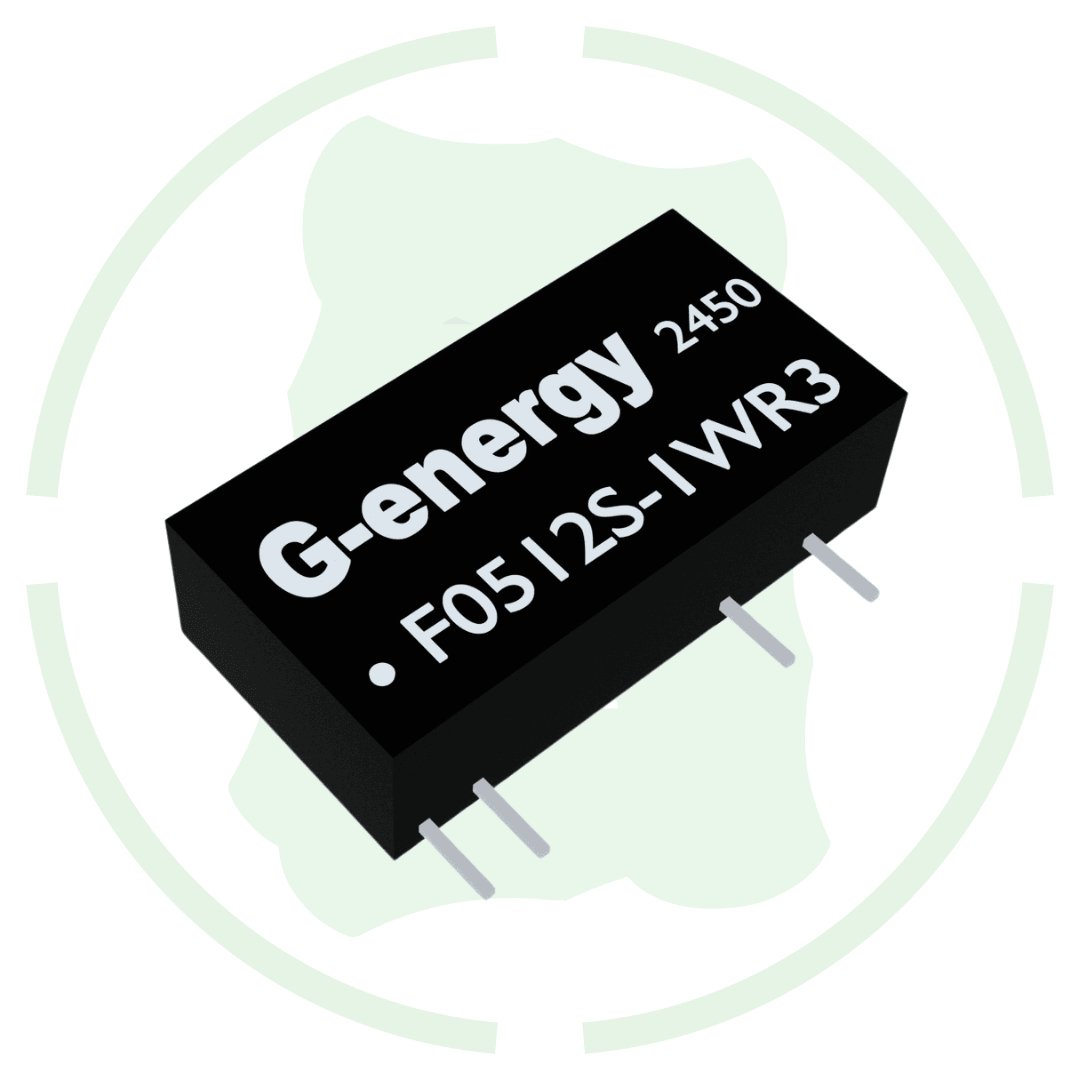

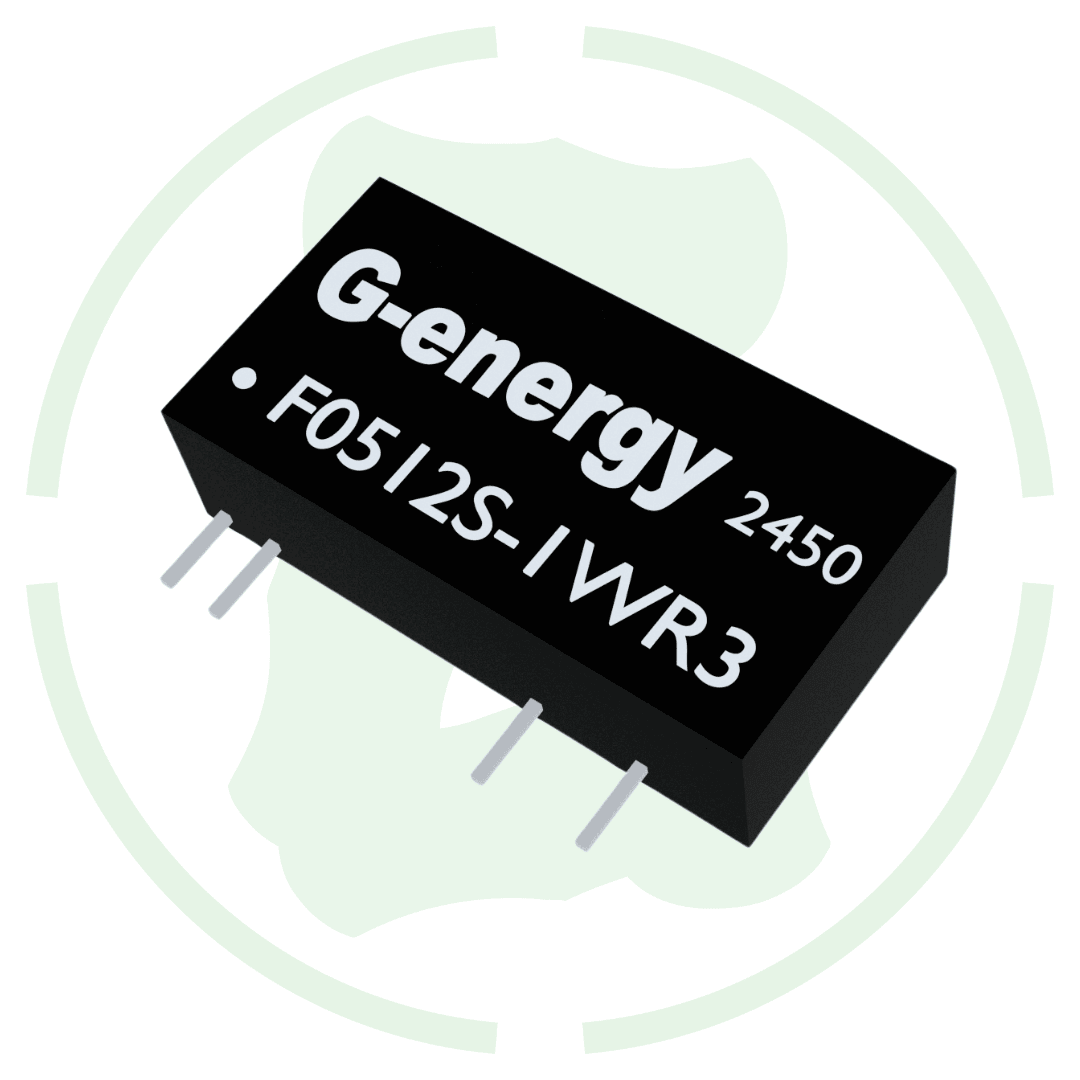

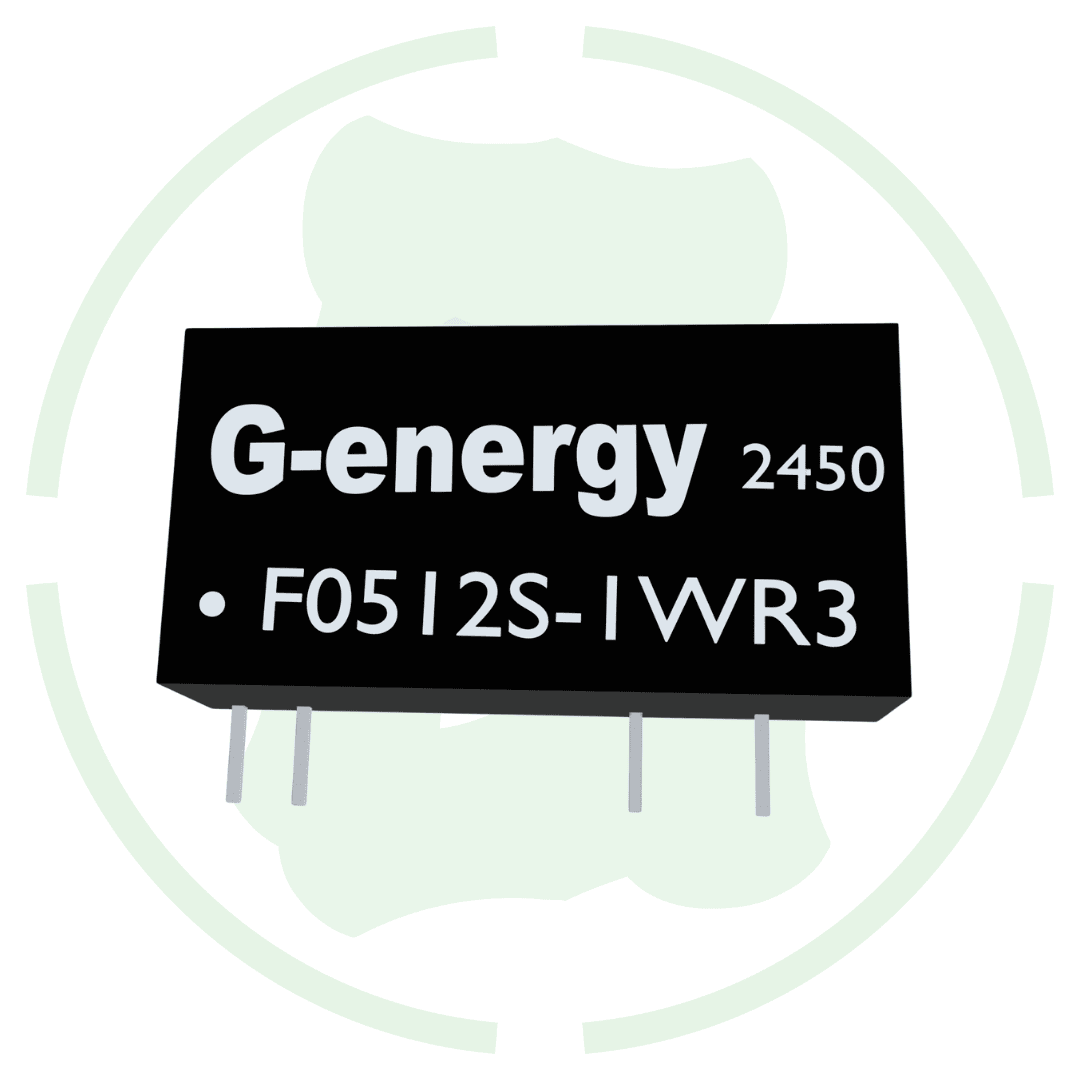

G-energy F0512S-1WR3 5V to 12V 83mA 1W Dc Dc Converter IP68 Step Up Converter

Overview of this G-energy F0512S-1WR3 5V to 12V 83mA 1W Dc Dc Converter IP68 Step Up Converter

Introducing G-energy F0512S-1WR3 5V to 12V 83mA 1W Dc Dc Converter IP68 Step Up Converter at best price in India with g-energy. This converter take 4.5-5.5V voltage input and give 12V voltage output for smooth 12v dc operation. Converter give up to 1 watt of power with an output current of 83mA it is enough to run small electronic and multiple types of pcb board.

Features

High Efficiency: This boost converter gives up to 83% efficiency and convert power with minimal loss & reduce heat and saving energy.

Over current and short-circuit protection: This converter has built in safety features to prevent damage to the converter and connected device in case of electrical fault.

Fix 12V dc output: It also provide a fix 12v dc output voltage from a fluctuating 5V(4.5-5.5V) dc input voltage.

Specification

1. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 12V DC

3. Output Current: 83mA

4. Output Power: 1W

5. Efficiency: 83%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50

10. Nominal Input Voltage: 5V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 19mm × 10mm × 5mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)
