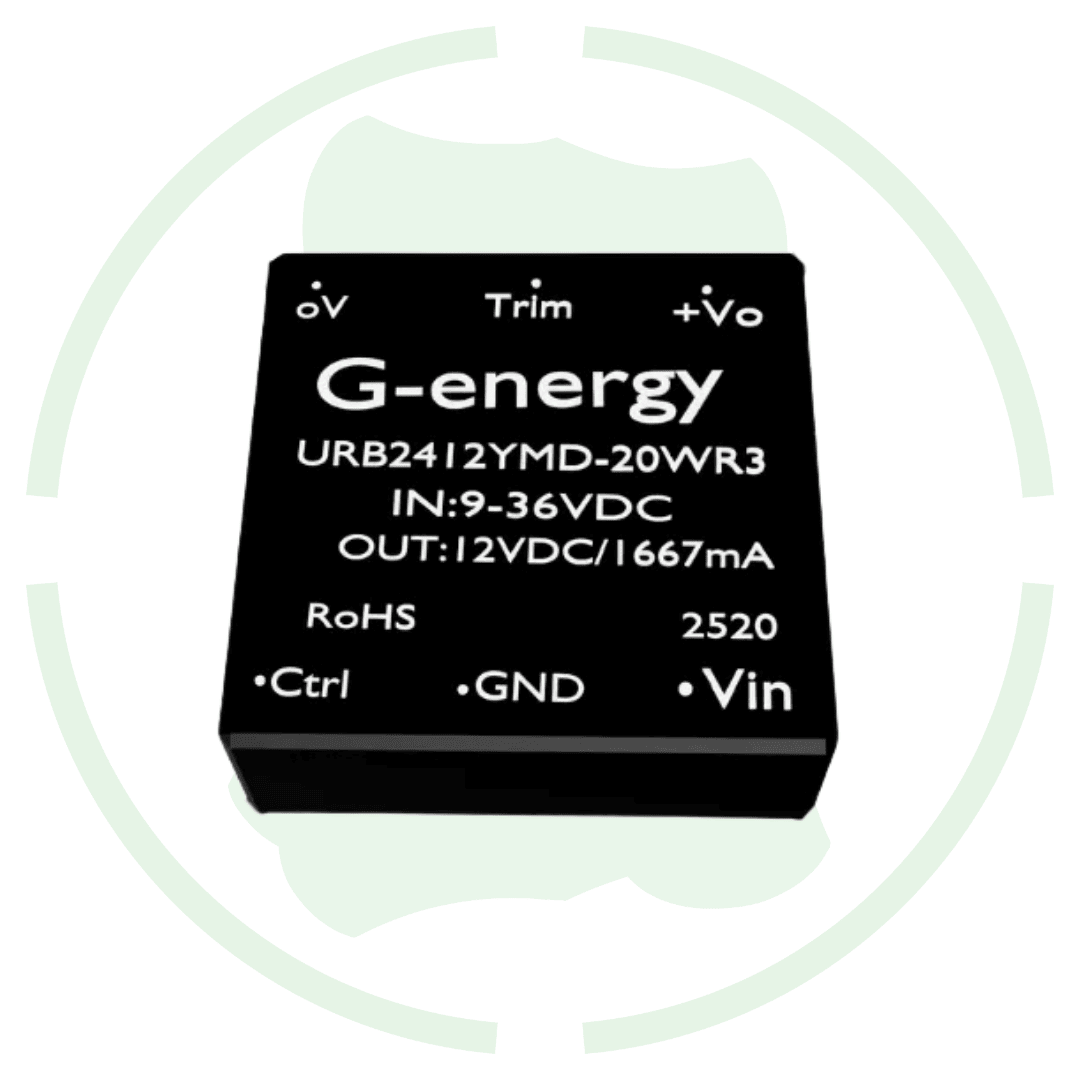

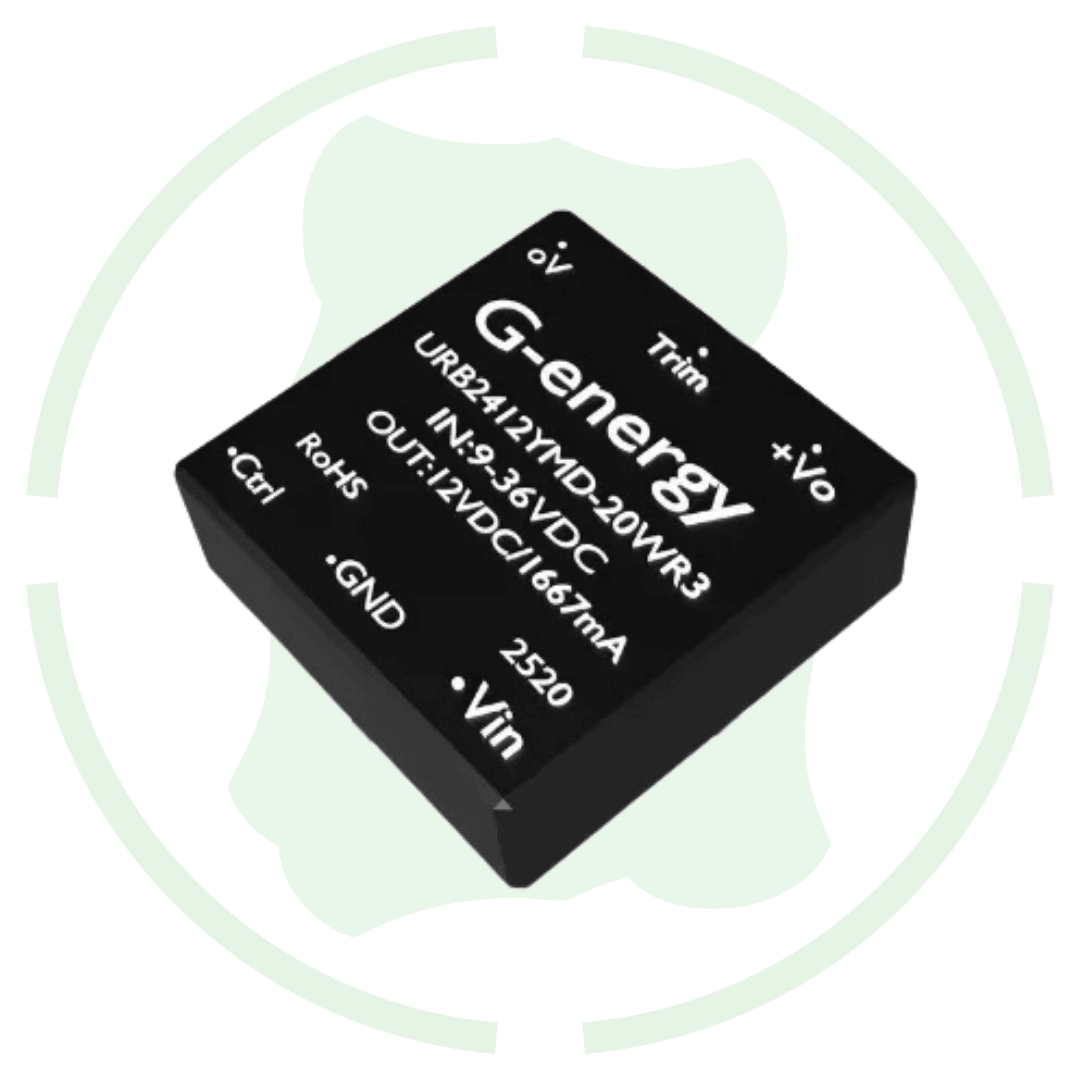

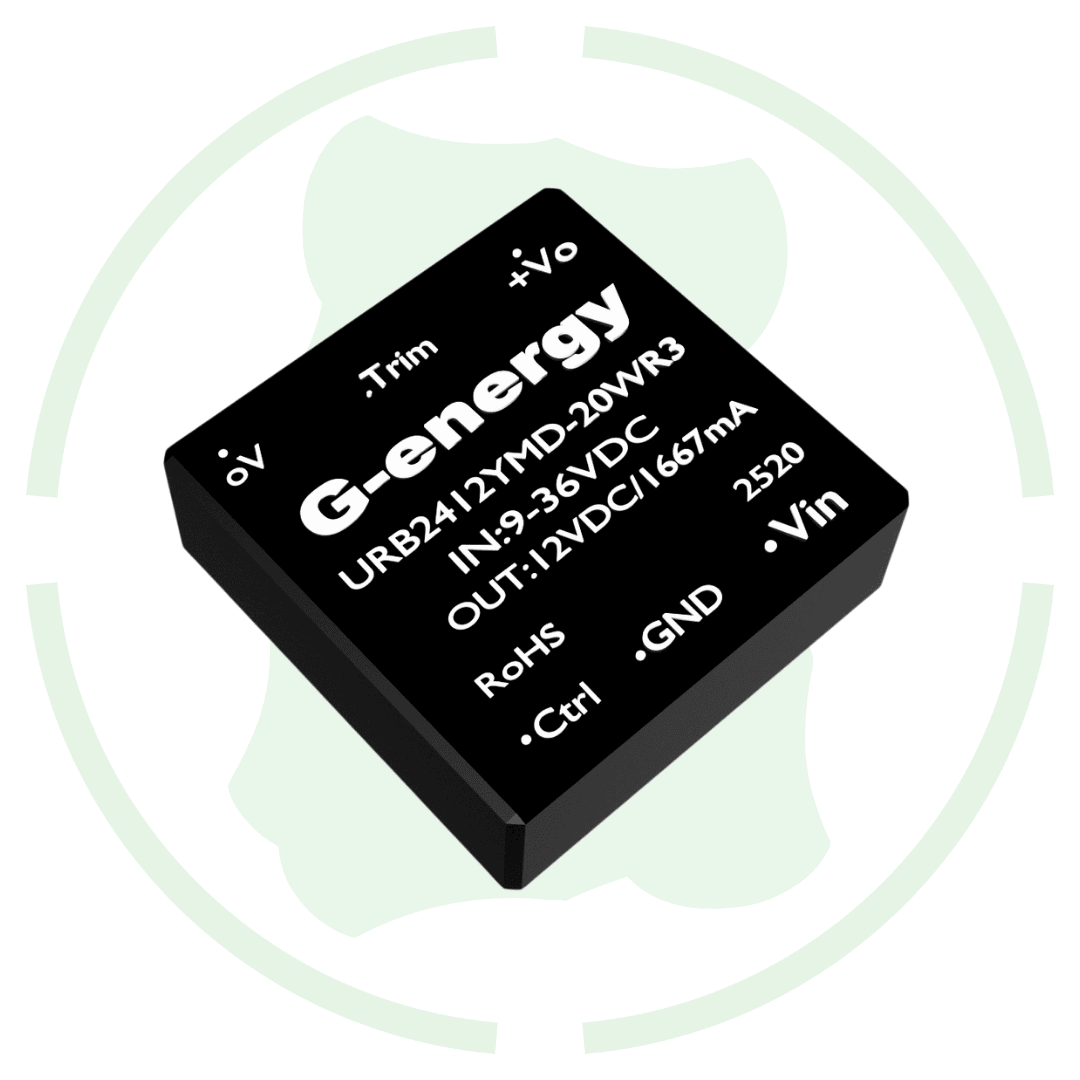

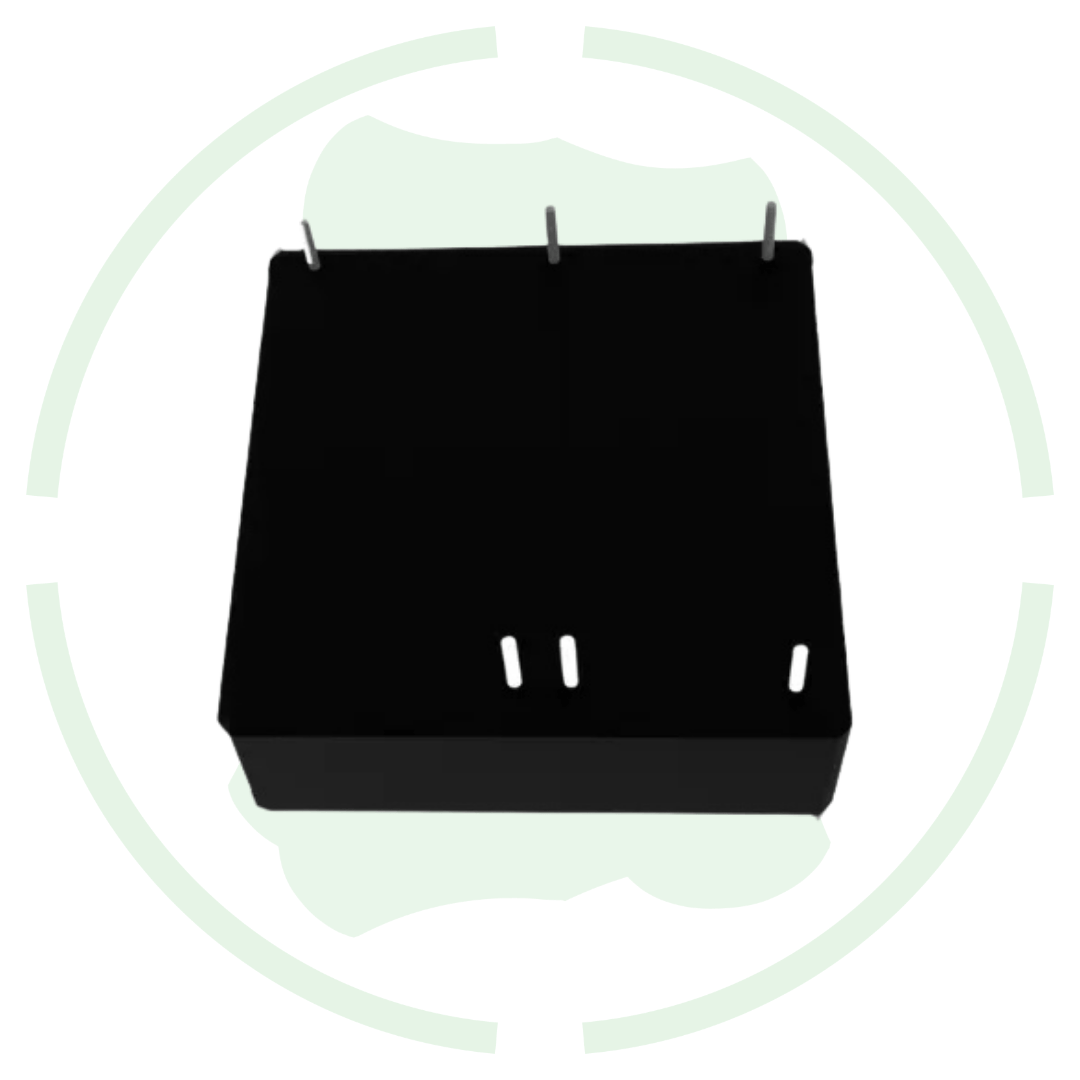

G-Energy URB2412YMD-20WR3 24V to 12V 1666mA 20W DC to DC converter IP68 Step Down Converter

Overview of this G-Energy URB2412YMD-20WR3 24V to 12V 20W 1666mA dc to dc converter

Introducing G-Energy URB2412YMD-20WR3 24V to 12V 20W 1666mA DC to DC converter at best price in India with g-energy. This 24V to 12V Dc-Dc isolated buck converter designed to meet diverse power supply need. This converter has an isolation feature to protect your equipment from electrical noise, interference, or fault between input and output side. This converter is best choice for project with specific voltage regulation need with up to 1666mA current output.

Features

20W Output Power: This converter give up to 20 watts (1.666 amps) to run various electronic and equipment.

High Power Output: This converter gives an impressive 20W power output with a substantial current of 1666mA and make it perfect for project that need significant power capacity.

Compact Form Factor: It is designed with versatility in mind and this buck converter features a compact form factor, allowing for easy integration into various setups.

Specification

1. Input Voltage Range: 9-36V

2. Output Voltage: 12V

3. Output Power: 20W

4. Output Current: 1666mA

5. Transfer Efficiency: 91%

6. Conversion Type: Isolated Buck Converter

7. Operating Temperature Range: -20°C to 80°C

8. Input/Output Isolation: Isolated

9. Over voltage Protection: Yes

10. Short Circuit Protection: Yes

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 25mm × 25mm ×11mm

17. Weight: 15 gm

18. Cooling Method: Free air convection (no fan required)
