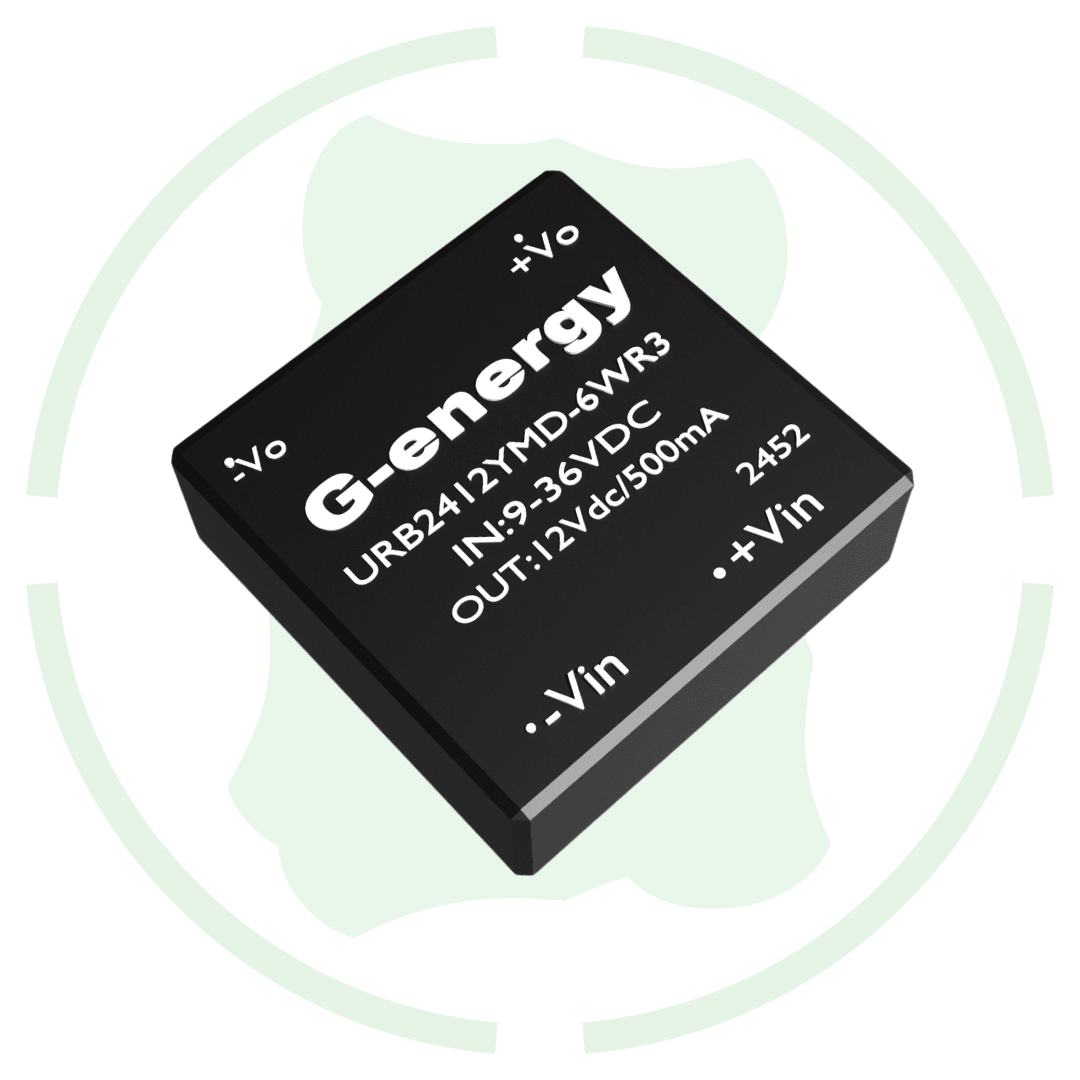

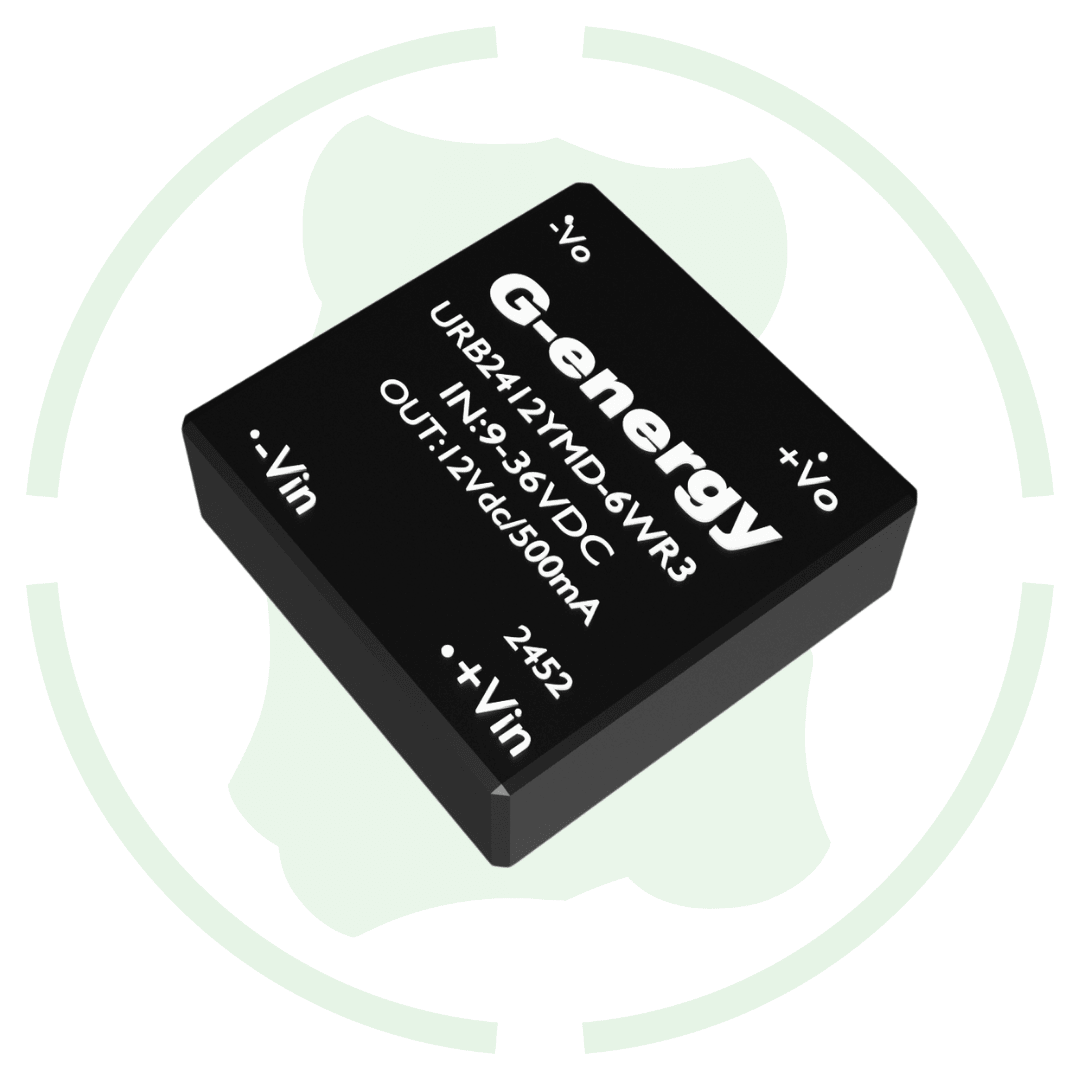

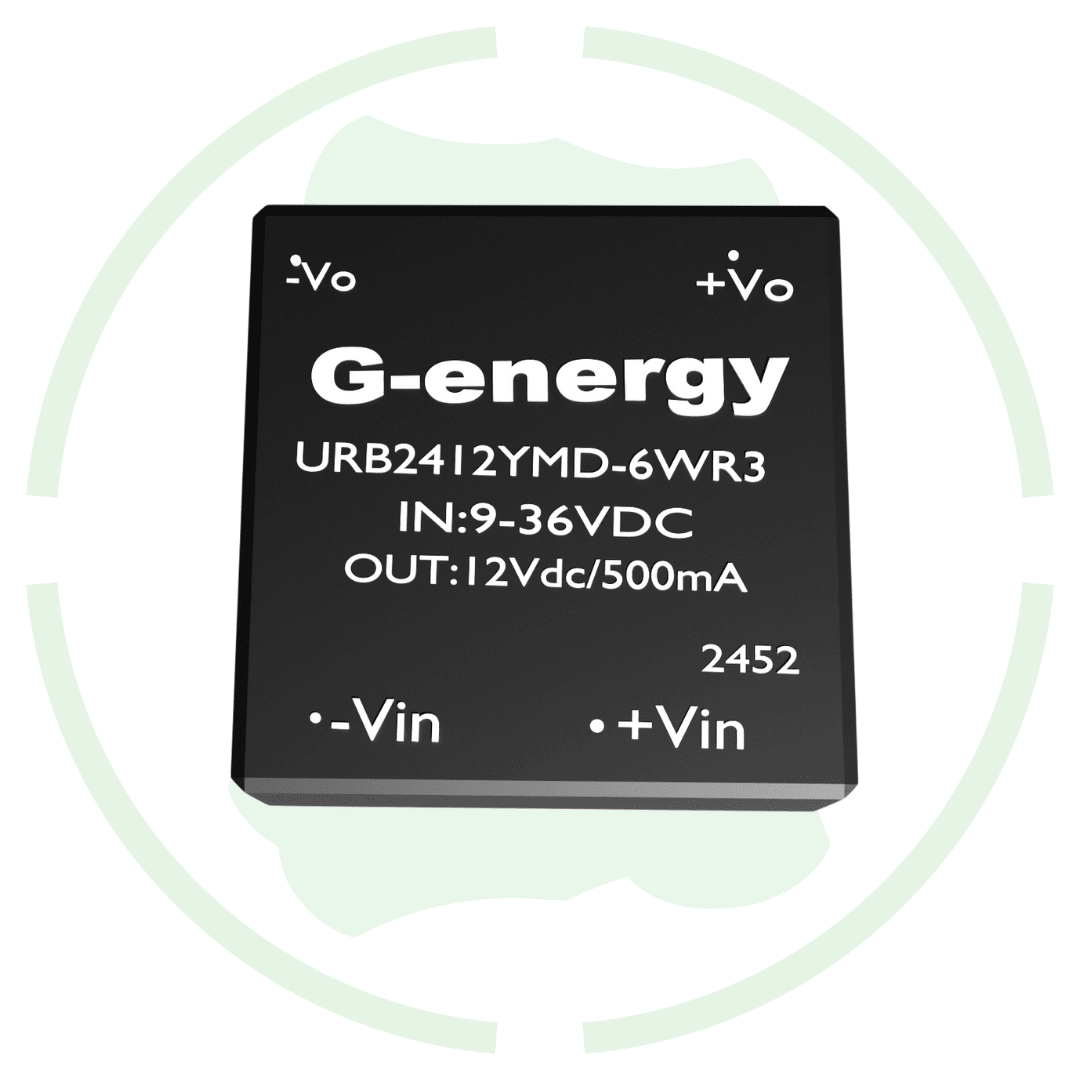

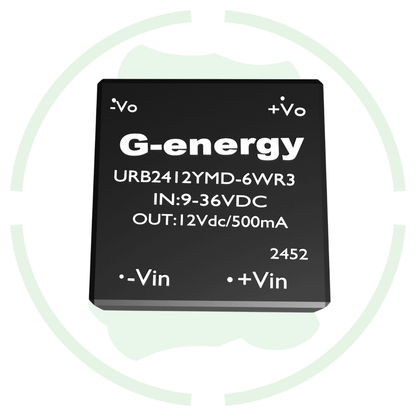

G-energy URB2412YMD-6WR3 24V to 12V 500mA 6W Dc Dc Converter IP68 Buck Converter

Overview of this G-energy URB2412YMD-6WR3 24V to 12V 500mA 6W dc dc converter

Introducing G-energy URB2412YMD-6WR3 24V to 12V 500mA 6W dc dc converter IP68 buck converter at best price in India. This voltage converter takes 9V-36V input range & convert it to a fix 12V dc output. It can deliver up to 500mA current with 6W total power and can be used for small electronic circuit, multiple type of pcb board and automotive device. This converter equipped with protection like over-current, short-circuit, and overheating prevention to keep both the converter and connected devices safe.

Features

Input voltage: This URB2412YMD-6WR3 voltage converter work on wide input voltage from dc 9v to 36v dc voltage source.

Short Circuit & Over current Protection: This 24V to 12V 6W converter built with short circuit, under voltage, over load protection for converter safety.

DIP Package Design: This buck converter comes in a standard DIP (Dual Inline Package) form factor for easy mount on PCBs, breadboards, or prototyping boards.

High Efficiency – This buck converter gives up to 80-85% efficiency and converts power with minimal loss, reducing heat and saving energy.

Specification

1.Input Voltage Range: 9-36V

2. Output Voltage: 12V DC

3. Output Current: 500mA

4. Output Power: 6W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50mVp-p

10. Nominal Input Voltage: 24V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 25mm × 25mm × 10mm

17. Weight: 13 gm

18. Cooling Method: Free air convection (no fan required)
