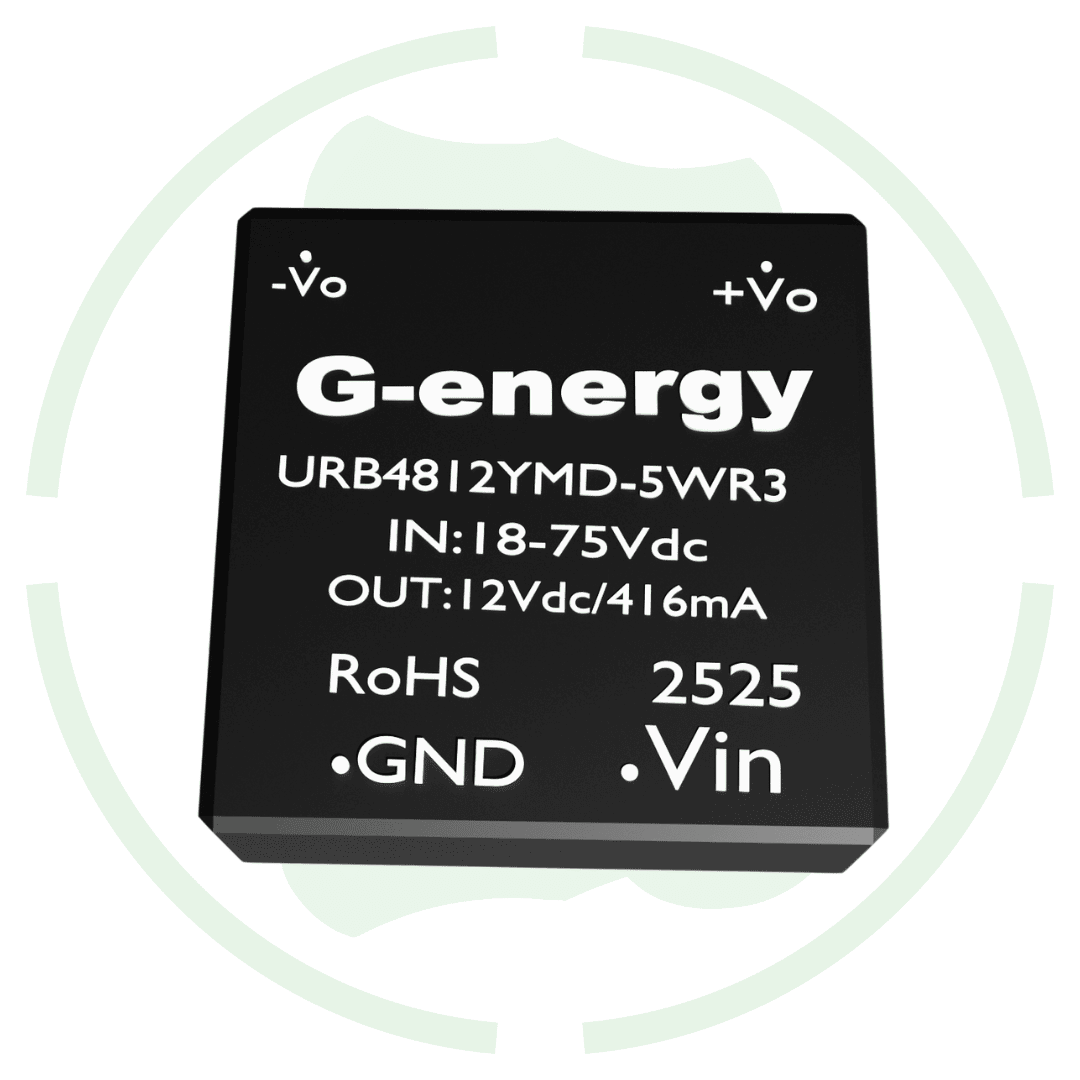

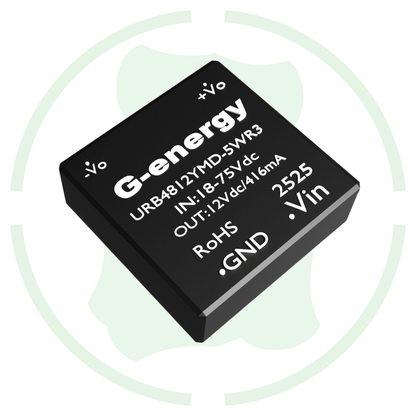

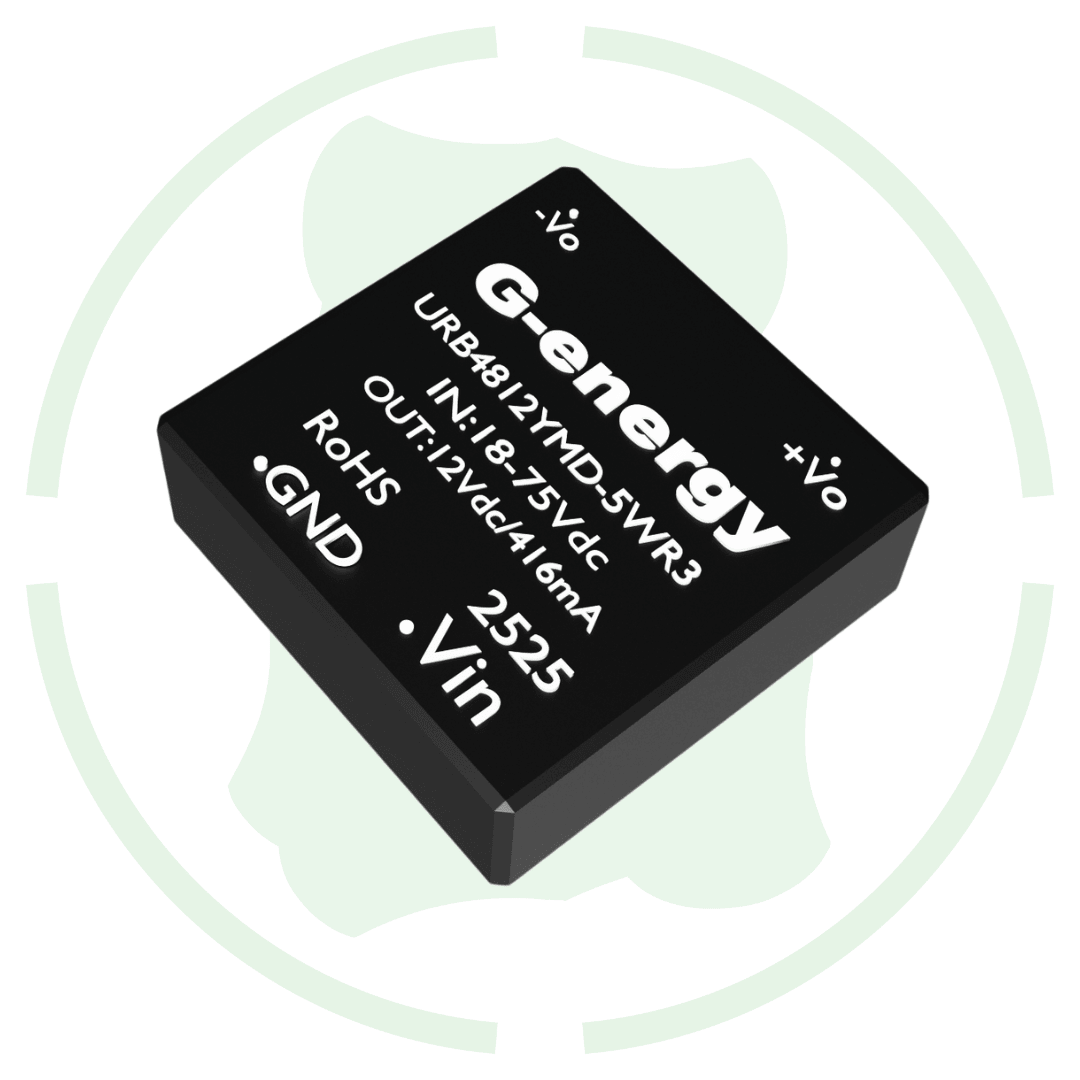

G-energy URB4812YMD-5WR3 48V To 12V 416mA 5W Dc Dc Converter IP68 Buck Converter

Overview of this URB4812YMD 5WR3 48V To 12V 416mA 5W dc to dc converter

Introducing G-energy URB4812YMD 5WR3 48V To 12V 416mA 5W dc to dc converter IP68 buck converter at the best price in India with g-energy. This buck converter takes an input of 18-75V DC and converts it into a fix 12V DC output and make it perfect to power 12V device from a higher voltage source. This converter is designed with IP68 waterproof and dust proof protection for its use in harsh outdoor environment, vehicles, or industrial sites.

Features

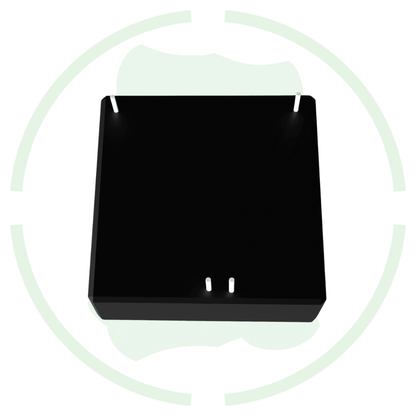

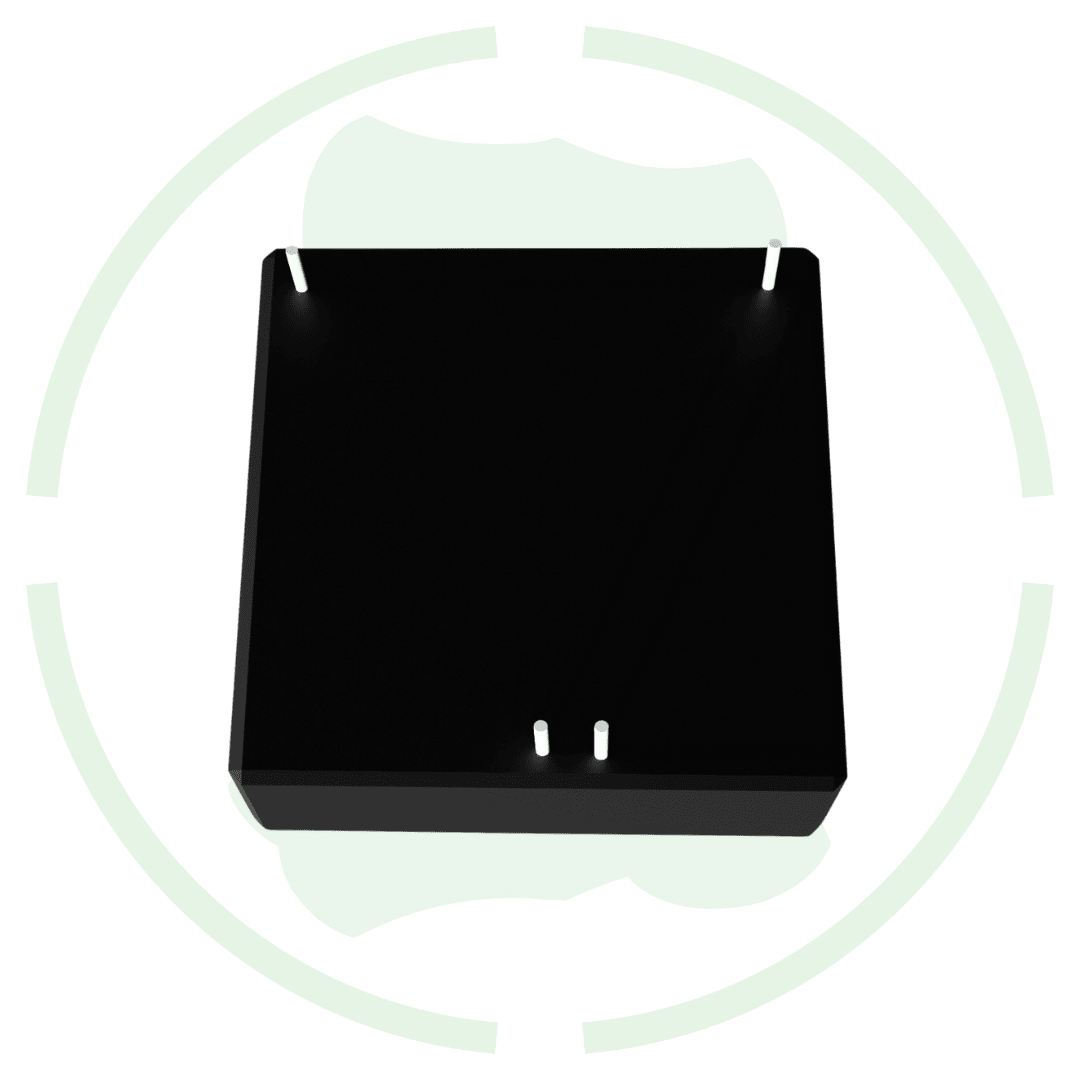

DIP Package Design: This URB4812YMD-5WR3 converter built with dual In-line package  for easy to mount on PCBs.

High Efficiency: This buck converter gives up to 85% high efficiency and converts power with minimal loss & reduce heat and saving energy.

Wide input voltage: This voltage converter can smoothly work on big input voltage range of 18v to 75v dc input voltage.

Specification

1.Input Voltage Range: 18-75V

2. Output Voltage: 12V DC

3. Output Current: 416mA

4. Output Power: 5W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50-80mVp-p

10. Nominal Input Voltage: 36V/48V/60V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 25mm × 25mm × 11mm

17. Weight: 12 gm

18. Cooling Method: Free air convection (no fan required)
