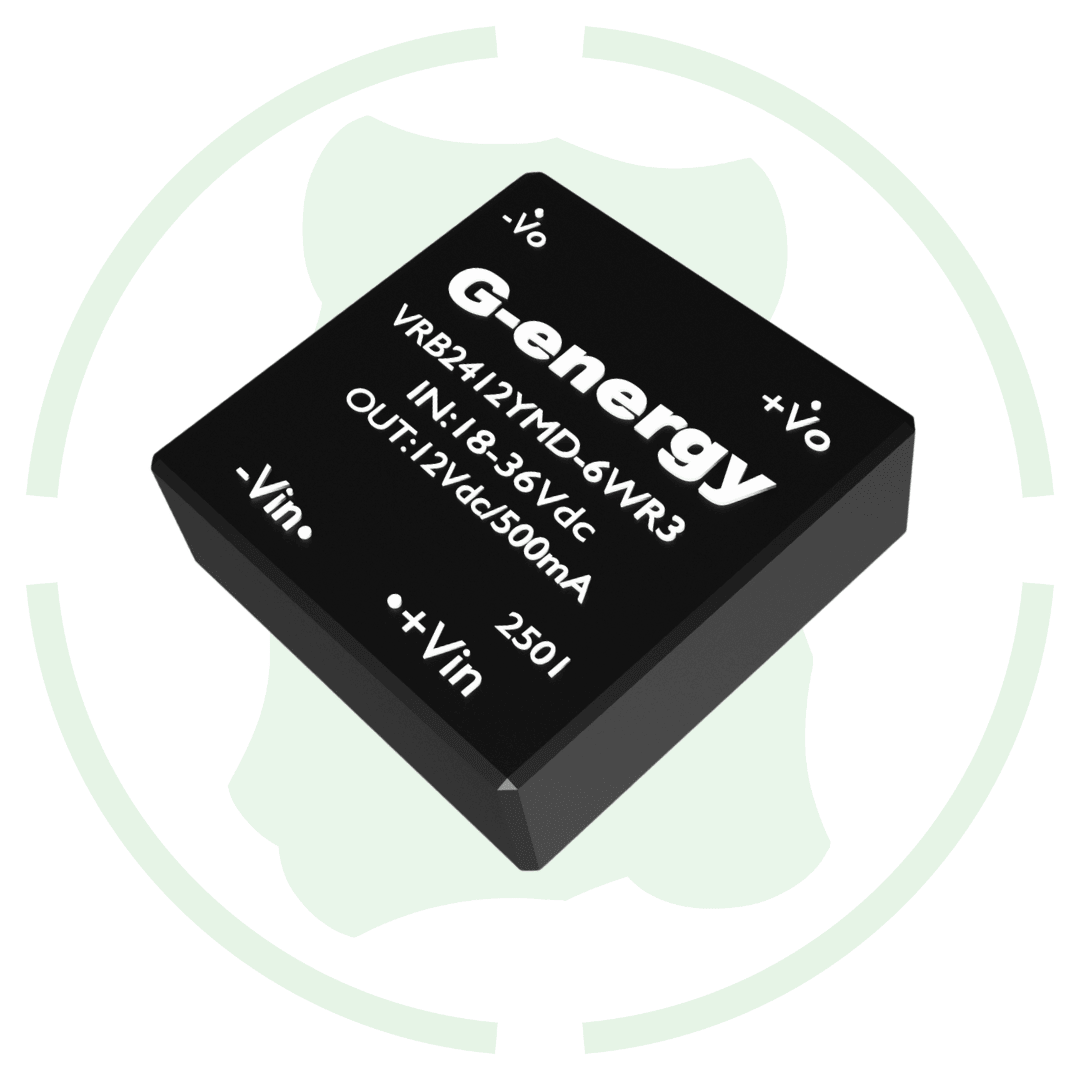

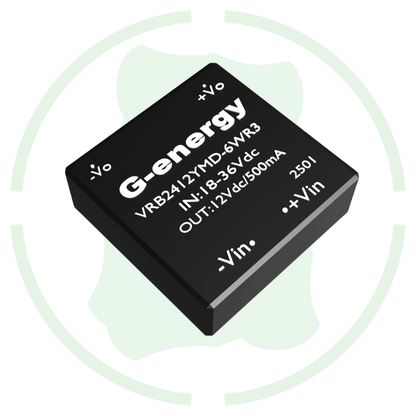

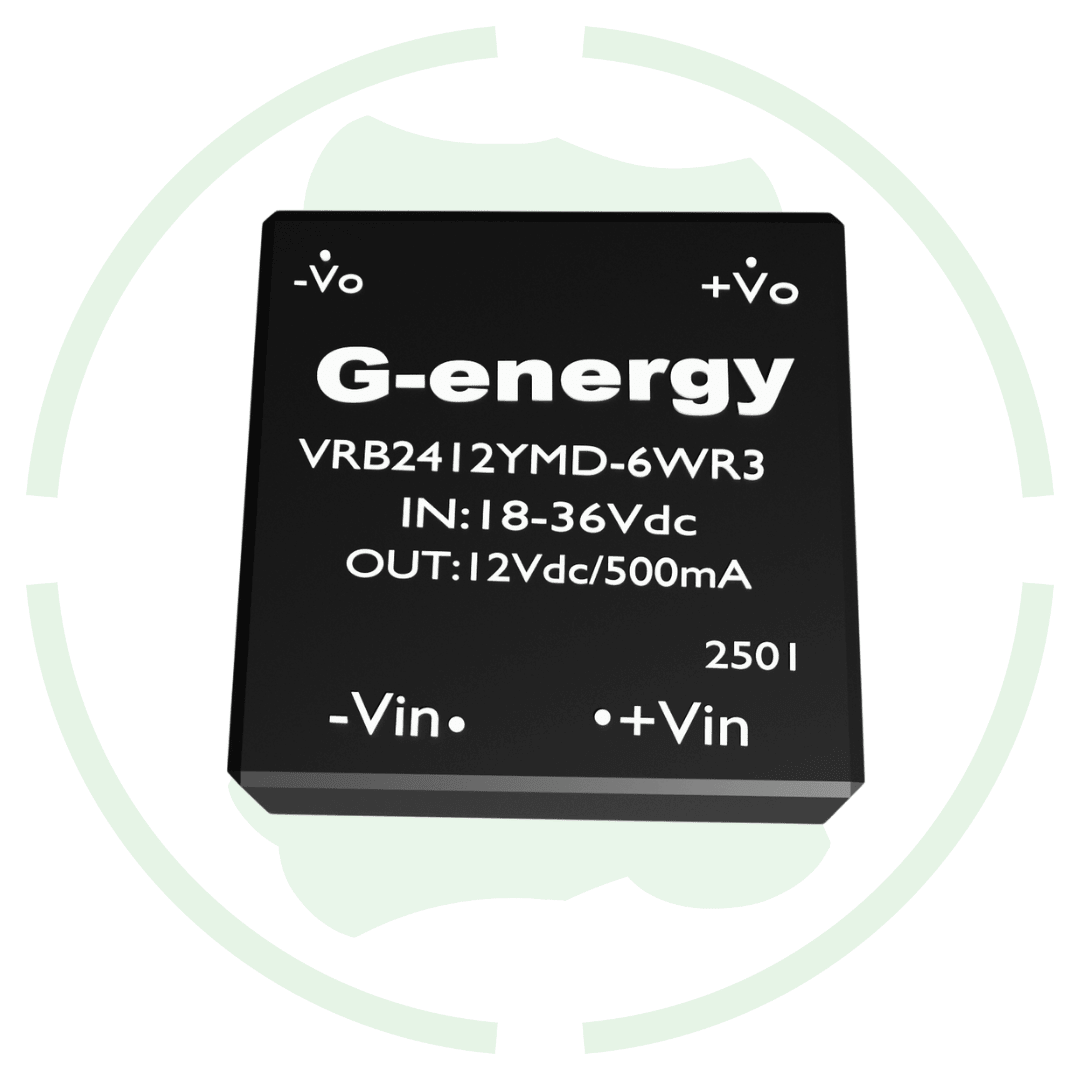

G-Energy VRB2412YMD-6WR3 24V to 12V 6W 500mA Dc To Dc Converter IP68 Step Down Converter

Overview of this VRB2412YMD-6WR3  24V to 12V 6W 500mA Dc To Dc Converter

Introducing G-Energy VRB2412YMD-6WR3 24V to 12V 6W 500mA dc dc converter IP68 step down converter at the best price in India with g-energy. It takes 18-36v Input voltage range and converts into 12V stable dc output. Converter can deliver up to 6 watts of power with 500mA dc current at 12V output voltage. It also come with safety feature like short circuit protection, over current protection, and voltage stability which ensure safe and long last operation.

Features

Input voltage: This VRB2412YMD-6WR3 work on 18v to 36v input voltage range for its compatibility with multiple dc set up.

DIP Package Design: This step down converter comes in a standard Dual In-line Package, which is compact, easy to mount on PCBs, and ideal for easy integration into electronic circuit.

High Efficiency: This buck converter give up to 80-85% efficiency and converts power with minimal loss, reducing heat and saving energy.

Specification

1.Input Voltage Range: 18-36V

2. Output Voltage: 12V DC

3. Output Current: 500mA

4. Output Power: 6W

5. Efficiency: up to 84% conversion efficiency

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/80 mVp-p

10. Nominal Input Voltage: 12V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 25x25x10mm

17. Weight: 13 gm

18. Cooling Method: Free air convection (no fan required)
