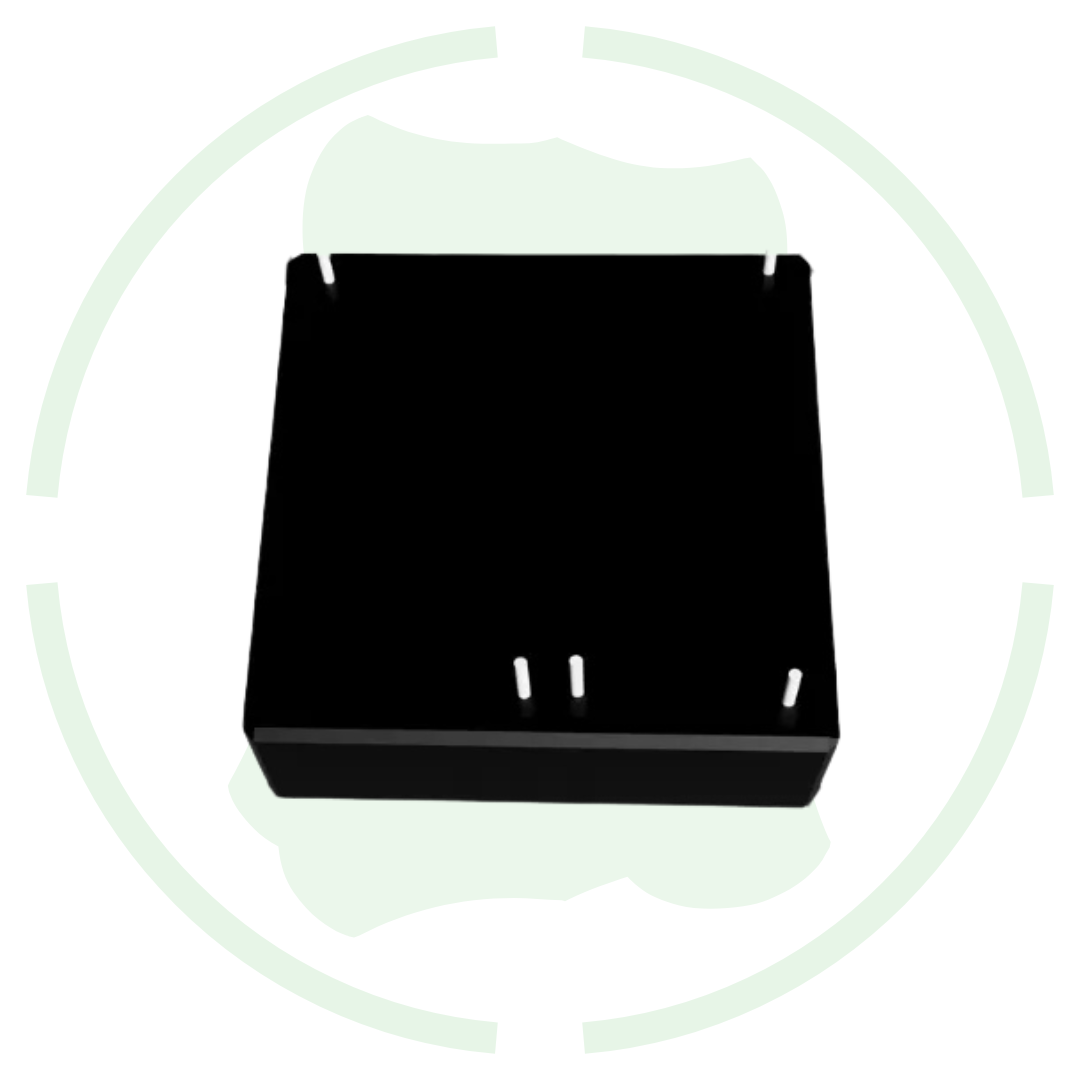

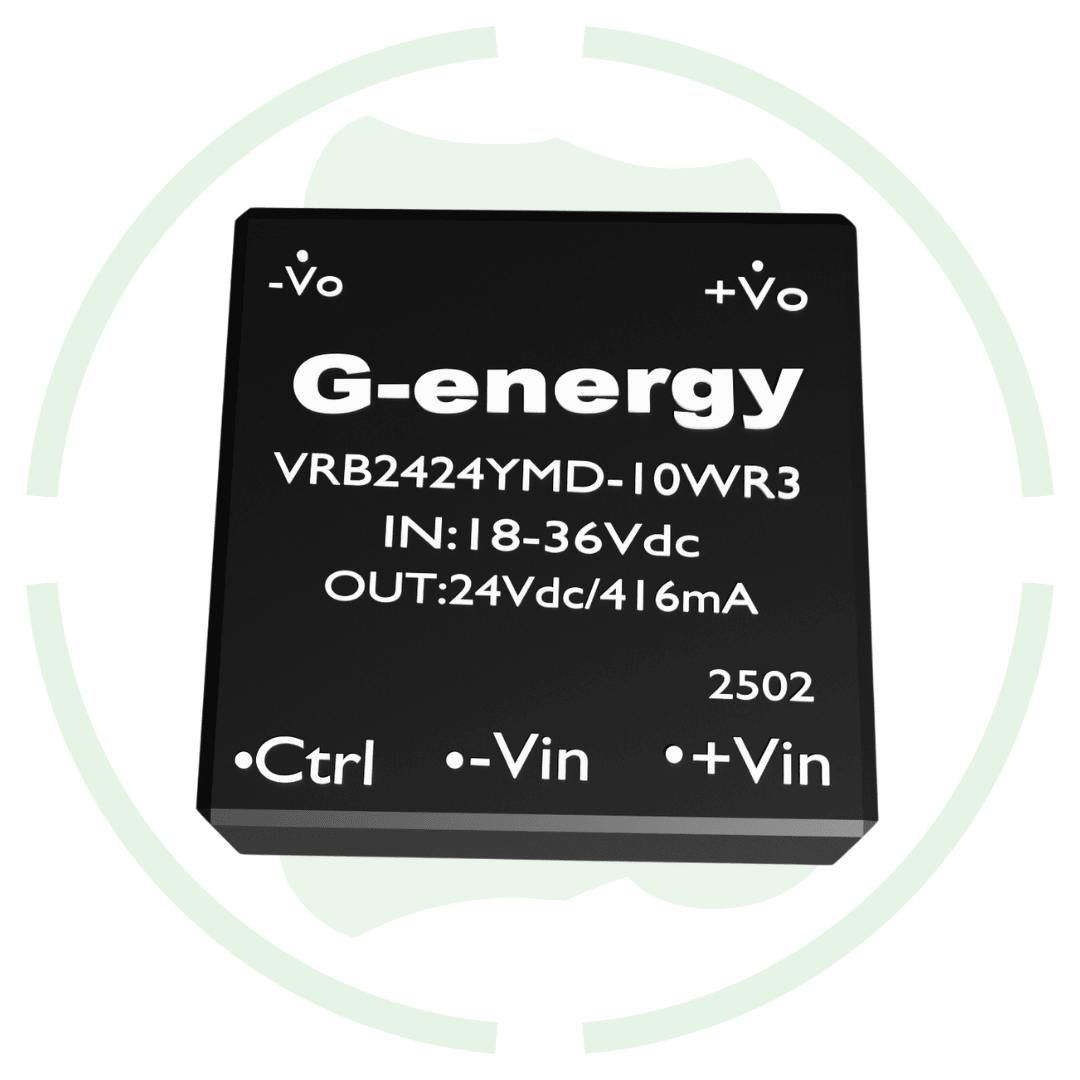

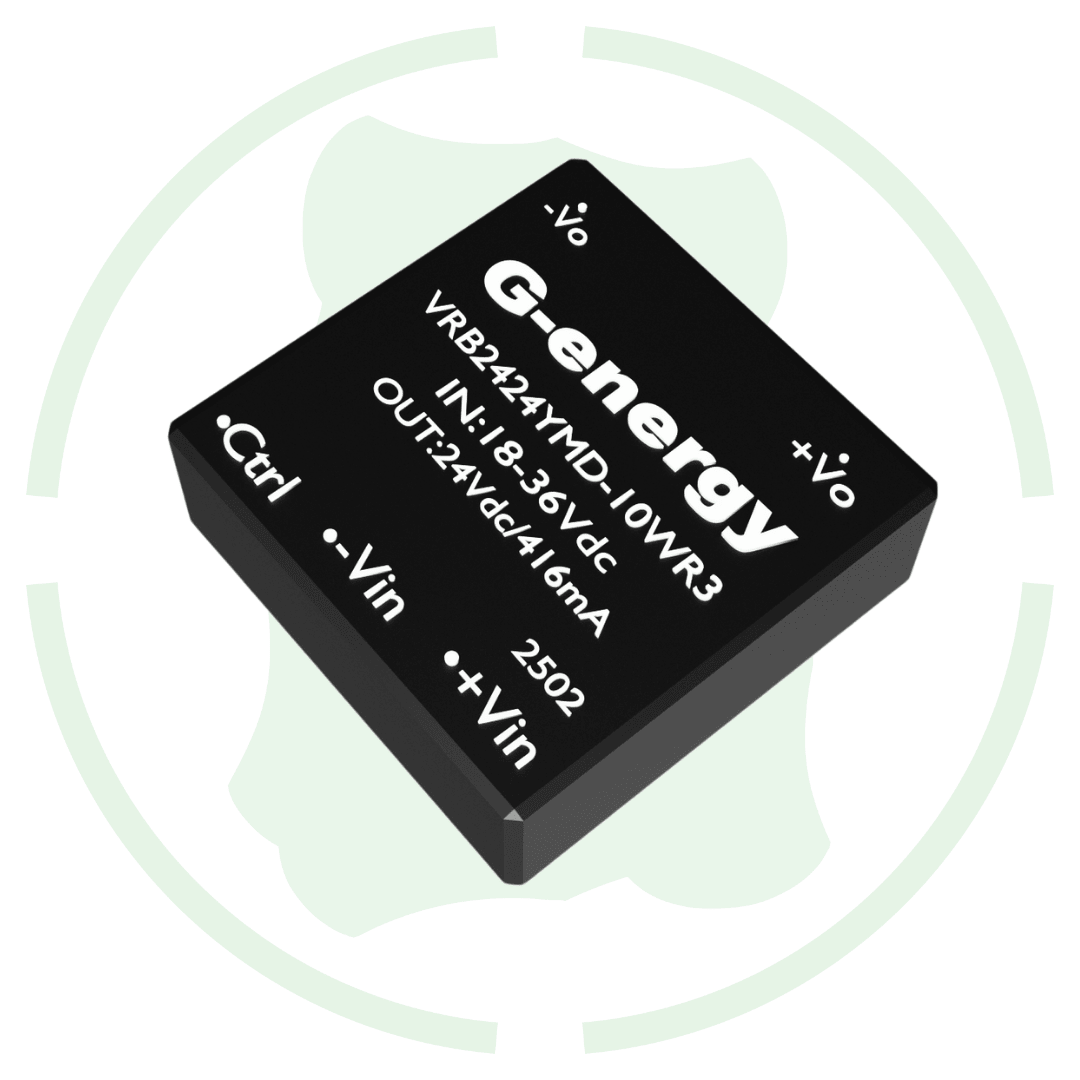

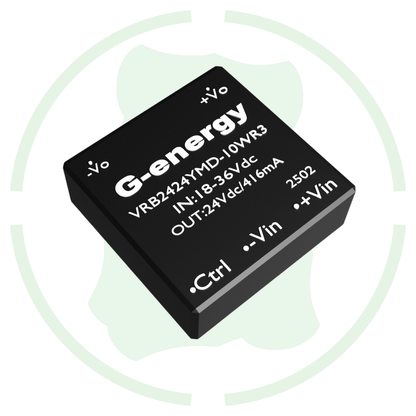

G Energy VRB2424YMD-10WR3 24V To 24V 10W 416mA Dc Dc Converter IP68 Buck Boost Converter

Overview of this G Energy VRB2424YMD-10WR3 24V To 24V 10W 416mA dc to dc converter

Introducing G Energy VRB2424YMD-10WR3 24V To 24V 10W 416mA dc to dc converter IP68 buck boost converter at the best price in India with g-energy. This voltage converter take a 18-36V input range and give a steady 24V output with up to 10W power and make it perfect to power sensitive electronic. It also provide up to max 416mA output current with 10W dc power.

Features

Wide input voltage: This VRB2424YMD-10WR3 voltage converter smoothly work on wide input voltage of 18v to 36v input voltage.

24V Fix output voltage: It also provide a fix 24v dc output voltage from changing input voltage with up to 416mA dc current & 10W max dc power.

Up to 91% conversion efficiency: It use advance conversion technology for it high conversion efficiency up to 91% energy conversion & energy saving set ups.

Specification

1.Input Voltage Range: 18-36V

2. Output Voltage: 24V DC

3. Output Current: 416mA

4. Output Power: 10W

5. Efficiency: Up to 91%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/80mVp-p

10. Nominal Input Voltage: 24V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 25mm × 25mm × 11mm

17. Weight: 13 gm

18. Cooling Method: Free air convection (no fan required)
