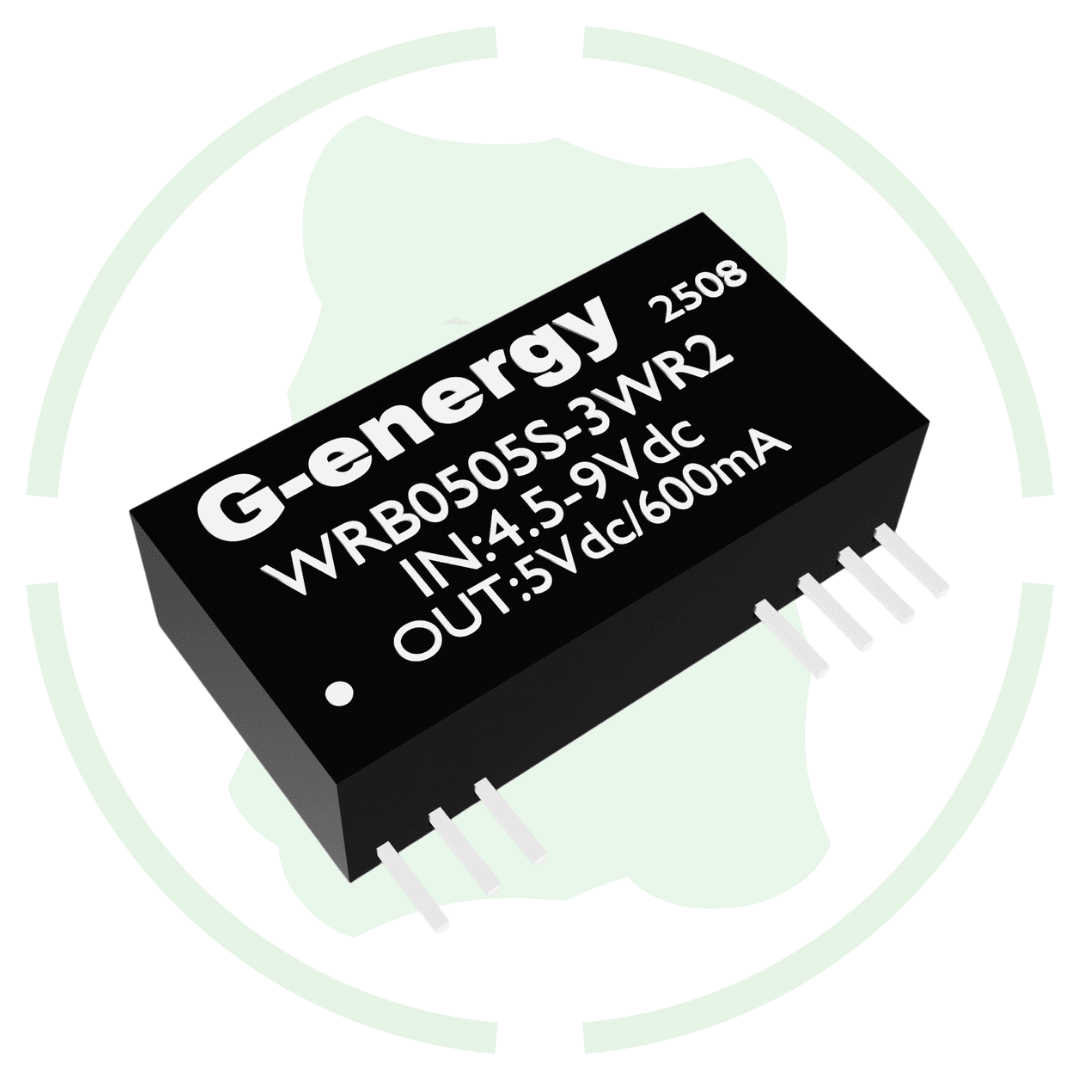

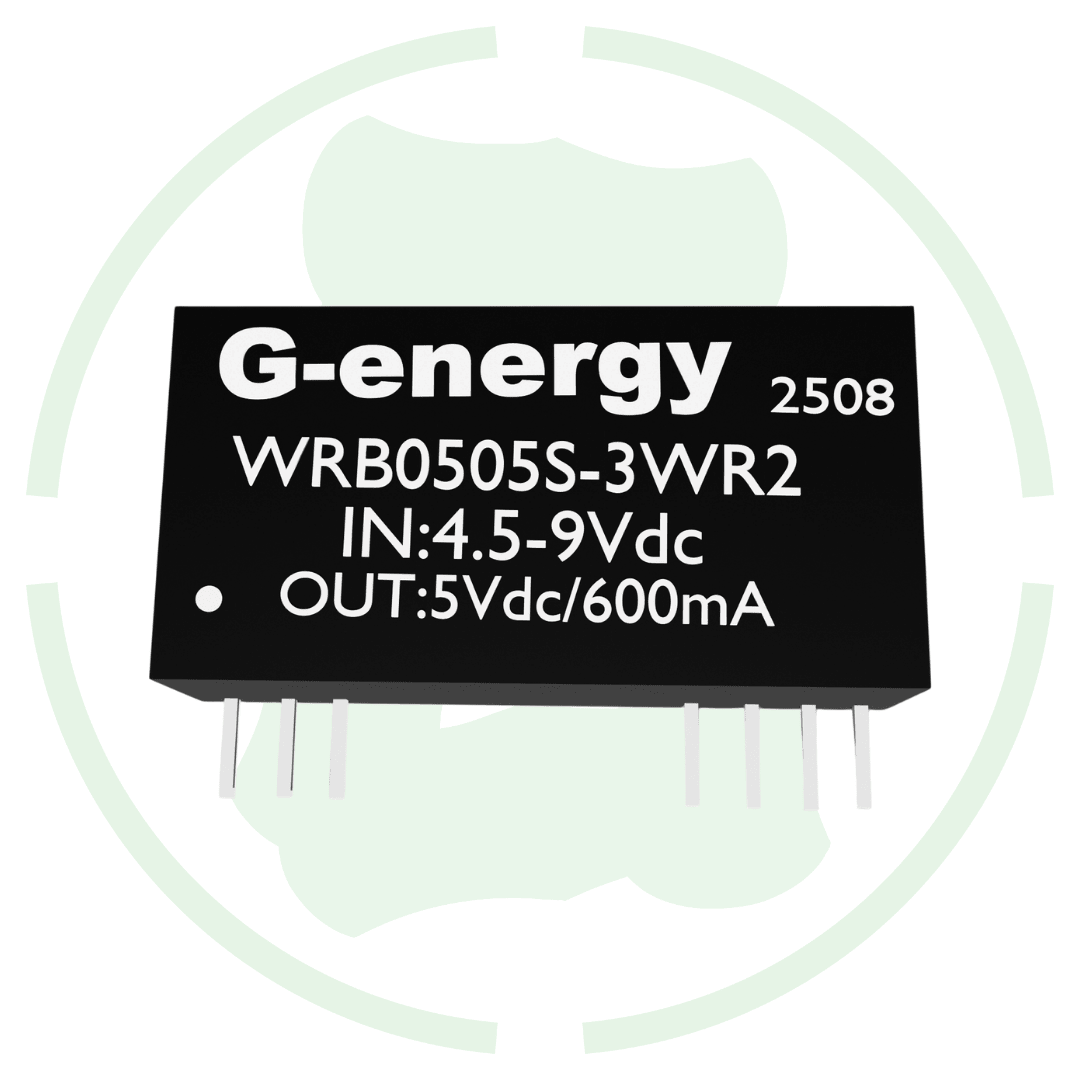

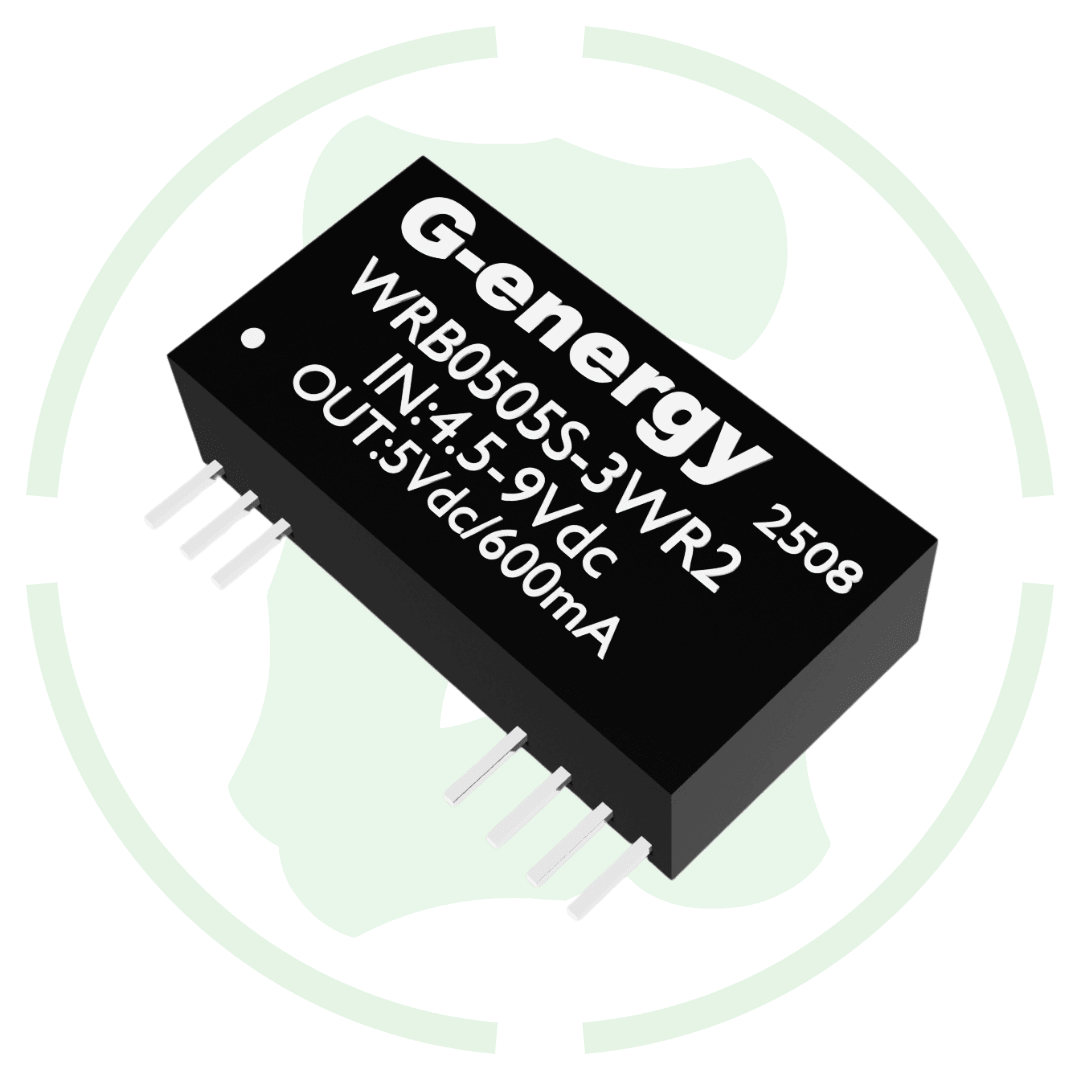

G-energy WRB0505S-3WR2 5V to 5V 3W 600mA Dc Dc Converter IP68 Buck Boost Converter

Overview of this WRB0505S-3WR2 5v to 5v 3w 600mA dc dc converter

Introducing G-energy WRB0505S-3WR2 5v to 5v 3W 600mA dc to dc converter IP68 waterproof buck boost converter at the best price in India with g-energy. This converter takes 4.5-9V input voltage range and provide a regulated 5V output. It also dc current up to 600mA & maximum power up to 3W. It is designed with protection features like short-circuit protection and over-current protection and making it durable and long-lasting.

Features

2W Output Power: This WRB0505S-3WR2 voltage converter provide up to 3 watts maximum power and make it perfect for small electronic, sensor, and control circuit.

Comes in SIP package: This converter comes in single Inline Package design for compact size and easy mounting on circuit boards.

High Efficiency: This buck boost converter gives up to 85% conversion efficiency and converts power with minimal loss, reducing heat and saving energy.

Specification

1.Input Voltage Range: 4.5-9V

2. Output Voltage: 5V DC

3. Output Current: 600mA

4. Output Power: 3W

5. Efficiency: up to 85%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/80mVp-p

10. Nominal Input Voltage: 5V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 21mm × 11mm × 8mm

17. Weight: 5 gm

18. Cooling Method: Free air convection (no fan required)
