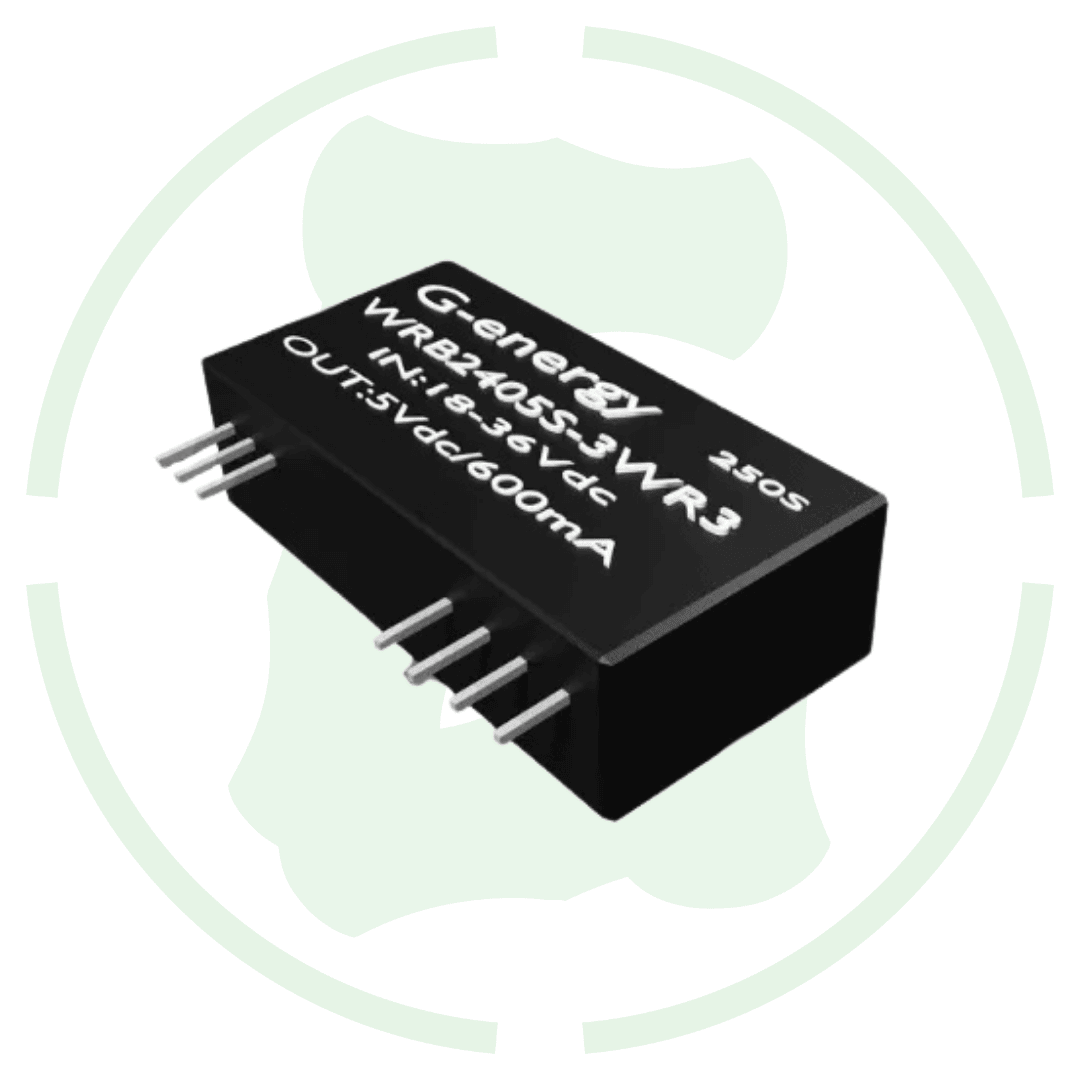

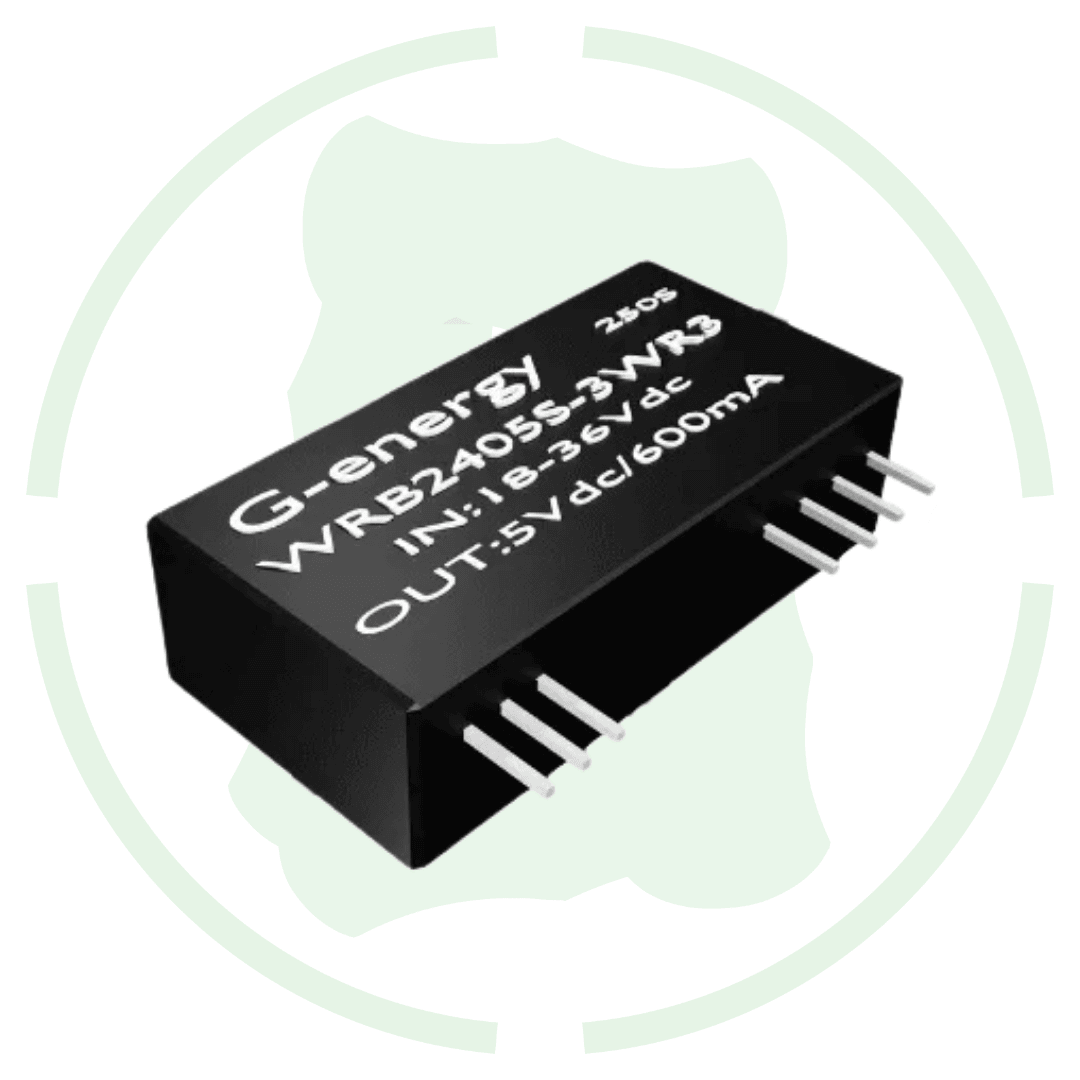

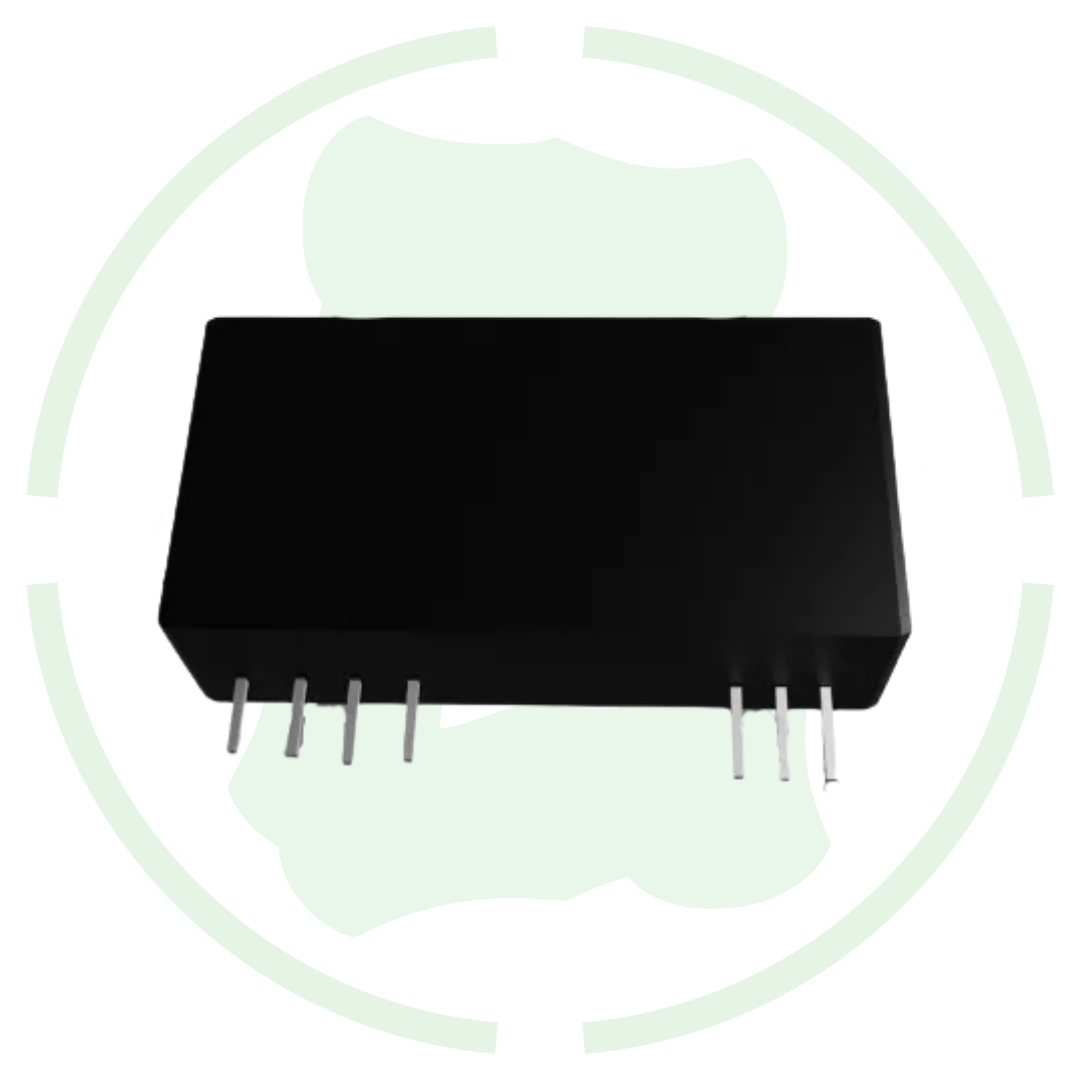

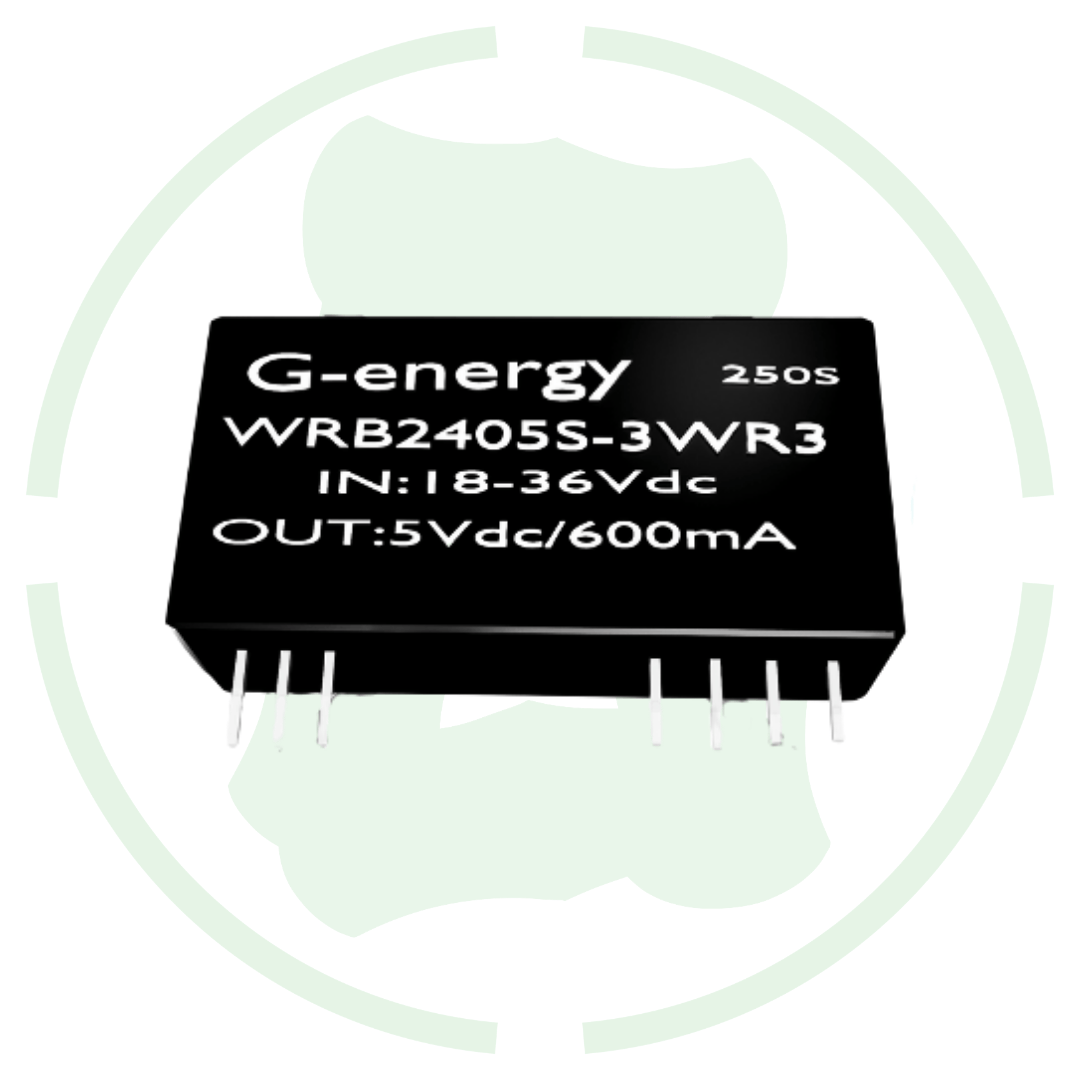

G-Energy WRB2405S-3WR3 24V to 5V 600mA 3W Dc to Dc Converter IP68 Buck Converter

Overview of this G-Energy WRB2405S-3WR3 24V to 5V 600mA 3W dc to dc converter

Introducing g-energy WRB2405S-3WR3 24V to 5V 600mA 3W Dc Dc Converter at best price in India with G-energy. This converter also ensure efficient power transformation with a focus on precision and reliability. It comes with compact size and capability to handle 600mA with 3W power output. This 24V to 5V 3W dc-dc Converter gives a smooth power conversion process & guarantee a stable 5V output.

Features

3W Power: This WRB2405S-3WR3 converter provide dc power up to 3w and 600mA max dc current.

83% conversion efficiency: It is built with conversion efficiency up to 83% energy conversion for energy efficient dc set up.

Isolation Voltage: This 24V to 5V 600mA 3W Dc Dc Converter also host a 1500VDC isolation voltage for safety in electrical systems.

Specification

1. Input Voltage Range: 18-36V

2. Output Voltage: 5V

3. Output Power: 3W

4. Output Current: 600 mA

5. Isolation Voltage: 1500 V DC

6. Efficiency: Up to 83%

7. Operating Temperature Range: –40 °C to +85 °C

8. Short Circuit Protection: Yes

9. Overload Protection: Yes

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 10mm × 5mm × 4mm

17. Weight: 5 gm

18. Cooling Method: Free air convection (no fan required)
