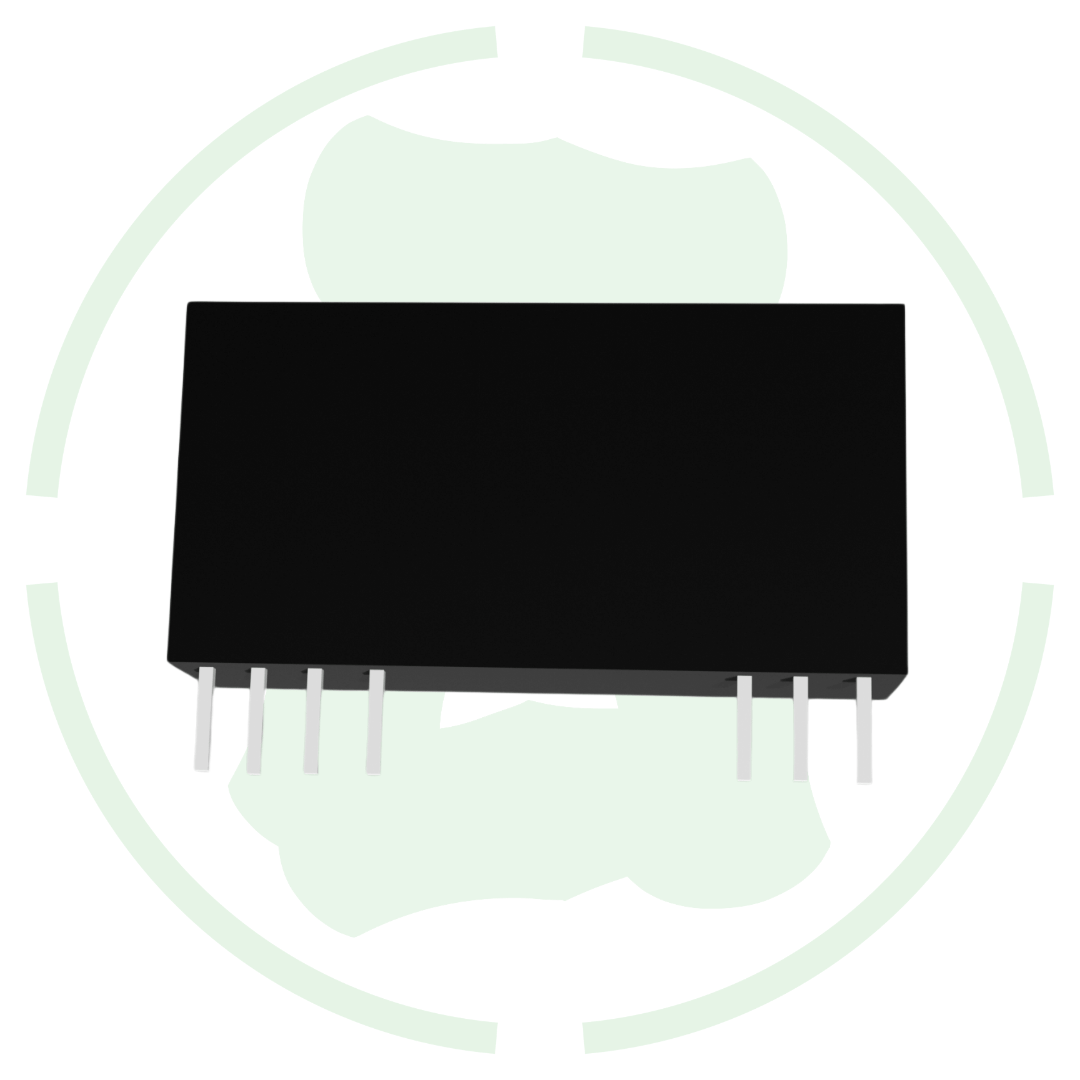

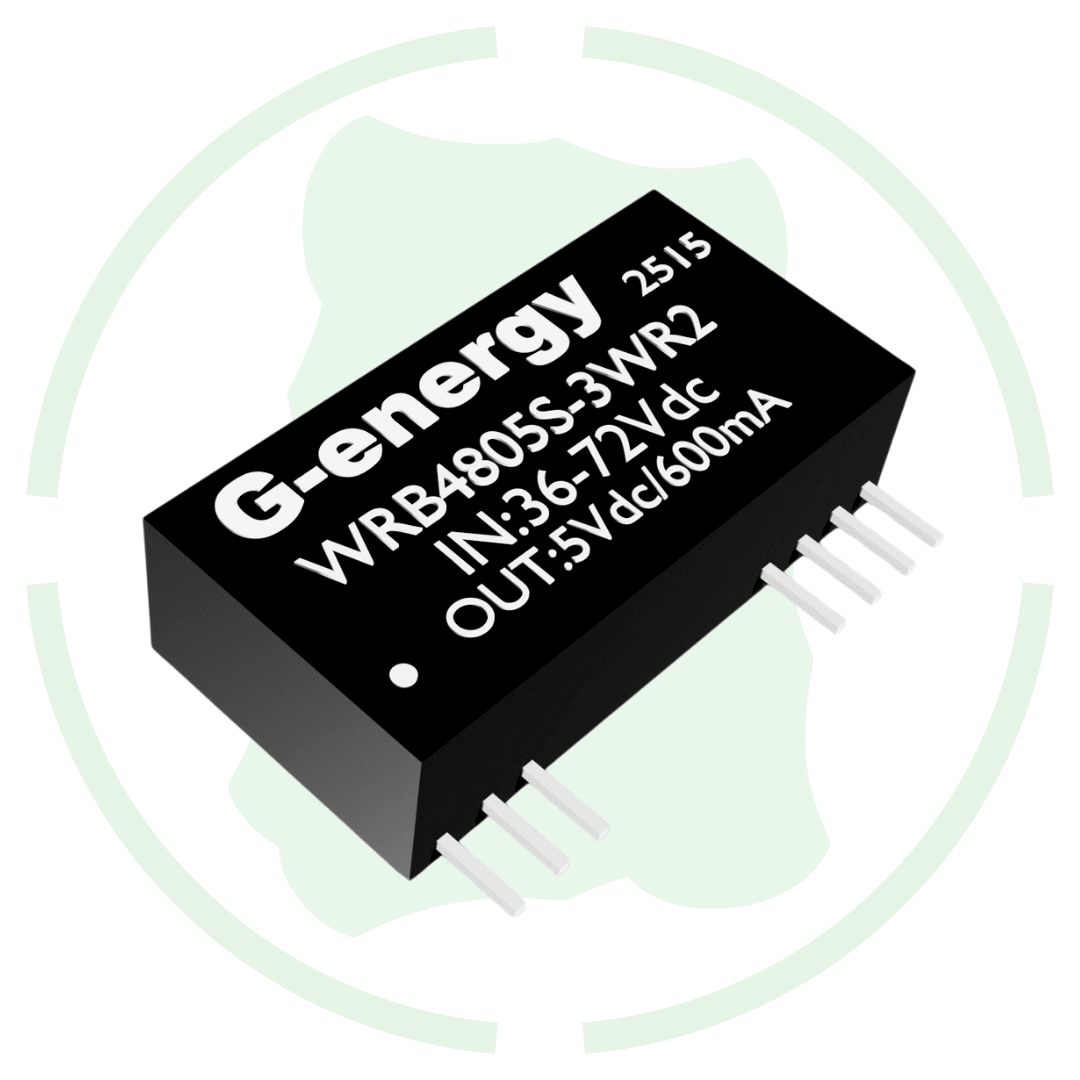

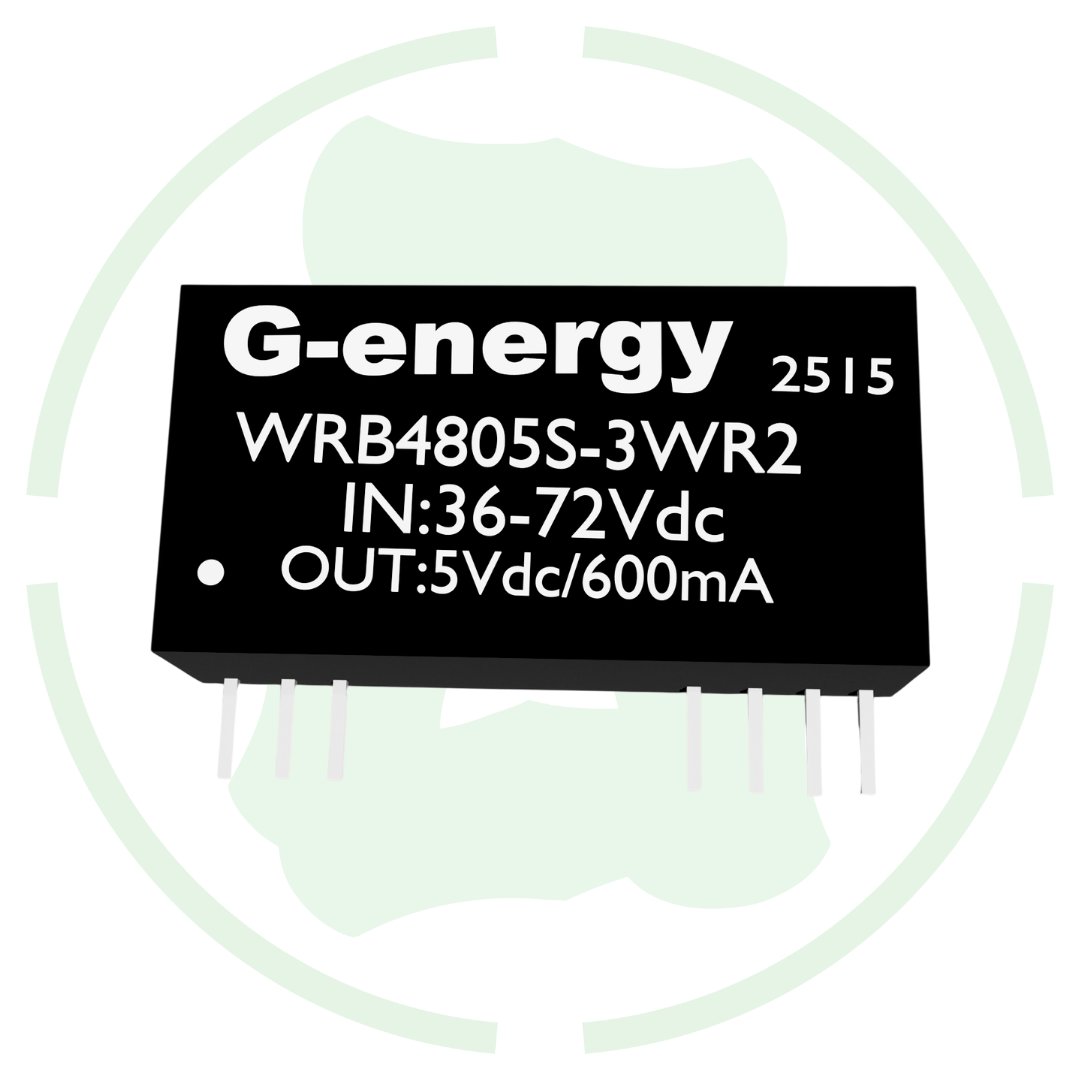

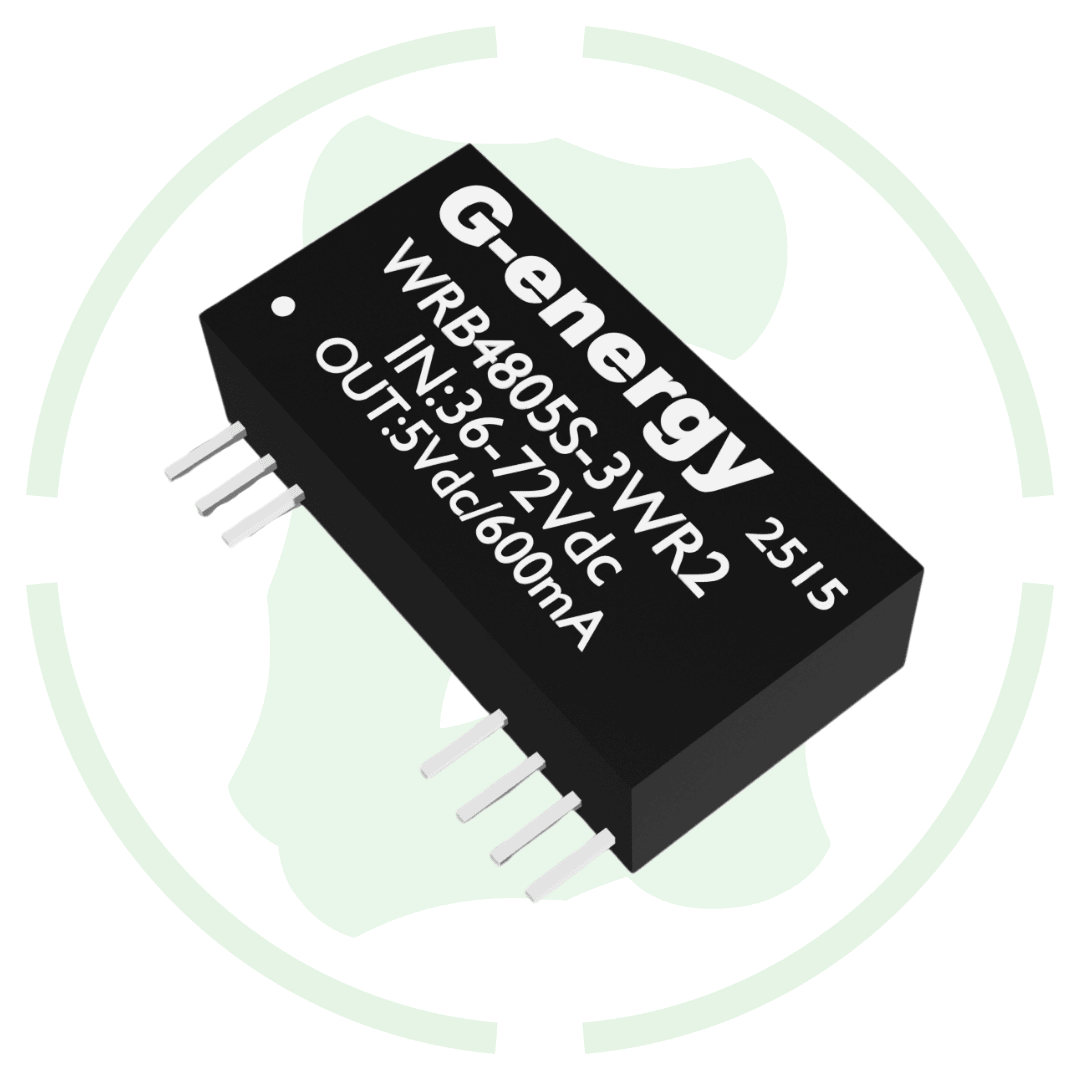

G-energy WRB4805S-3WR2 48V to 5V 3W 666mA Dc Dc Converter IP68 Step Down Converter

Overview of this G-energy WRB4805S-3WR2 48V to 5V 3W 666mA dc dc converter

Introducing G-energy WRB4805S-3WR2 48V to 5V 3W 666mA dc dc converter IP68 step down converter at the best price in India with g-energy. This converter takes 36-72V input voltage range and safely steps it down to a stable 5V output and make it perfect for low power devices. It also come with IP68 protection for converter safety from water and dust.

Features

Input Voltage: This WRB4805S-3WR2 voltage converter is designed to take a 36-72V input voltage range and convert it to a fix 5V output.

IP68 Protection: This buck converter come with fully sealed design that protects against water, dust, and moisture.

Upto 87% converison efficiency: It is built with high conversion efficiency for less energy loss during voltage conversion.

Specification

1.Input Voltage Range: 36-72V

2. Output Voltage: 5V DC

3. Output Current: 666mA

4. Output Power: 3W

5. Efficiency: Up to 87%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/80mVp-p

10. Nominal Input Voltage: 36V/48V/72V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 9mm × 3mm × 5mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)
