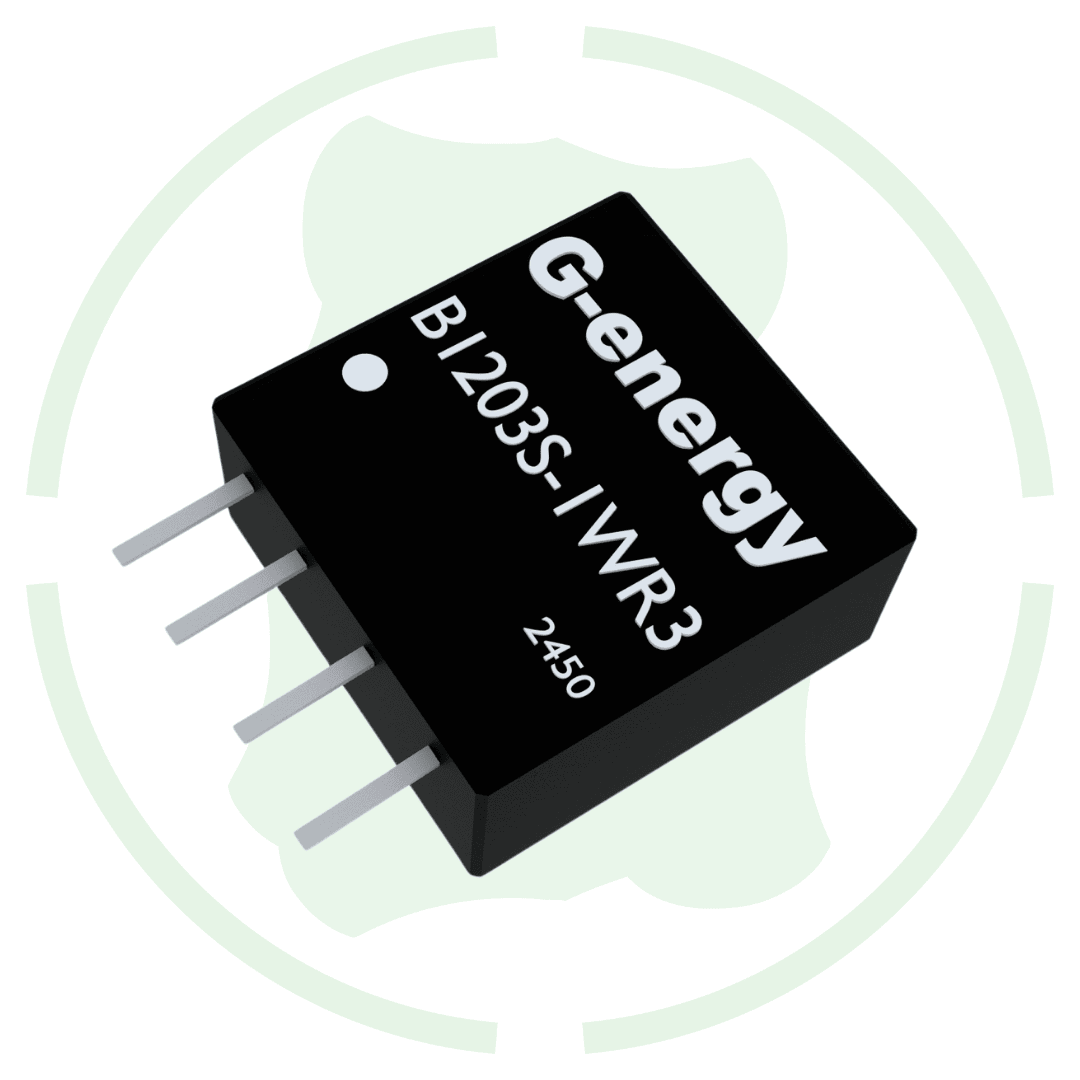

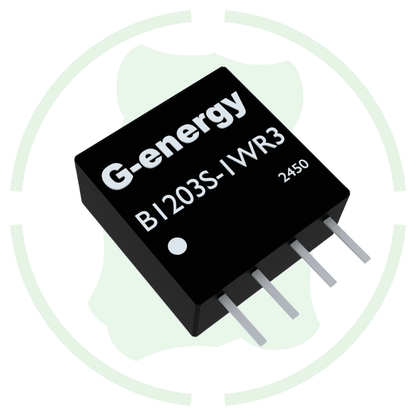

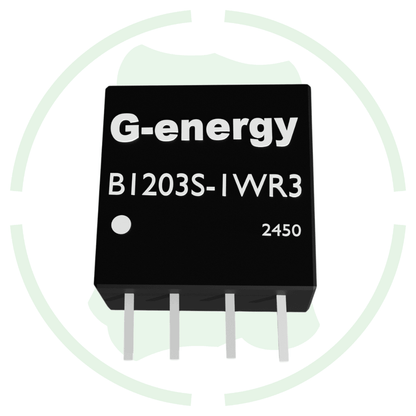

G-energy B1203S-1WR3 12v to 3V 333mA 1W Dc Dc Converter IP68 Step Down Converter

Overview of this G-energy B1203S-1WR3 12v to 3V 333mA 1W Dc Dc Converter

Introducing G-energy B1203S-1WR3 12v to 3V 333mA 1W dc dc converter IP68 step down converter at the best price in India with g-energy. This step down converter comes in single Inline Package design for easy mounting on circuit boards. It smoothly work on 10.8V-13.2V dc input voltage and convert it to a fix 3V dc output.

Features

Stable Output: Converter delivers up to 333mA current at 3 volt and ensure your device get a stable and reliable power without fluctuation.

High Efficiency: This buck converter gives up to 80% efficiency and converts power with minimal loss, reducing heat and saving energy.

Input Voltage: It can take 12 volts from your power source and convert it safely into a stable 3 volts output and making it perfect for devices that run on lower voltage.

Specification

1. Input Voltage Range: 10.8-13.2V

2. Output Voltage: 3V DC

3. Output Current: 333mA

4. Output Power: 1W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 75

10. Nominal Input Voltage: 12V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Over voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 11mm × 10mm × 5mm

17. Weight: 2 gm

18. Cooling Method: Free air convection (no fan required)
