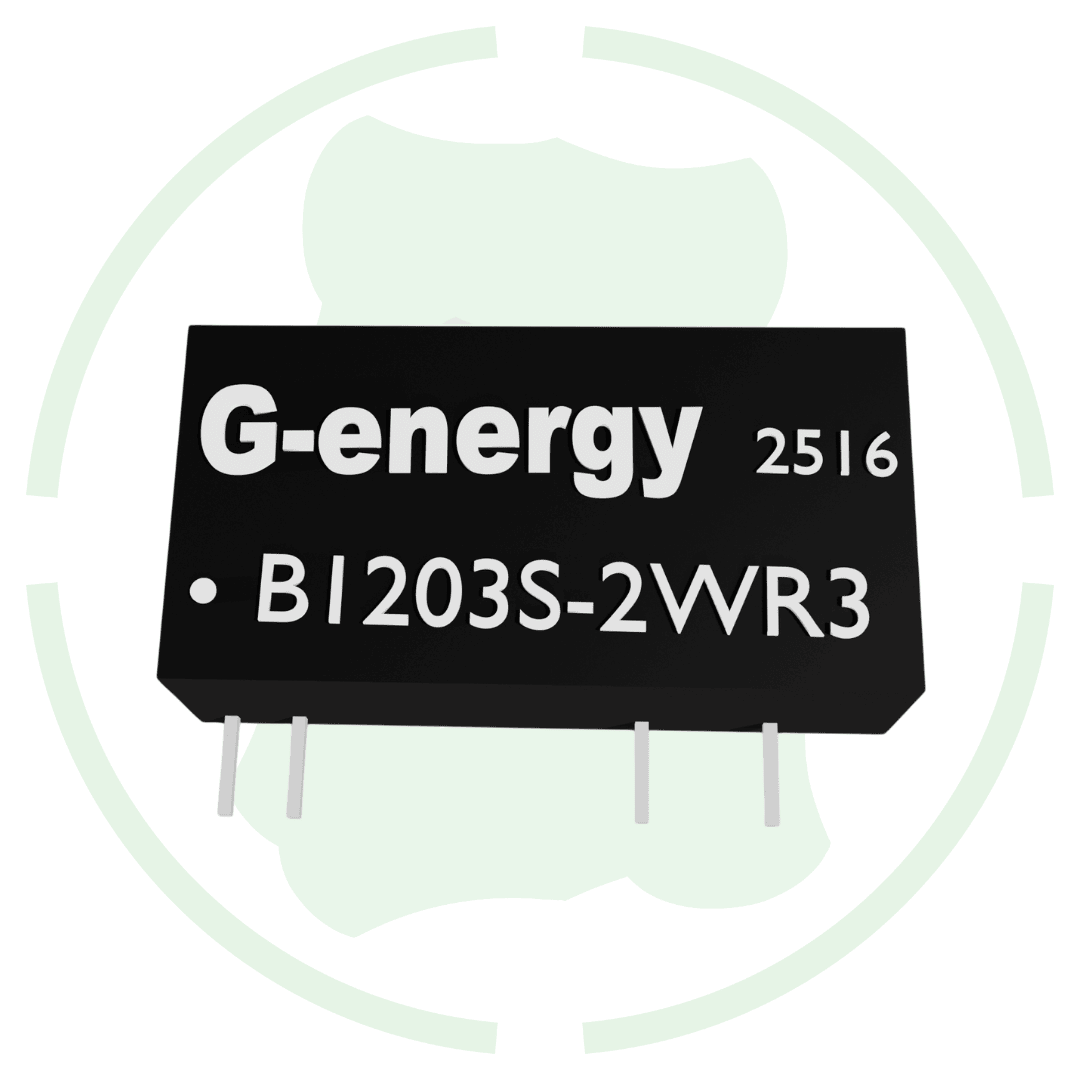

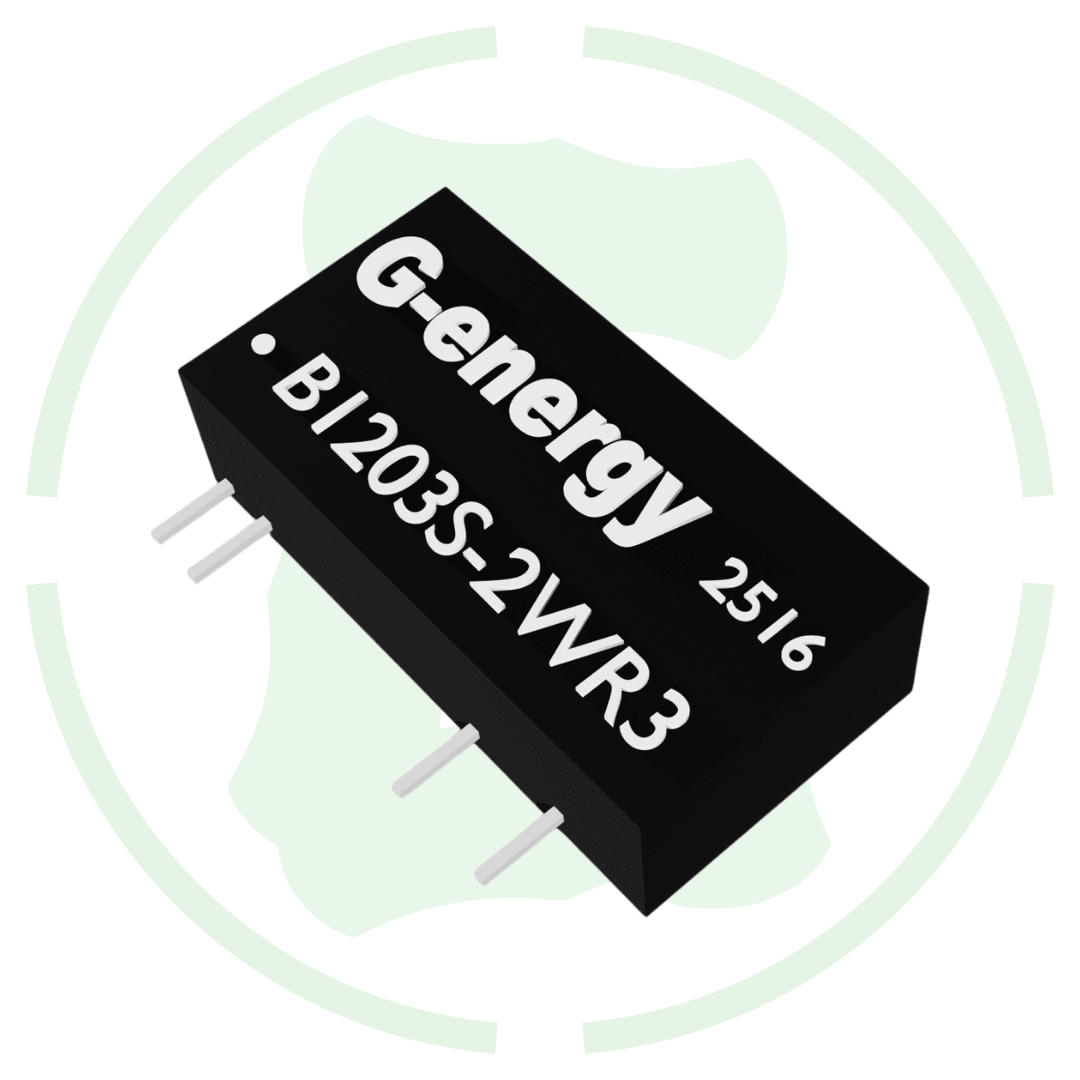

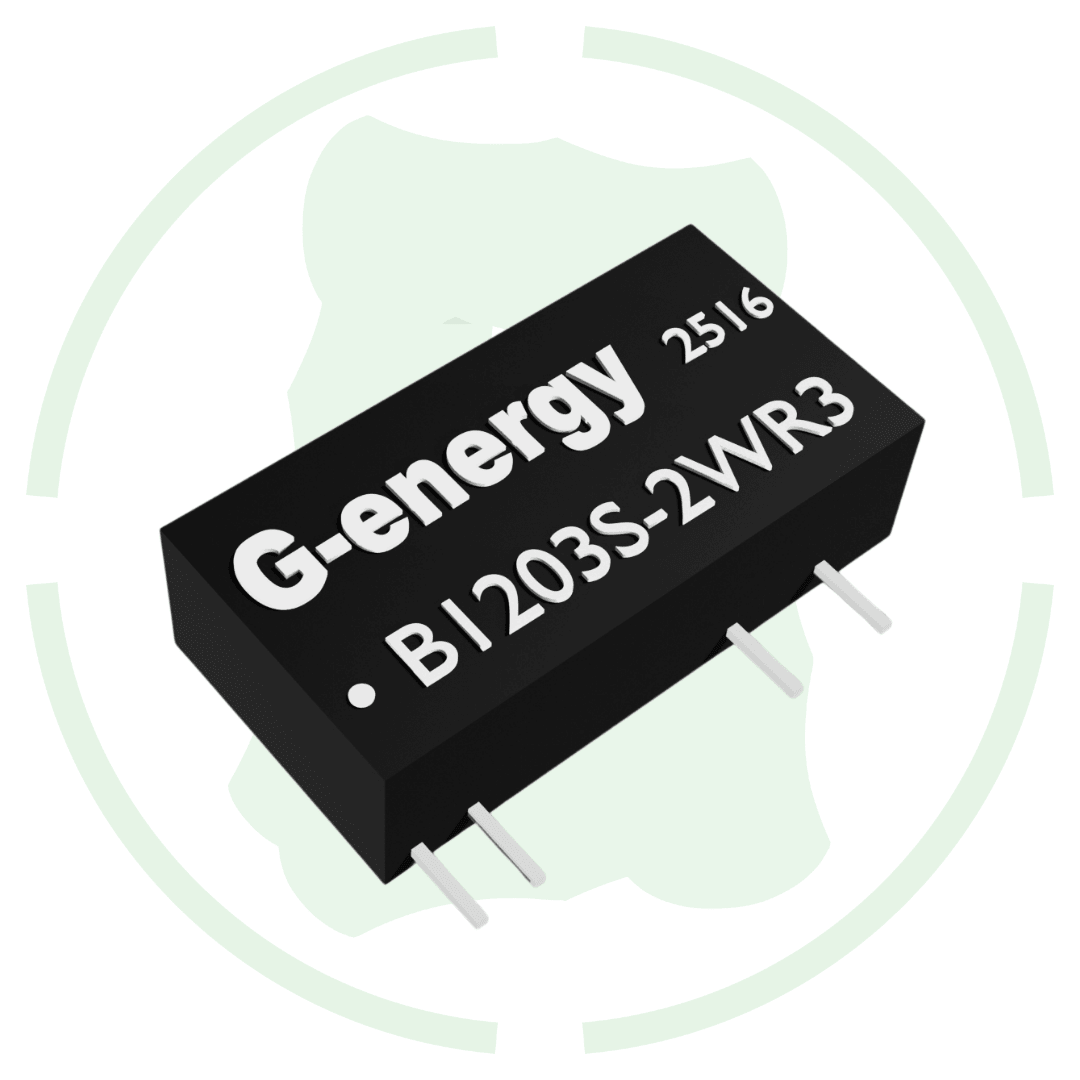

G-energy B1203S-2WR3 12V to 3.3V 2W 606mA DC to DC Converter IP68 Buck Converter

Overview of this G-energy B1203S-2WR3 12V to 3.3V 2W 606mA dc to dc converter

Introducing the G-energy B1203S-2WR3 dc converter at best price in India with g-energy. This converter can provide a continuous output current of up to 606mA to operate embedded system and electronic project. Its compact and efficient design of the B1203S-2WR3 makes it an ideal choice for various applications and small dc set ups.

Features

Isolated Buck Converter Design: The G-energy B1203S-2WR3 takes the lead with its input and output isolated buck converter design.

Stable 3.3V Output: This power module provide a fix 3.3V output. It also make this B1203S-2WR3 best choice for applications need stability and precision.

High Power Capacity: It also provide a fix 3v dc output and dc current up to 606mA and 2W max dc power.

Specification

1. Input Voltage: 12V

2. Input Voltage Range: 10.8-13.2V

3. Output Voltage: 3.3V

4. Power Capacity: 2W

5. Output Current: 606mA

6. Output Ripple and Noise: 50mVp-p

7. Transfer Efficiency: 80%

8. Isolation Voltage: 1500VDC

9. Input-Output Capacitance: 1000pF

10. Buck Converter Type: Isolated Buck Converter

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 19mm × 10mm × 7mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)
