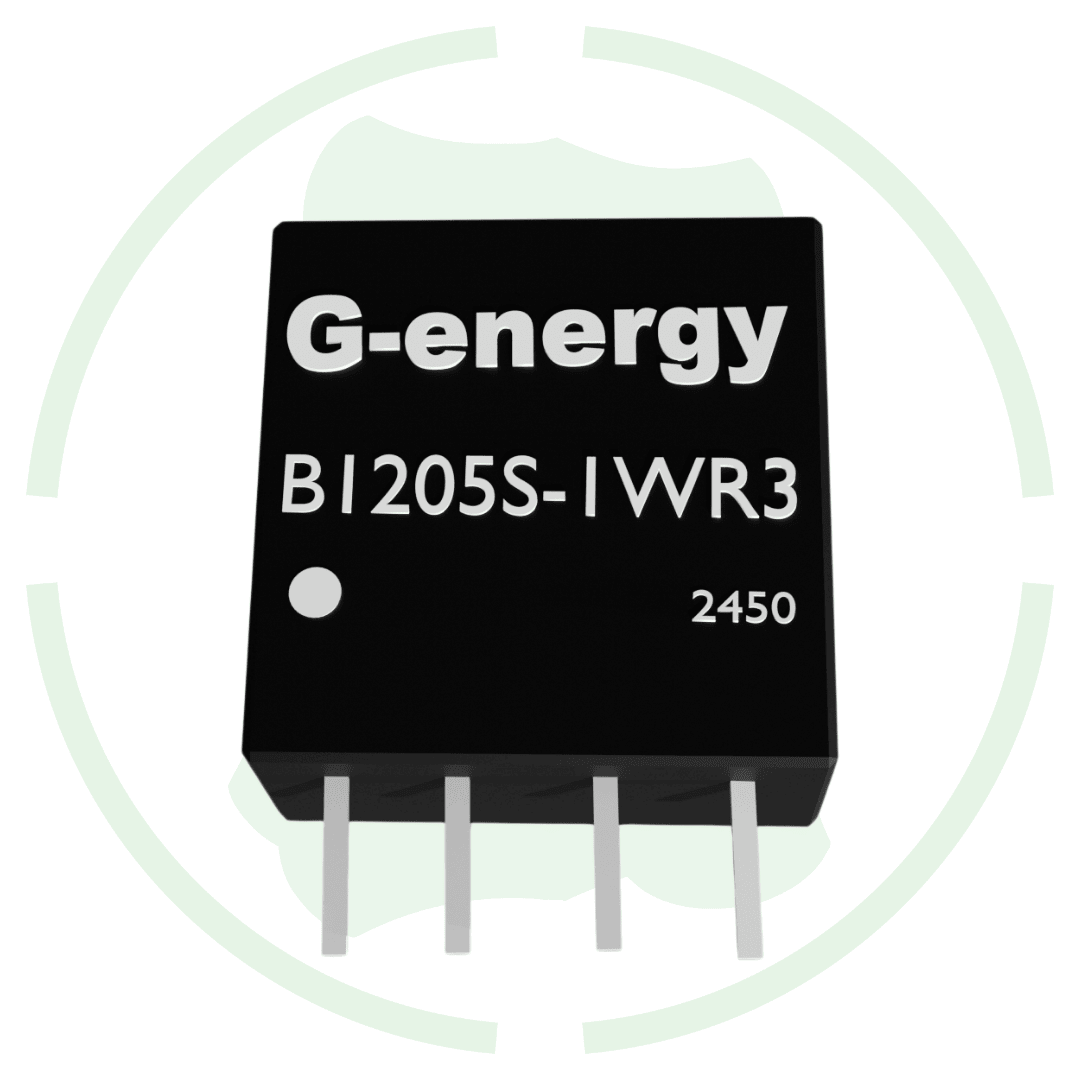

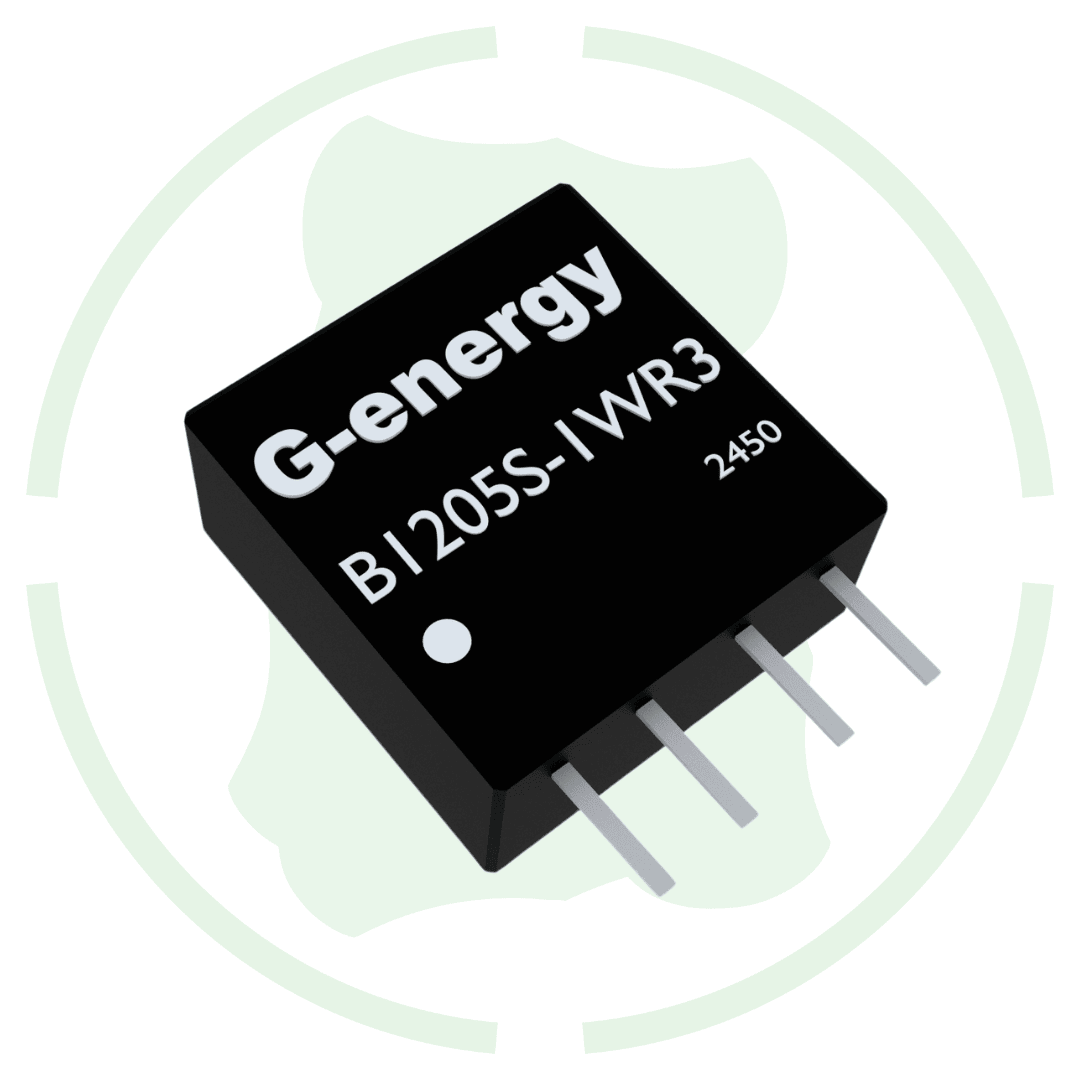

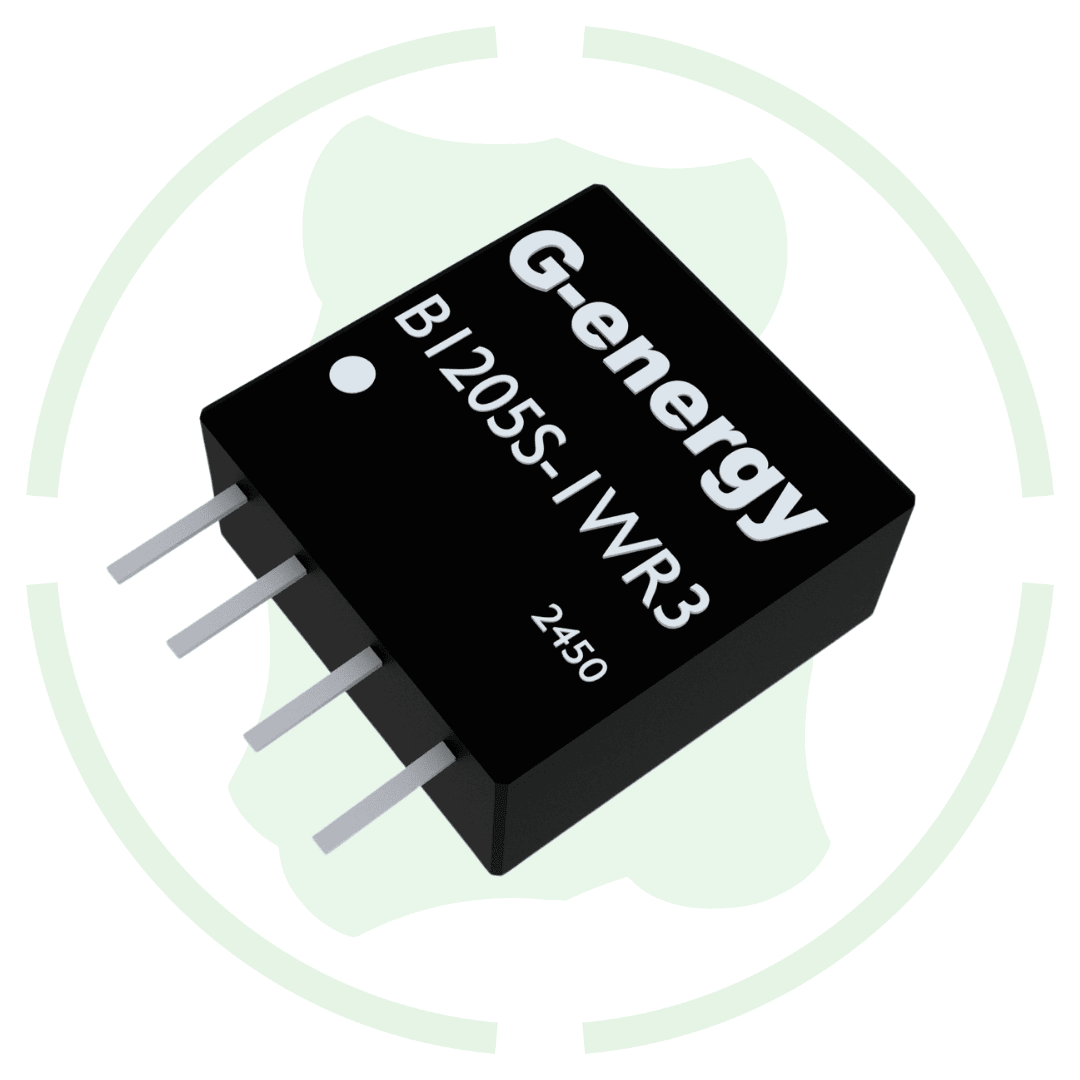

G-energy B1205S-1WR3 12V to 5V 200mA 1W Dc Dc Converter IP68 Step Down Converter

Overview of this G-energy B1205S-1WR3 12V to 5V 200mA 1W Dc Dc Converter IP68 Step Down Converter

Introducing G-energy B1205S-1WR3 12V to 5V 200mA 1W dc dc converter IP68 step down converter at the best price in India with g-energy. This converter takes a 10.8V-13.2V input and step it down to a stable 5V output with 200mA dc current and 1W dc power. It is built with high quality plastic for long lasting performance.

Features

Comes in SIP package: Converter comes in single Inline Package design for compact size and easy mounting on circuit boards.

Short Circuit Protection: This converter automatically shut down if output is shorted and preventing overheating or damage to both the converter and connected devices.

Reliable and Long-Lasting Performance: It is built with high quality component to ensure dependable, long-term operation.

Specification

. Input Voltage Range: 10.8-13.2V

2. Output Voltage: 5V DC

3. Output Current: 200mA

4. Output Power: 1W

5. Efficiency: 83%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 75

10. Nominal Input Voltage: 12V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Under current

    • Over voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 11mm × 5mm × 9mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)
