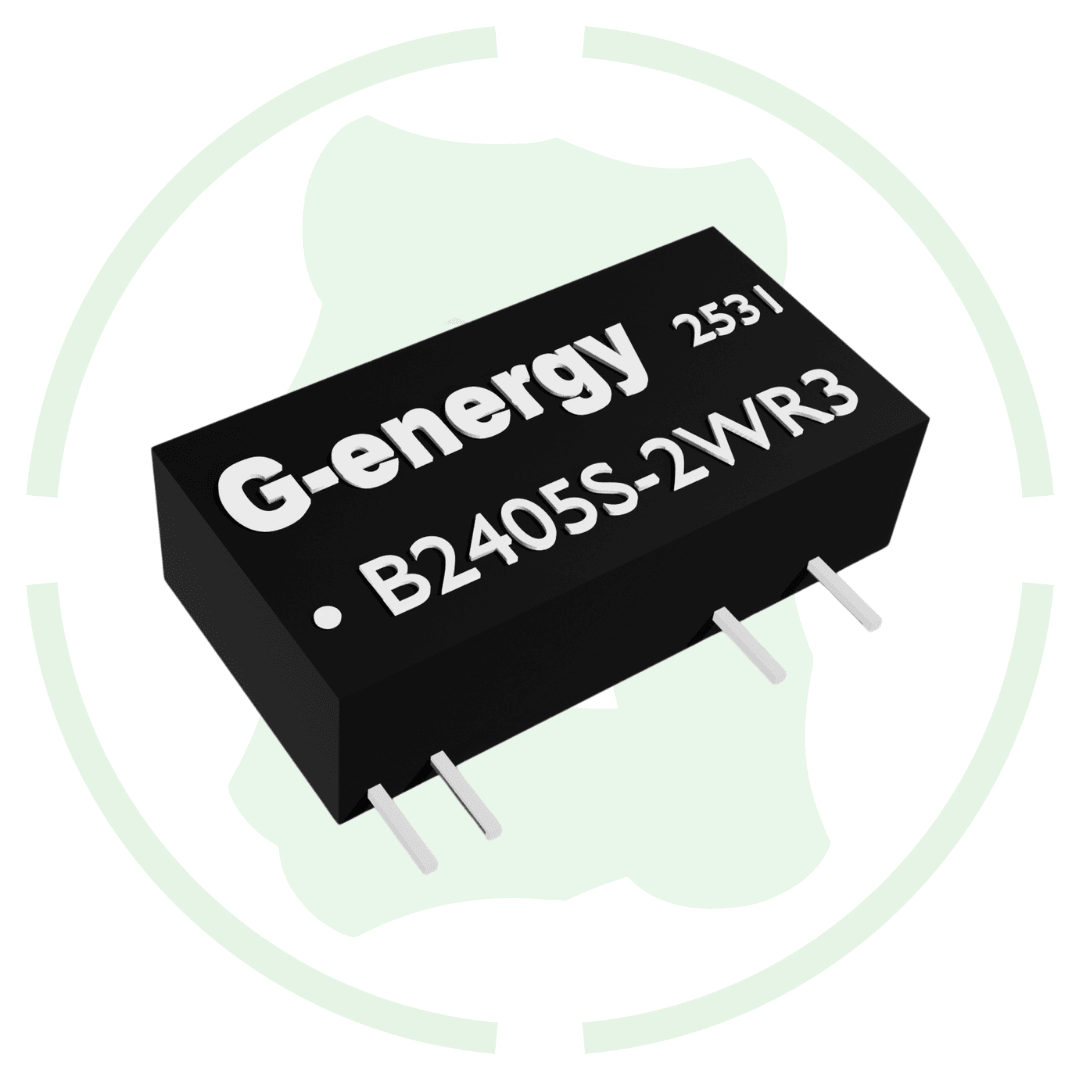

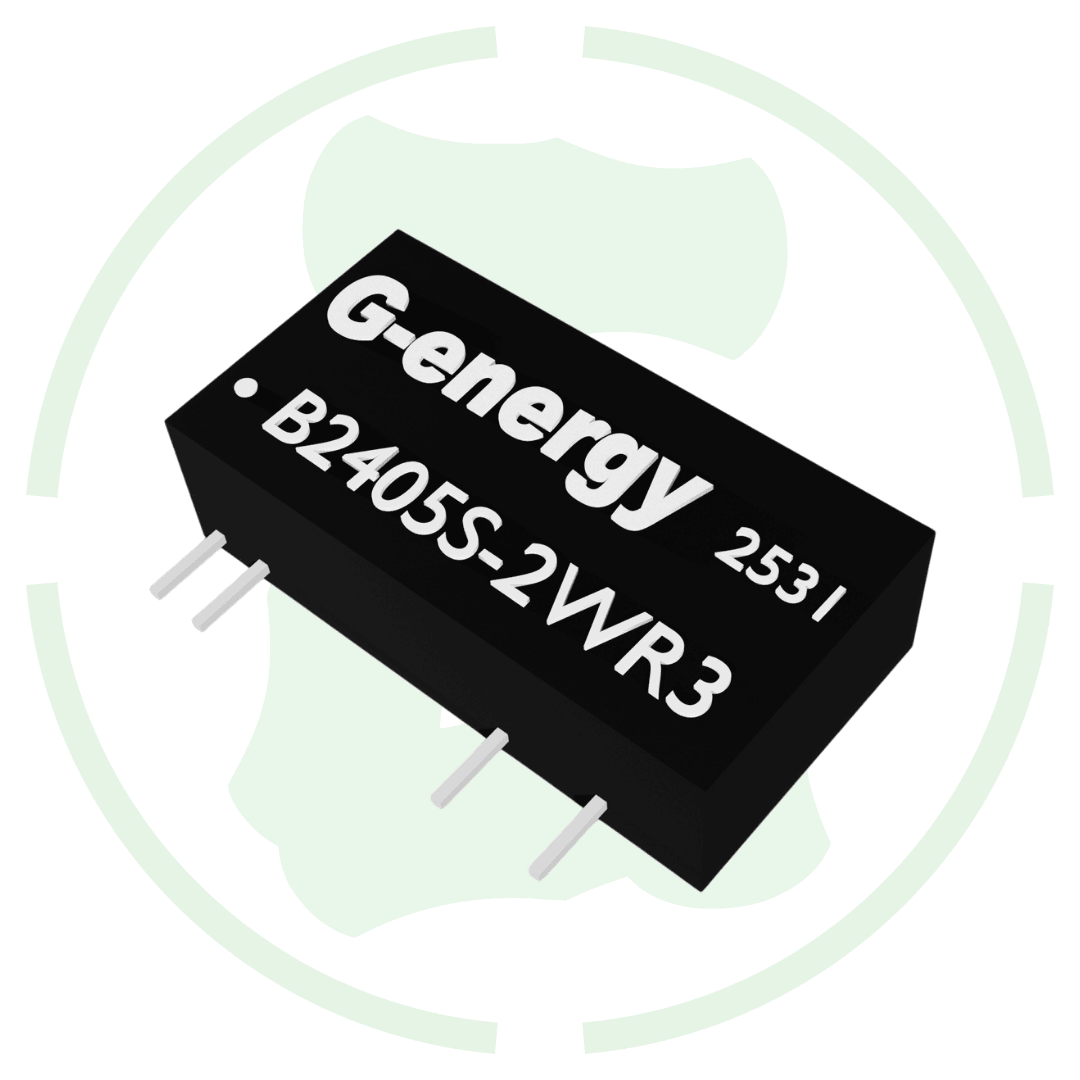

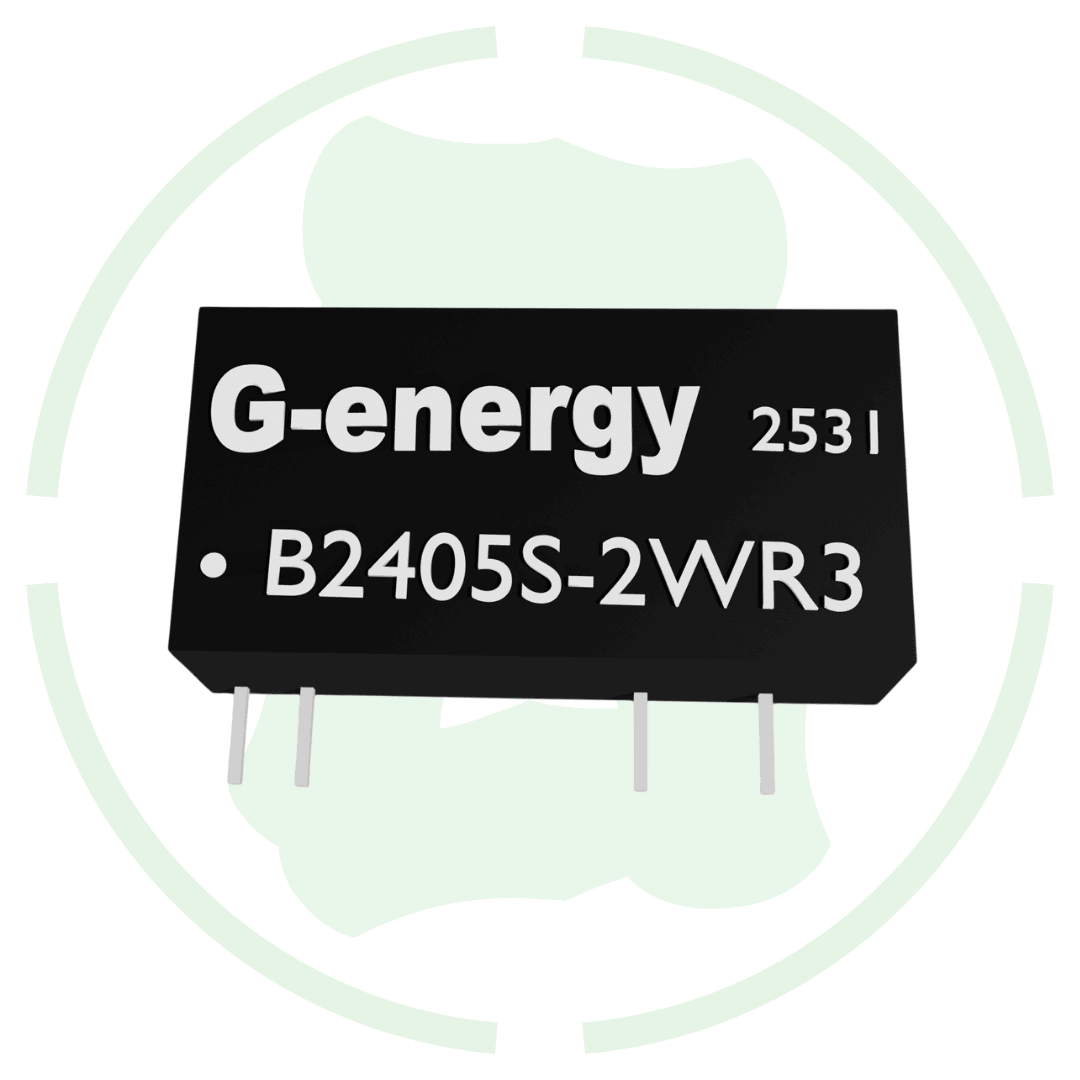

G energy B2405S-2WR3 24V to 5V 400mA 2W Dc to Dc Converter IP68 Step Down Converter

Overview of this G energy B2405S-2WR3 24V to 5V 2W 400mA dc to dc converter

Introducing G energy B2405S-2WR3 24V to 5V 2W 400mA Dc to Dc Converter. This converter can supply up to 2 watts of power, which is enough for many low-power circuits, sensors, and small control boards. It is comes in small and lightweight size for fits easily into tight spaces inside electronic projects or equipment.  It also combine efficiency with high isolation to meet the demands of modern electronic systems.

Features

Input Voltage: 24V: It works with a standard 24V DC input and making it perfect for industrial, automotive, and control system applications.

High Isolation Voltage: It also boast an isolation voltage of 1500VDC, this DC to DC converter also built with safety and reliability in mind. And also make it perfect for sensitive electronic devices.

Compact Size: Converter come in small and lightweight design which is best for easy installation even in tight space.

Specification

1. Input Voltage Range: 21.6-26.4V

2. Output Voltage: 5V DC

3. Output Current: 400mA

4. Output Power: 2W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 30/80mVp-p

10. Nominal Input Voltage: 24V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 19mm × 10mm × 6mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)
