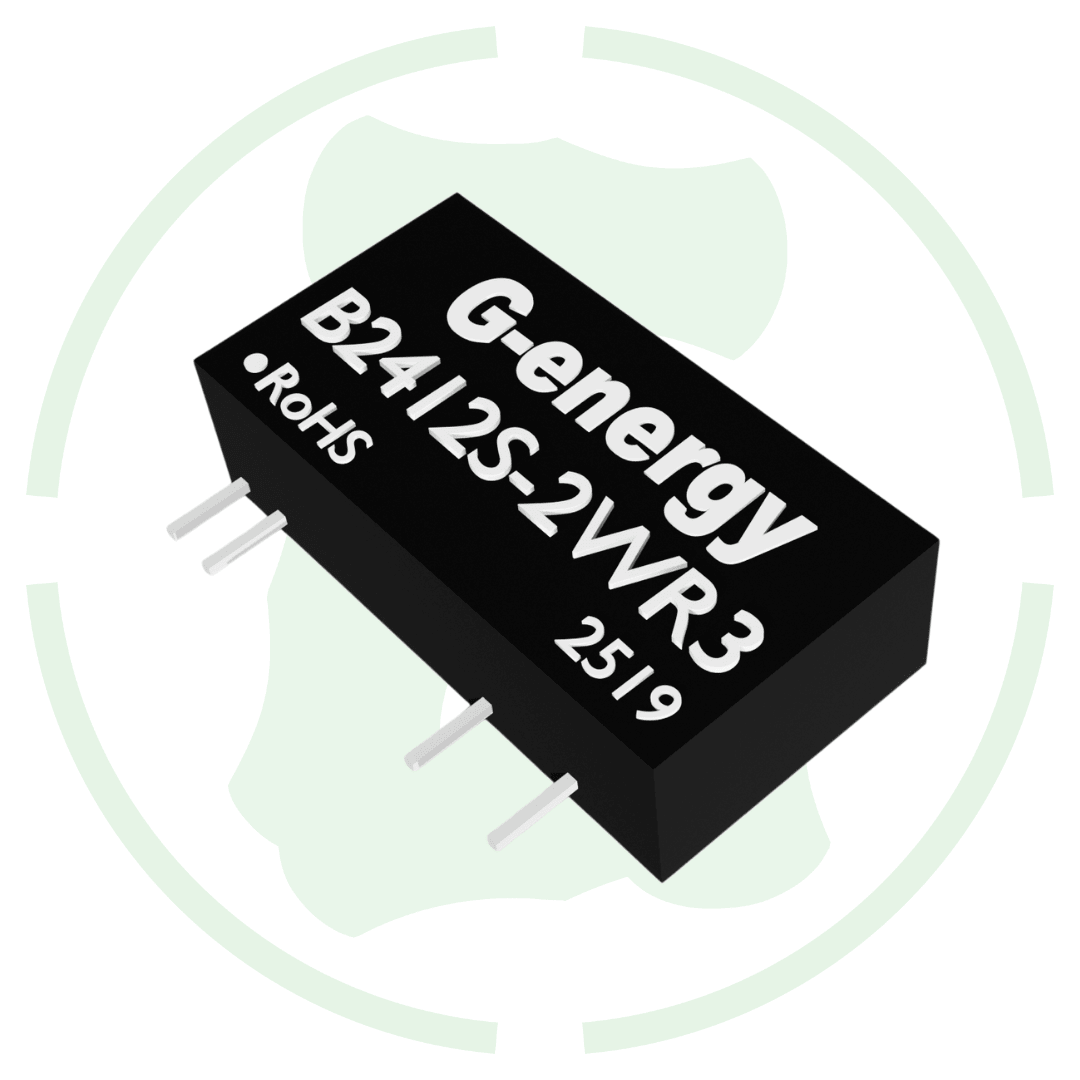

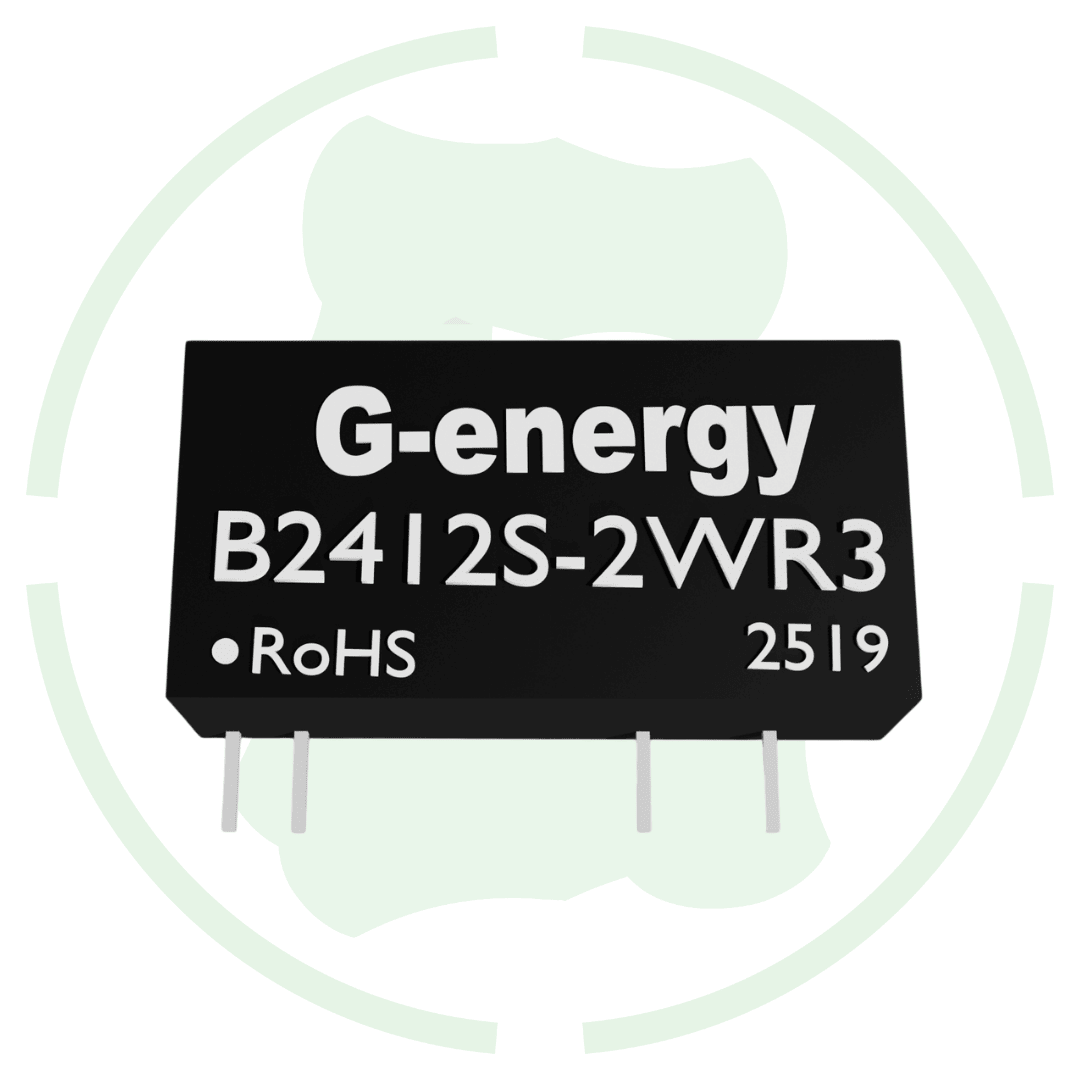

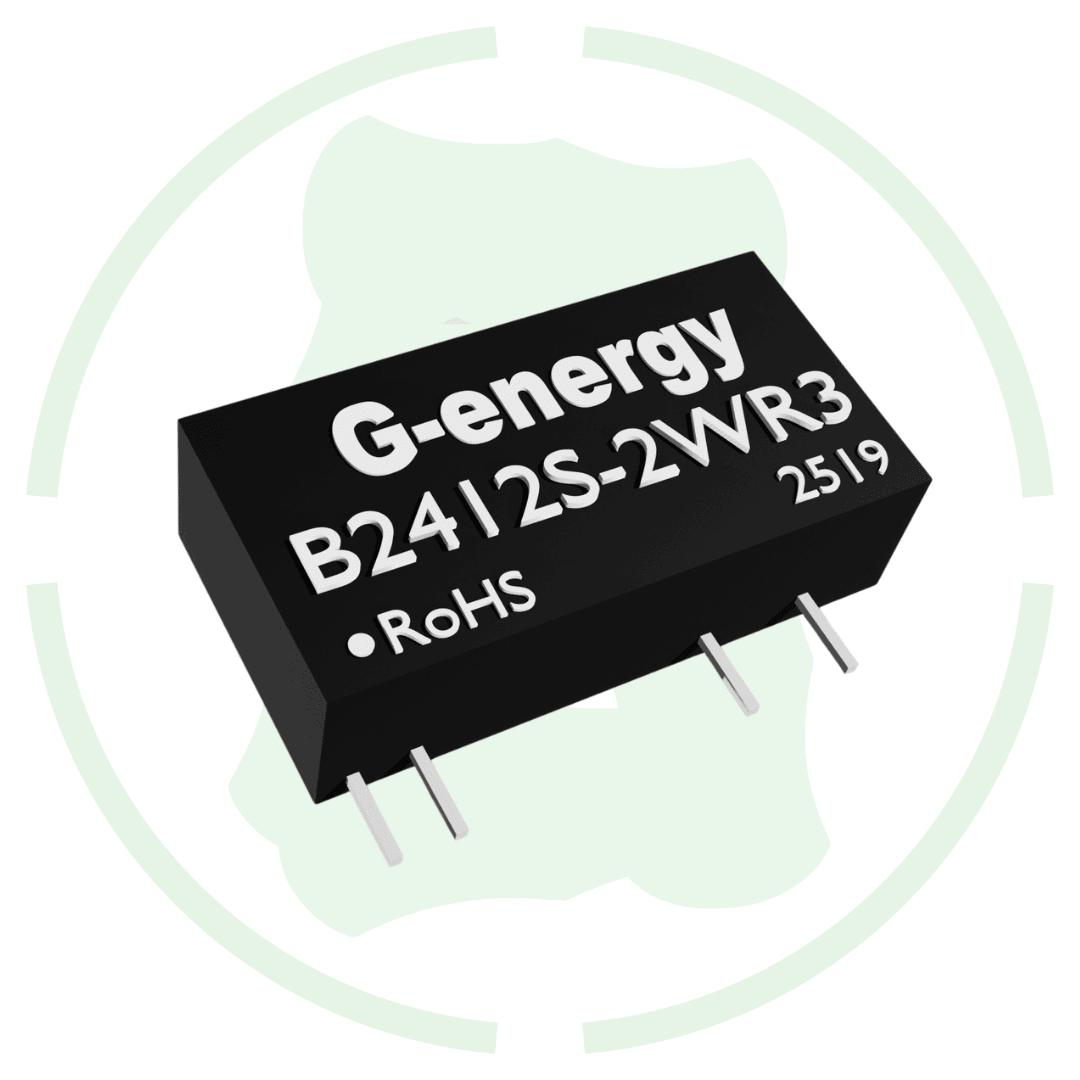

G energy B2412S-2WR3 24V to 12V 166mA 2W DC to DC Converter IP68 Step Down Converter

Overview of this G energy B2412S-2WR3 24V to 12V 166mA 2W DC to DC Converter IP68 Step Down Converter

Introducing G energy B2412S-2WR3 24V to 12V 166mA 2W dc to dc converter IP68 step down converter. This converter take 21.6v-26.4v input voltage & provide a fix 12v dc output voltage with 2 watts max power and 166mA dc current. This converter converts power with up to 88% efficiency and reduce energy loss and heat build-up during operation.

Features

Input Voltage  – This converter gives 21.6-26.4 voltage range and make it perfect for industrial machine, vehicle, and other equipment.

Stable 12V Output – Converter convert the 24V input into a 12V output, so your connected device run safely without voltage change.

High Efficiency (Up to 88%) – Converter gives high efficiency and convert most of the input power into usable output power & reduce heat and saving energy.

Specification

1. Input Voltage Range: 21.6-26.4V

2. Output Voltage: 12V DC

3. Output Current: 166mA

4. Output Power: 2W

5. Efficiency: 88%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 75/180mVp-p

10. Nominal Input Voltage: 24V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Over voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 19mm × 10mm × 6mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)
