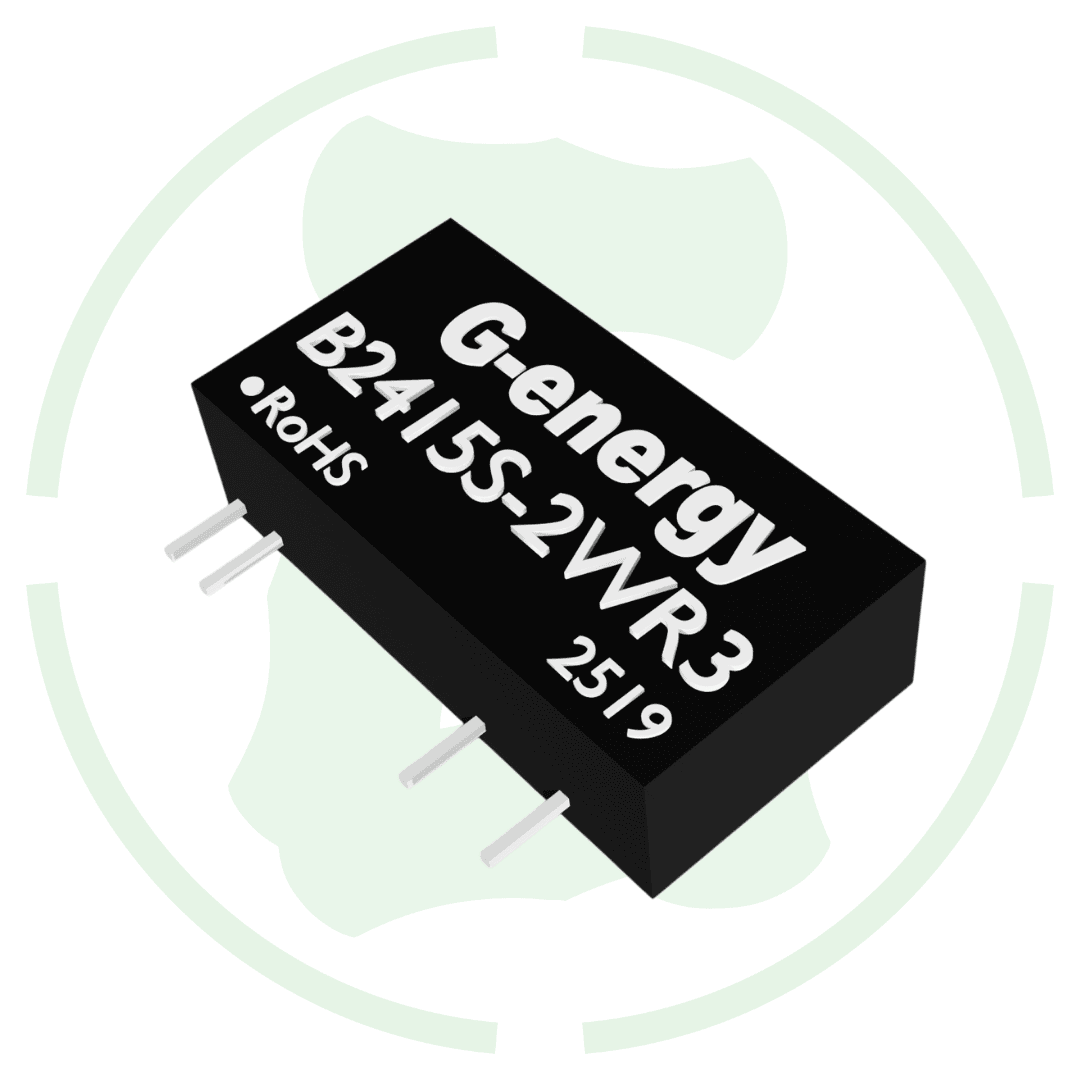

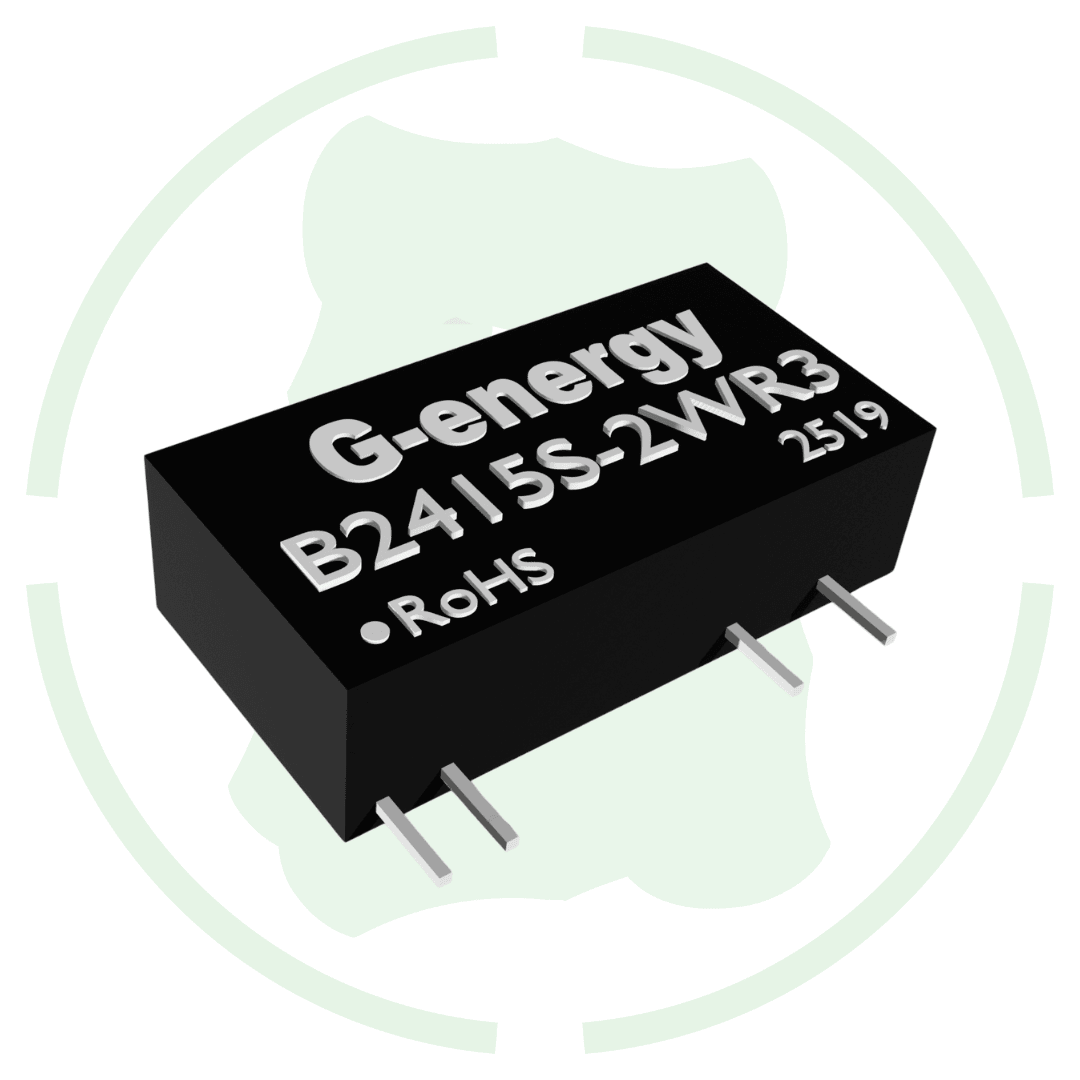

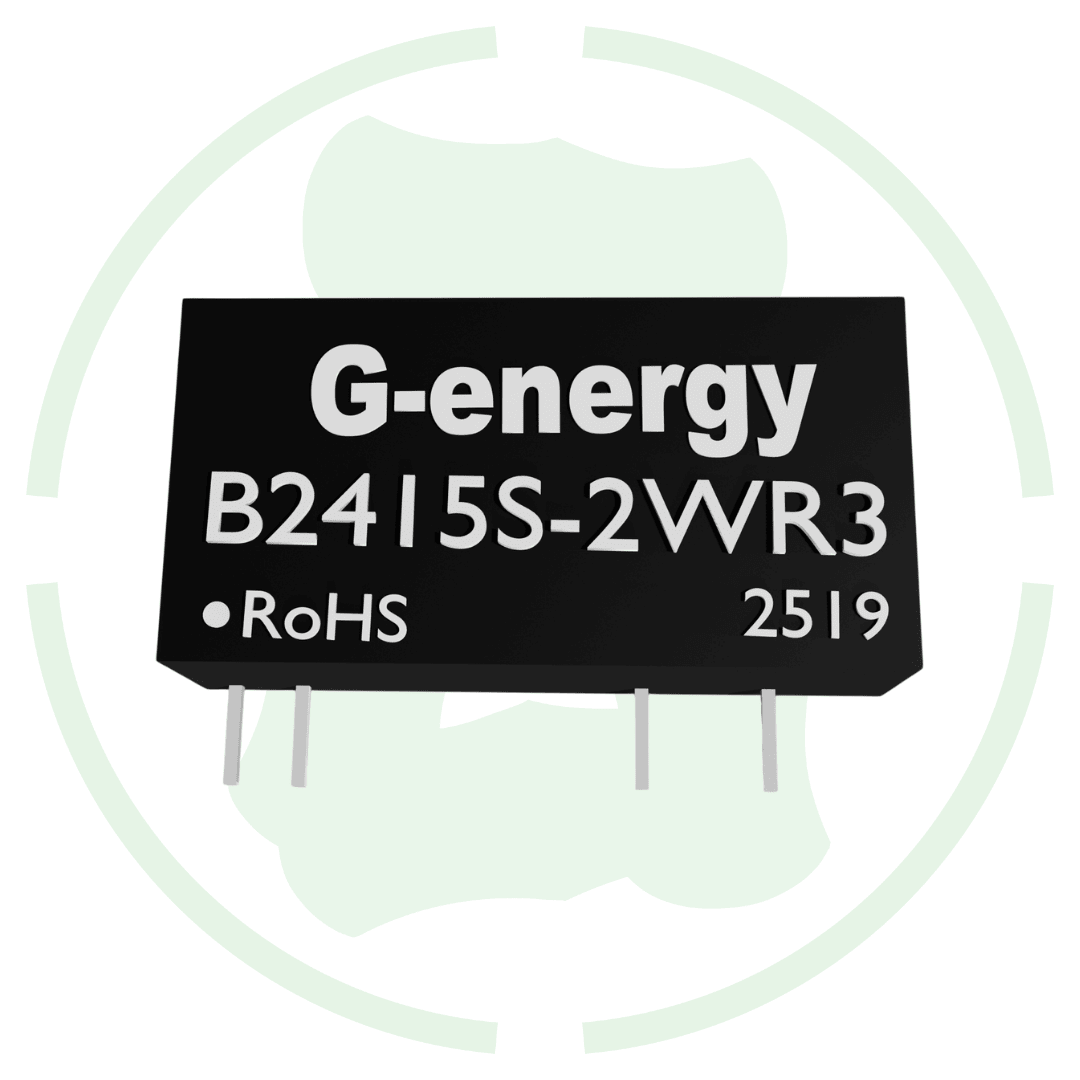

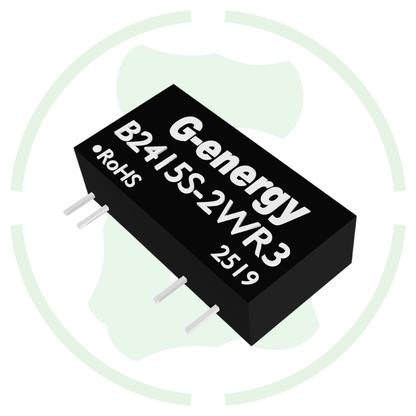

G energy B2415S-2WR3 24V to 15V 133mA 2W DC DC converter IP68 Step Down Converter

Overview of this G energy B2415S-2WR3 24V to 15V 133mA 2W  DC DC converter IP68 Step Down Converter

Introducing G energy B2415S-2WR3 24V to 15V 133mA 2W  DC DC converter IP68 Step Down Converter at the best price in India with g-energy. Converter gives 21.6-26.4V input voltage range and stable 15V DC output for your equipment. It can provide a maximum output power of 2 watts, which is enough for small electronics, sensors, and control systems. This converter works in harsh conditions, making it suitable for automotive, outdoor equipment.

Features

High Efficiency – Converters gives Up to 88% efficiency and converts power with minimal energy loss, reducing heat buildup and saving battery or power supply energy.

Comes in SIP package – It is single Inline Package design for compact size and easy mounting on pcb boards.

Overcurrent & Short Circuit Protection – It is automatically shuts down in case of overload or short circuit, protecting both the converter and your equipment.

Specification

1. Input Voltage Range: 21.6-26.4V

2. Output Voltage: 15V DC

3. Output Current: 133mA

4. Output Power: 2W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/75mVp-p

10. Nominal Input Voltage: 24V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Over voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 19mm × 10mm × 6mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)
