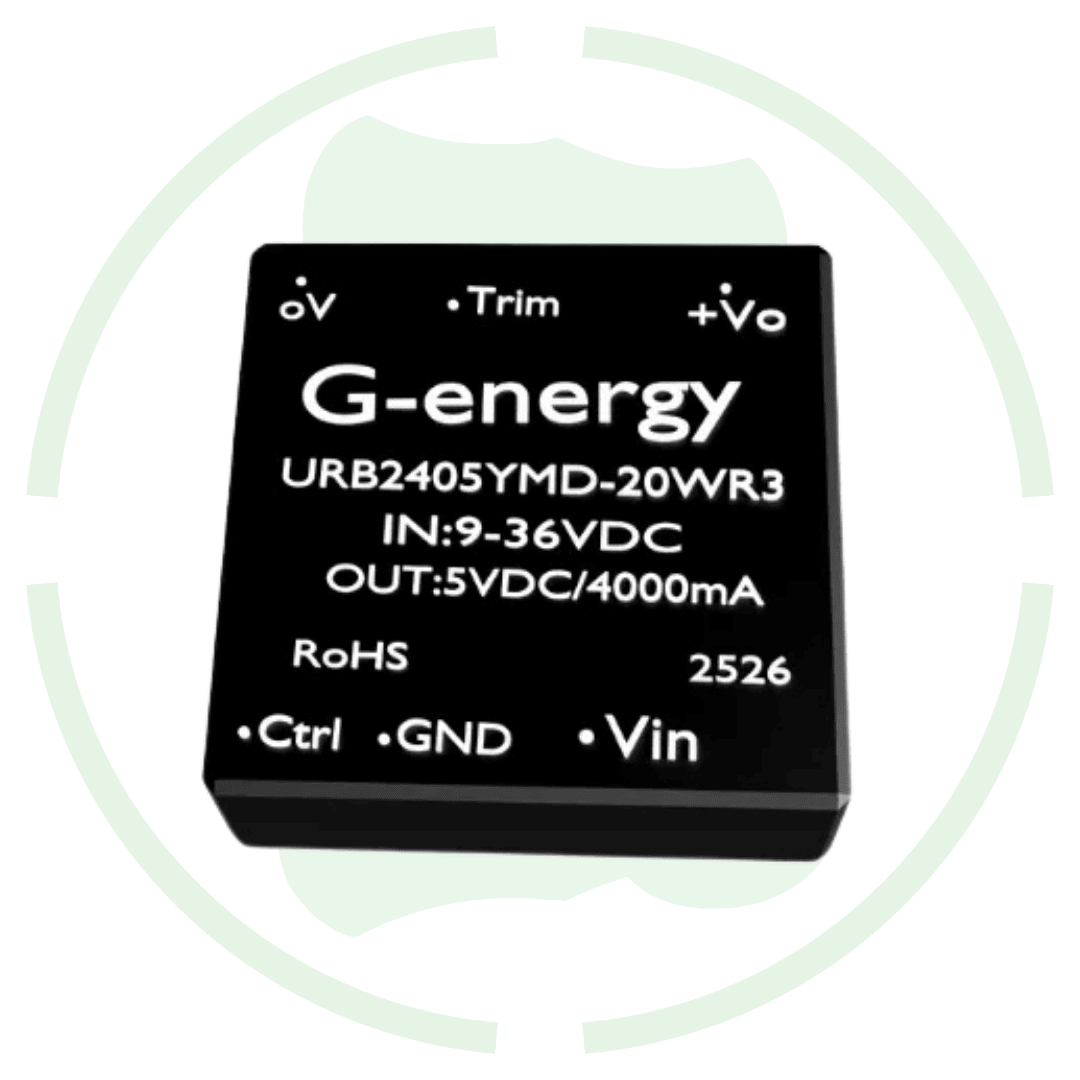

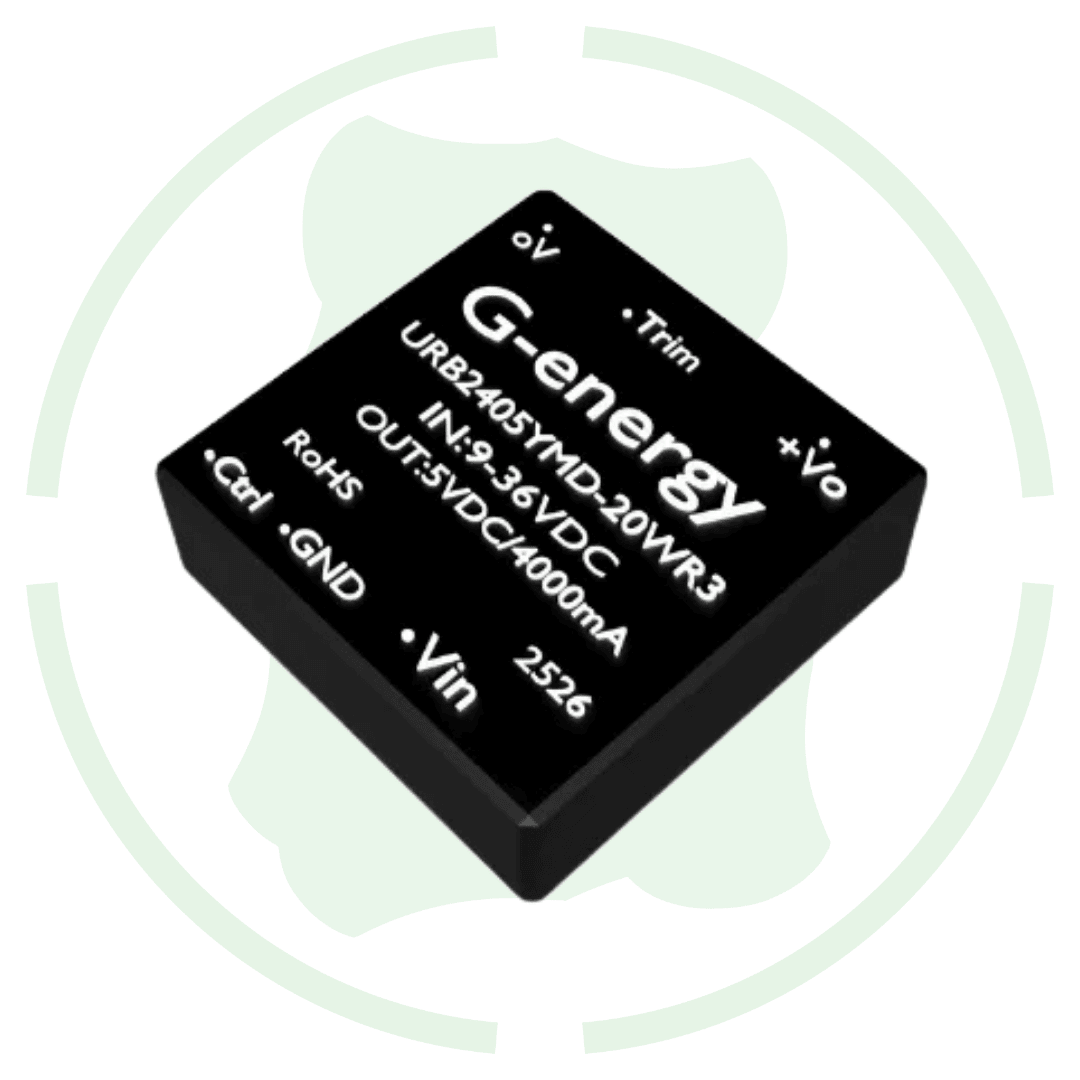

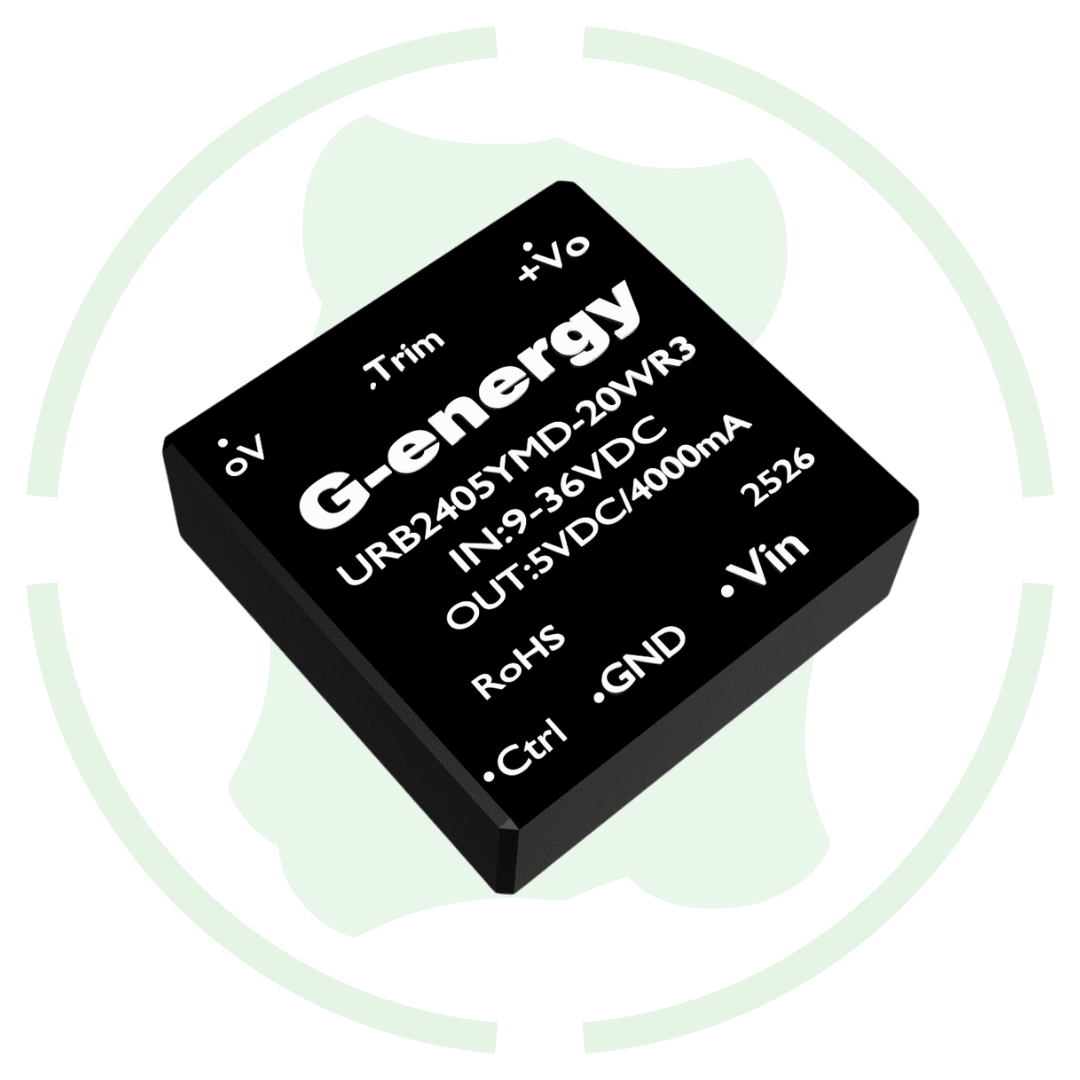

G-energy URB2405YMD-20WR3 24V to 5V 4A 20W DC to DC converter IP68 Buck Converter

Overview of this G-energy URB2405YMD-20WR3 24V to 5V 20W 4000mA dc to dc converter

Introducing G-energy URB2405YMD-20WR3 24V to 5V 20W 4000mA DC to DC converter. This conveter can supply a maximum of 20 watts of power, which means it can run devices that need up to 4 amps of current at 5 volts. It also this conveter also comes with over current, short circuit, and over voltage protection to keep your devices safe.  This G-energy URB2405YMD-20WR3 converter also ensure optimal power conversion for your electronic devices.

Features

Efficient Power Conversion – The G-energy URB2405YMD-20WR3 provide high conversion efficiency up to 91% energy converison.

High Output Power (20W) – Converter can provide enough power to run bigger loads or multiple small device at the same time without overheating.

Input Voltage Range – It works with different 24V power source, even if the voltage slightly goes up or down & make it perfect for many industrial and vehicle application.

Specification

1. Input Voltage Range: 9-36V

2. Rated Input Voltage: 24V

3. Output Voltage: 5V

4. Maximum Output Current: 4A

5. Maximum Output Power: 20W

6. Efficiency (Typical): Up to 90%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 50mV (at full load)

10. Input Undervoltage Protection : Yes

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 25mm × 25mm × 11mm

17. Weight: 15 gm

18. Cooling Method: Free air convection (no fan required)
