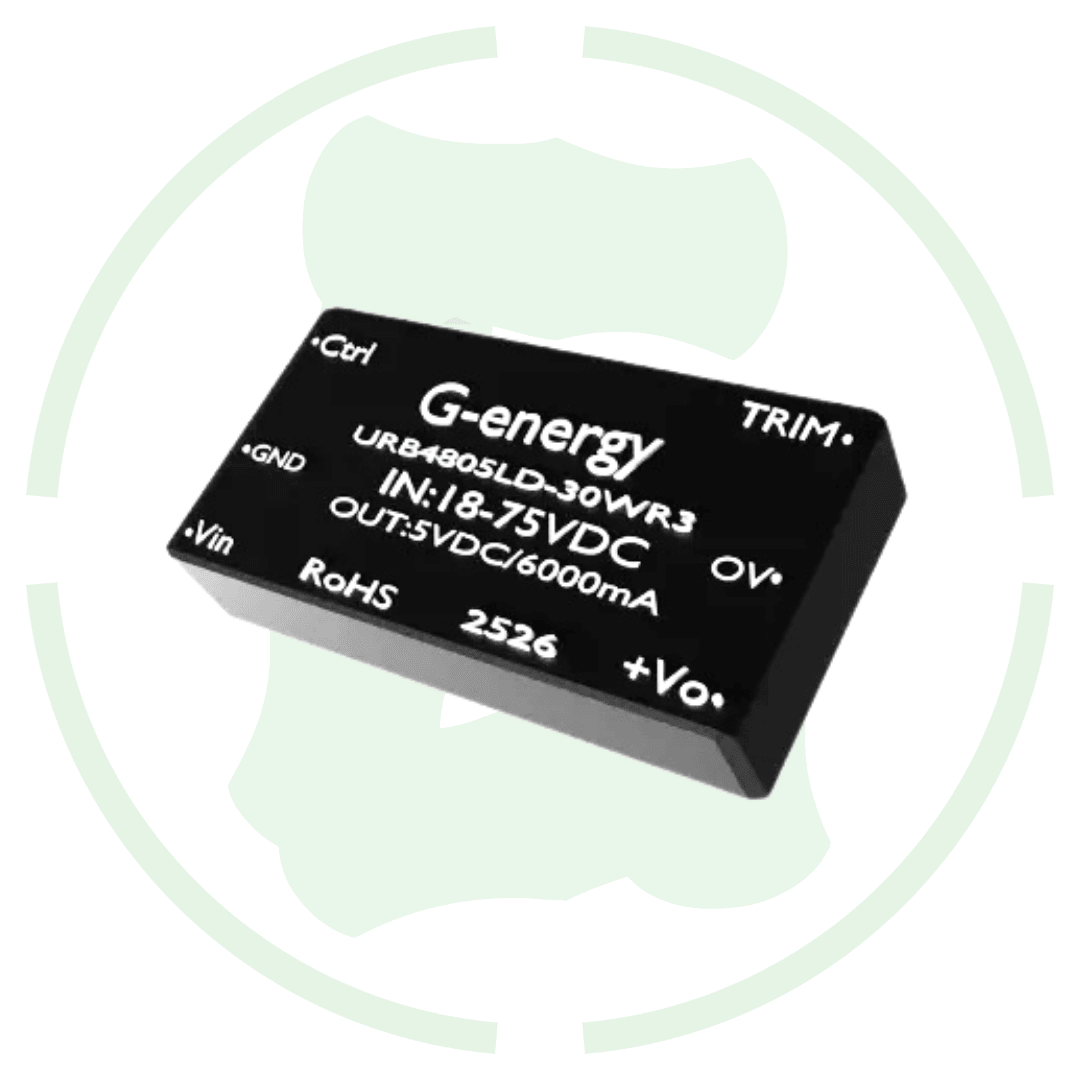

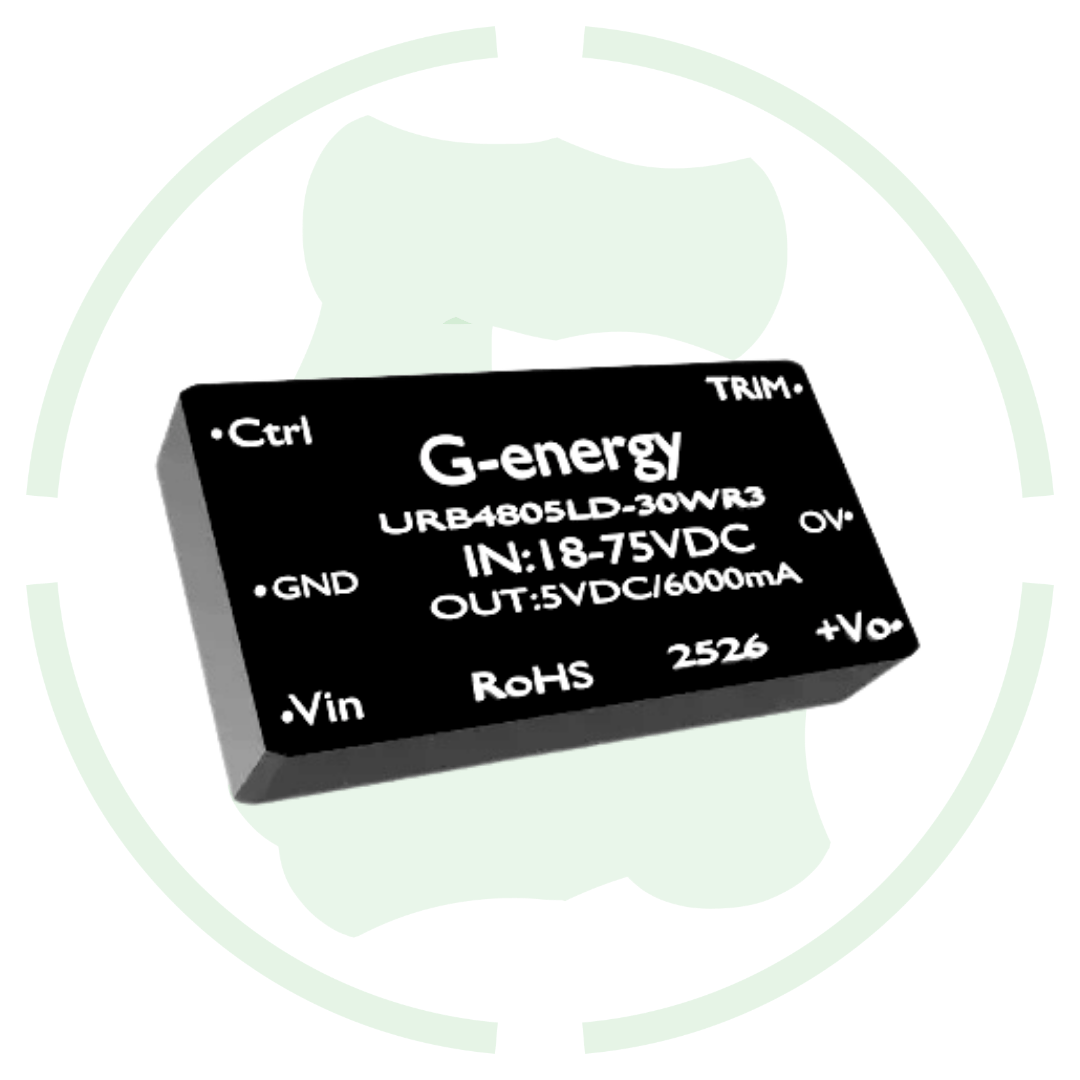

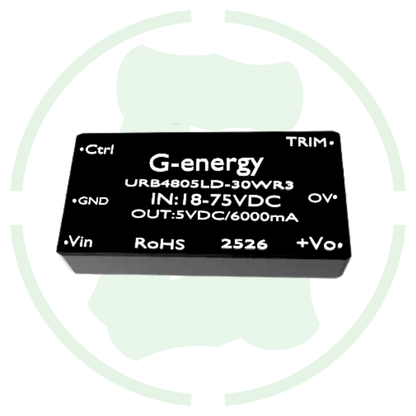

G-energy URB4805LD-30WR3 48V To 5V 6A 30W Dc-Dc Converter IP68 Buck Converter

High Power Output (30W) – Converter can deliver up to 30 watts of power to ensure stable performance even for devices with heavy load requirements.

Compact & Easy to Install – It is come in small size for fit in tight spaces, and DIP package that make connection simple without extra component.

Specification

1. Input Voltage Range: 18V-75V DC

2. Rated Input Voltage: 48V DC

3. Output Voltage: 5V DC

4. Maximum Output Current: 6A

5. Maximum Output Power: 30W

6. Efficiency (Typical): Up to 90%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 50mVp-p

10. Input/Output Isolation: Isolated

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 50mm × 25mm × 13mm

17. Weight: 28 gm

18. Cooling Method: Free air convection (no fan required)
