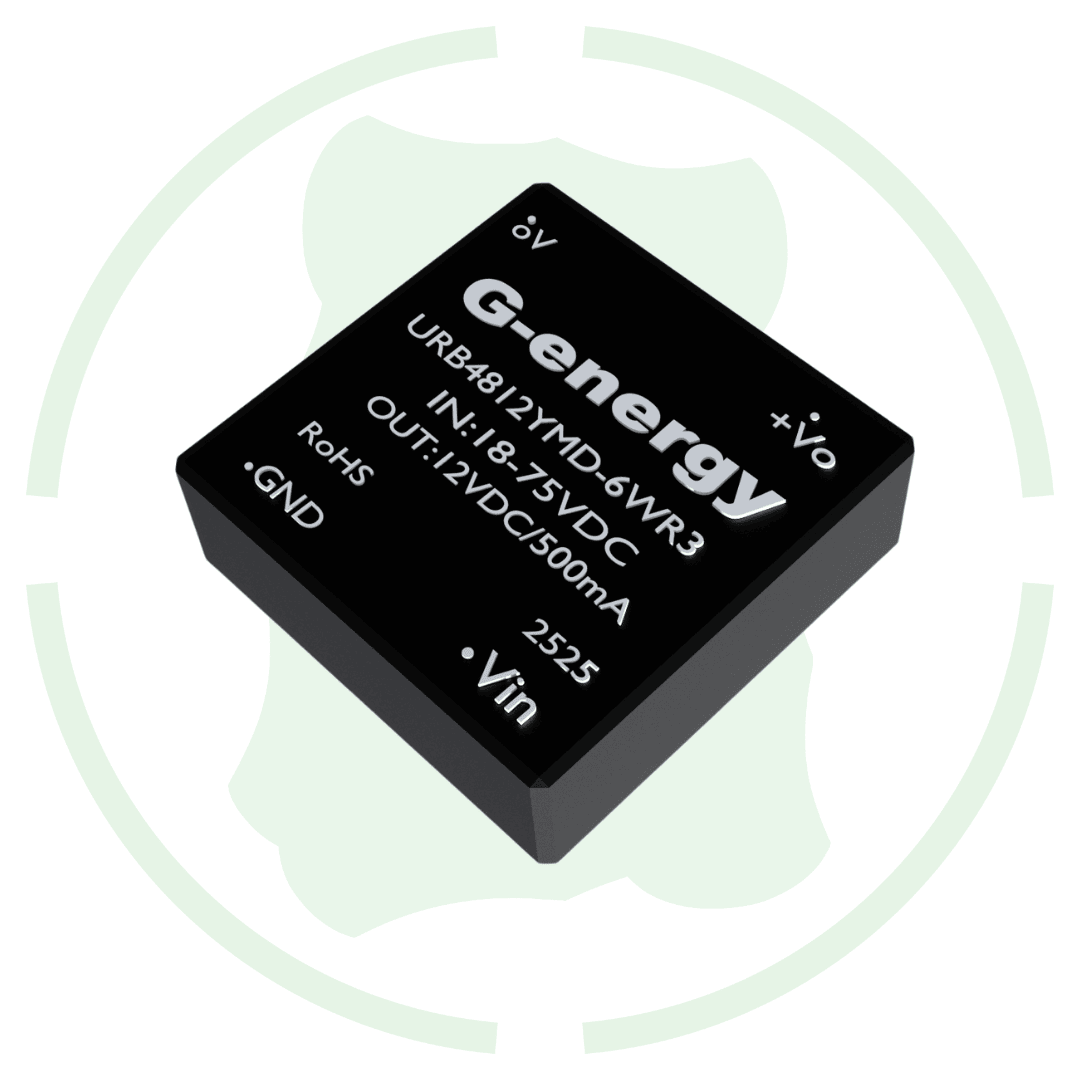

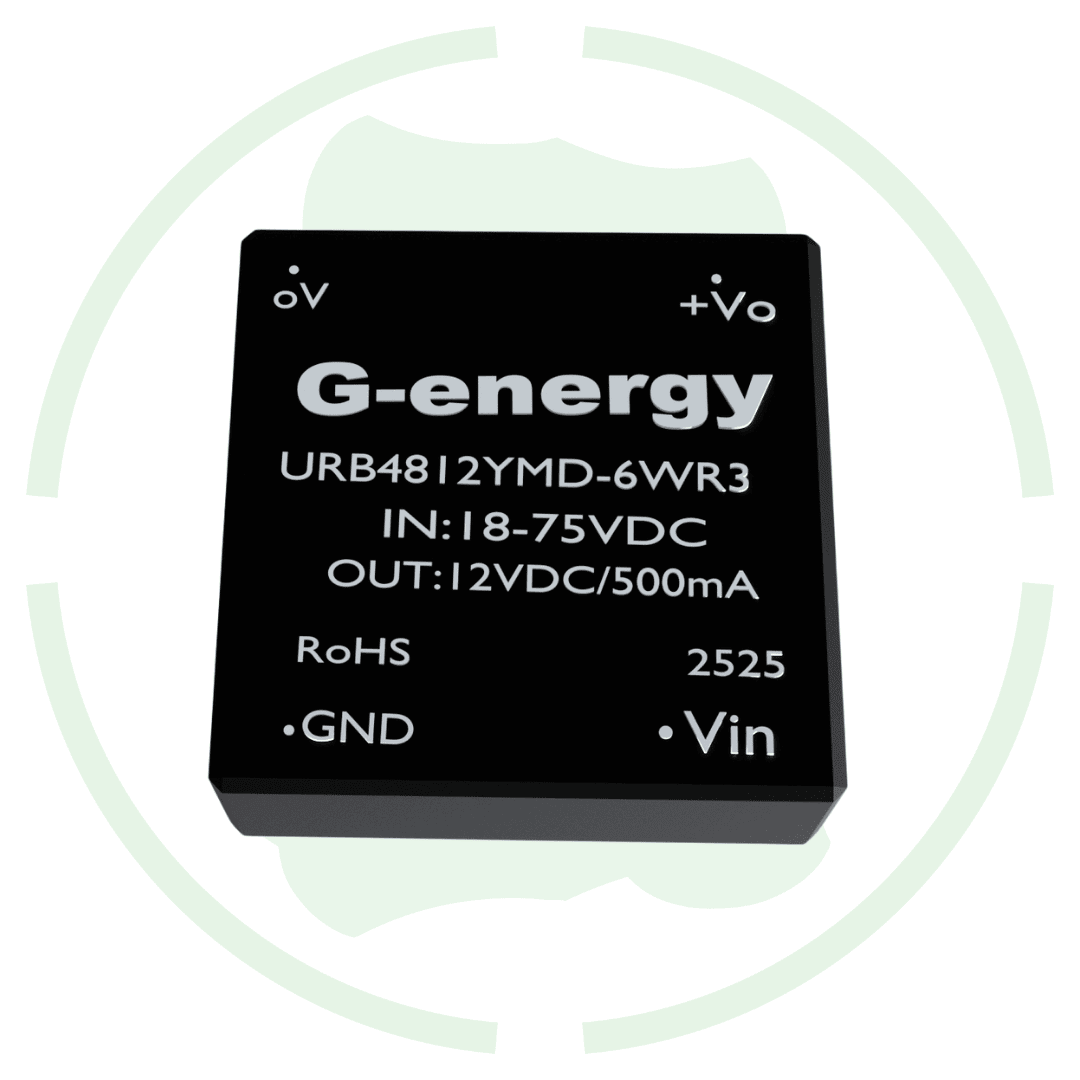

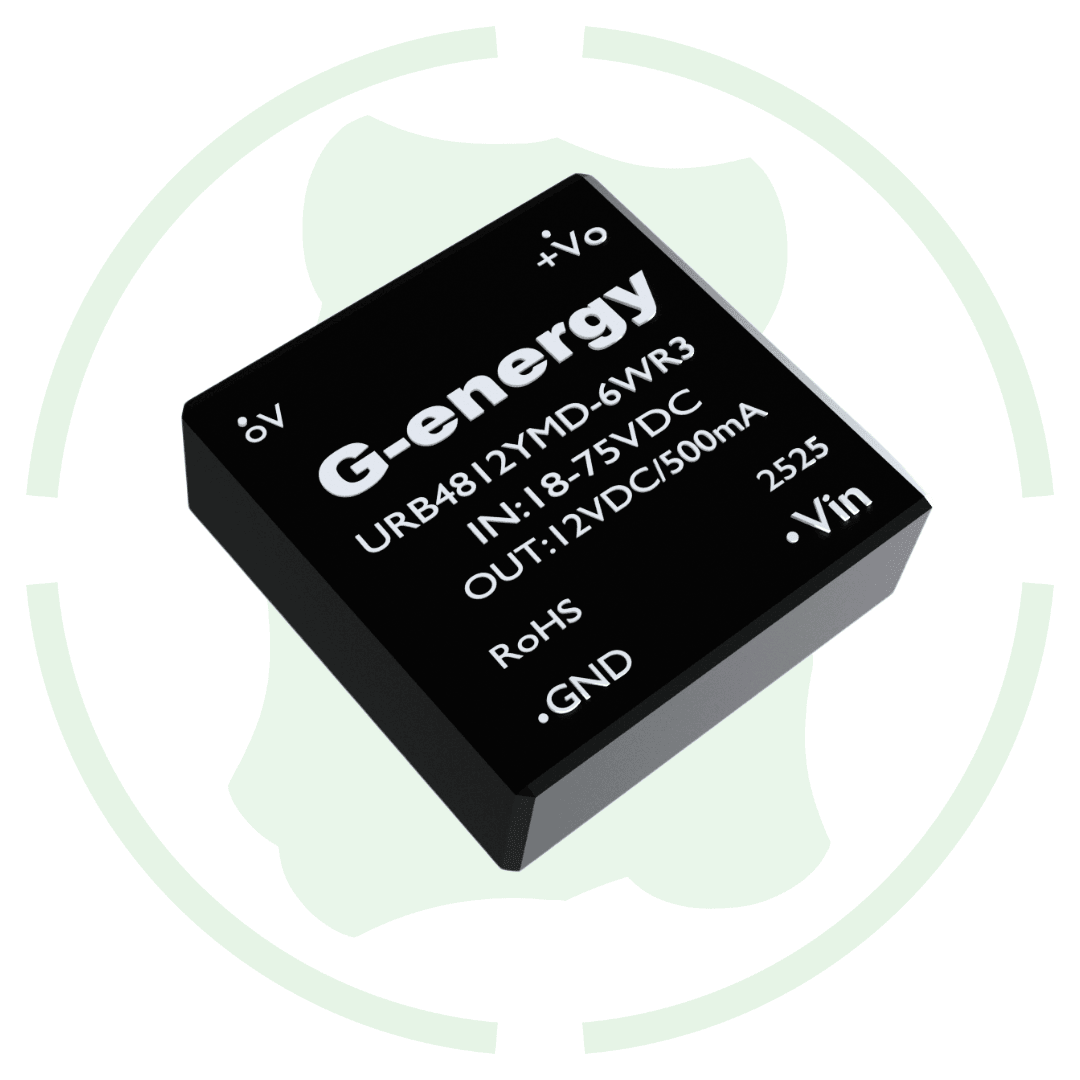

G-energy URB4812YMD-6WR3 48V to 12V 500mA 6W Dc Dc Converter IP68 Step Down Converter

Overview of this G-energy URB4812YMD-6WR3 48V to 12V 500mA 6W Dc Dc Converter IP68 Step Down Converter

Introducing G-energy URB4812YMD-6WR3 48V to 12V 500mA 6W Dc Dc Converter IP68 Step Down Converter at best price in India with g-energy. This device takes a 18V-75V DC input and safely steps it down to a fix 12V dc output and make it perfect to power 12V devices from a higher voltage source. This converter deliver up to 500mA dc current and 6W max dc power.

Features

Input Voltage – This 48v to 12v 6w converter work with a 18v-75v power supply and making it suitable for industrial, automotive, and solar applications without requiring extra adapters.

Stable 12V Output – It gives a constant 12V output at up to 500mA and ensure your connected devices work smoothly without voltage fluctuations.

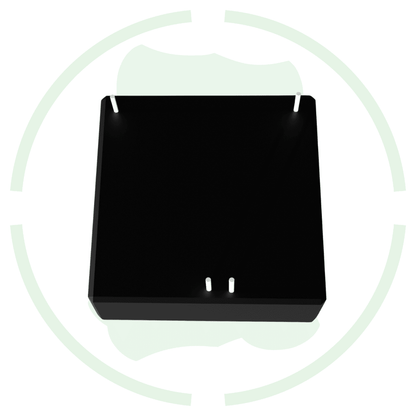

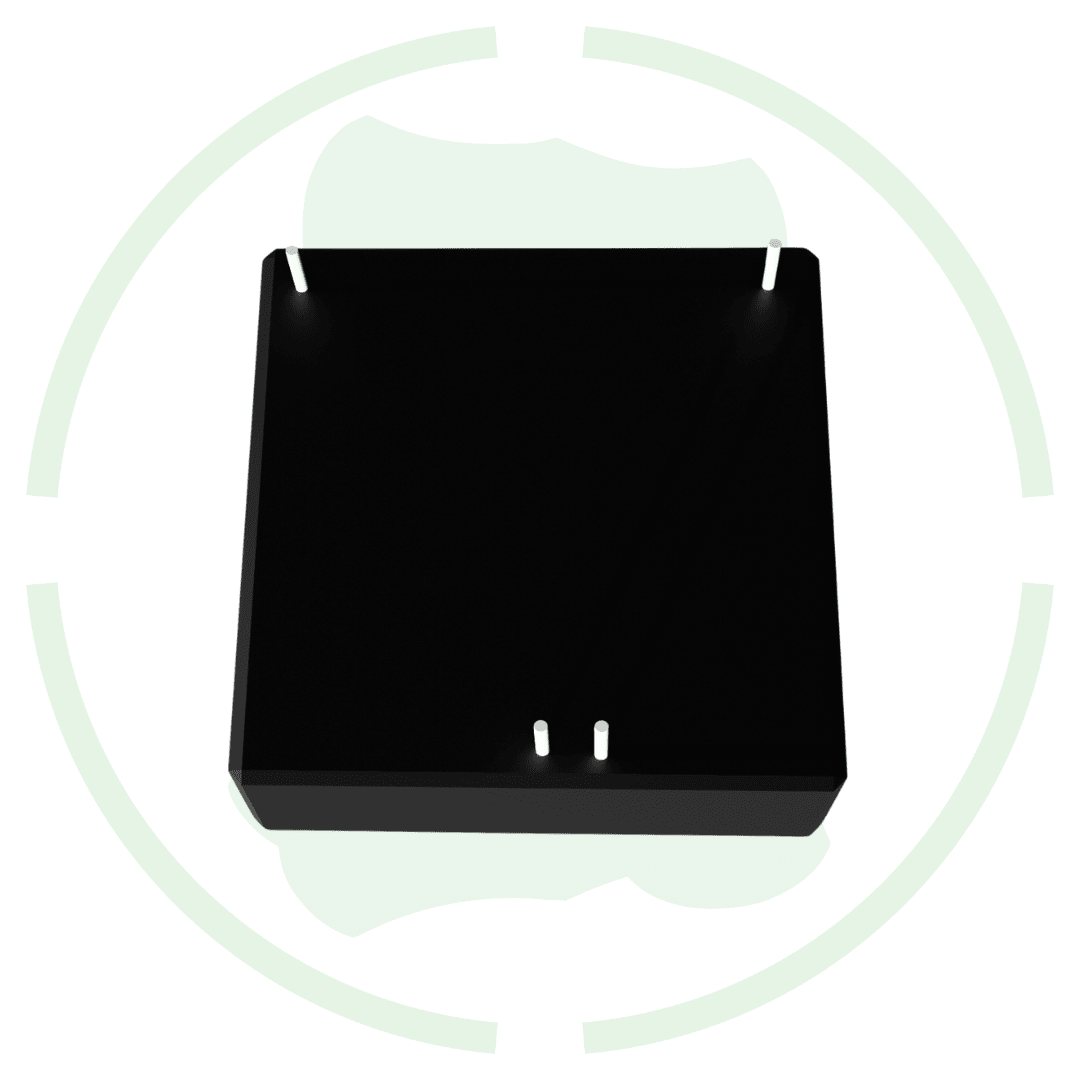

DIP Package – Converter comes in a Dual In-line Package (DIP) form factor and making it easier to mount on circuit boards and providing strong mechanical stability for various applications.

Specification

1. Input Voltage Range: 18-75V

2. Output Voltage: 12V DC

3. Output Current: 500mA

4. Output Power: 6W

5. Efficiency: 87%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 75

10. Nominal Input Voltage: 24V/36V/48V72V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 25mm × 25mm × 11mm

17. Weight: 13 gm

18. Cooling Method: Free air convection (no fan required)
