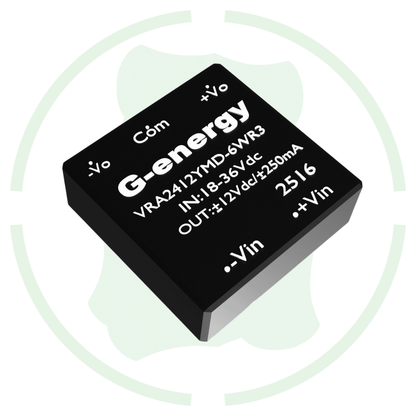

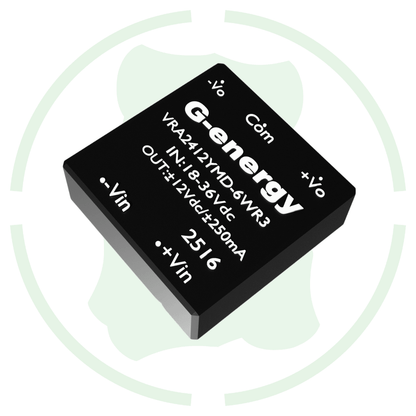

G Energy VRA2412YMD-6WR3 24V to 12V 250mA 6W Dc To Dc Converter IP68 Buck Converter

Overview of this G Energy VRA2412YMD-6WR3 24V to 12V 250mA 6W dc to dc converter

Introducing G Energy VRA2412YMD-6WR3 24V to 12V 250mA 6W dc dc converter IP68 buck converter at the best price in India with g-energy. This device takes an input of 18-36V DC and safely reduces it to 12V DC output and make it useful to power 12v dc set ups. It can provide up to 6 watts of power (250mA current), which is suitable for small electronic devices, sensors, and control systems. This step down voltage converter is also equipped with short-circuit protection, over current protection, and over-temperature protection for converter safety.

Features

12V dual output: It also provide both positive & negating dual 12V output for bipolar signal processing devices.

High Efficiency: This buck converter gives up to 80-85% efficiency and converts power with minimal loss, reducing heat and saving energy.

Wide input voltage: This VRA2412YMD-6WR3 voltage converter is designed to work on input voltage from 18v to 36v for its compatibility with multiple set ups.

Specification

1.Input Voltage Range: 18-36V

2. Output Voltage: ±12V DC

3. Output Current: ±250mA

4. Output Power: 6W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/80mVp-p

10. Nominal Input Voltage: 24V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 25mm ×25mm × 11mm

17. Weight: 13 gm

18. Cooling Method: Free air convection (no fan required)
