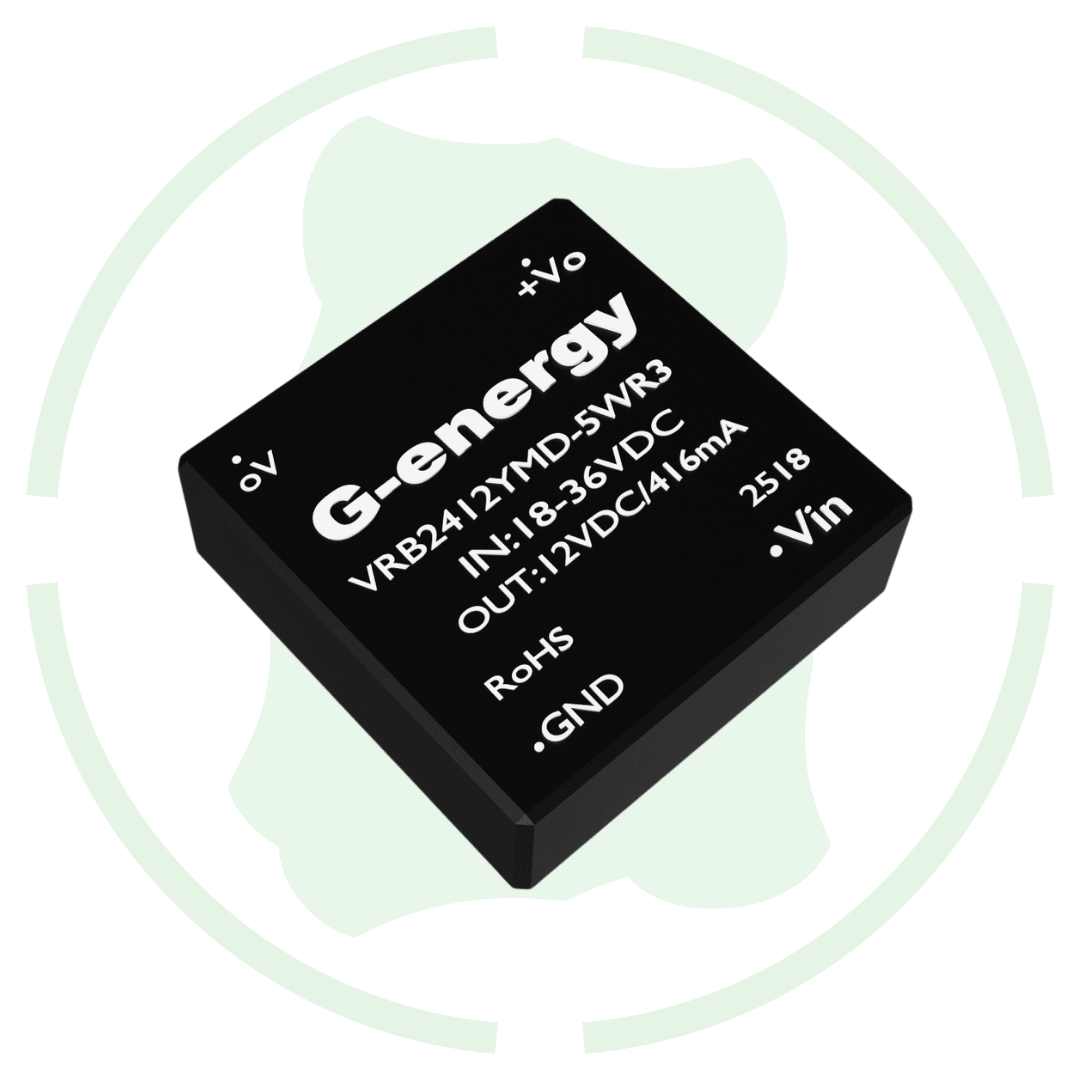

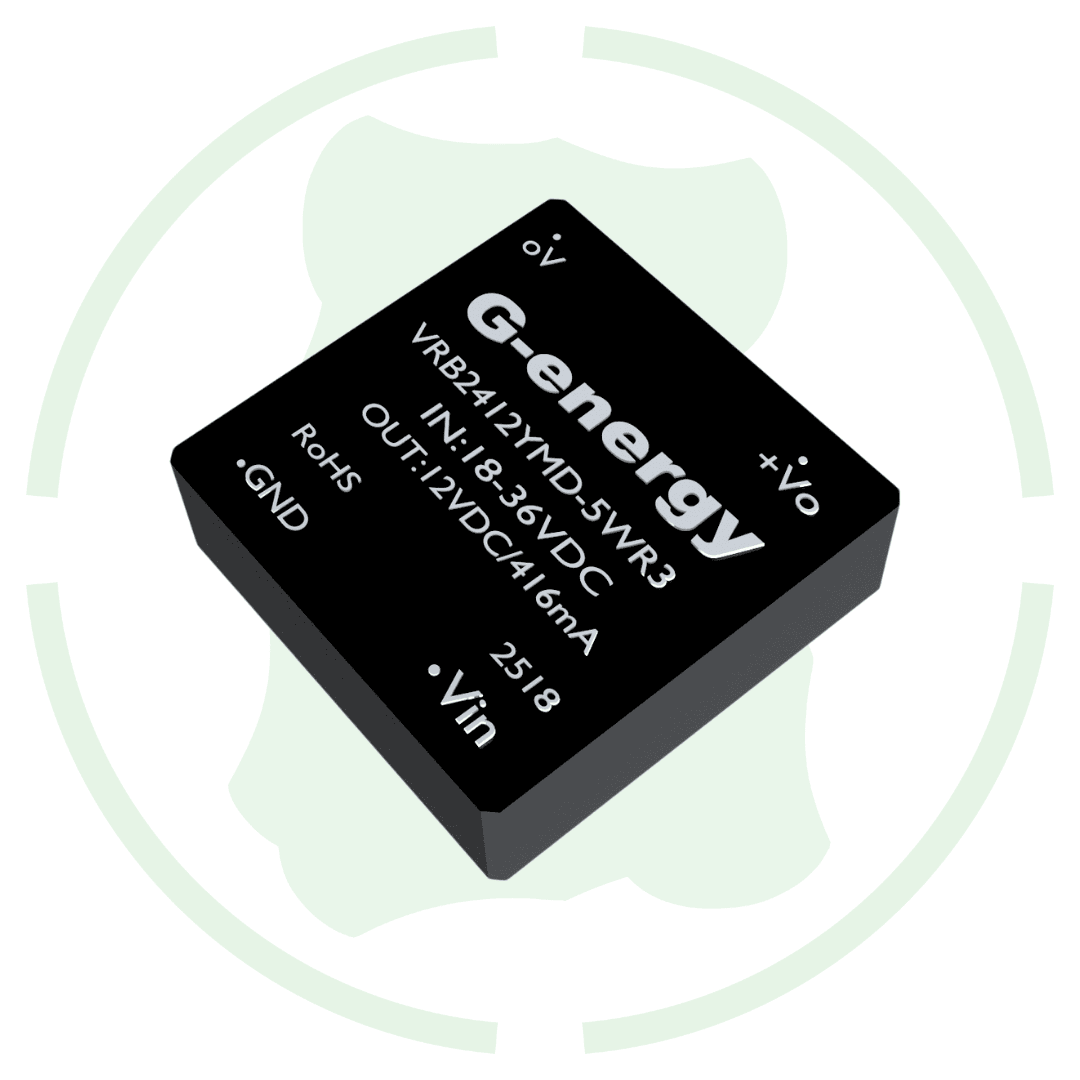

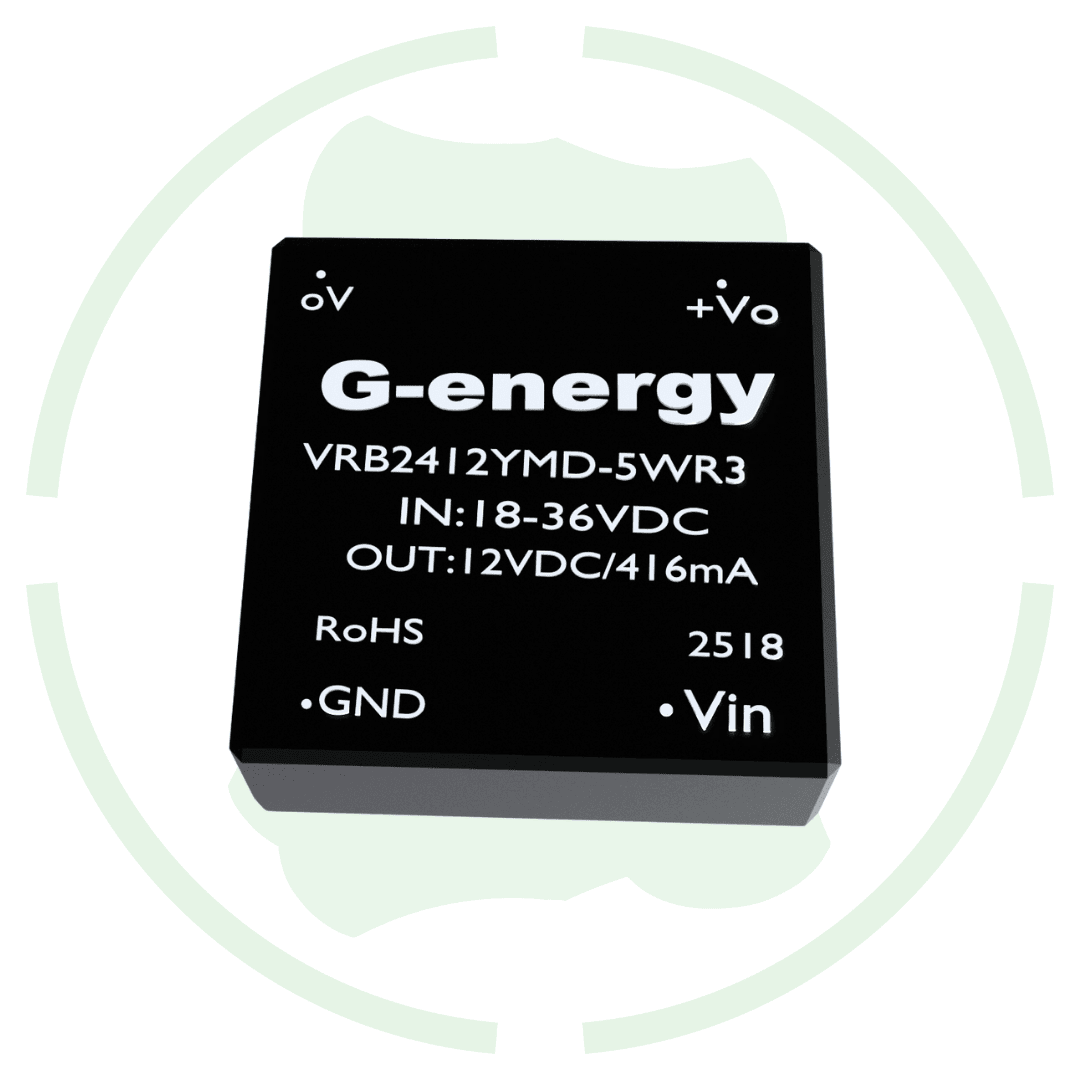

G Energy VRB2412YMD-5WR3 24V to 12V 416mA 5W DC to DC Converter IP68 Step Down Converter

Overview of G Energy VRB2412YMD-5WR3 24V to 12V 0.42A 5W DC to DC Converter

Introducing G Energy VRB2412YMD-5WR3 24V to 12V 0.42A 5W DC to DC Converter IP68 Step Down Converter. This converter take a 18-36V dc input voltage and provide a fix 12v dc output. It also give up to 5W of power with a maximum output of 0.42A and it can handle small electronic device, multiple type of pcb board, and other low-power application. Converter built for tough conditions and it is protected against water immersion and dust entry, ideal for outdoor or industrial use.

Features

Stable 12V Output – Converter gives a consistent 12V output to power sensitive electronics without voltage fluctuations that could cause damage.

High Efficiency  – Converter gives up to 89% and convert power with minimal energy loss & reduce heat generation and improve battery life in portable system.

Short Circuit & Overcurrent Protection – It has built-in safety features prevent damage to the converter and connected devices if there is an electrical fault.

Specification

1. Input Voltage Range: 18-36V

2. Output Voltage: 12V DC

3. Output Current: 416mA

4. Output Power: 5W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/80mVp-p

10. Nominal Input Voltage: 24V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

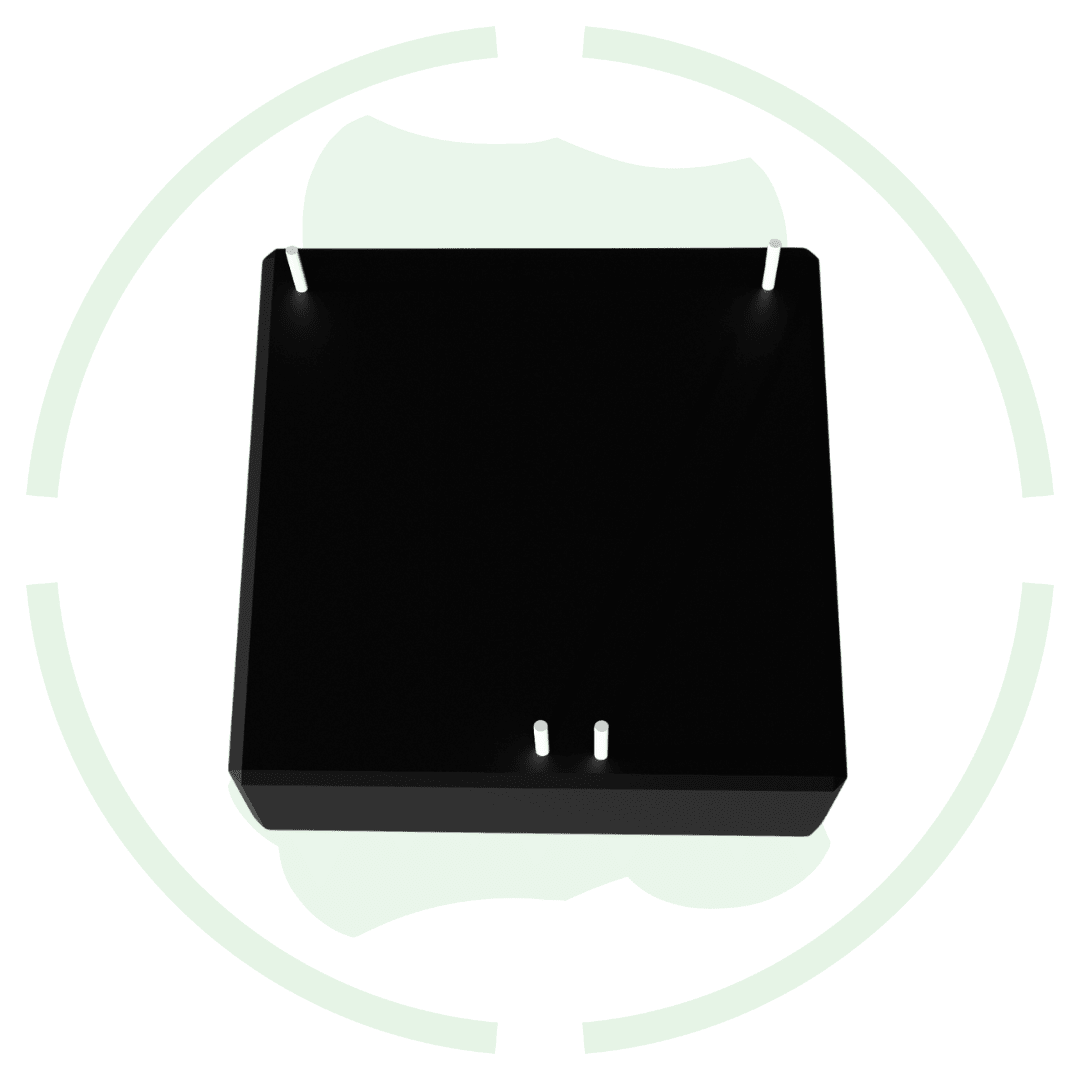

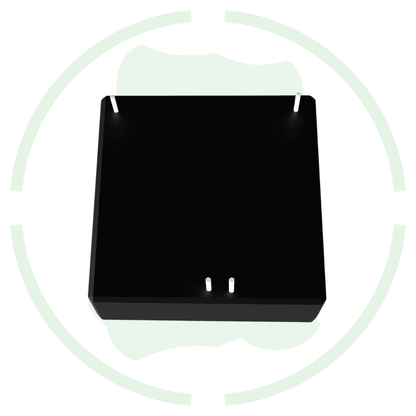

16. Dimensions: 25mm × 26mm × 11mm

17. Weight: 13 gm

18. Cooling Method: Free air convection (no fan required)
