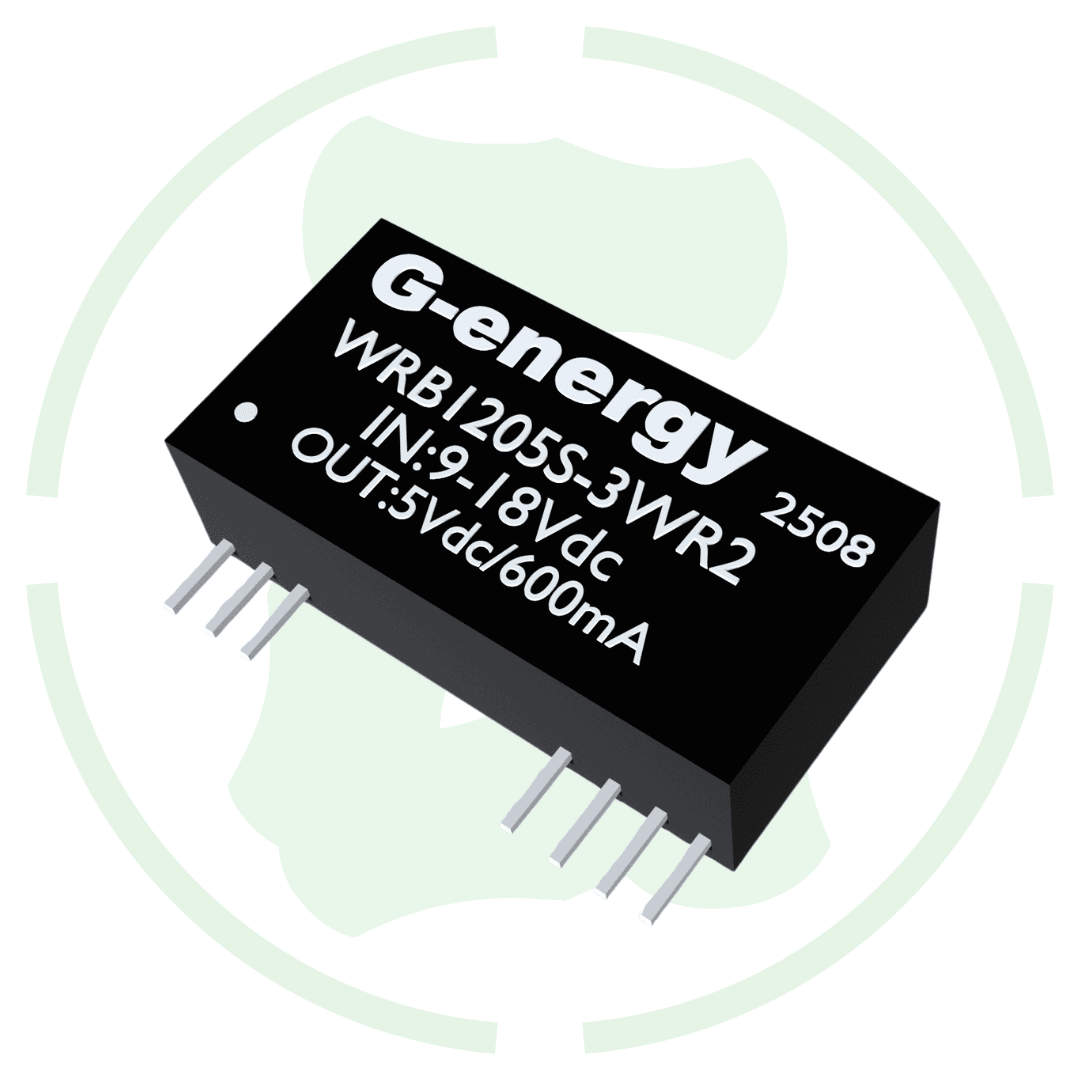

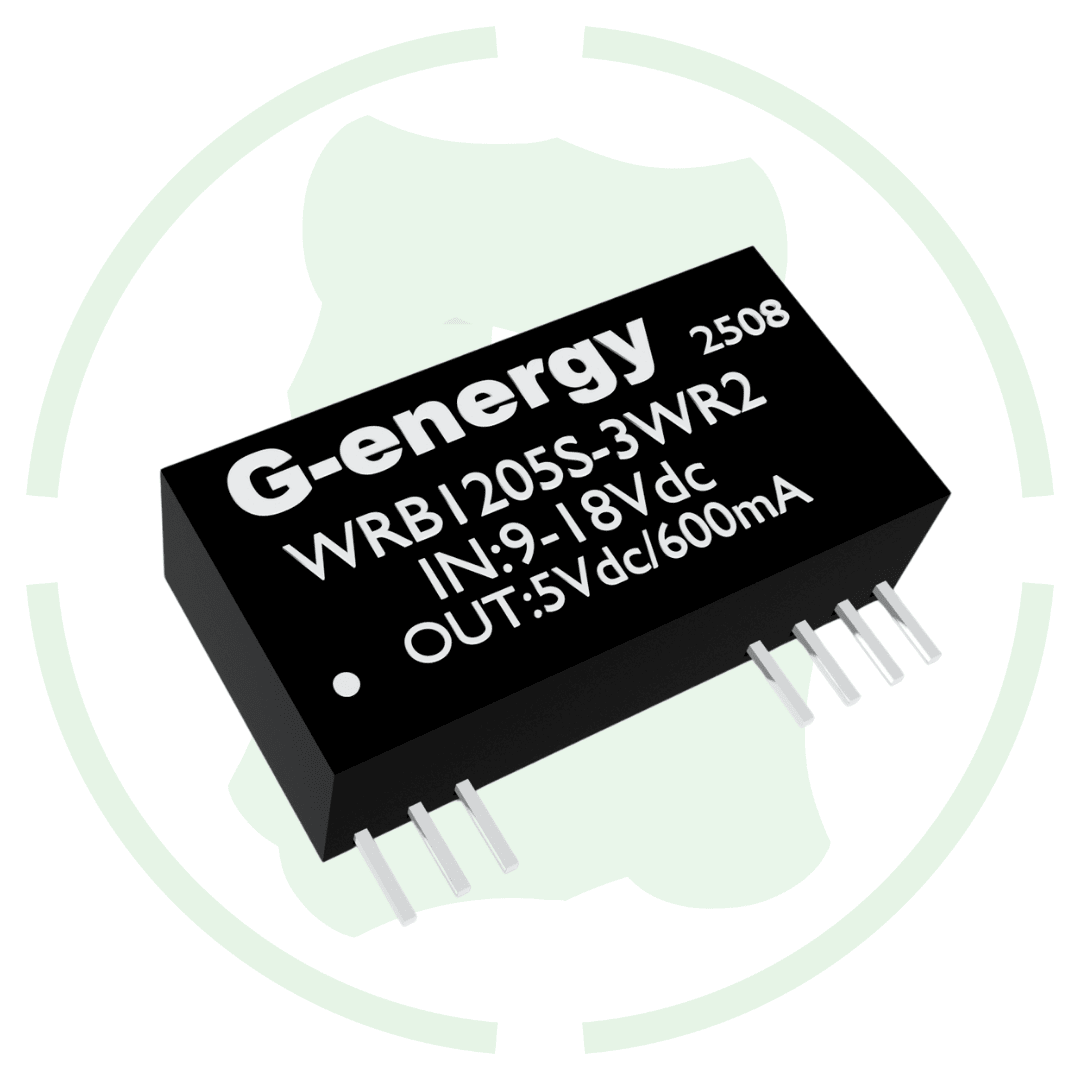

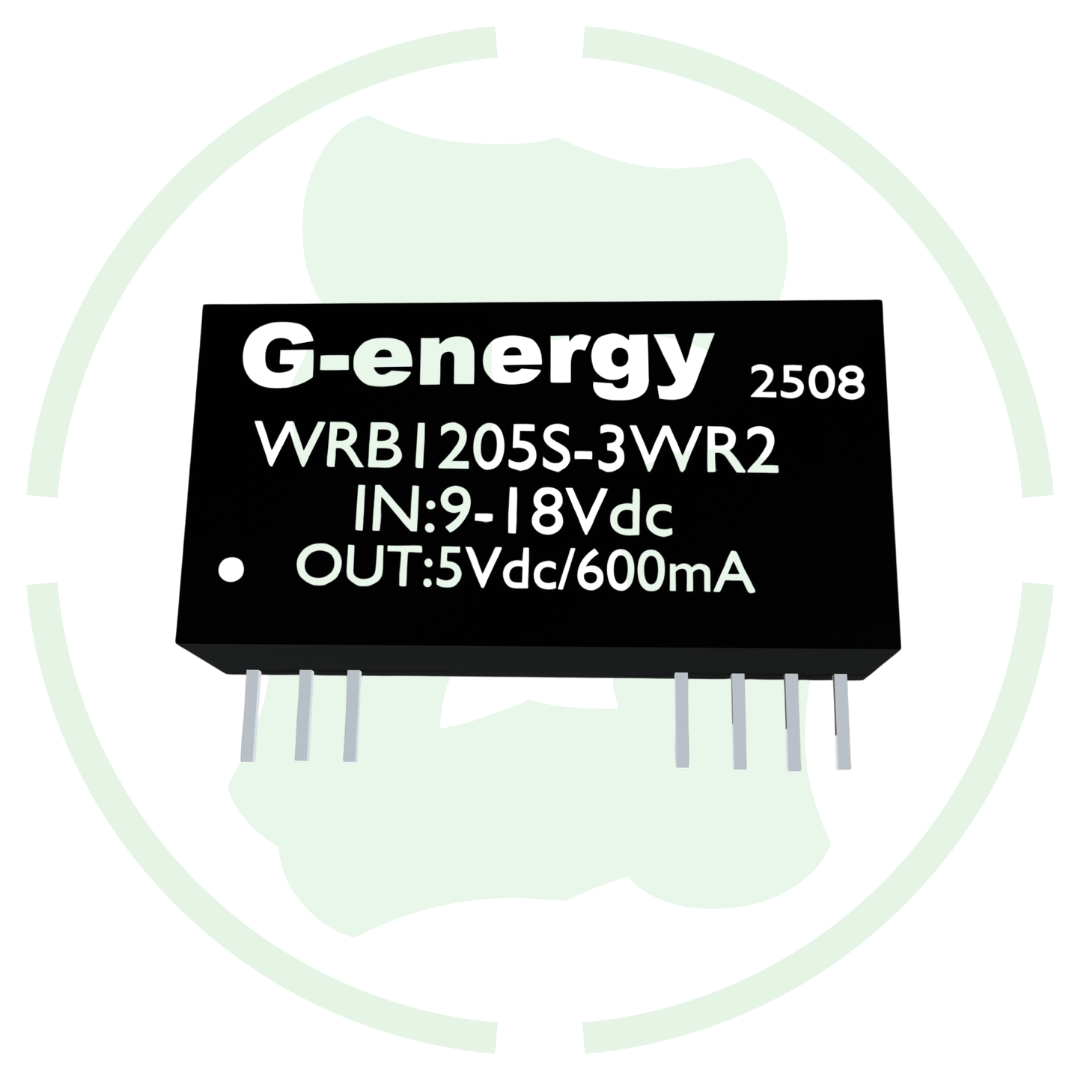

G energy WRB1205S-3WR2 12V to 5V 600mA 3W Dc Dc Converter IP68 Step Down Converter

Overview of this G energy WRB1205S-3WR2 12V to 5V 600mA 3W Dc Dc Converter

Introducing G energy WRB1205S-3WR2 12V to 5V 600mA 3W dc dc converter ip68 step down converter at best price in India with g-energy. This step down converter provide 9-18V input voltage range which is perfect for low-voltage electronic and device. This converter is designed to supply a maximum output power of 3 watts with 600mA dc current.

Features

Input Voltage: This converter works perfectly with a 9v-18v dc input voltage rage & provide a fix 5v dc output voltage.

Output Voltage: It provide a fix 5V dc output, which is best to power device like USB gadgets, sensors, and small electronics.

High Conversion Efficiency: Converter gives 80% efficiency and designed to convert power with minimal loss, so less heat is generated and more energy goes to your device.

Specification

1. Input Voltage Range: 9-18V

2. Output Voltage: 5V DC

3. Output Current: 600mA

4. Output Power: 3W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 70mVp-p

10. Nominal Input Voltage: 12V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions:21mm × 11mm × 9mm

17. Weight: 5gm

18. Cooling Method: Free air convection (no fan required)
