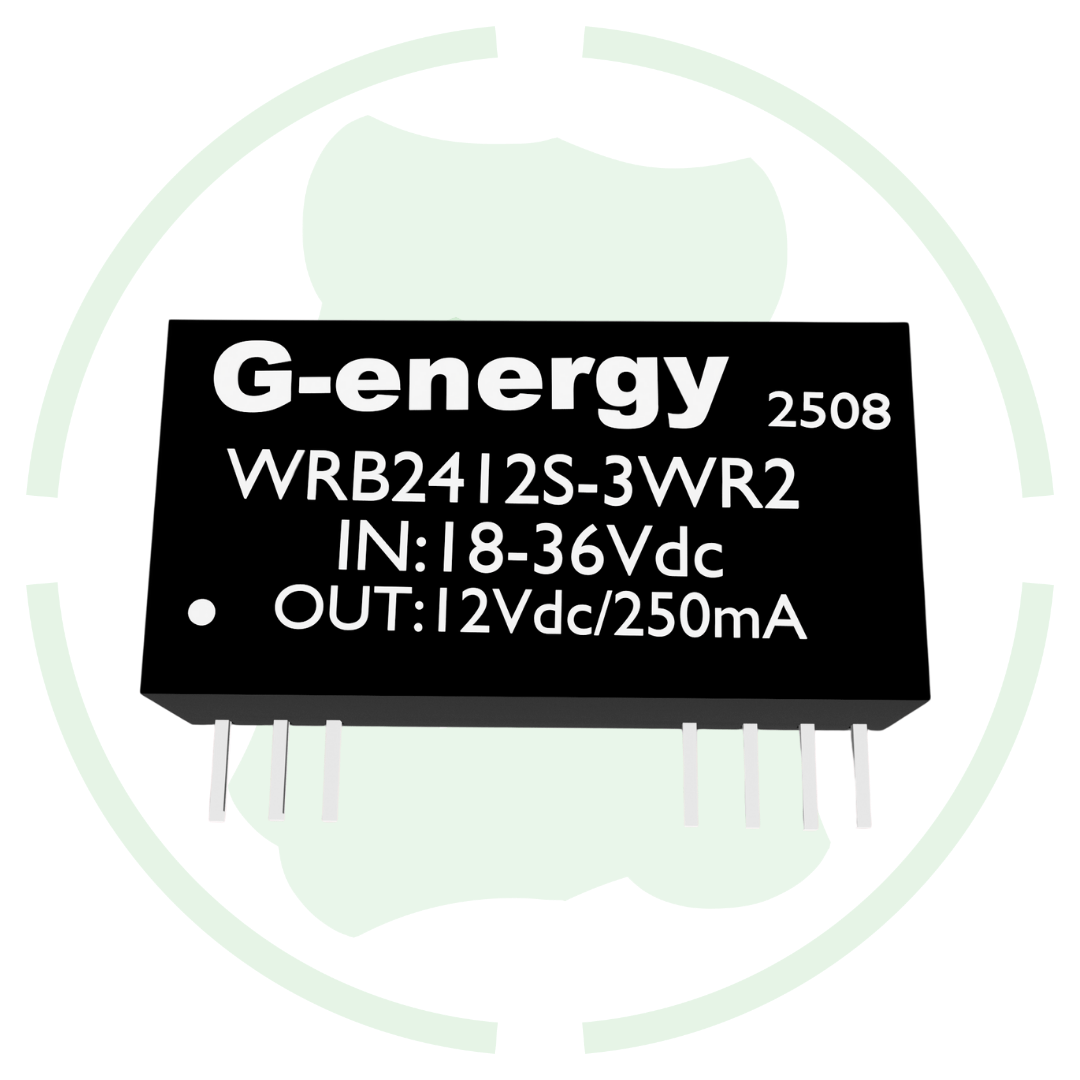

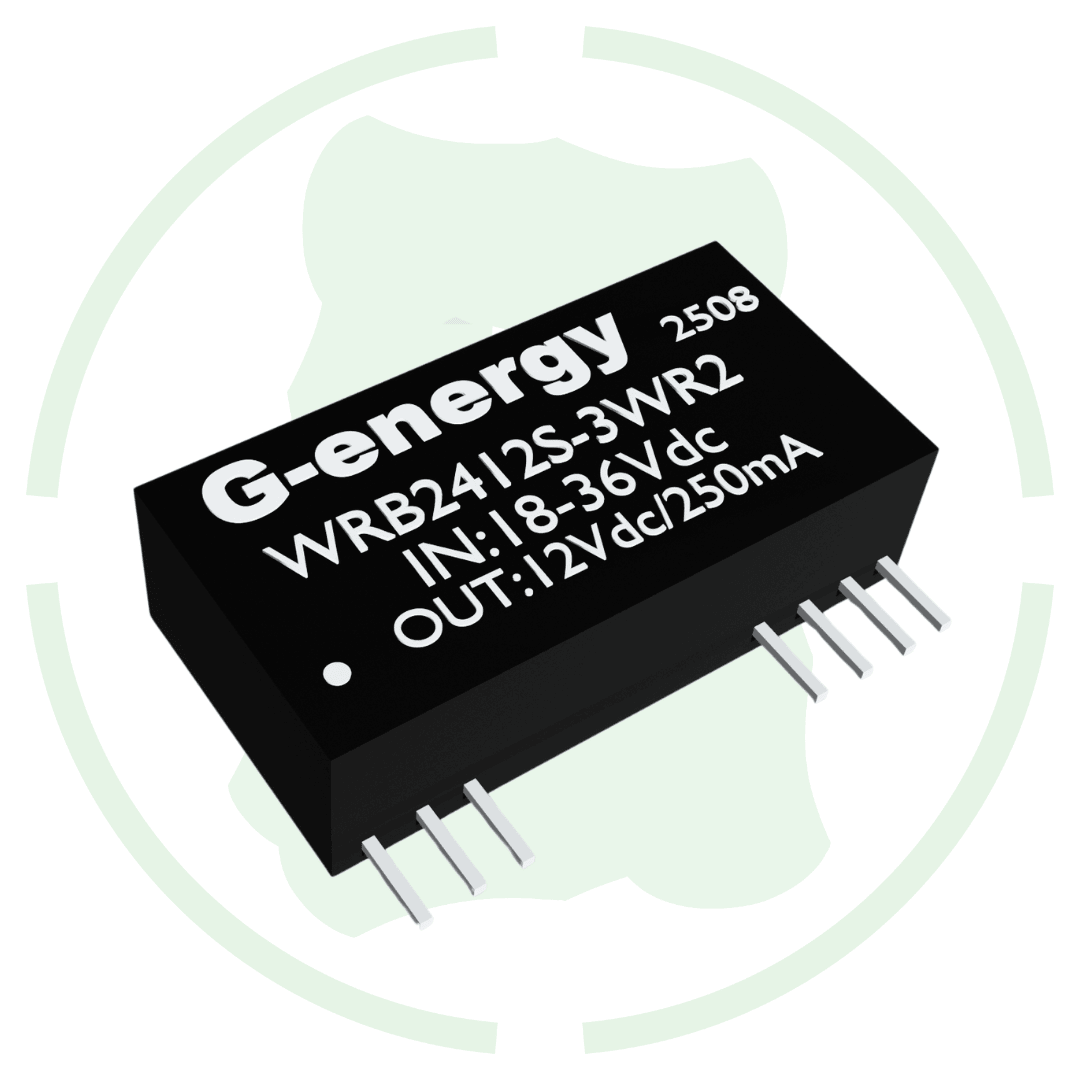

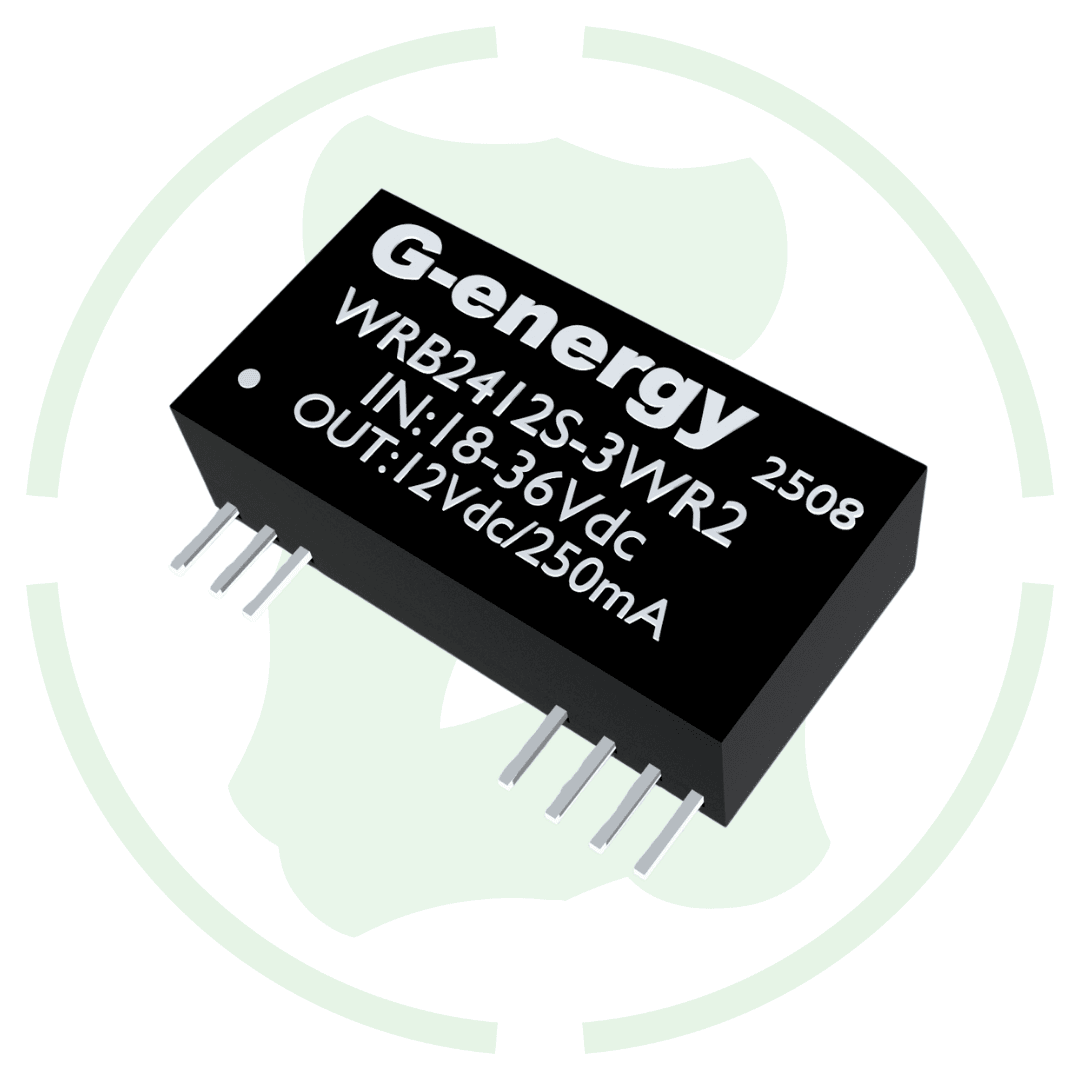

G energy WRB2412S-3WR2 24V to 12V 250mA 3W Dc-Dc Converter IP68 Buck Converter

G energy WRB2412S-3WR2 24V to 12V 250mA 3W Dc-Dc Converter IP68 Buck Converter

Introducing G energy WRB2412S-3WR2 24V to 12V 250mA 3W Dc-Dc Converter IP68 Buck Converter at best price in India with g-energy. This buck converter work on 18-36V input voltage and provide a fix 12v dc output voltage.  It can supply up to 250mA current and 3W max dc power. It  designed with ip68 protection to work in wet, dusty, or outdoor environments without damage & make it ideal for harsh condition.

Features

Input Voltage: This 24V to 12V converter works with 18v to 36v input voltage range & make it suitable for various industrial and automotive power system.

Fixed 12V Output: It also provide a fix 12V dc output voltage with up to 250mA dc current & protect your device from voltage change.

High Efficiency: It is built with advance voltage conversion technology to provide up to  85% efficiency and designed for low energy loss in energy saving dc set up.

Specification

1. Input Voltage Range: 18-36V

2. Output Voltage: 12V DC

3. Output Current: 250mA

4. Output Power: 3W

5. Efficiency: 85%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 100mVp-p

10. Nominal Input Voltage: 24V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 21mm × 11mm × 8mm

17. Weight: 5gm

18. Cooling Method: Free air convection (no fan required)
