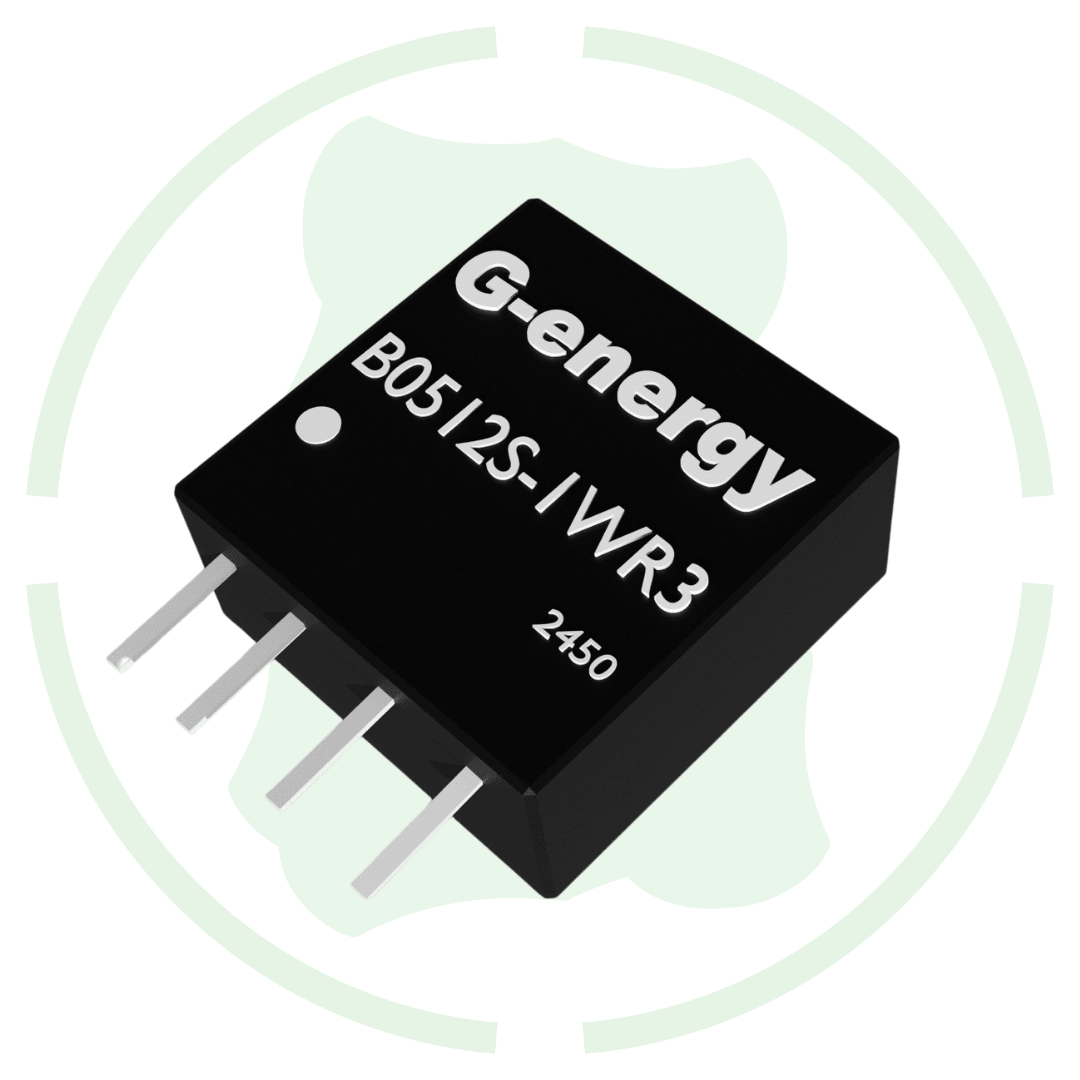

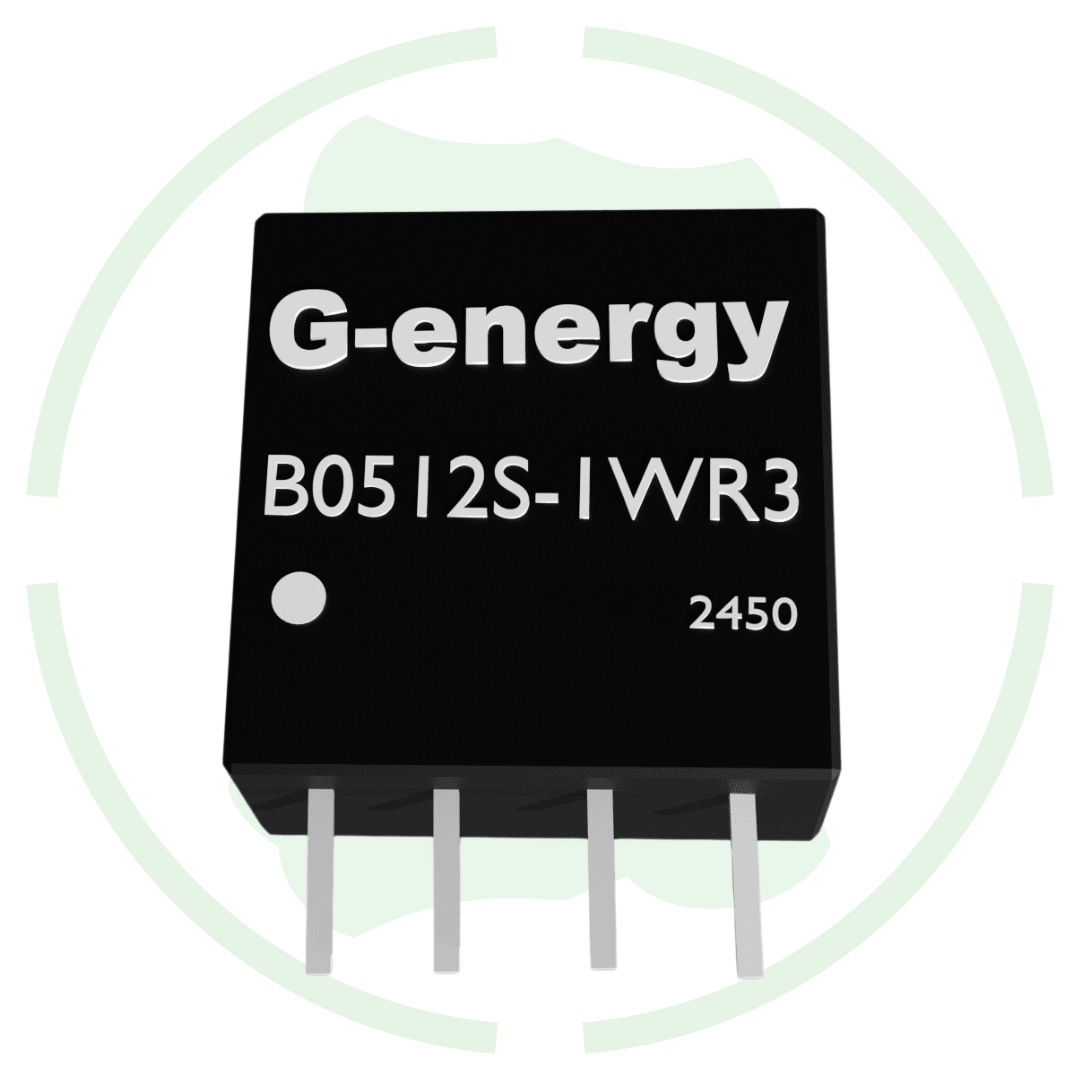

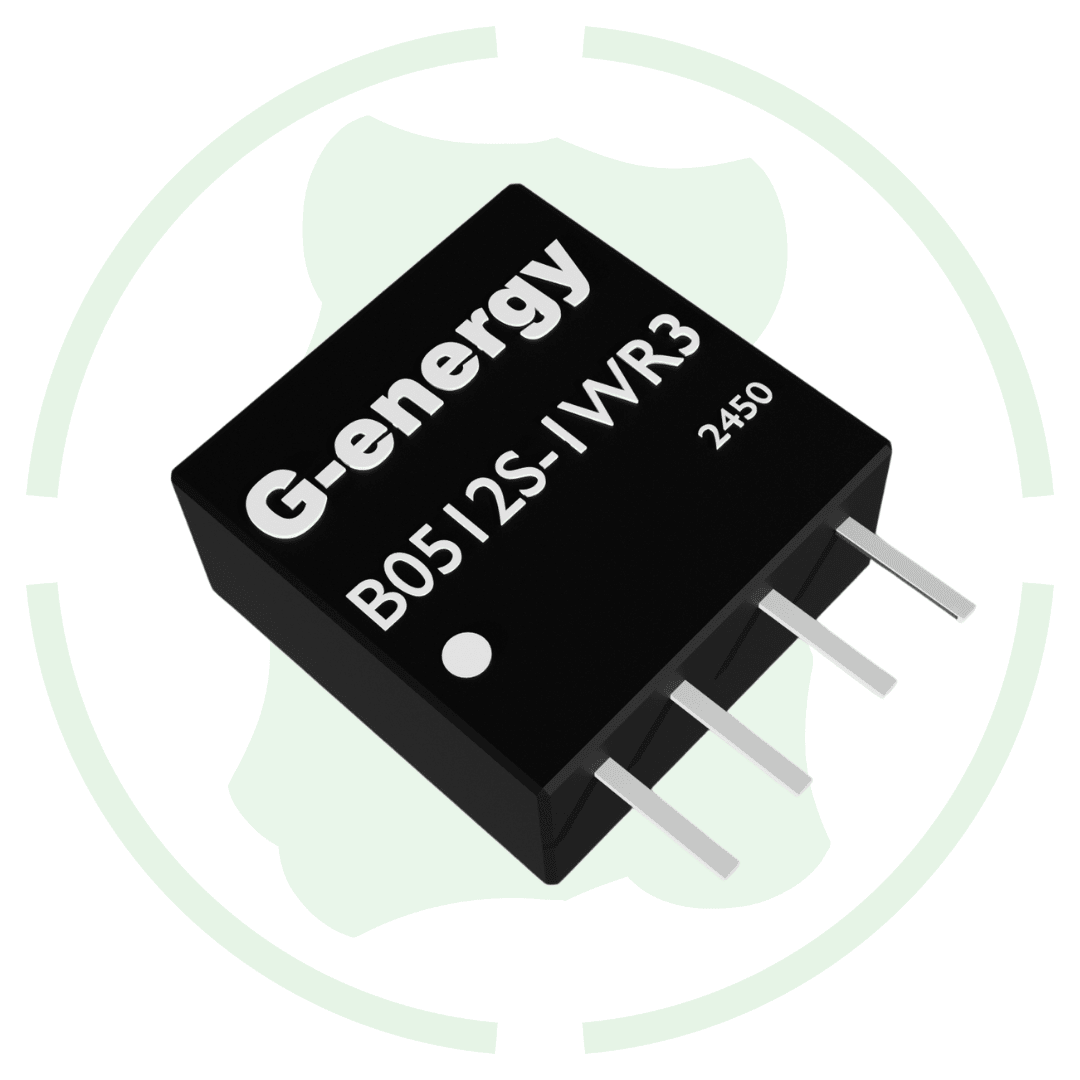

G-energy B0512S-1WR3 5V to 12V 83mA 1W Dc Dc Converter IP68 Boost Converter

Overview of this G-energy B0512S-1WR3 5V to 12V 83mA 1W Dc Dc Converter

Introducing G-energy B0512S-1WR3 5V to 12V 83mA 1W Dc Dc Converter IP68 Boost Converter at the best price in India with g-energy.  It can supply up to 1 watt of power which is enough for small circuits, sensors, or multiple types pcb boards. This boost converter takes 4.5-5.5V input and gives out the same 12 volts and ensure your devices get a constant and stable supply.

Features

Boosts Voltage from 5V to 12V – This boost converter converts a lower input voltage (5V) to a higher stable output voltage (12V) and it is perfect for powering devices that need more voltage.

Comes in SIP package – Converter comes in single Inline Package design for compact size and easy mounting on circuit boards.

High Efficiency – This converter gives up to 85% efficiency and designed to efficiently convert and regulate power with minimal energy loss, reducing heat generation.

Specification

1. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 12V DC

3. Output Current: 83mA

4. Output Power: 1W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 30/75mVp-p

10. Nominal Input Voltage: 5V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 11mm × 10mm × 5mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)
