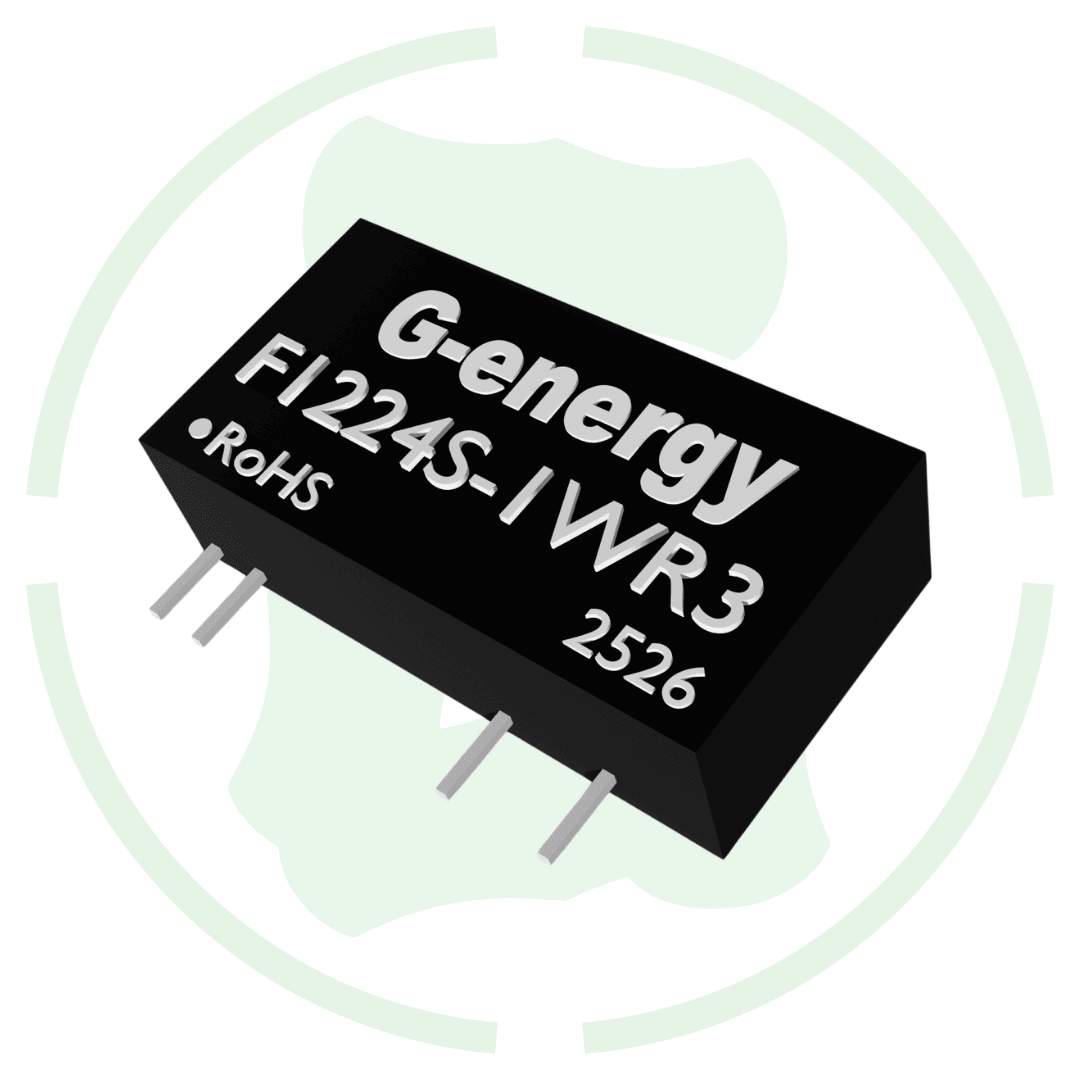

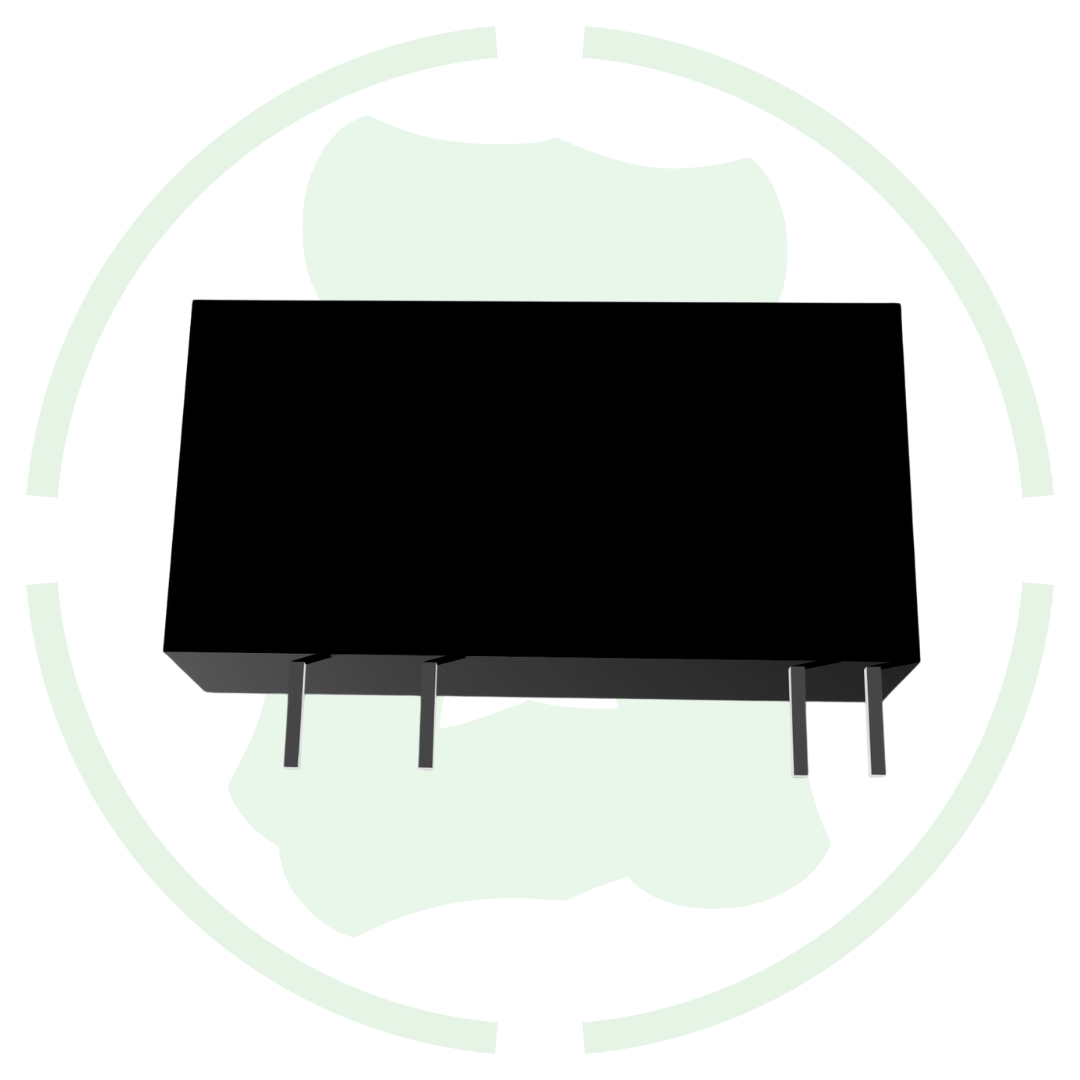

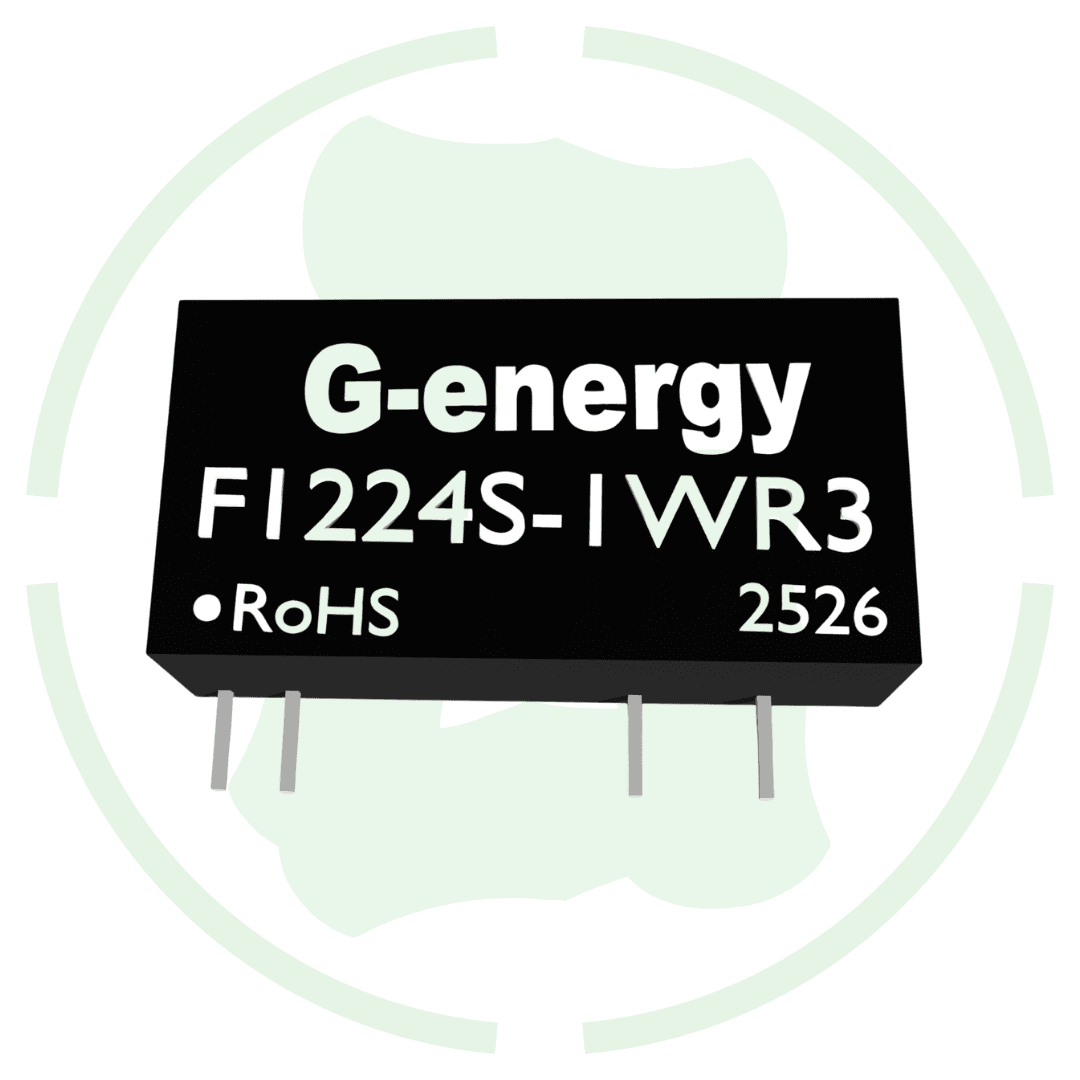

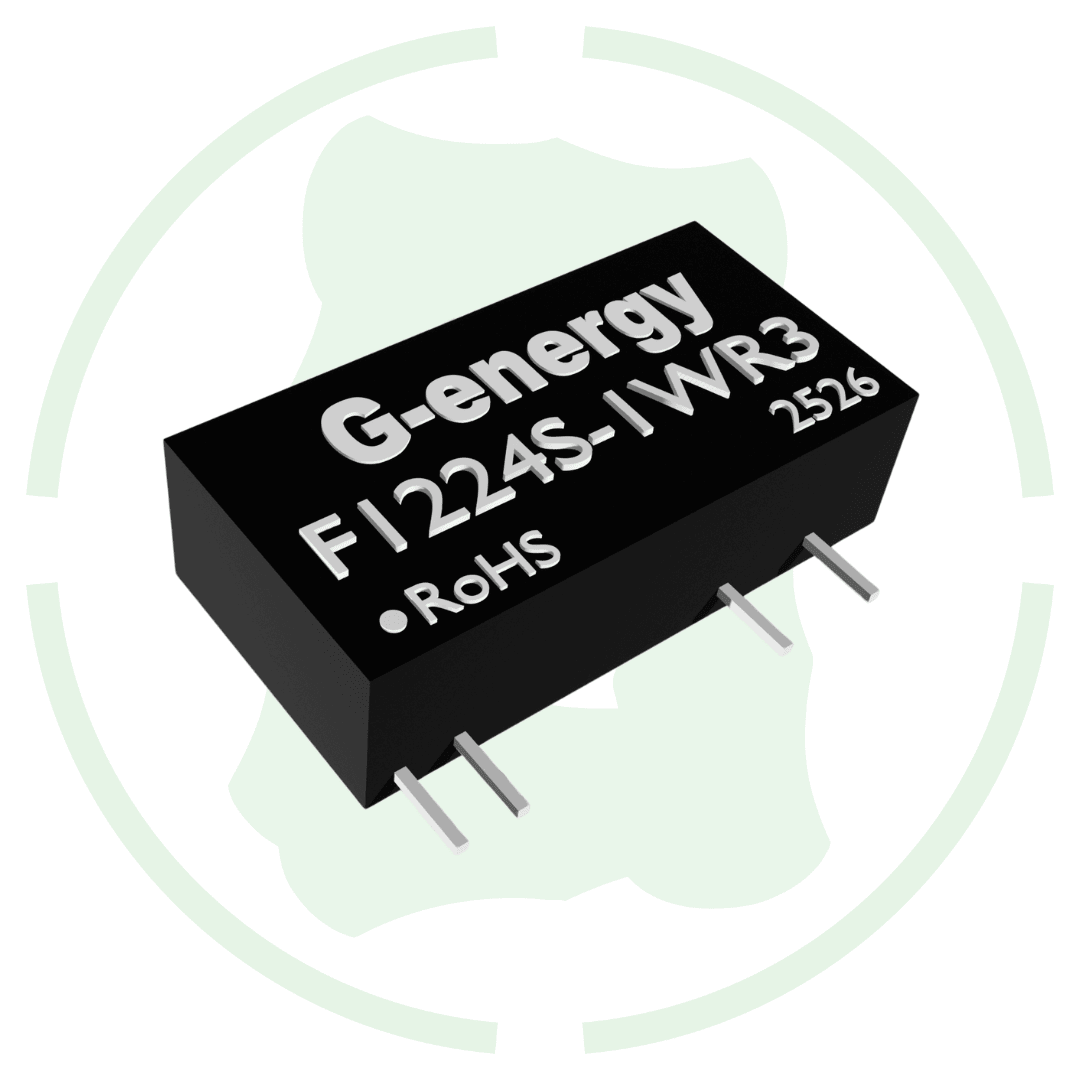

G-energy F1224S-1WR3 12V to 24V 41mA 1W Dc Dc Converter IP68 Step Up Converter

Overview of this F1224S-1WR3 12v to 24v 41mA 1w dc to dc converter IP68 step up converter

Introducing G-energy F1224S-1WR3 12V to 24V 41mA 1W Dc Dc Converter IP68 Step Up Converter at best price in India with g-energy. This step up converter gives 10.8-13.2V input voltage range which is useful when your equipment needs a higher voltage than your power source. Converter gives up to 1 watt of power which enough for small electronics, sensors, communication devices, and other low-power applications.

Feature

Comes in SIP package – This step up converter comes in single Inline Package design for compact size and easy mounting on circuit boards.

Step-Up Voltage Conversion – This 108-13.2V to 24v 1w converter convert a 12V input into a stable 24V output.

High Efficiency – This F1224S-1WR3 converter provide up to 80% conversion efficiency and converts power with minimal loss.

Specification

1. Input Voltage Range: 10.8-13.2V

2. Output Voltage: 24V DC

3. Output Current: 41mA

4. Output Power: 1W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 75

10. Nominal Input Voltage: 12V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 19mm × 9mm × 5mm

17. Weight: 2 gm

18. Cooling Method: Free air convection (no fan required)
