12V To 48V 10A 480W Dc Dc Converter GEMSU124810 Boost Module

Overview of this 12V To 48V 10A 480W Dc Dc Converter GEMSU124810 Boost Module

Introducing G-energy 12v to 48v 10a dc converter at best price in India with G-energy. This Voltage converter work on a wide input voltage range of 8v to 30v dc input voltage. And it provide a stable voltage of dc 12v with up to 10a max dc current and 480w dc power.

Features

Big Input Voltage: This dc boost converter work on an input voltage of 8v to 30v for smooth operation in changing input condition.

Stable 12V output: It also provide a fix 12v output with a 10a max dc current for stable operation.

Ip68 Waterproof: It is also built with metal body and epoxy coating for converter waterproofing and its safety from wet conditions.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 10V-30V DC

2. Rated Input Voltage: 12V 24V DC

3. Output Voltage: 48V DC

4. Maximum Output Current: 10A

5. Maximum Output Power: 480W

6. Efficiency (Typical): Up to 94.5%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 96mV (at full load)

10. No-load Current Draw: 30mA @ 12V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Smart Chip Protection: Yes

16. Synchronous Rectification Technology: Yes

17. Non-Isolated Converter: Yes

📦 Mechanical & Physical

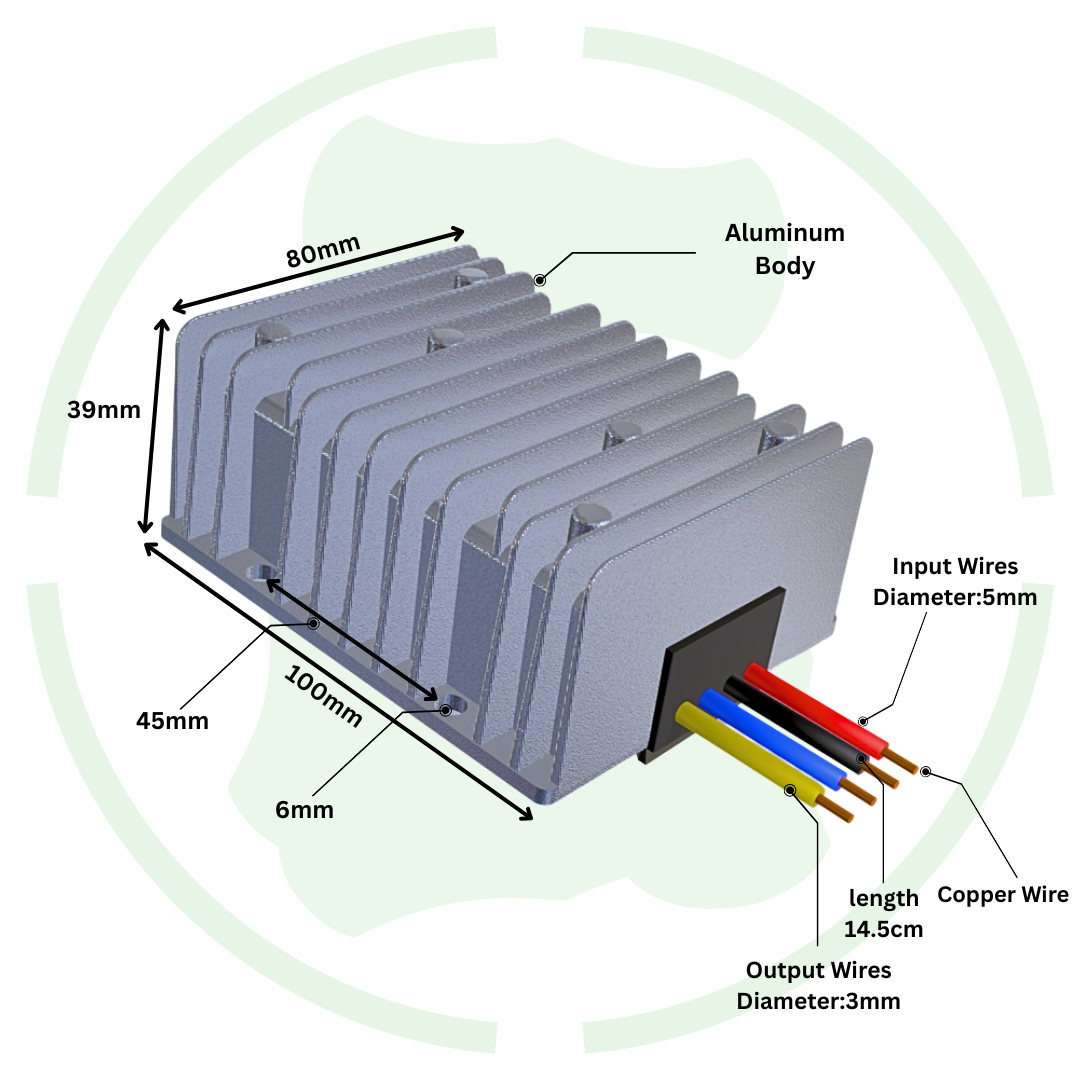

19. Dimensions: 100x80x39 mm

20. Weight: 400 gm

21. Cooling Method: Free air convection (no fan required)

Datasheet of GEMSU124810 12V To 48V 10A 480W Dc Dc Converter Boost Module
